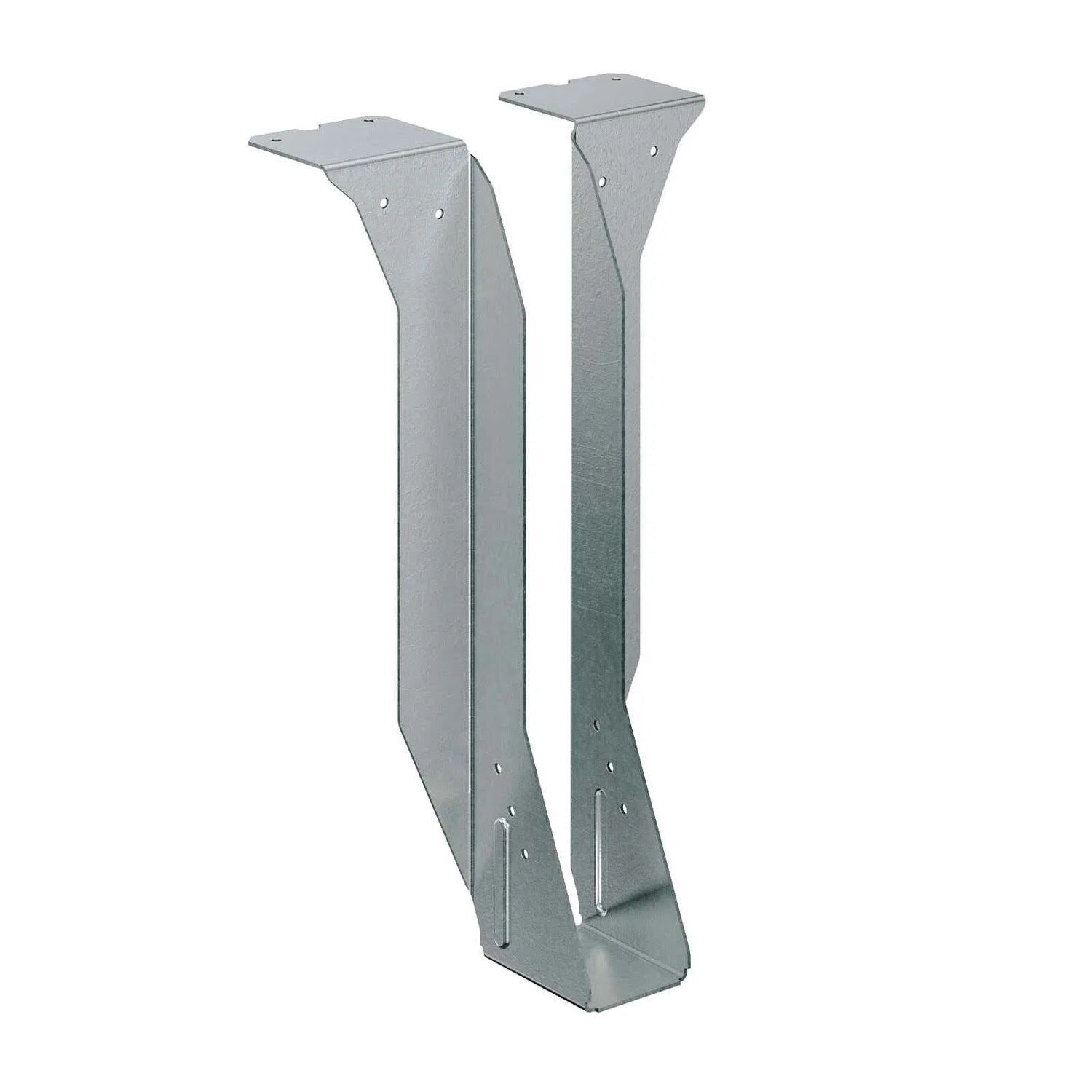

Simpson Strong-Tie S/LBV2.12/8 Description

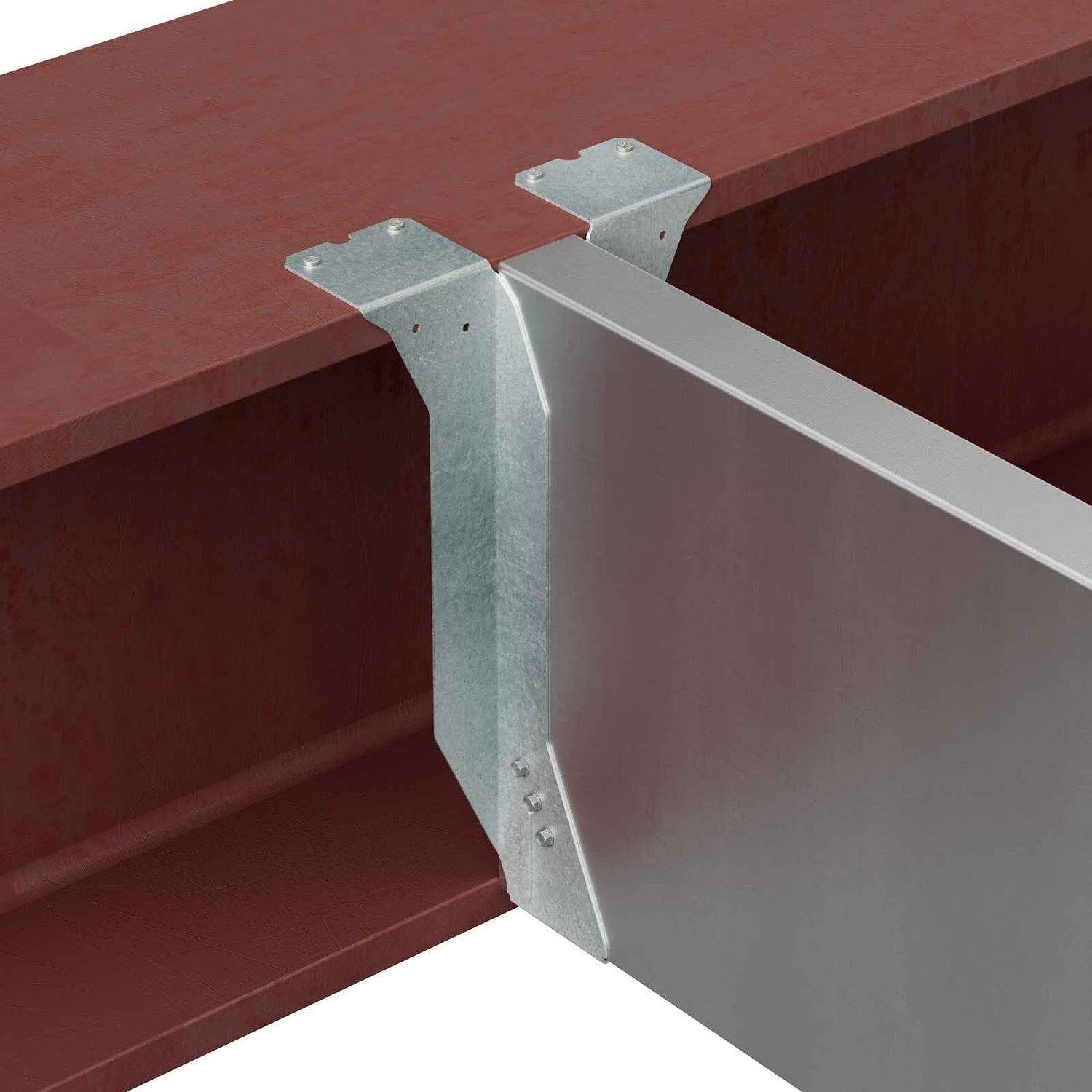

The Simpson Strong-Tie S/LBV2.12/8 is a high-capacity joist hanger designed for cold-formed steel joists, featuring a G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie S/LBV2.12/8 Includes
- (1) Light Gauge Hanger G90 Galvanized
Simpson Strong-Tie S/LBV2.12/8 Features
- High-capacity joist hanger for structural steel or cold-formed steel members
- Modifiable top-flange design allows skewing up to 45°
- G90 Galvanized finish for enhanced corrosion resistance
- Ensures dimensional accuracy and proper bearing area
Simpson Strong-Tie S/LBV2.12/8 Applications
- Cold-formed steel joist support
- Structural steel connections
Simpson Strong-Tie S/LBV2.12/8 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Height | 8" |
| Joist size | 2" X 8" |
| Thickness | 14 Gauge |
| Width | 2-1/8" |
Toolup Part # :
823429
