Simpson Strong-Tie S/LBV4.18/14 Description

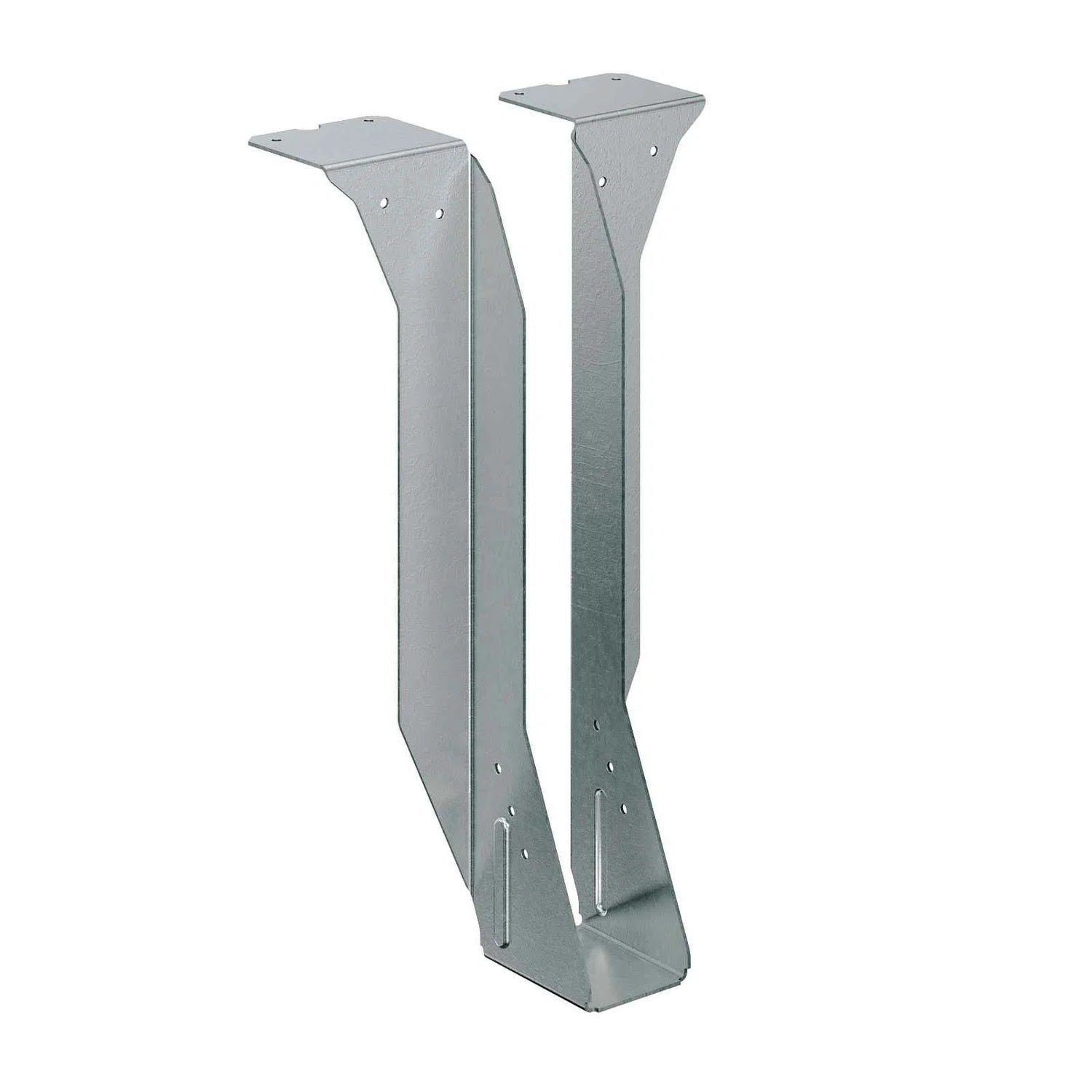

The Simpson Strong-Tie S/LBV4.18/14 is a high-capacity joist hanger designed for cold-formed steel joists, featuring a G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie S/LBV4.18/14 Includes
- (1) High-Capacity Joist Hanger
Simpson Strong-Tie S/LBV4.18/14 Features
- High-capacity design for structural steel or cold-formed steel members
- Modifiable top-flange hanger skewable up to 45 degrees
- G90 Galvanized finish for corrosion resistance
- Dimensional accuracy ensures proper bearing area and connection
Simpson Strong-Tie S/LBV4.18/14 Applications
- Cold-formed steel joist support
- Structural steel member connections

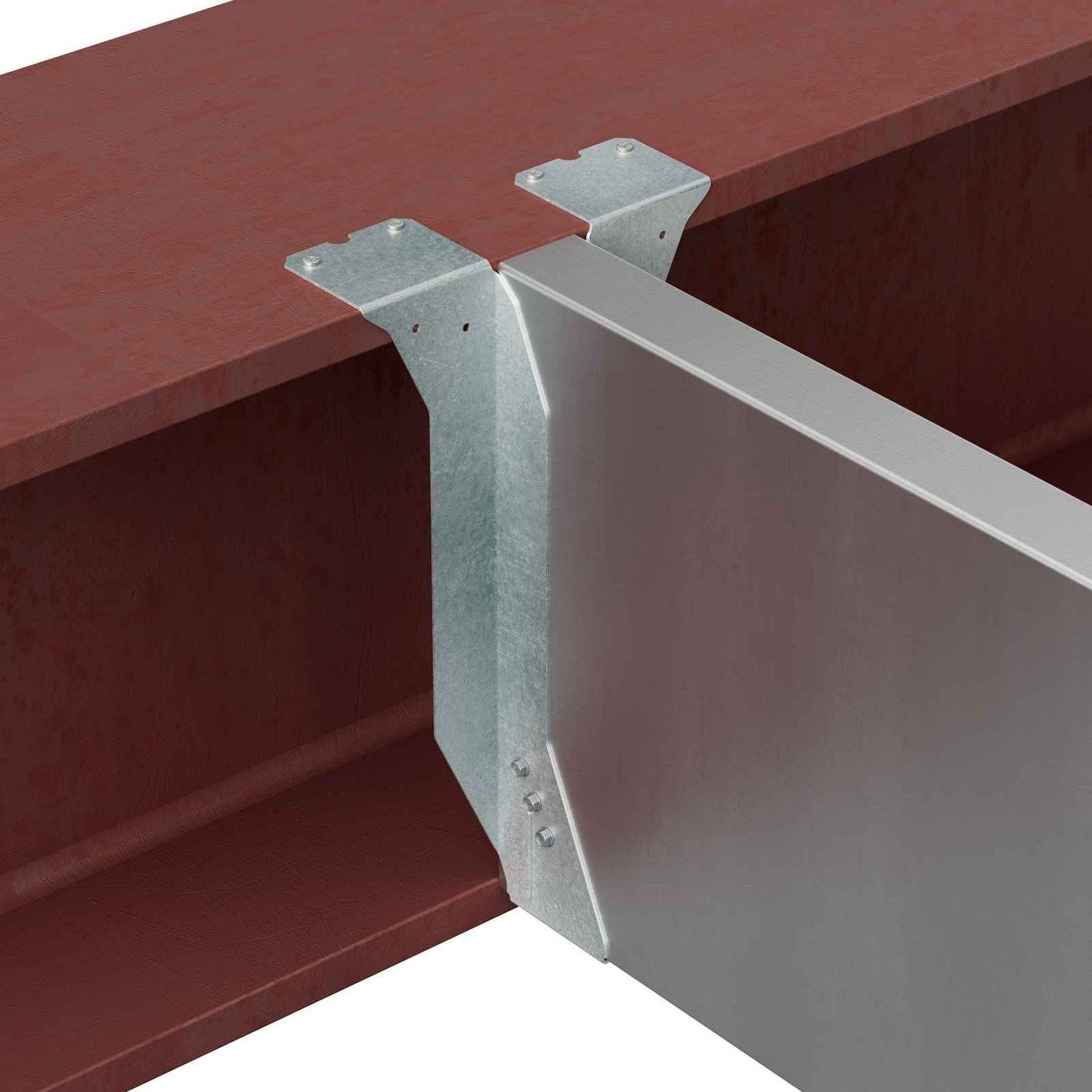

Simpson Strong-Tie S/LBV4.18/14 Installation Overview
- Align the hanger with the structural steel or cold-formed steel member.
- Secure the hanger using appropriate fasteners as per manufacturer guidelines.
- Ensure the joist is properly seated and secured within the hanger.
Simpson Strong-Tie S/LBV4.18/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Height | 14" |
| Joist size | Double 2" X 14" |
| Thickness | 14 Gauge |
| Width | 4-3/16" |
NOTE: This item is made to order and is non-returnable.
Toolup Part # :
820328
