Simpson Strong-Tie S/LS50 Description

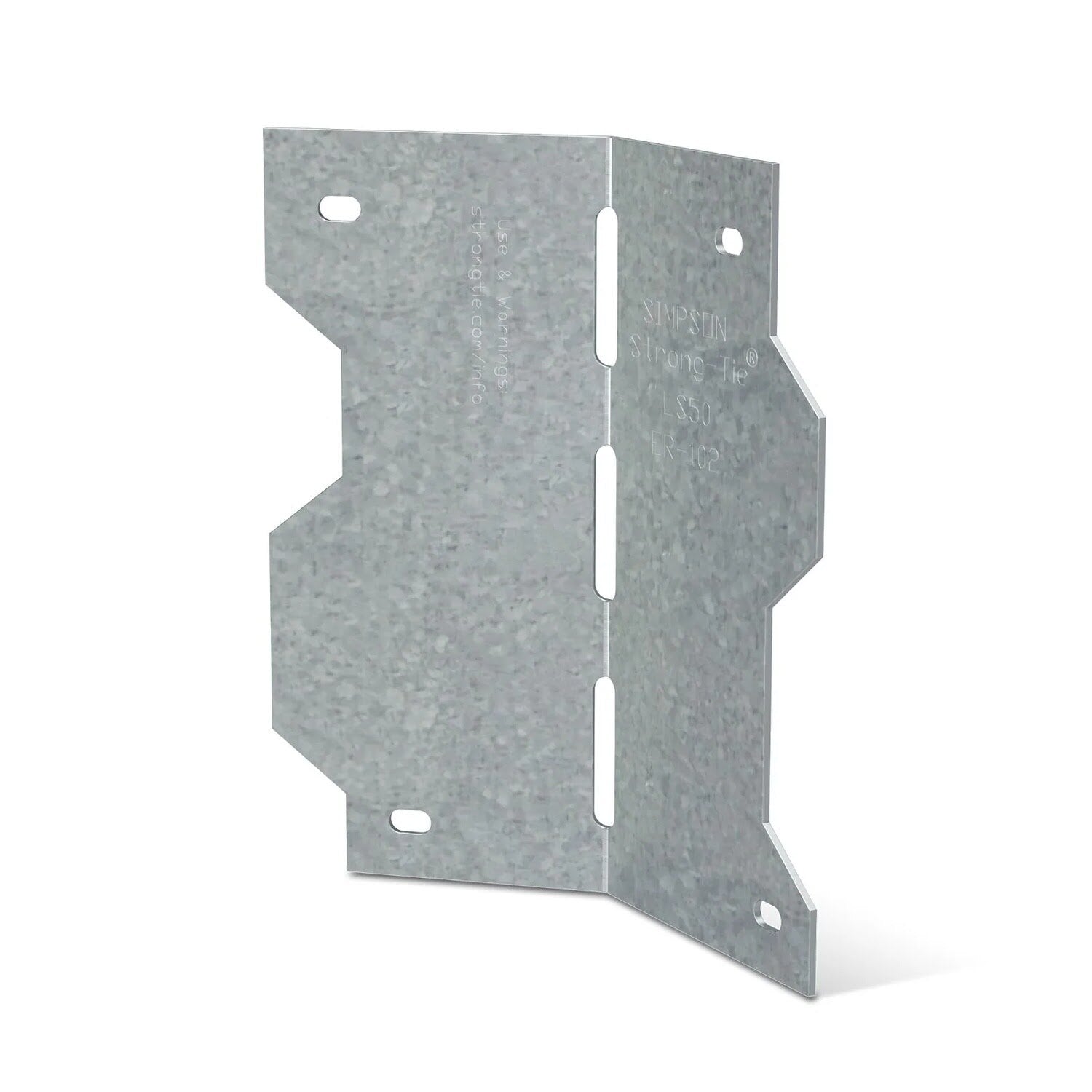

The S/LS50 Light Gauge Steel Reinforcing Angle is a load-rated connector designed for general utility applications, featuring G90 galvanized finish for durability.
Simpson Strong-Tie S/LS50 Includes
- (1) Light Gauge Steel Reinforcing Angle - G90 Galvanized
Simpson Strong-Tie S/LS50 Features
- Load-rated for reliable performance
- G90 galvanized finish for corrosion resistance
- Field-skewable design for versatile applications
- Defined fastener locations for ease of installation
Simpson Strong-Tie S/LS50 Applications
- General utility reinforcing angles for multiple uses
- Connecting members intersecting at angles
- Cold-formed steel framing applications
Simpson Strong-Tie S/LS50 Installation Overview
- Use all specified fasteners
- Field-skewable; bend one time only
- Ensure CFS framing is constrained against rotation when using a single S/LS or LS per connection

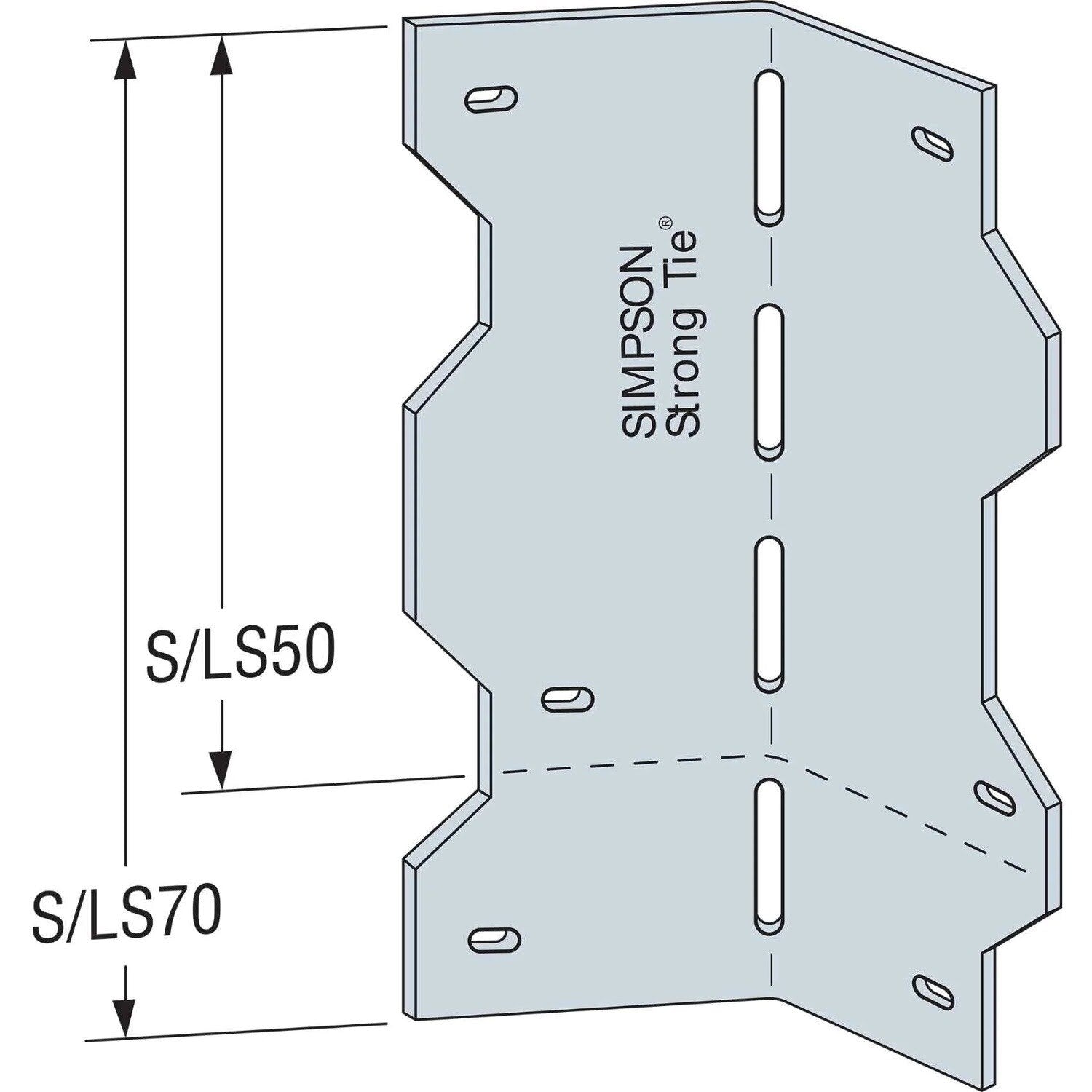

Simpson Strong-Tie S/LS50 Specifications
| Length | 4-7/8" |
| Weight | 0.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
