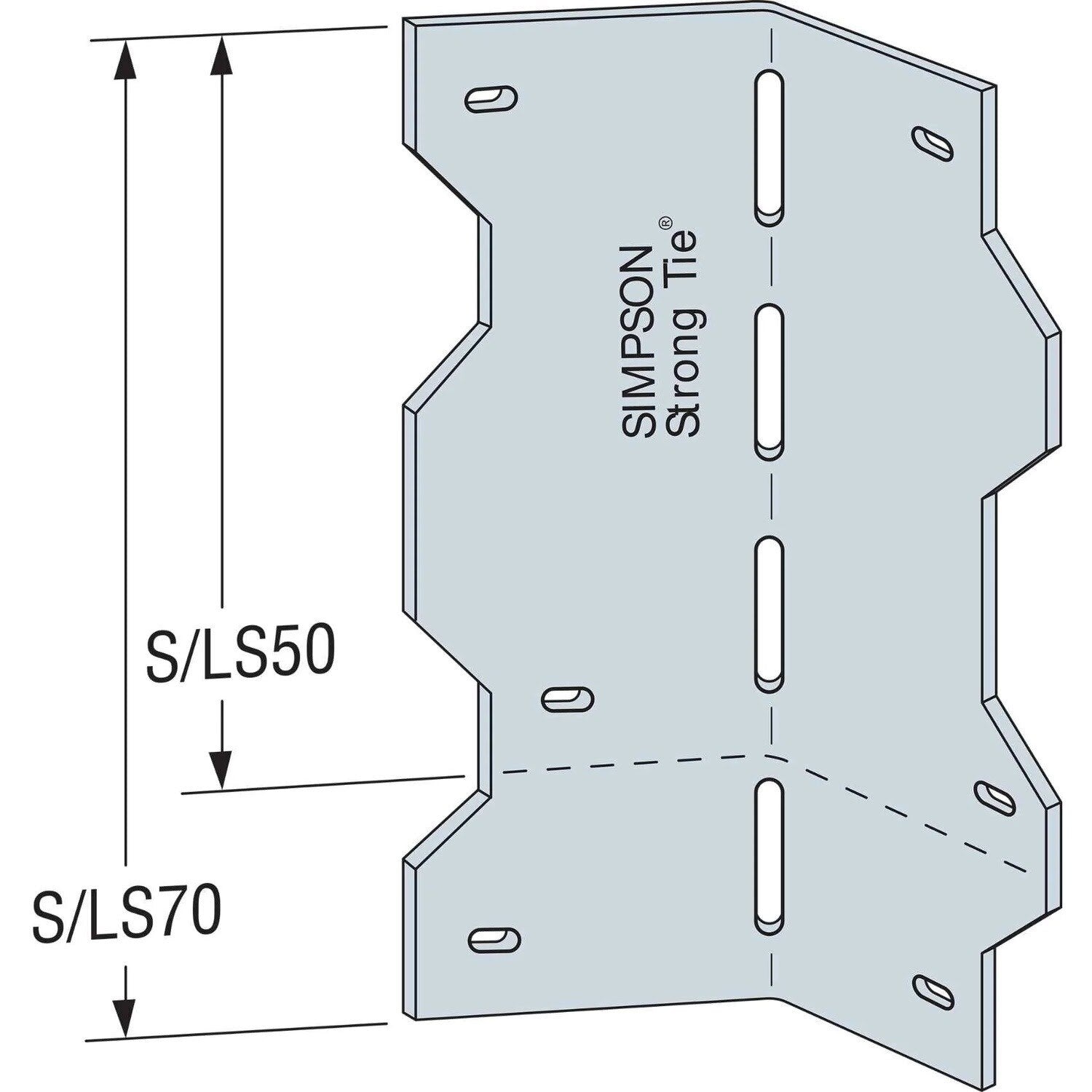

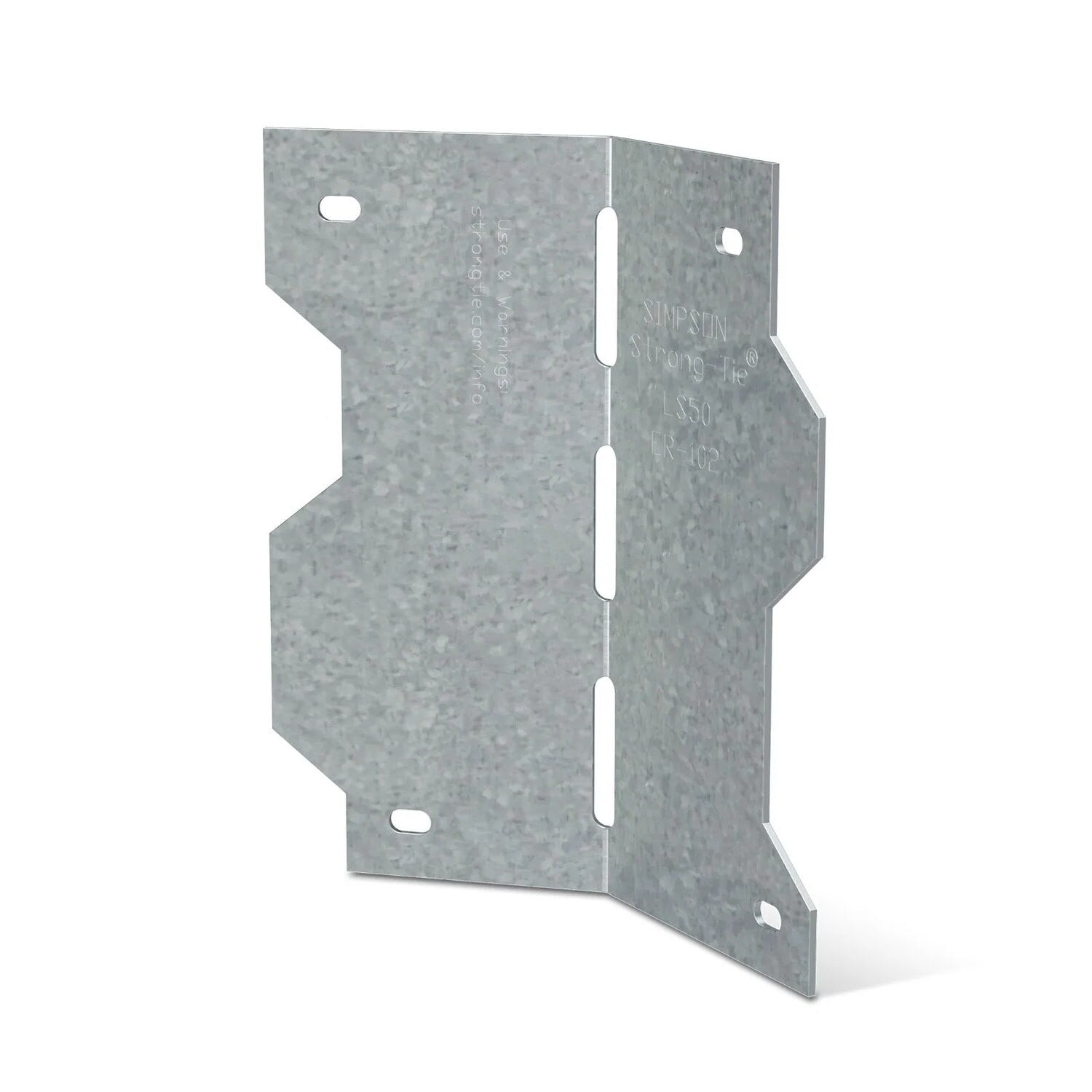

Simpson Strong-Tie S/LS70 Description
The S/LS70 Light Gauge Steel Reinforcing Angle by Simpson Strong-Tie is a versatile and load-rated connector designed for various applications. It features a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie S/LS70 Includes
- (1) Light Gauge Steel Reinforcing Angle
Simpson Strong-Tie S/LS70 Features
- Load-rated for reliable performance
- G90 galvanized finish for corrosion resistance
- Field-skewable for versatile applications
- Defined fastener locations for ease of installation
Simpson Strong-Tie S/LS70 Applications
- General utility reinforcing for steel framing
- Connecting members intersecting at angles
- Reinforcing cold-formed steel (CFS) structures
Simpson Strong-Tie S/LS70 Installation Overview
- Use all specified fasteners for installation
- Field-skewable; bend only once
- Ensure CFS framing is constrained against rotation when using a single connector
Simpson Strong-Tie S/LS70 Specifications
| Length | 6-3/8" |
| Weight | 0.4 lb |
| Finish | G90 Galvanized |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825402
