Simpson Anchors | SKU:
S/LTTP2
Simpson Strong-Tie S/LTTP2 Galvanized Tension Tie for Cold-Formed Steel Construction
$20.66
$33.05
Unit price
/
Unavailable
Description
Description
Simpson S/LTTP2 Description
The S/LTTP2 tension tie is designed for retrofit and new construction applications, offering easy installation and enhanced structural integrity.
Simpson S/LTTP2 Includes
- (1) Galvanized Tension Tie for Cold-Formed Steel Construction
Simpson S/LTTP2 Features
- Ideal for retrofit or new construction
- Easy installation for attachment of 1/2"-diameter post-installed or cast-in-place anchors to concrete and #10 screws to CFS studs
- Flanges rolled into bend and extruded anchor bolt hole provides increased strength and limits deflection
Simpson S/LTTP2 Applications
- Retrofit construction projects
- New construction applications

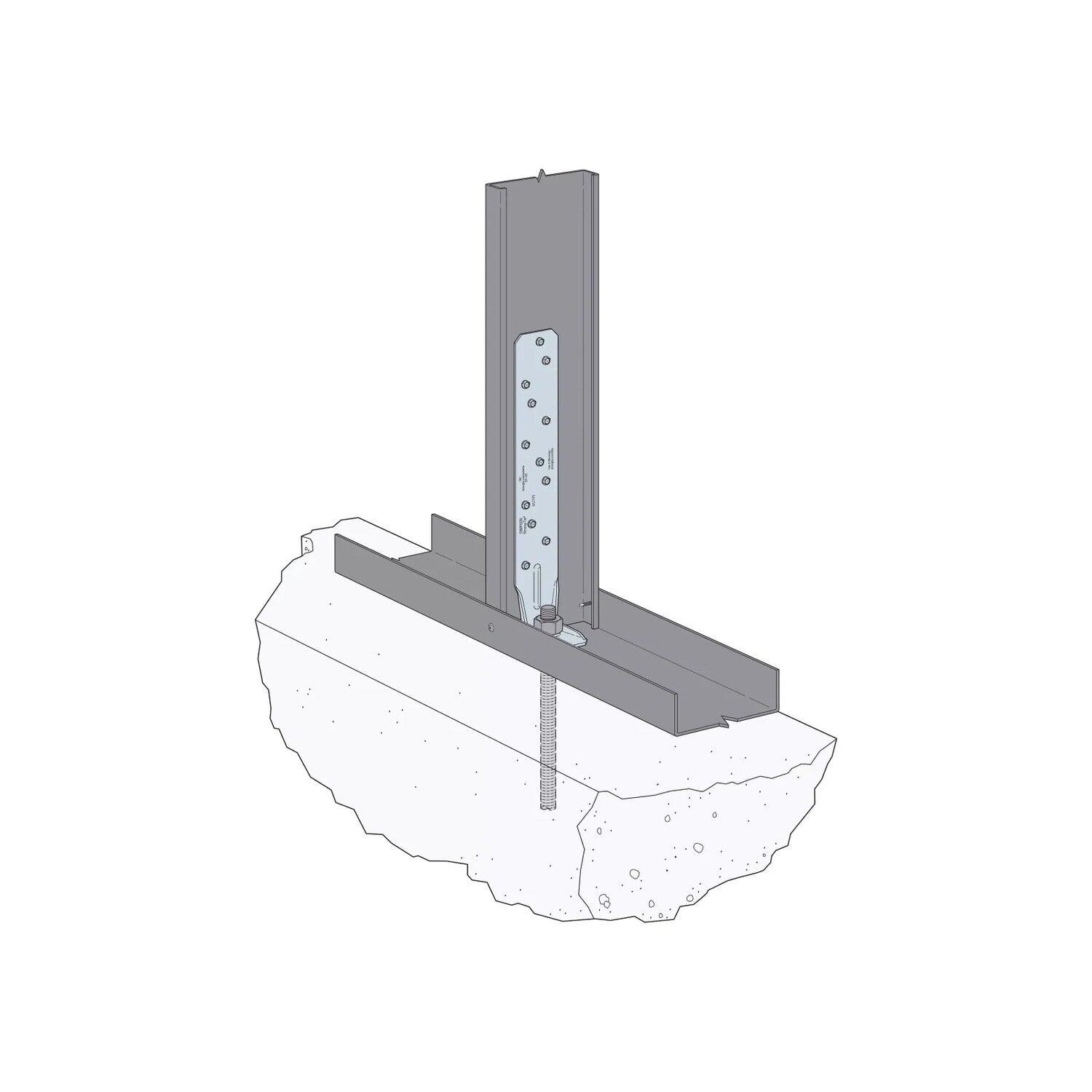

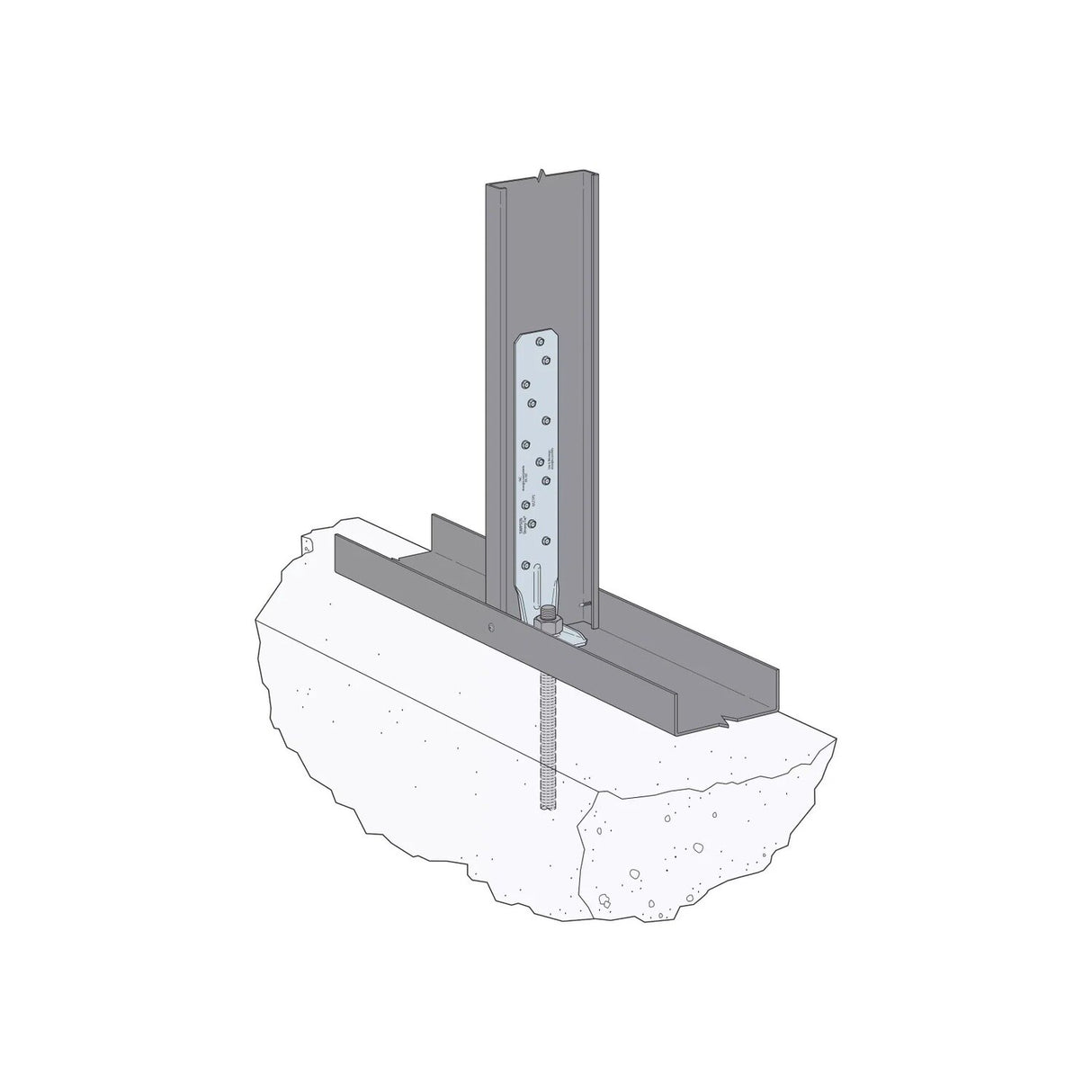

- Securing concrete foundations to steel studs
Simpson S/LTTP2 Installation Overview
- Attach the strap portion to the steel stud using specified screws.
- Bolt the base to the wall or foundation with a suitable 1/2"-diameter anchor.
- For cast-in-place applications, use PAB anchor bolts.
- For post-installed options, use Titen HD Heavy-Duty Screw Anchor, SET-3G, or AT-3G.

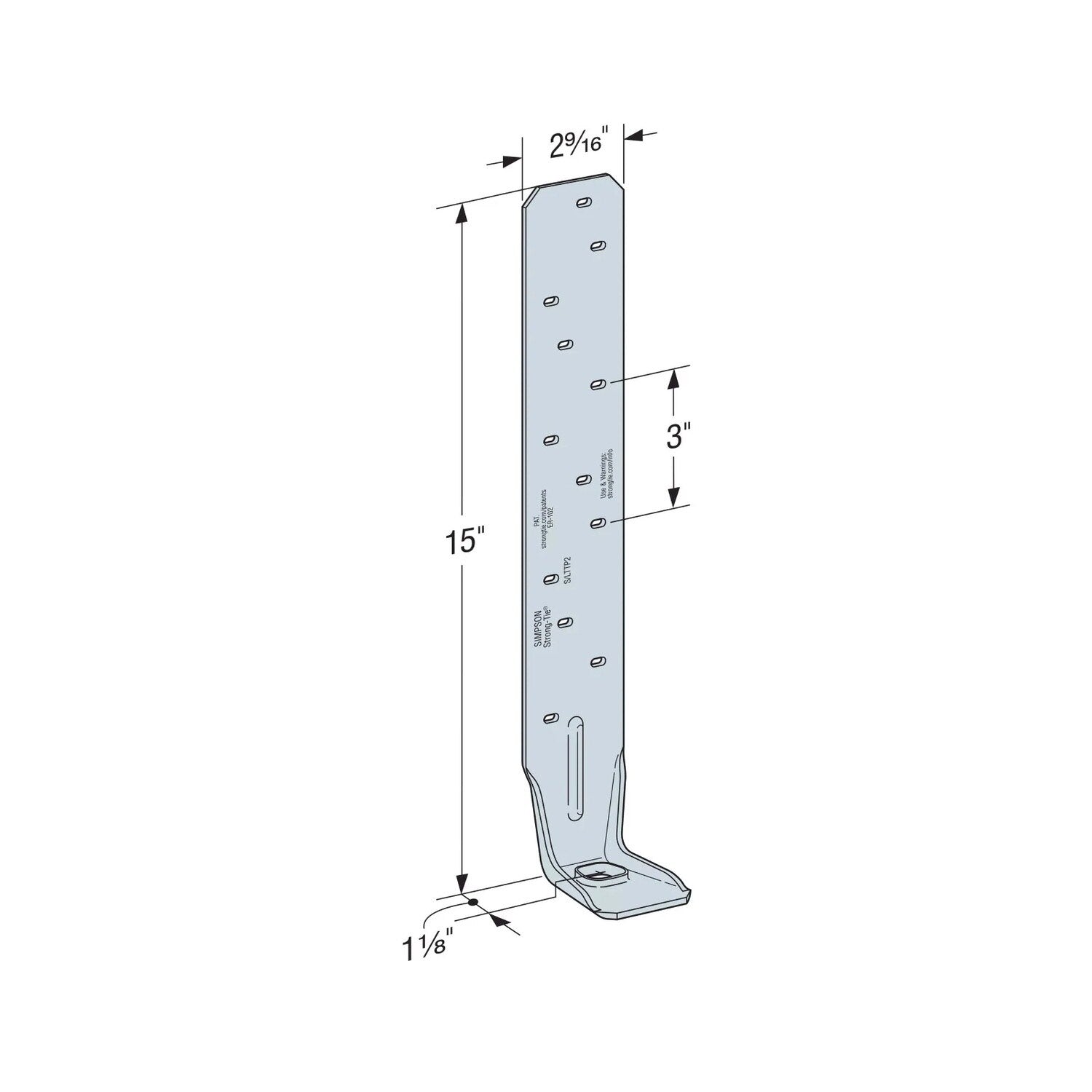

Simpson S/LTTP2 Specifications
| Material | 118 mil (10 ga.) |
| Finish | Galvanized (G90) |
| Width | 2-9/16" |
| Height | 15" |
| Weight | 1.6 lb |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
