At a Glance
Shank Type
Ring
Gauge
10 GA
Length
1-3/4 in
Quantity
5 lb
Description
Description

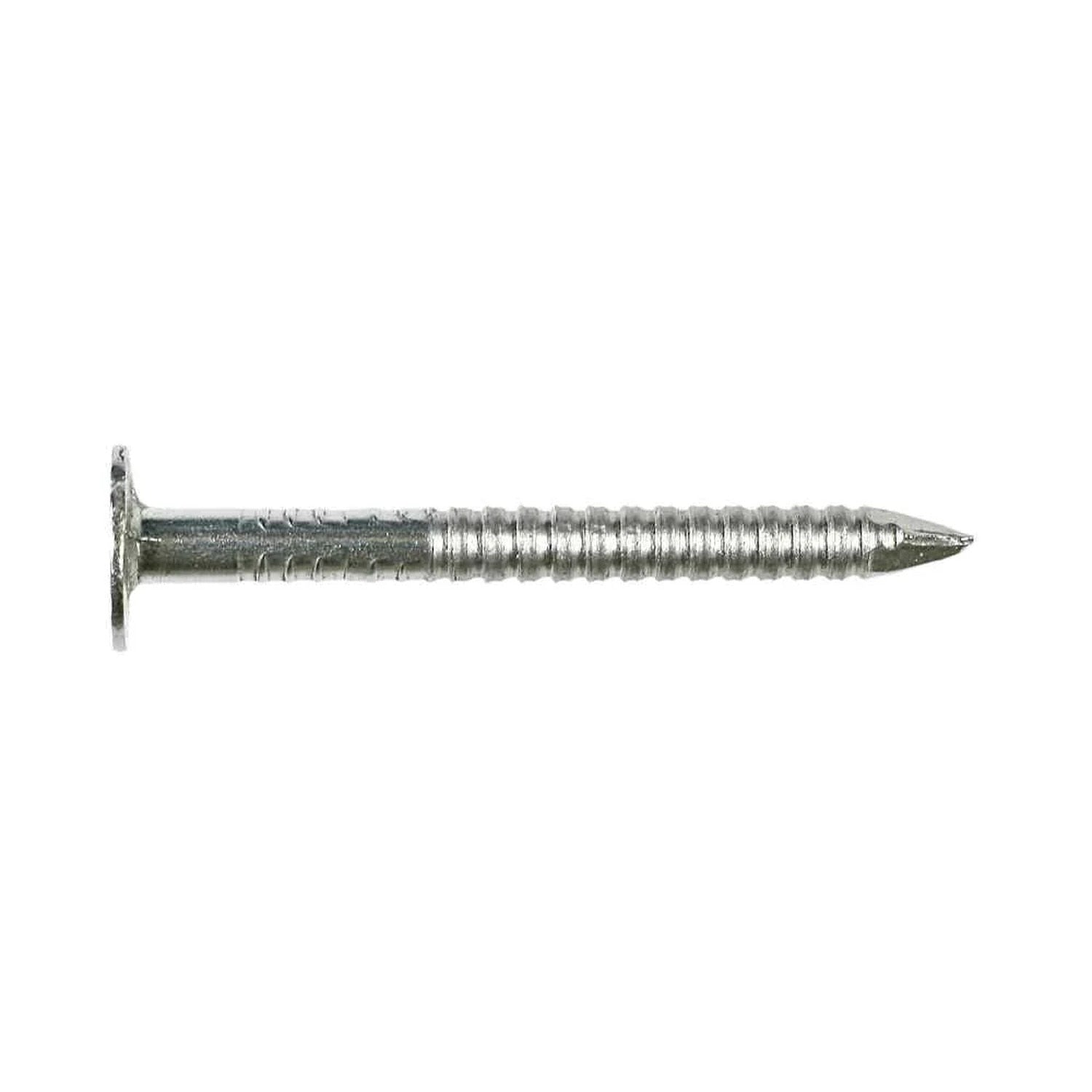

Simpson Strong-Tie S510ARN5 Description
Simpson ring shank roofing nails feature a large flat head for extra bearing surface, ensuring secure attachment of roofing materials.
Simpson Strong-Tie S510ARN5 Includes
- (1) 5 lb. Bag Of Nails
Simpson Strong-Tie S510ARN5 Features
- Large flat head provides extra bearing surface for secure attachment.
- Annular ring shank increases withdrawal resistance.
- Ideal for installing thicker tiles and slates.
Simpson Strong-Tie S510ARN5 Applications
- Roofing: Securely fastens roofing materials to wood members and plywood roof decks.
- Slate roofs: Suitable for determining correct nail length by doubling slate thickness and adding one inch.
Simpson Strong-Tie S510ARN5 Installation Overview
- Determine the correct nail length for slate roofs by doubling the slate thickness and adding one inch.
Simpson Strong-Tie S510ARN5 Specifications
| Material | Type 304 Stainless Steel |
| Gauge | 10 |
| Length | 1-3/4 in. |
| Head Diameter | 3/8 in. |
| Shank Diameter | 0.131 in. |
| Shank Type | Annular-Ring Shank |
| Head Type | Full Round Head |
| Point Type | Diamond Point |
| Approx. Count per Lb. | 126 |
| Packaging Qty. | 5 lb. |
NOTE: These products are subject to quantities on hand or may require special ordering and are subject to minimum order quantities and longer lead times.
