Simpson Anchors | SKU:
S5ABN5
Simpson Strong-Tie S5ABN5 (1-3/4") 13 Gauge Annular Ring Shank SS Box Nail - Type 304 (5 lb Package)
$69.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie S5ABN5 Description

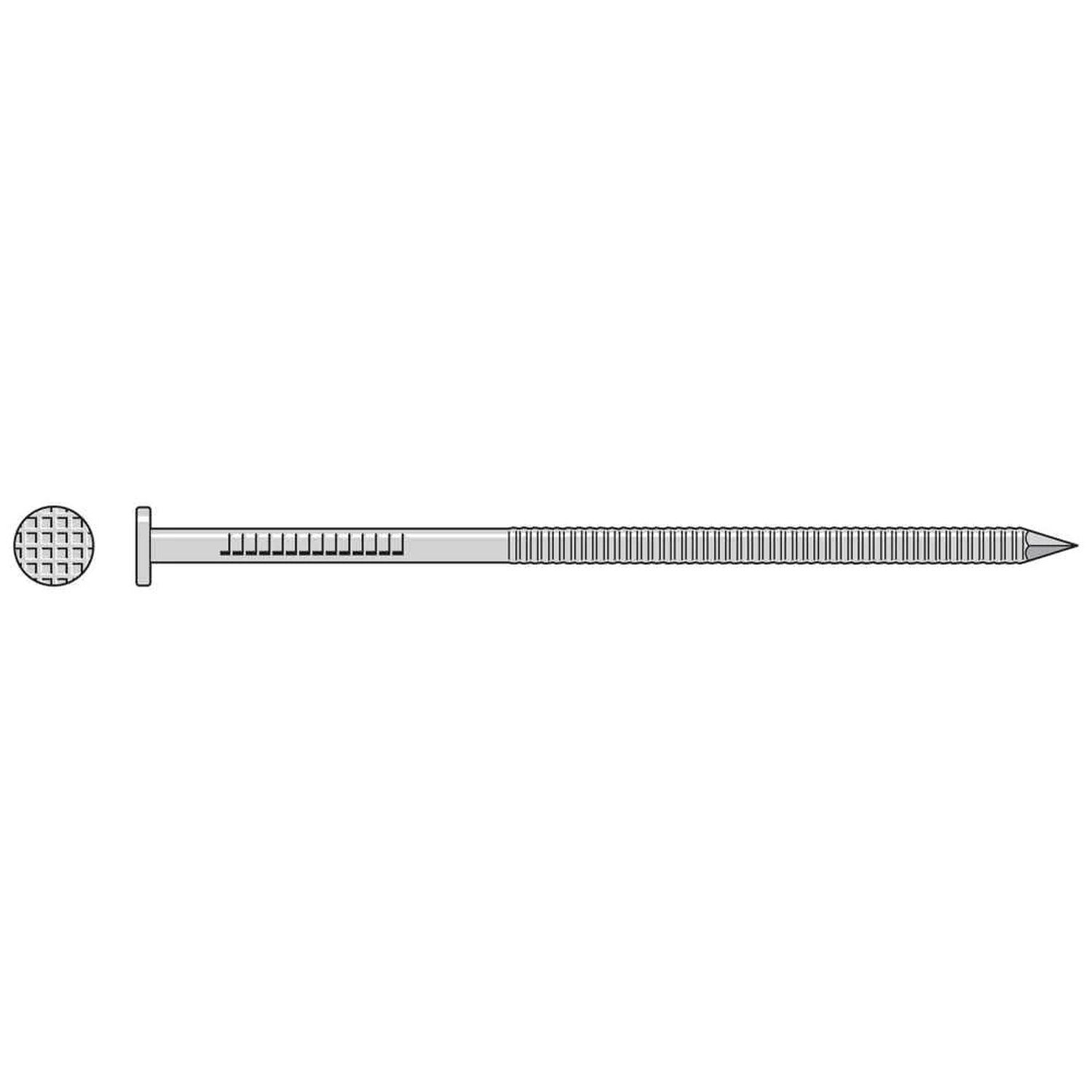

The 5d 1-3/4 Inch 13 Gauge 304 Stainless Steel Ring Nail is designed for secure attachment with enhanced withdrawal resistance, ideal for wood construction and permanent wood foundations.
Simpson Strong-Tie S5ABN5 Includes
- (1) 5 lb. Package of 5d 1-3/4 Inch 13 Gauge 304 Stainless Steel Ring Nails
Simpson Strong-Tie S5ABN5 Features
- Checker pattern on heads blends with wood grain, reduces glare from sunlight and accepts surface finishes
- Annular ring shank increases withdrawal resistance to provide a secure attachment
- Stainless-steel nails are recommended for construction of permanent wood foundations by the ANSI/AF&PA Permanent Wood Foundations Design Specifications
- Choose Type 316 stainless steel for seaside applications and superior corrosion resistance
Simpson Strong-Tie S5ABN5 Applications
- General Framing: Provides secure attachment for wood construction
- Permanent Wood Foundations: Recommended for use in ANSI/AF&PA Permanent Wood Foundations Design Specifications
Simpson Strong-Tie S5ABN5 Specifications
| Diameter | 13 Gauge |
| Length | 1-3/4" |
| Material | 304 Stainless Steel |
| Quantity | 5 lb (Approx 1300 Fasteners) |
| Shank Type | Annular-Ring Shank |
| Head Type | Full Round Head |
| Head Pattern | Checkered |
| Point Type | Diamond Point |
| Approx. Count per Lb. | 260 |
