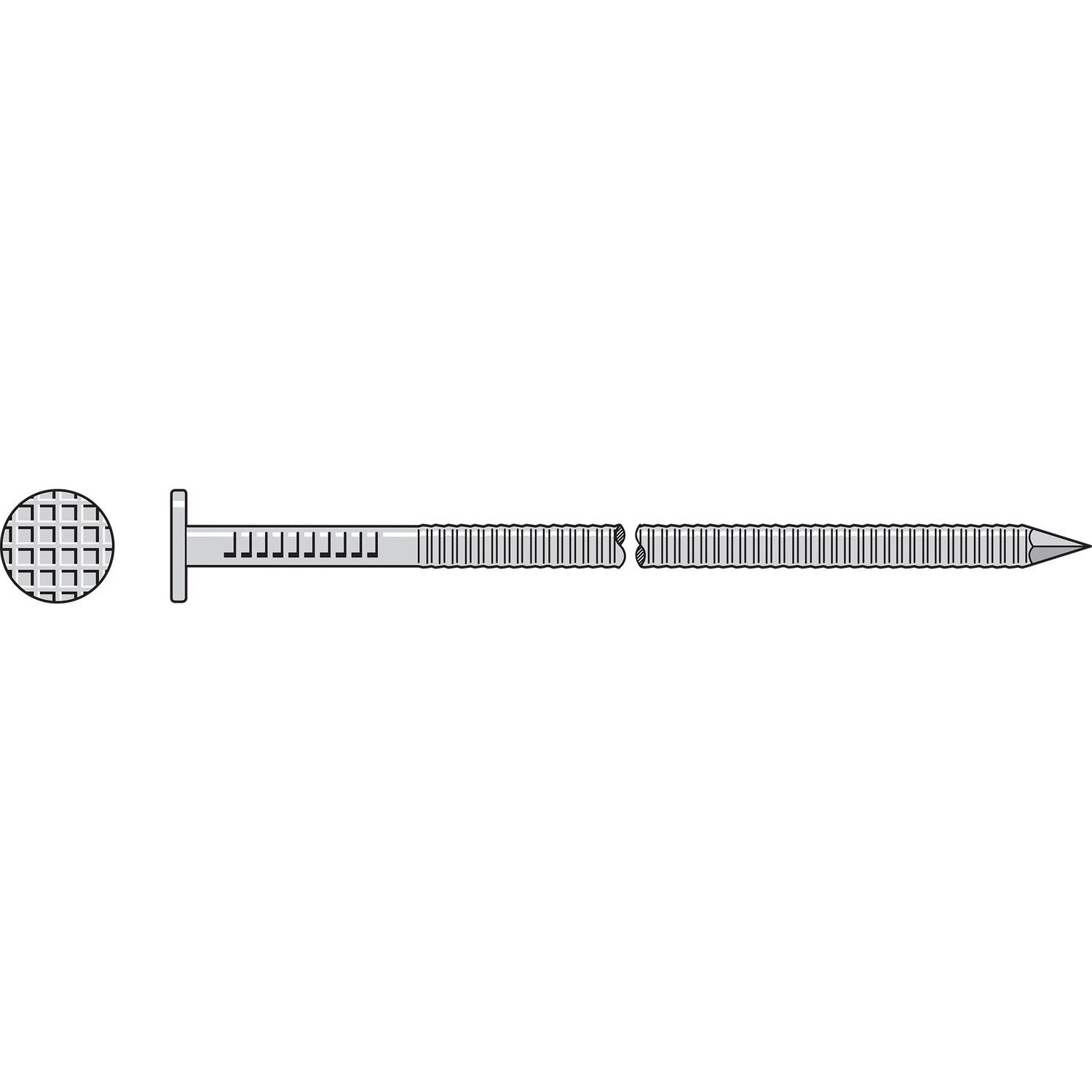

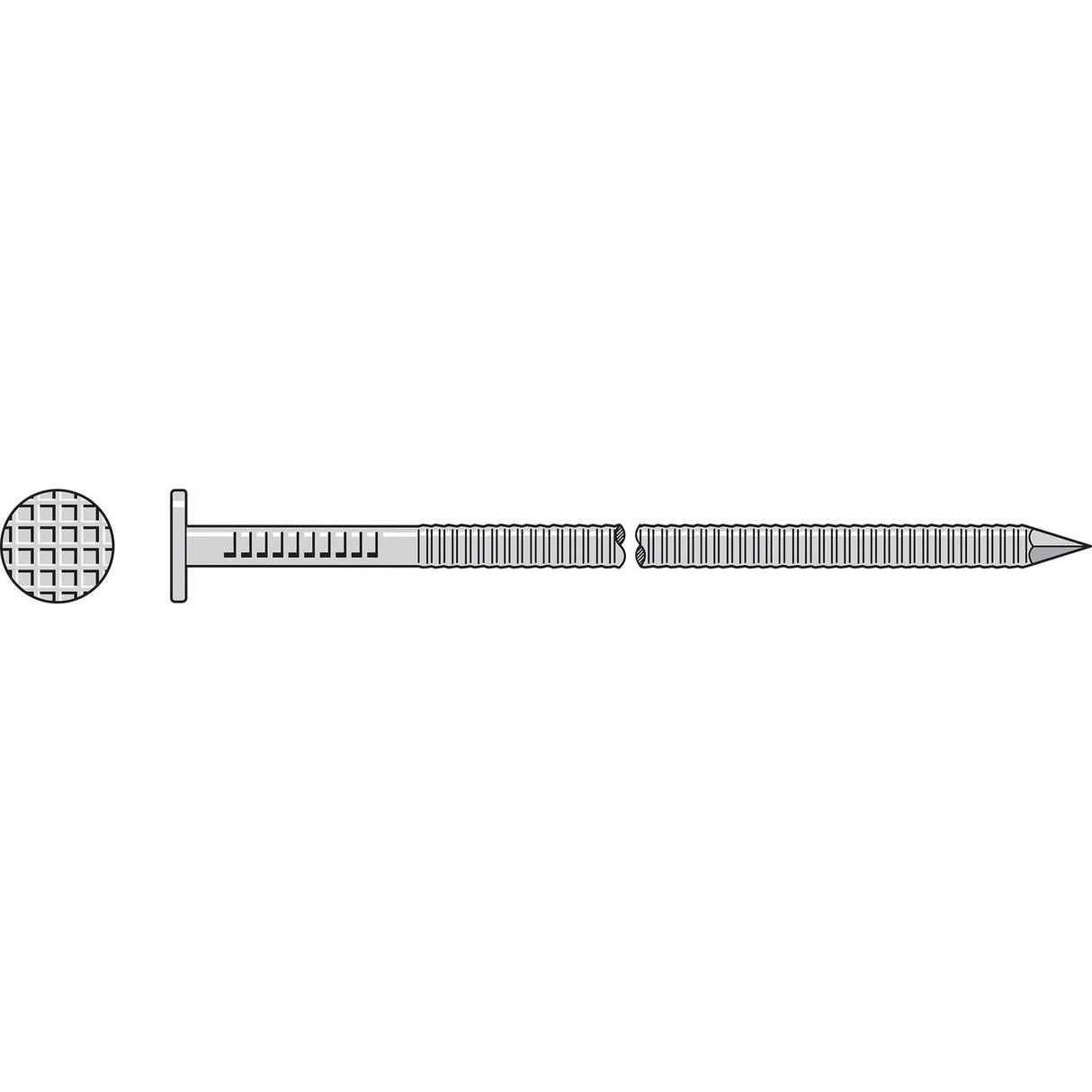

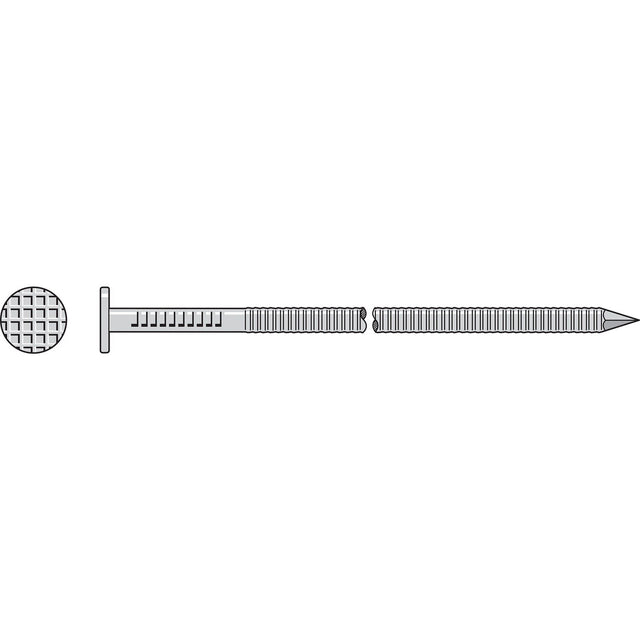

Simpson Strong-Tie S8APB5 (5 lb Box) 304SS Annular Ring Post & Beam Nail
$63.22
Unit price
/
Unavailable
Description
Description
Simpson Anchors S8APB5 Description
The 304SS Annular Ring Post & Beam Nail is designed for secure attachment in wood construction, featuring a stainless steel build and annular ring shank for increased withdrawal resistance.
Simpson Anchors S8APB5 Includes
- (1) 5 lb. Box Of 304SS Annular Ring Post & Beam Nails
Simpson Anchors S8APB5 Features
- Checker pattern on heads blends with wood grain, reduces glare from sunlight, and accepts surface finishes
- Annular ring shank increases withdrawal resistance to provide a secure attachment
- Stainless-steel nails are recommended for construction of permanent wood foundations by the ANSI/AF&PA Permanent Wood Foundations Design Specifications
Simpson Anchors S8APB5 Applications
- General Framing: Suitable for wood construction projects requiring secure attachment
Simpson Anchors S8APB5 Specifications
| Coating/Material | Type 304 Stainless Steel |
| Gauge | 11 |
| Penny Size | 8d |
| Length (in.) | 2 1/2 |
| Head Diameter (in.) | 17/64 |
| Shank Diameter (in.) | 0.12 |
| Shank Type | Annular-Ring Shank |
| Head Type | Full Round Head |
| Head Pattern | Checkered |
| Point Type | Diamond Point |
| Approx. Count per Lb. | 115 |
| Packaging Qty. | 5 lb. |
