Simpson Strong-Tie TNTBL25134H Titen Turbo(1/4" x 1-3/4") Hex-Head Concrete and Masonry Screw, Black (100 Pack)
Description
Description
Simpson Strong-Tie TNTBL25134H Description
The Simpson Strong-Tie Titen Turbo screw anchor is fast and easy to install, and incredibly reliable in its performance. The secret behind the performance of the Titen Turbo lies in a thread design that lowers driving torque while providing superior holding power. The revolutionary Torque Reduction Channel between the threads gives drilling dust a place to go, thereby significantly reducing torque-related issues like binding, stripping and snapping. This screw anchor delivers consistently trouble-free installation and fastening strength you can depend on.
Simpson Strong-Tie TNTBL25134H Includes
- (100) Concrete and Masonry Screws
Simpson Strong-Tie TNTBL25134H Features

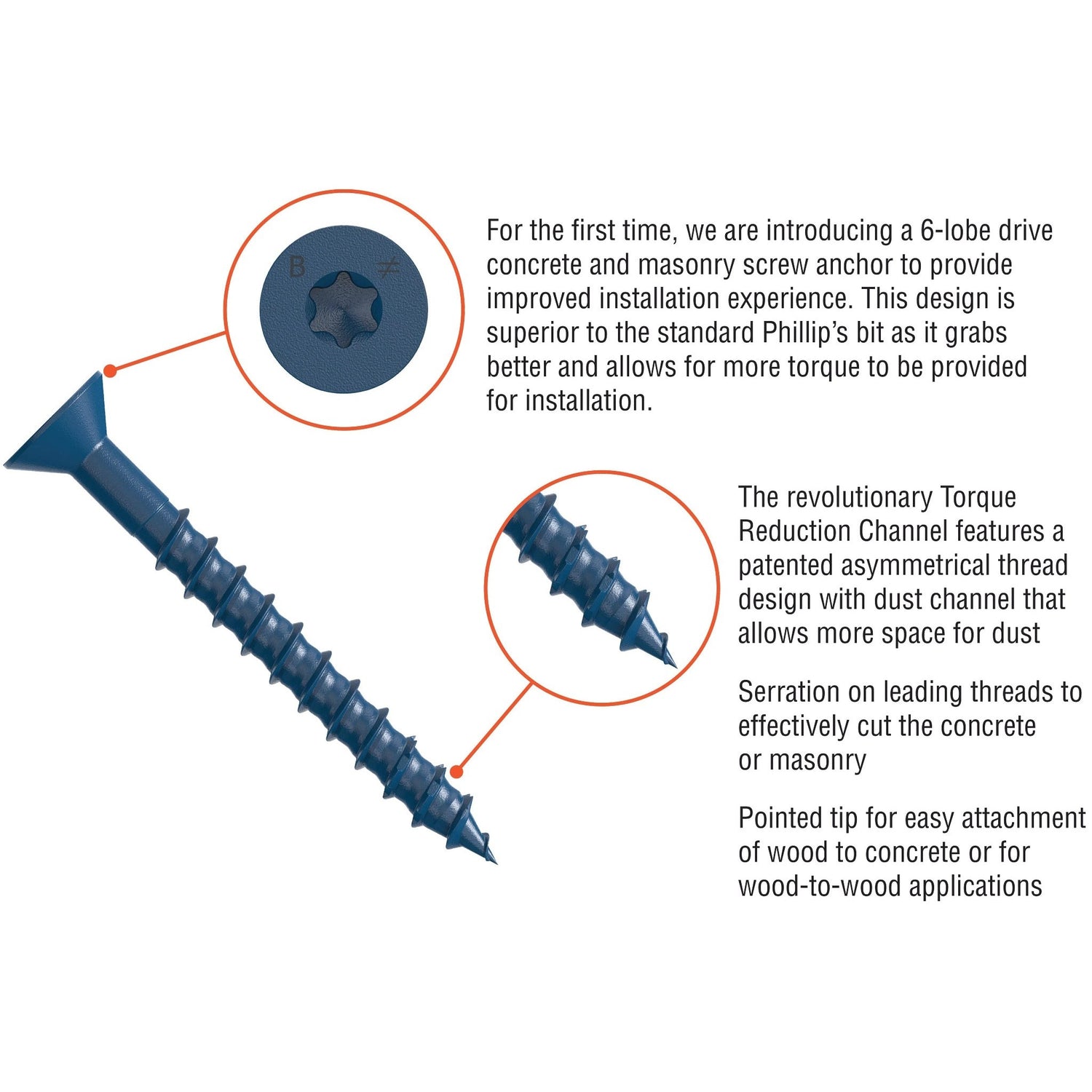

- Torque Reduction Channel that traps dust where it can’t obstruct the thread action, reducing the likelihood of binding in the hole
- Code listed in accordance with ICC-ES AC193 for concrete applications without cleaning dust from predrilled holes (IAPMO UES ER-712)
- Serrated screw point for easier starts when fastening wood
- Matched-tolerance bit not required; use a standard ANSI drill bit for installation
- Zinc plated with a baked-on ceramic coating
- Designed for installation with a cordless drill or impact driver
- Use in dry interior environments only
- Drill bit diameter: 3/16 inch
- Drive type: 5/16-in. hex head
- Quantity: 100 per package
Simpson Strong-Tie TNTBL25134H Applications
- Electrical boxes, conduit, switch boxes, light fixtures
- Windows, thresholds, basement furring strips
- Shelf mounting to concrete/CMU
- Handrails
Simpson Strong-Tie TNTBL25134H Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table.
- Drill the hole to the specified embedment depth plus 1/2" to allow the thread tapping dust to settle.
- Position fixture, insert screw and tighten using drill and Titen Turbo screw installation tool fitted with a hex socket or 6-lobe bit socket.
Simpson Strong-Tie TNTBL25134H Specifications
| Material | Carbon Steel |
| Finish | Zinc plated with a baked-on ceramic coating |
| Diameter | 1/4 inch |
| Length | 1 3/4 inch |
| Drive Type | 5/16 in. Hex |
| Drill Bit Diameter | 3/16 inch |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Steps must be taken to prevent inadvertent sustained loads above the listed allowable loads.
