Simpson Anchors | SKU:
SB5/8X24

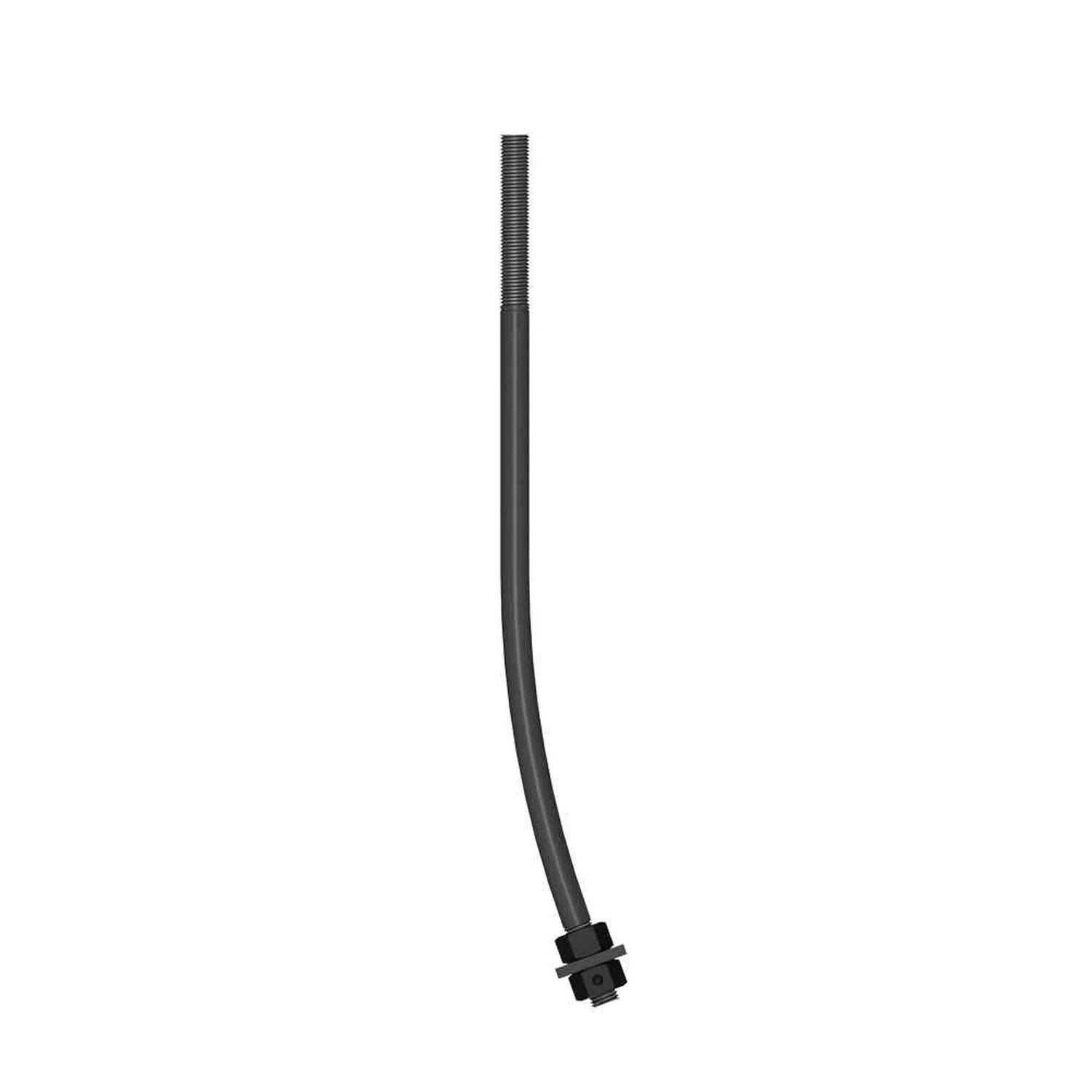

Simpson Strong-Tie SB5/8X24 (5/8" x 24") SB Anchor Bolt
$25.00
Unit price
/
Unavailable
Description
Description
Simpson SB5/8X24 Description
The Simpson SB Anchor Bolt is designed for concrete applications, featuring a 5/8" diameter and 24" length for reliable anchorage.
Simpson SB5/8X24 Includes
- (1) Anchor Bolt with 5/8" Diameter and 24" Length
Simpson SB5/8X24 Features
- Identification on the bolt head showing embedment angle and model
- Sweep geometry to optimize position in form
- Rolled thread for higher tensile capacity
- Hex nuts and plate washer fixed in position
- Available in HDG for additional corrosion resistance
Simpson SB5/8X24 Applications
- Concrete anchorage for holdowns
- Structural reinforcement in poured concrete
- Secure attachment in construction projects
Simpson SB5/8X24 Installation Overview

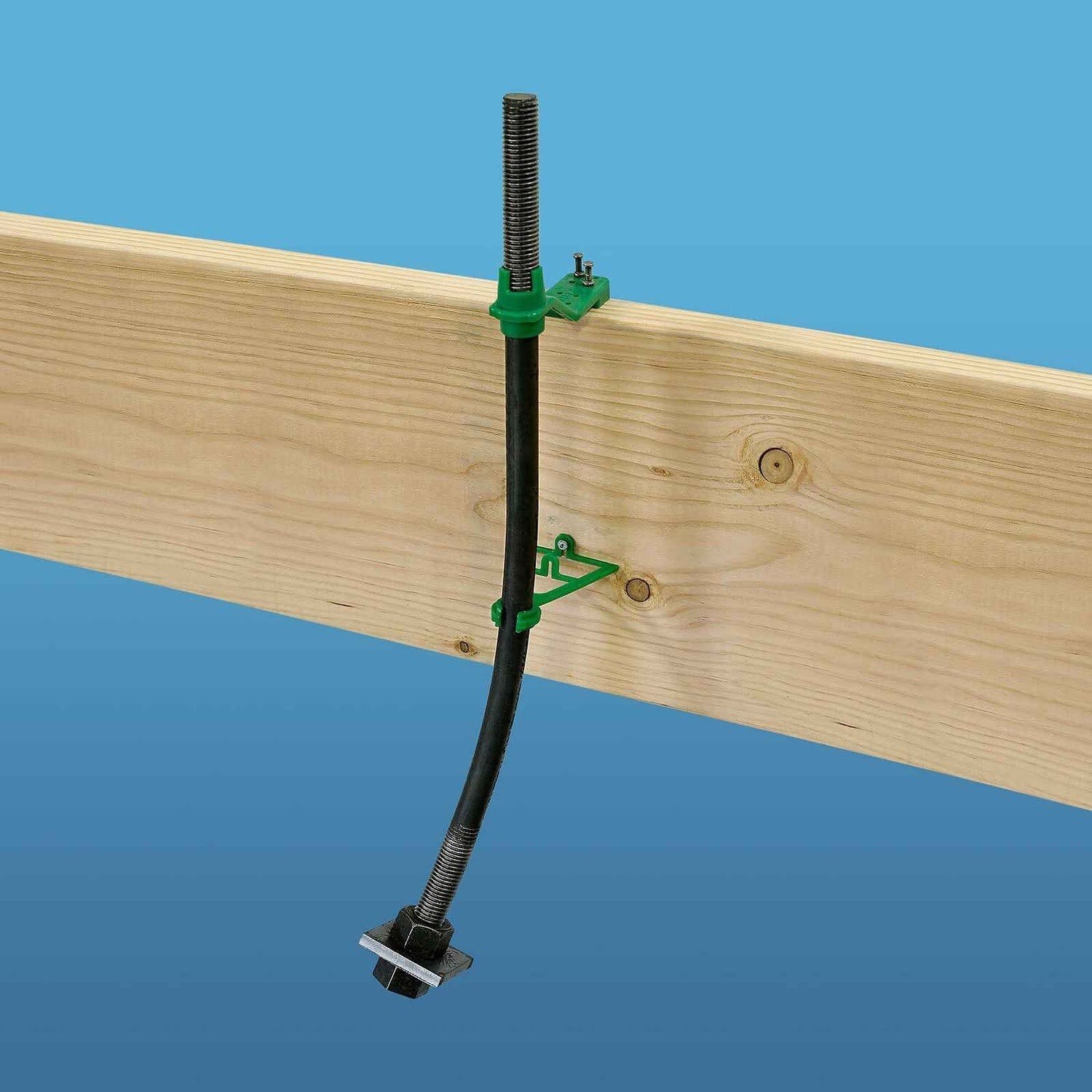

- Install SB before the concrete pour using AnchorMate® anchor bolt holders.
- Follow the plan view detail for accurate placement.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Use overtapped products for HDG SB anchors as per ASTM A563.
- Top nuts and washers for holdown attachment are not supplied; install standard nuts, couplers, and/or washers as required.
Simpson SB5/8X24 Specifications
| Diameter | 5/8" |
| Length | 24" |
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
NOTE: Ensure proper installation using AnchorMate® holders and follow the plan view detail for optimal performance.
