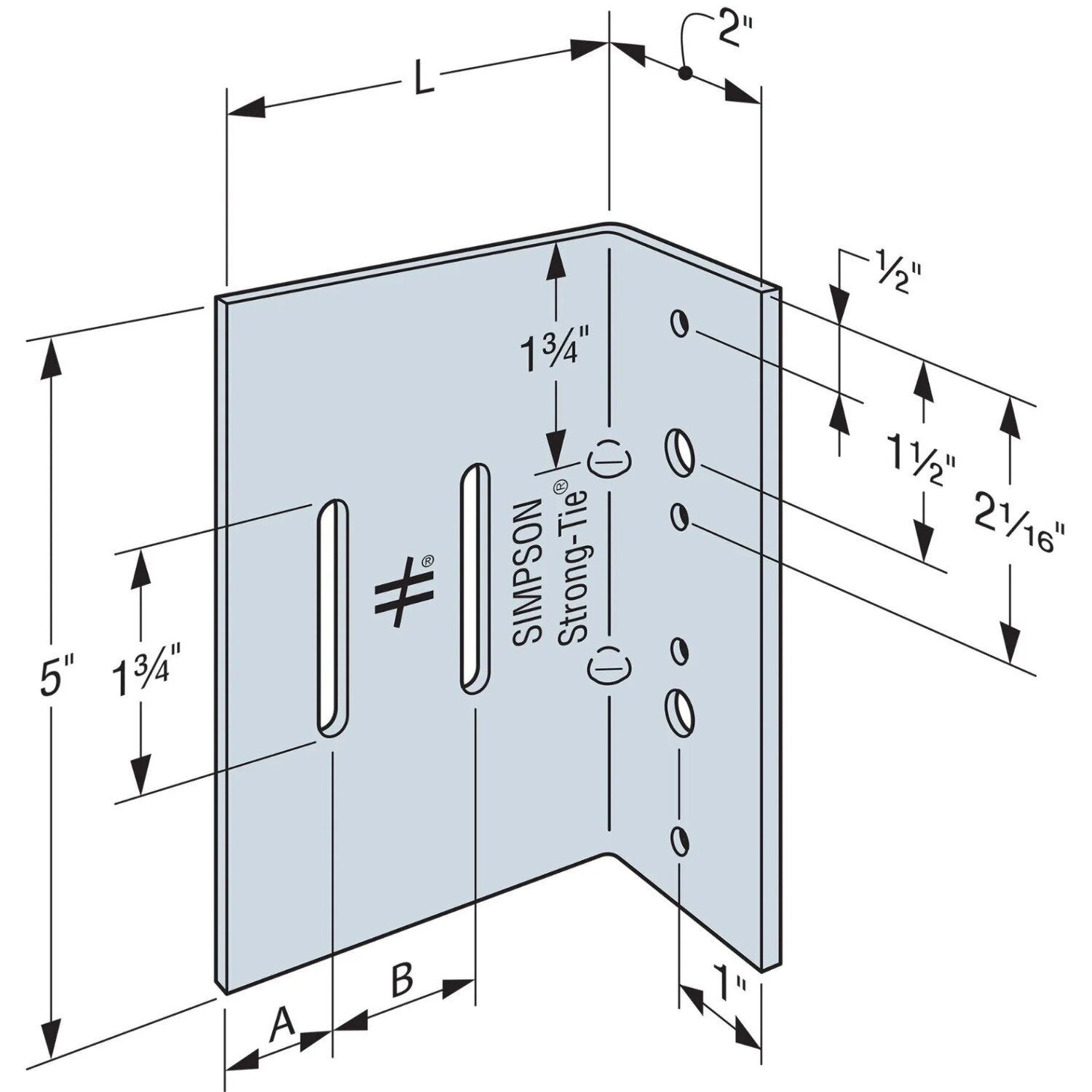

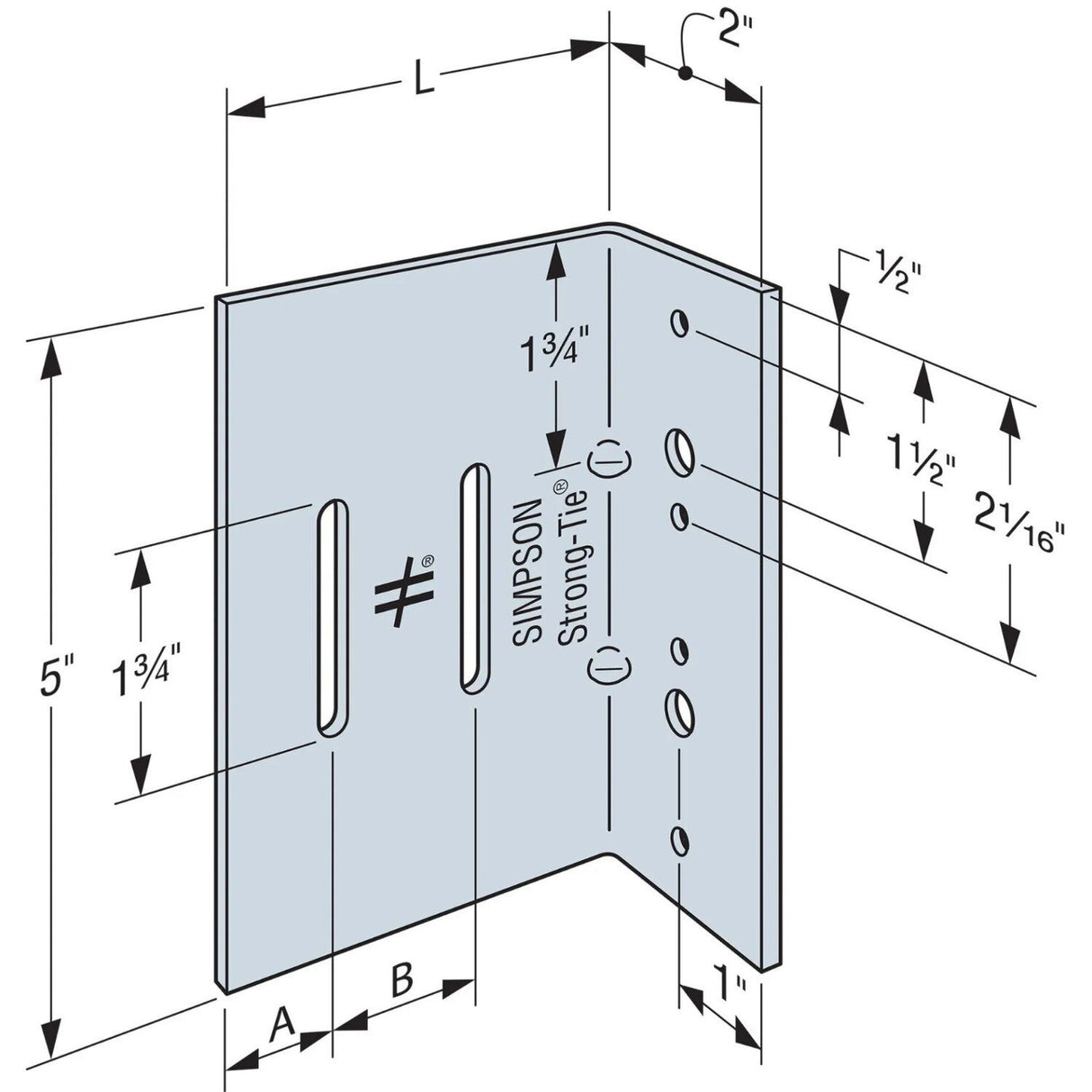

Simpson Strong-Tie SC32-5/97-KT25 Description
The SC32-5/97-KT25 Bypass Framing Slide-Clip Connector is designed for cold-formed steel construction, providing reliable performance in high-seismic areas.
Simpson Strong-Tie SC32-5/97-KT25 Includes
- (25) connectors
- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SC32-5/97-KT25 Features
- Precision-manufactured shouldered screws prevent overdriving
- Provides 3/4" of both upward and downward deflection
- Embossments in the bend line increase strength and stiffness
- Prepunched anchor holes for concrete screws and powder-actuated fasteners
- Made from heavy-duty 12-gauge steel
Simpson Strong-Tie SC32-5/97-KT25 Applications
- Cold-formed steel construction
- High-seismic areas requiring slide-clip bypass framing
Simpson Strong-Tie SC32-5/97-KT25 Installation Overview
- Use the specified type and number of anchors.
- Install the specified number of XLSH78B1414 #14 shouldered screws in the slots adjacent to the 'No-Equal' stamps.
- Use one shouldered screw per slot (maximum).
Simpson Strong-Tie SC32-5/97-KT25 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Gauge | 12 |
| Length | 3 1/2 in. |
| Packaging Quantity | 25 |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values.
Toolup Part # :
450254
