Simpson SC62-5/97-KT25 Description

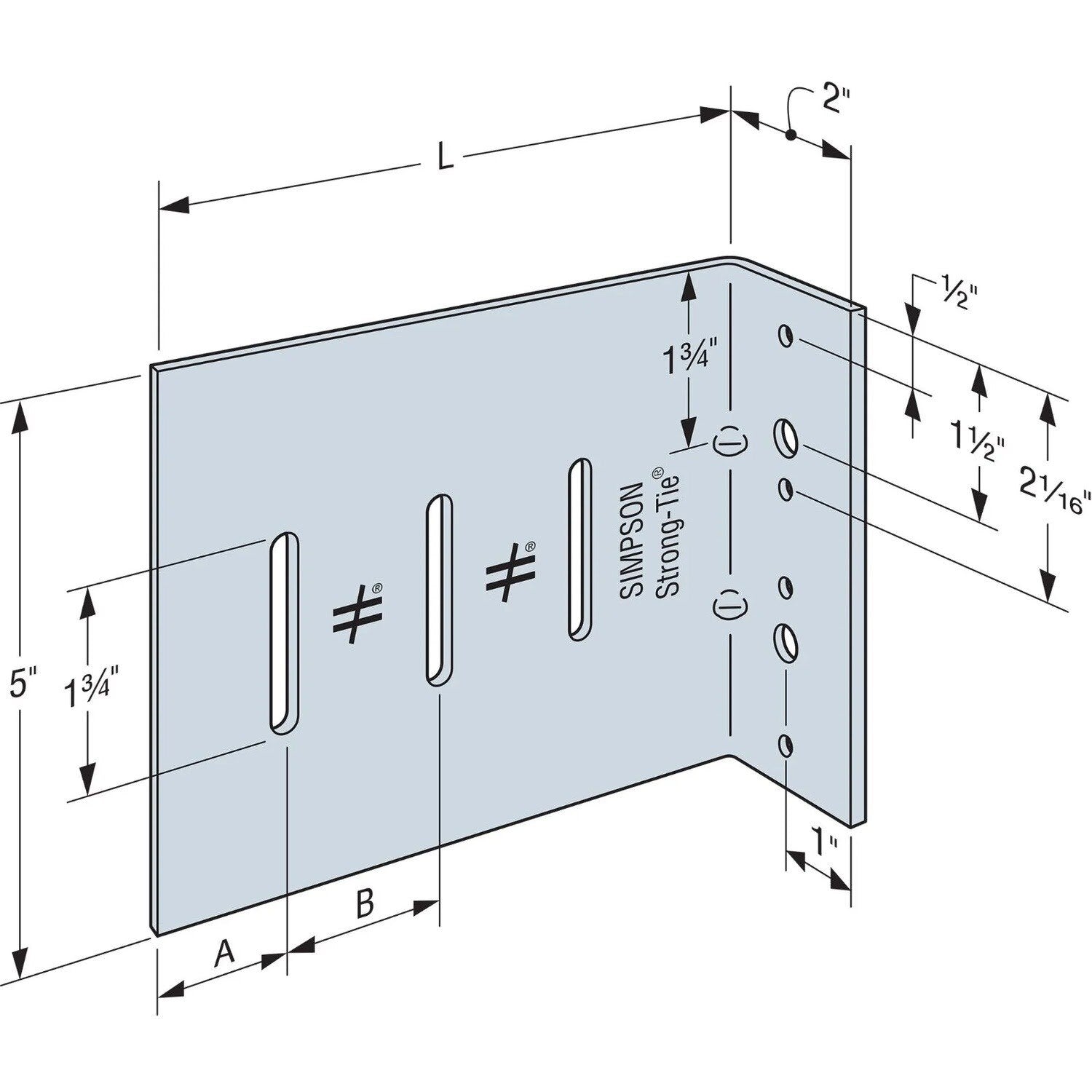

The Simpson SC62-5/97-KT25 Bypass Framing Slide-Clip Connector is designed for cold-formed steel construction, providing reliable performance in high-seismic areas.
Simpson SC62-5/97-KT25 Includes
- (25) connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson SC62-5/97-KT25 Features
- Available in lengths of 3 1/2", 6", and 8" for compatibility with various stud sizes
- Maximum standoff distance of 1" for 3 5/8" studs and 1 1/2" for 6" and 8" studs
- Allows for 3/4" upward and downward deflection
- Embossments in the bend line enhance strength and stiffness
- Prepunched anchor holes for concrete screws and powder-actuated fasteners
- Includes precision-manufactured shouldered screws to prevent overdriving
Simpson SC62-5/97-KT25 Applications
- Cold-formed steel construction
- High-seismic areas requiring reliable slide-clip bypass framing
- Structural connections in commercial and residential buildings
Simpson SC62-5/97-KT25 Installation Overview
- Use the specified type and number of anchors
- Install the specified number of XLSH78B1414 #14 shouldered screws in the slots adjacent to the No-Equal stamps
- Use one shouldered screw per slot (maximum)
Simpson SC62-5/97-KT25 Specifications
| Material | Carbon Steel |
| Finish | Galvanized (G90) |
| Thickness | 97 mil |
| Gauge | 12 |
| Length | 6 in. |
| Weight | 28.8 lb |
NOTE: Ensure the specified type and number of anchors are used for proper installation.
