Simpson Strong-Tie SC82-5/118-KT25 Description
Ideal for high-seismic areas, the SC82-5/118-KT25 Bypass Framing Slide-Clip Connector is designed for cold-formed steel construction, offering anchorage versatility and optimal resistance to in-plane seismic loads.
Simpson Strong-Tie SC82-5/118-KT25 Includes
- (25) connectors
- (110) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SC82-5/118-KT25 Features
- Precision-manufactured shouldered screws prevent overdriving and ensure proper functionality.
- Heavy-duty 10-gauge steel construction for optimal resistance to seismic loads.
- Anchorage holes accommodate concrete screws and powder-actuated fasteners.
- Embossments in the bend line increase strength and stiffness.
- Prepunched anchor holes for versatile installation options.
- Provides 3/4" of upward and downward deflection.
Simpson Strong-Tie SC82-5/118-KT25 Applications
- Cold-formed steel construction in high-seismic areas.
- Bypass framing for structural support.
- Anchorage versatility for various installation methods.
Simpson Strong-Tie SC82-5/118-KT25 Installation Overview
- Use the specified type and number of anchors.
- Install the specified number of XLSH78B1414 #14 shouldered screws in the slots adjacent to the 'No-Equal' stamps.
- Use one shouldered screw per slot (maximum).

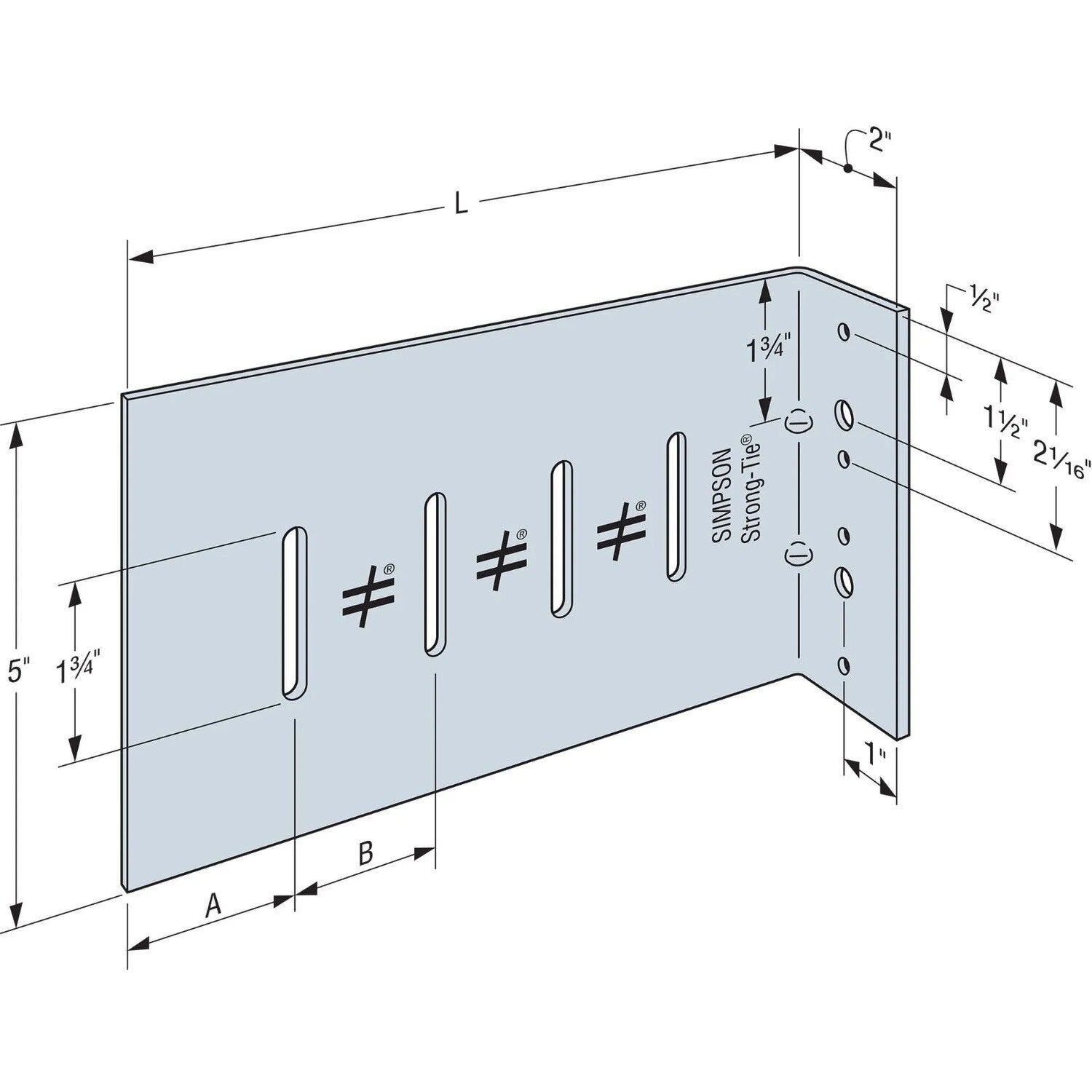

Simpson Strong-Tie SC82-5/118-KT25 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Length | 8" |
| Gauge | 10 |
| Quantity | 25 |
NOTE: Ensure proper installation using the specified type and number of anchors and screws to achieve optimal load values.
Toolup Part # :
824042
