Simpson SCB411.5-KT Description

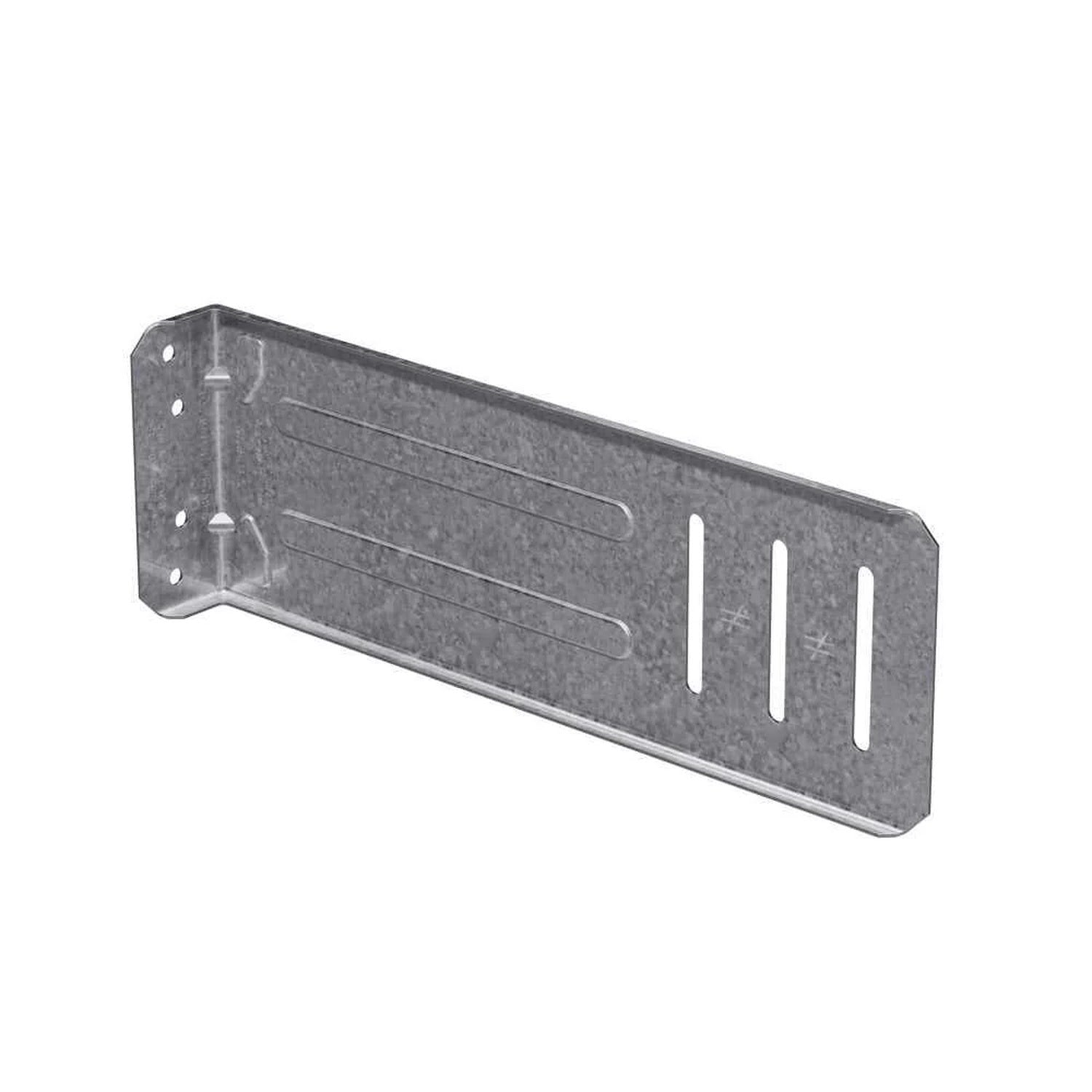

The SCB411.5-KT Slide-Clip Connector is designed for bypass framing applications, offering high performance and ease of installation.
Simpson SCB411.5-KT Includes
- (25) Slide-Clip Connectors
- (83) XLSH34B1414 #14 Shouldered Screws
Simpson SCB411.5-KT Features
- Provides a full 1" of both upward and downward movement
- Precision-manufactured shouldered screws prevent overdriving
- Strategically placed stiffeners and embossments maximize performance
- G90 Galvanized finish for corrosion resistance
Simpson SCB411.5-KT Applications
- Bypass framing applications
- Curtain-wall construction
- Steel-stud framing
Simpson SCB411.5-KT Installation Overview
- Use the specified number of #14 shouldered screws (included)
- Install shouldered screws in the slots adjacent to the 'No-Equal' stamp
- Use a maximum of 1 screw per slot
Simpson SCB411.5-KT Specifications
| Material | 16 Gauge Steel |
| Finish | G90 Galvanized |
| Length | 11-1/2" |
| Height | 4" |
| Weight | 22.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
826248
