Simpson SCB45.5-KT Description

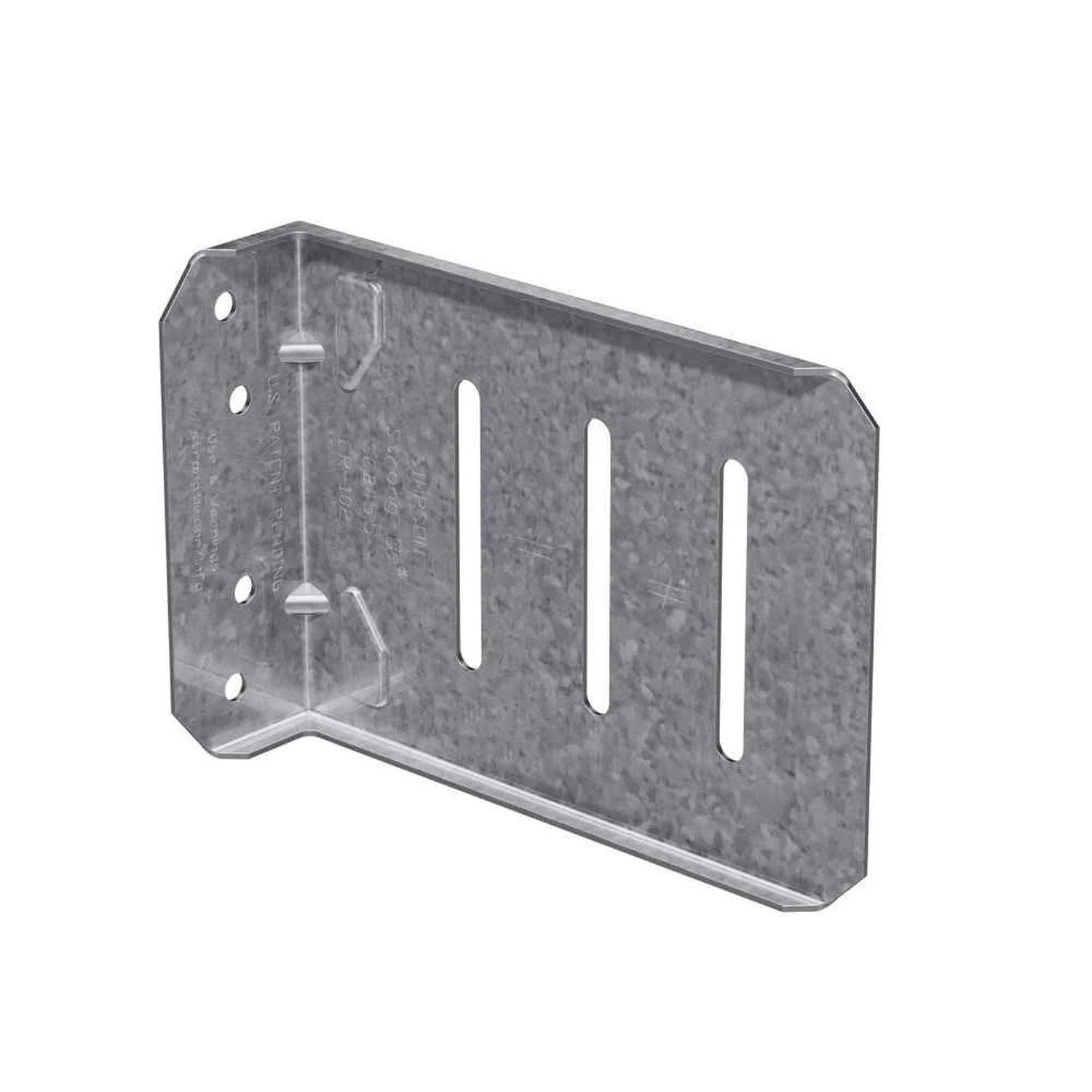

The SCB45.5 Slide-Clip Connector is designed for bypass framing applications, offering high performance and reduced installation costs.
Simpson SCB45.5-KT Includes
- (25) Slide-Clip Connector
- (83) XLSH34B1414 #14 Shouldered Screws
Simpson SCB45.5-KT Features
- High-performance connector for bypass framing applications
- Reduces design time and installed cost
- Accommodates applications requiring two parts with a single connector
- Manufactured in five different lengths for various stand-off conditions
- G90 Galvanized finish for corrosion resistance
Simpson SCB45.5-KT Applications
- Bypass framing applications
- Steel-stud framing requiring slide-clip connectors
- Construction projects needing reduced material and labor costs
Simpson SCB45.5-KT Installation Overview
- Install the specified number of #14 shouldered screws in the slots adjacent to the 'No-Equal' stamp.
- Use a maximum of one screw per slot.
Simpson SCB45.5-KT Specifications
| Finish | G90 Galvanized |
| Length | 5-1/2" |
| Fasteners required | (83) XLSH34B1414 #14 shouldered screws (included) |
| Height | 4" |
| Thickness | 16 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
630866
