Simpson Strong-Tie SCBH3X15.37-KT Description
The SCBH concealed beam hanger is designed for high seismic activity regions, offering enhanced deformation capacity and streamlined installation.

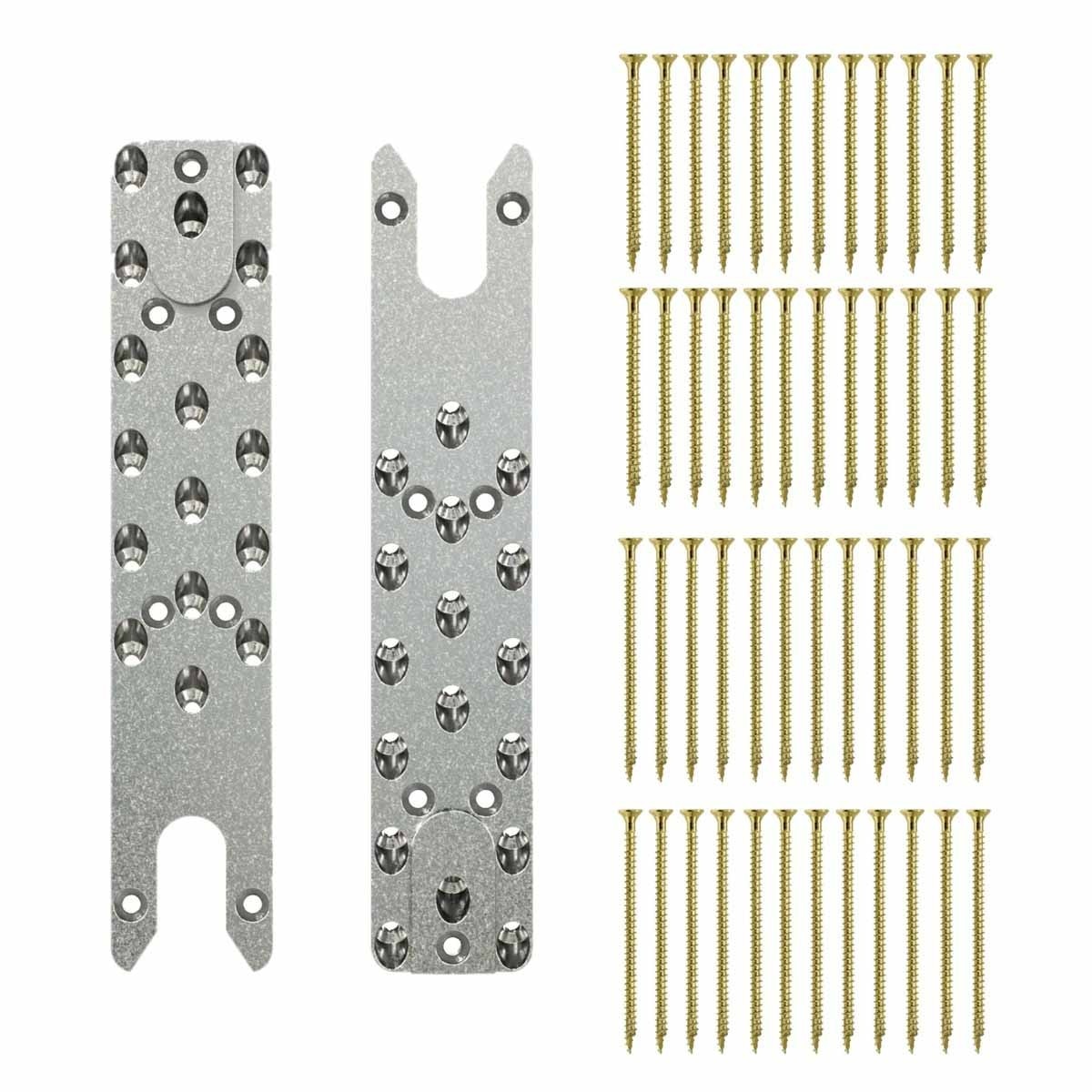

Simpson Strong-Tie SCBH3X15.37-KT Includes

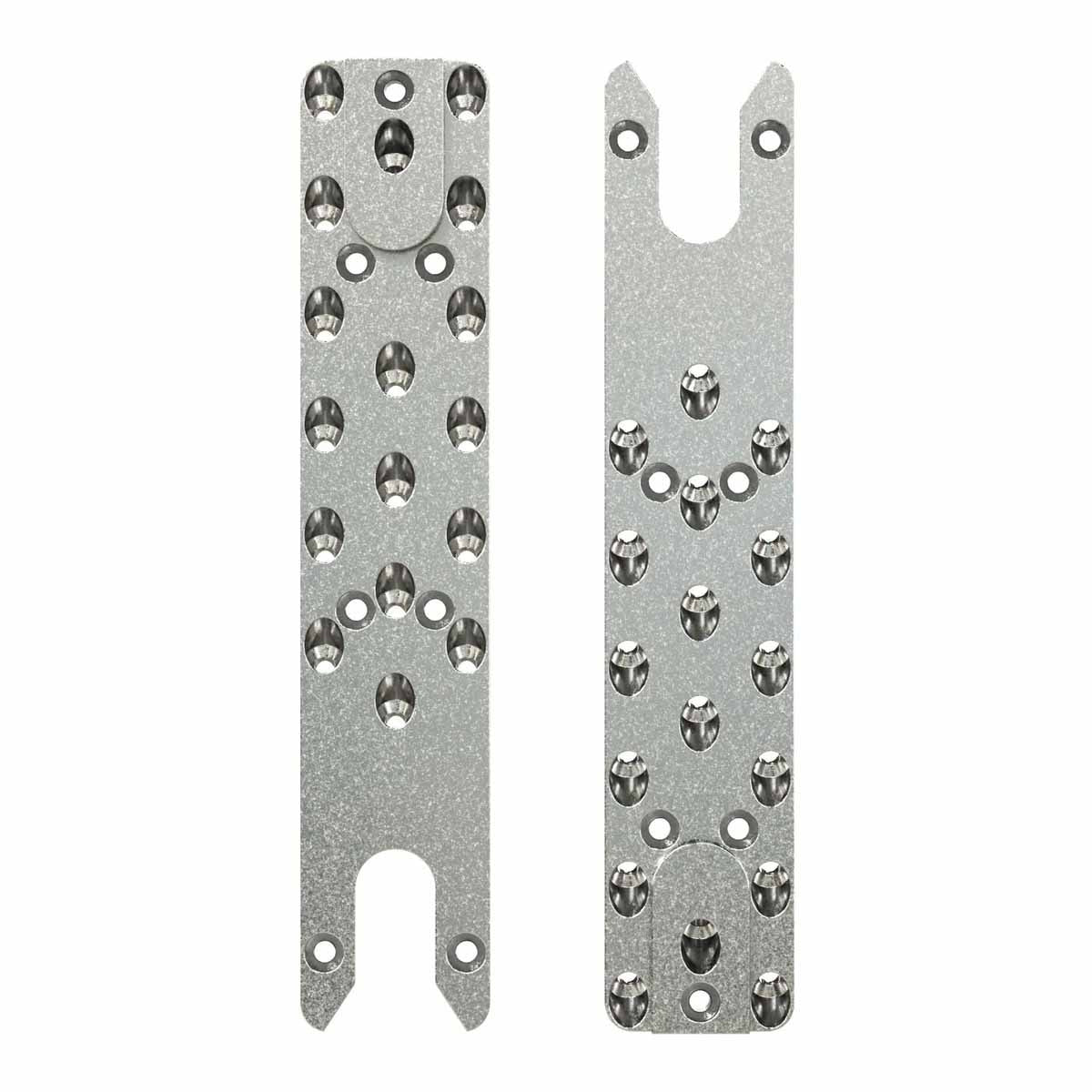

- (2) SCBH 3x15.37 backplates
- (24) SDCF22614 screws
- (24) SDCF22434 screws
Simpson Strong-Tie SCBH3X15.37-KT Features
- High download capacity
- Code-listed per ICC-ES ESR-2552
- Seismic deformation compatibility
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Beam length tolerance enables easier installation
Simpson Strong-Tie SCBH3X15.37-KT Applications
- Engineered wood connections in seismic regions

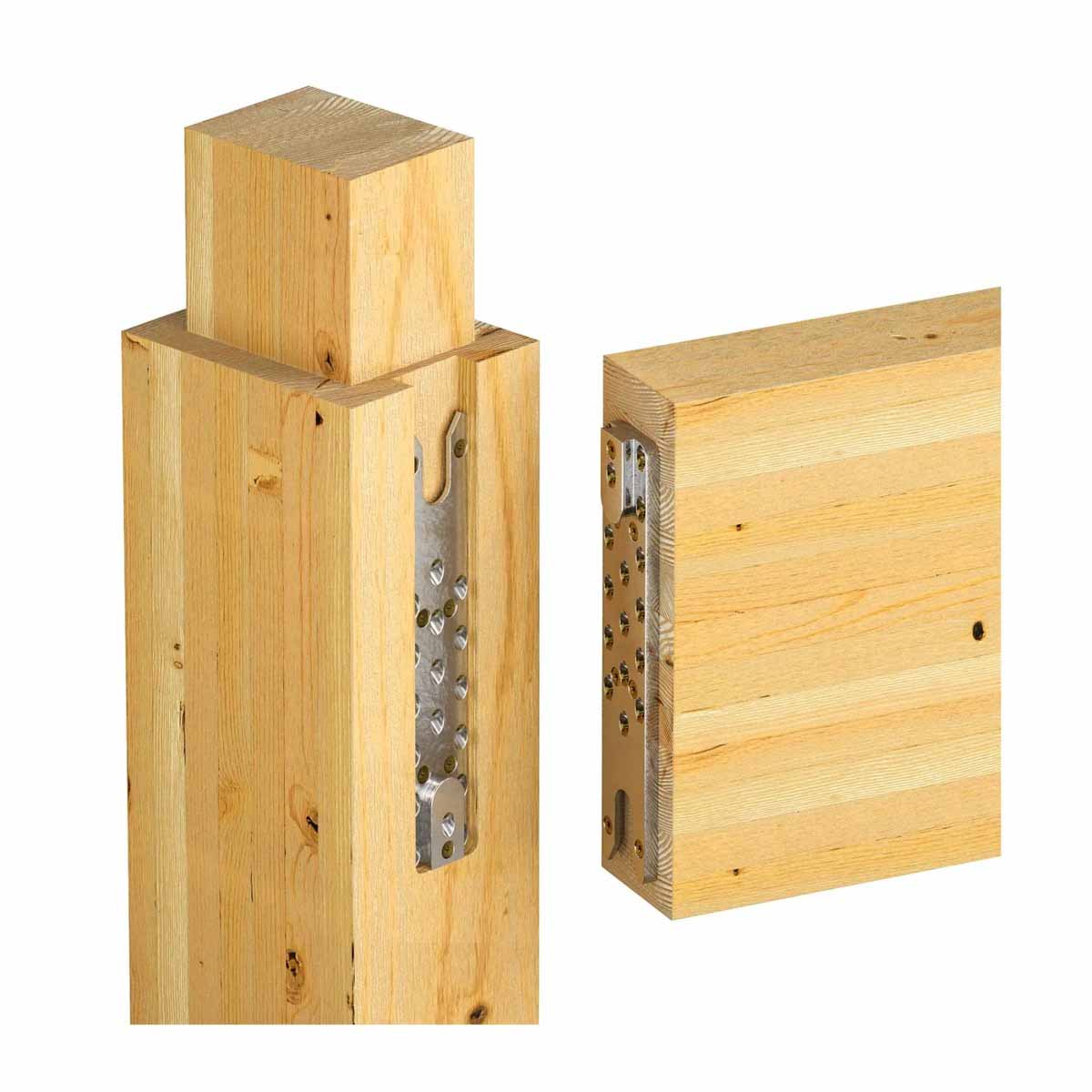

- Glulam beam-to-column connections
- Dry-service applications
Simpson Strong-Tie SCBH3X15.37-KT Installation Overview
- Install horizontal screws first, then inclined screws.
- Predrill lead holes for screws if necessary.
- Rout carried and/or carrying member according to application needs.

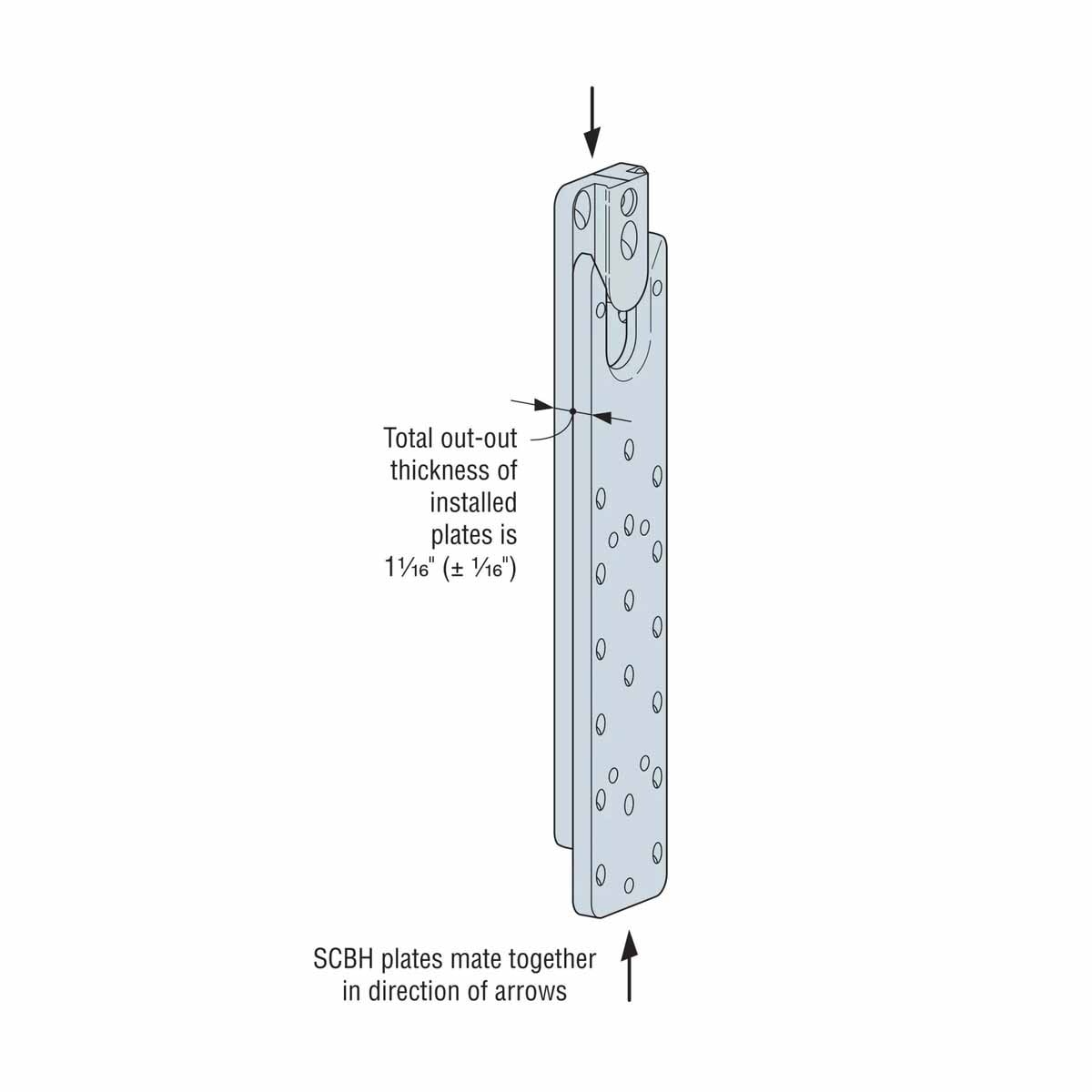

- Ensure backplates seat flush against surfaces.
- Maintain recommended gap between carried and carrying members.
- Use fire sealant at connection location for fire resistance.
- Follow welding instructions for SCBH-W backplate.
Simpson Strong-Tie SCBH3X15.37-KT Specifications
| Material | Steel |
| Finish | Electrogalvanized |
| Height | 15-3/8" |
| Width | 3" |
| Weight | 14.8 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
