Simpson Strong-Tie SCHA10.75L-KT15 Description
The Simpson Strong-Tie SCHA10.75L-KT15 is a horizontal left slide-clip connector designed for steel framing. It features a G90 galvanized finish and accommodates various stud sizes and standoff distances up to 4-3/4".

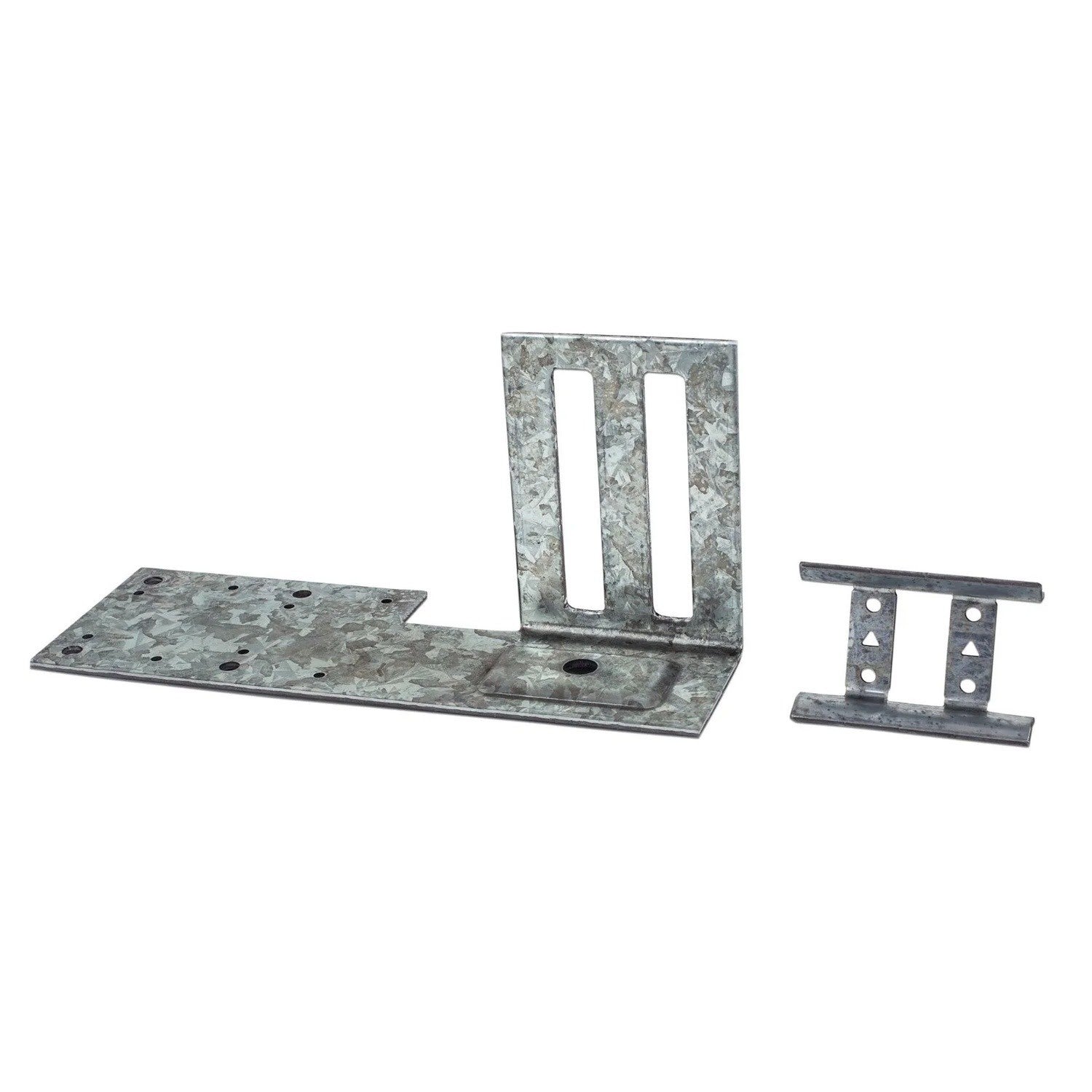

Simpson Strong-Tie SCHA10.75L-KT15 Includes
- (15) SCHA 10.75L connectors
- (15) SCVS/97 sliders
Simpson Strong-Tie SCHA10.75L-KT15 Features
- Provides a full 1" of both upward and downward movement
- Tabulated design values for anchorage help mitigate risk and provide ease of specification
- Either face of anchorage leg can be used against the support
- Accommodates standoff distances up to 4 3/4"
- Can be used with 3 5/8", 4", 6" and 8" studs
- Prepunched anchor holes accommodate 1/4"-diameter Titen HD or other 1/4"-diameter concrete screw anchors, and 0.157"-diameter powder-actuated fasteners
- Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
Simpson Strong-Tie SCHA10.75L-KT15 Applications
- Panelized or stick-frame construction anchoring to concrete floor slabs or steel beams
- Suitable for various sized studs
- Accommodates standoff distances up to 4-3/4"
Simpson Strong-Tie SCHA10.75L-KT15 Installation Overview
- Use all specified fasteners and anchors

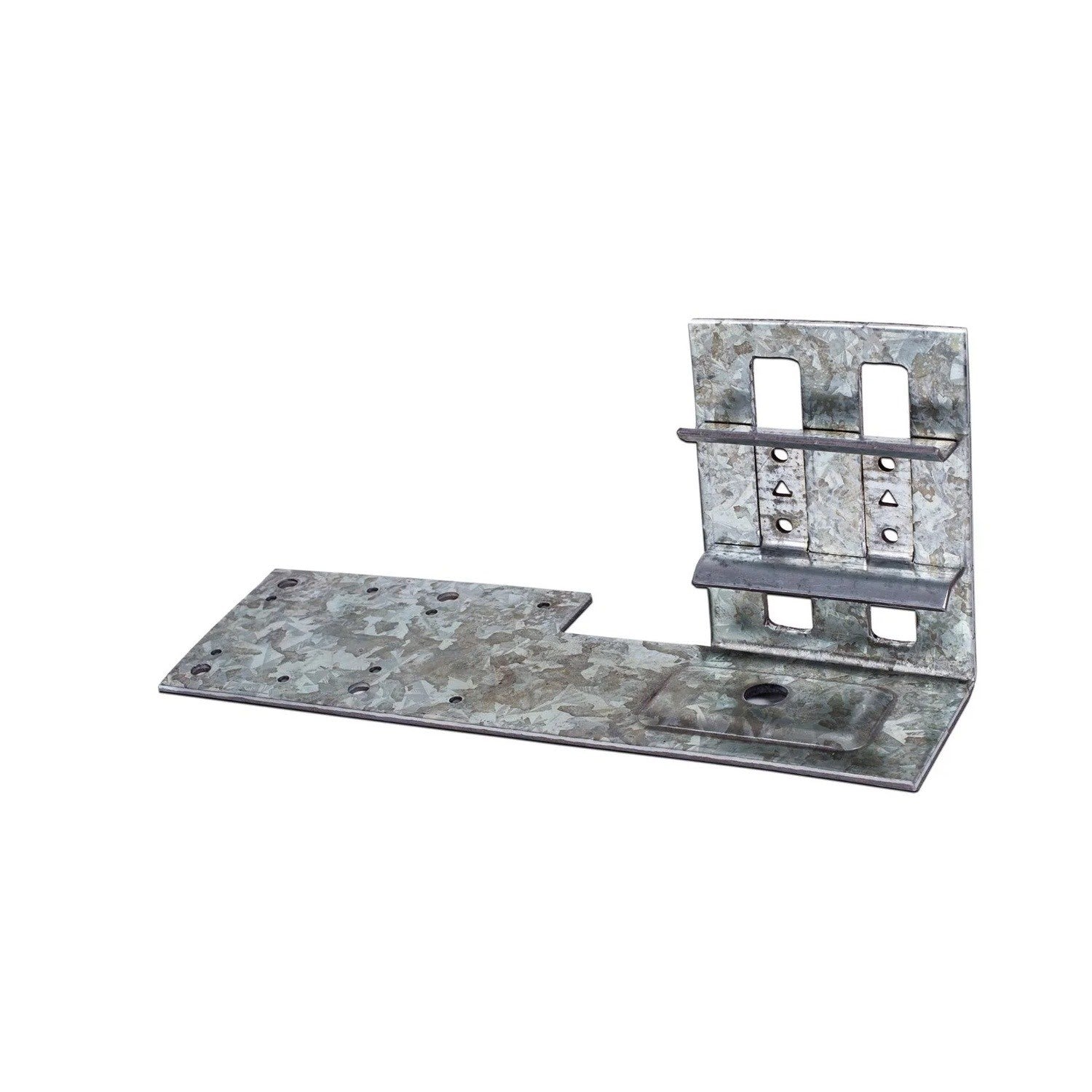

- Ensure that the SCVS vertical slider is centered in the SCHA vertical slots by aligning the tic-marks adjacent to the triangle holes on the slider with the stamp on the SCHA clip
Simpson Strong-Tie SCHA10.75L-KT15 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 118 mil (10 ga., 33 ksi) |
| Packaging Quantity | 15 |
Toolup Part # :
819895
