Simpson Hangers | SKU:
SCLC1.75
Simpson Strong-Tie SCLC1.75 (1-3/4") Stair Cassette Ledger Connector
$7.74
Unit price
/
Unavailable
Description
Description

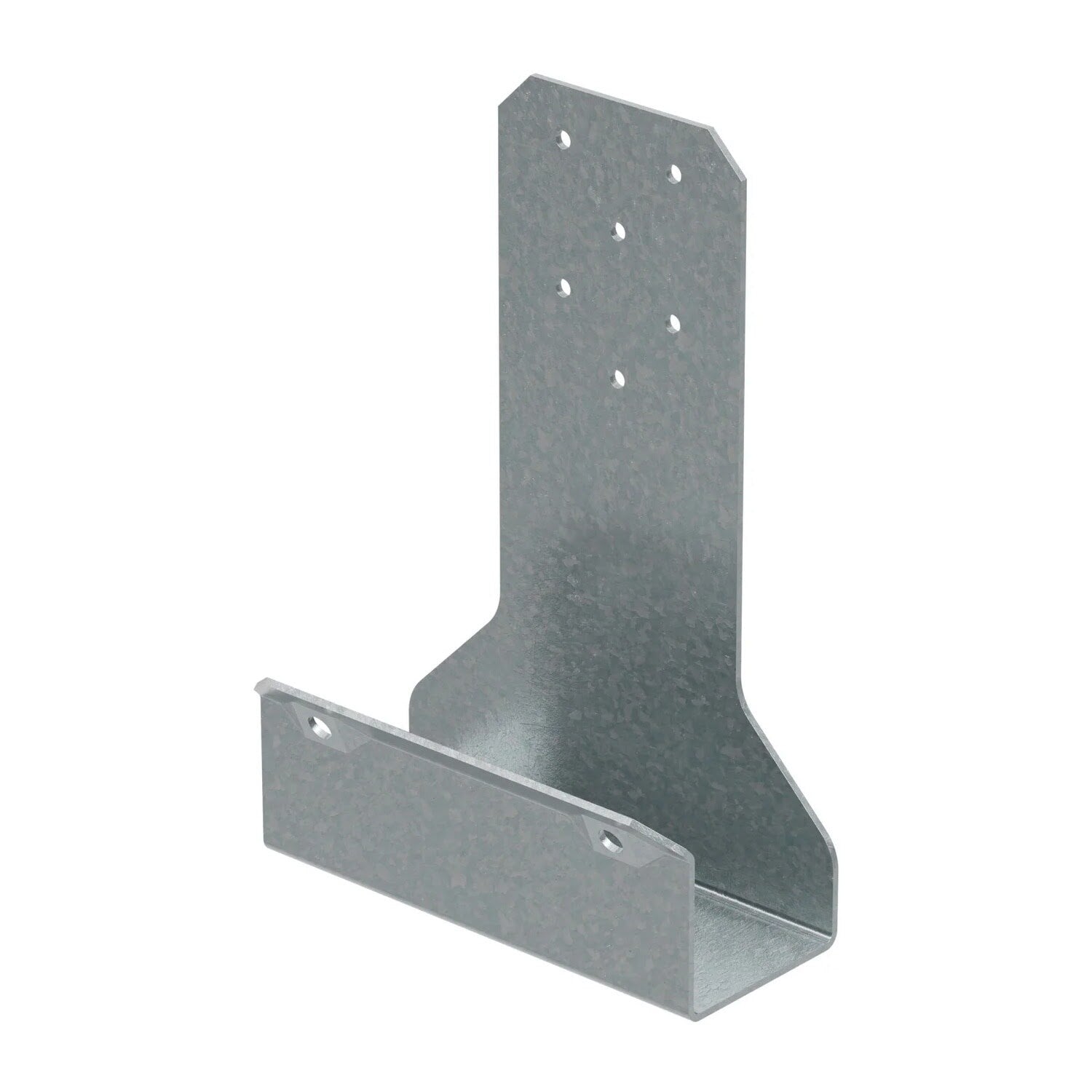

Simpson Strong-Tie SCLC1.75 Description
The SCLC1.75 is a specialized connector designed for securely attaching preassembled stair cassettes to ledgers, ensuring efficient and safe installation.
Simpson Strong-Tie SCLC1.75 Includes
- (1) Stair Cassette Ledger Connector
Simpson Strong-Tie SCLC1.75 Features
- Factory installation of connector on ledger reduces onsite labor
- Stair cassette seats securely on connector for safer onsite installation
- Excellent onsite fit-up tolerance
- Uses power-driven or hand-installed nails and SDS Heavy-Duty Connector screws
- Can be installed in conjunction with the LSCZ stair-stringer connector
Simpson Strong-Tie SCLC1.75 Applications
- Connecting preassembled stair cassettes to ledgers
- Use in residential and commercial stair installations

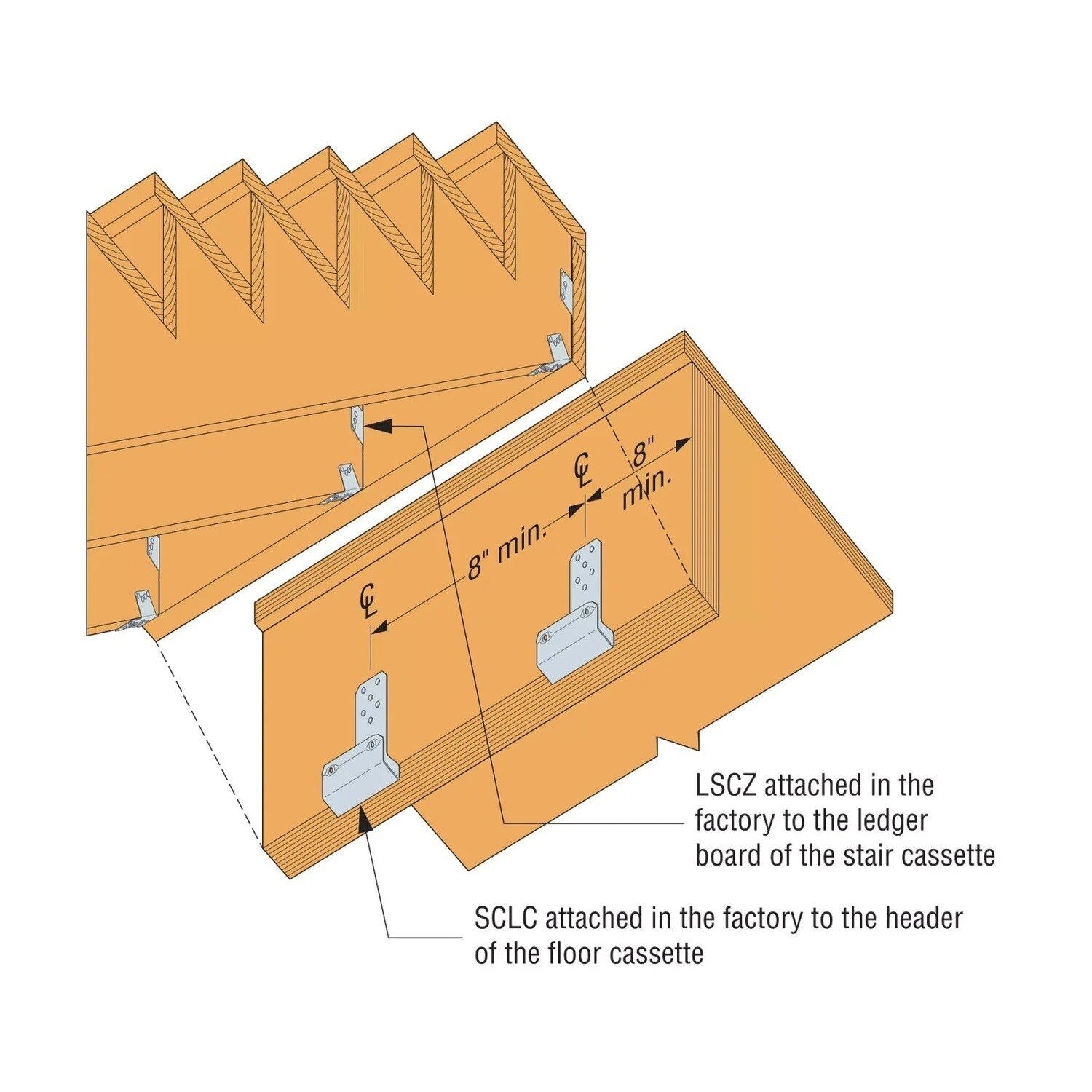

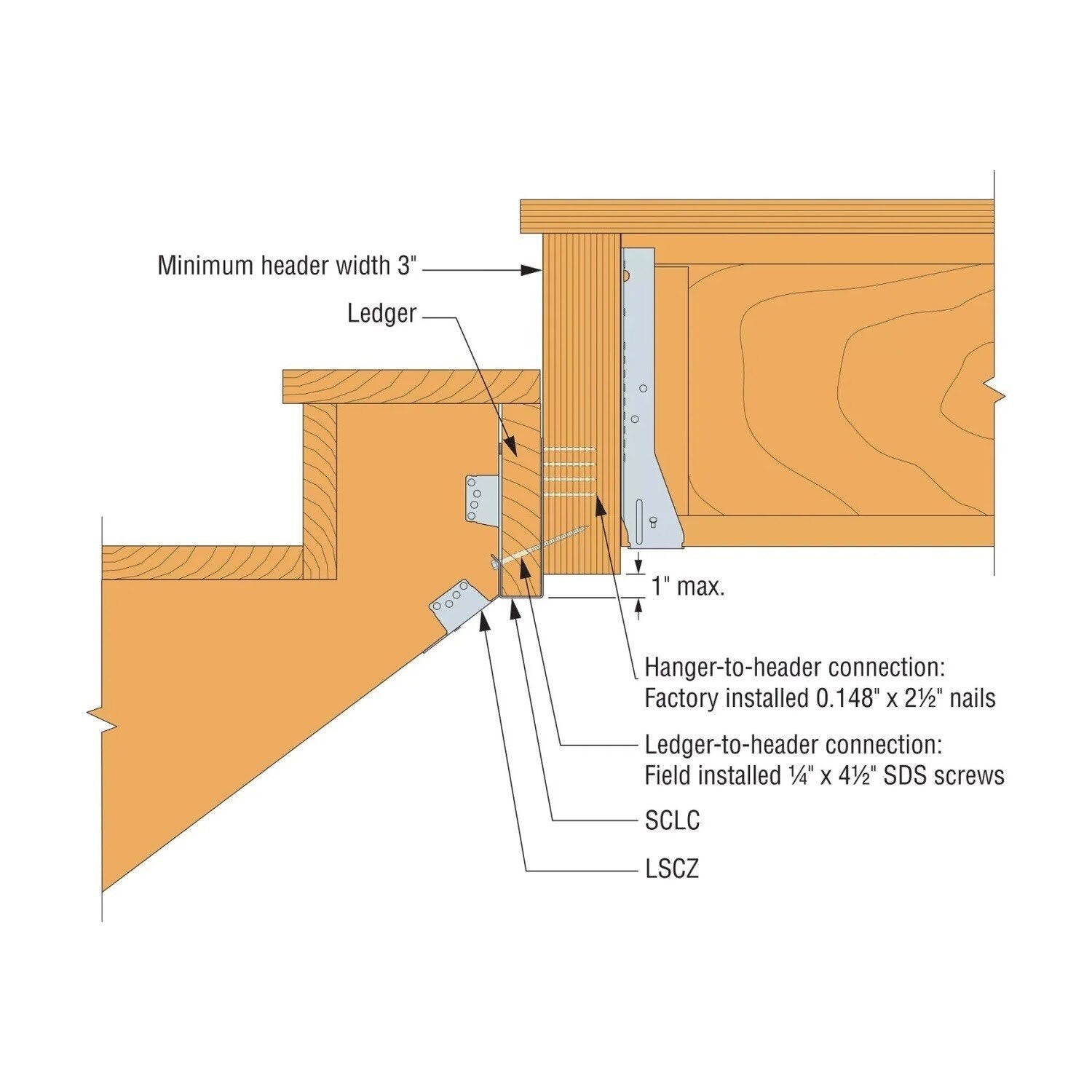

Simpson Strong-Tie SCLC1.75 Installation Overview
- Attach the SCLC to the header of the floor cassette in the factory using specified fasteners
- Crane the stair cassette into place so that the ledger engages all supporting SCLC connectors
- Complete the installation with all specified field-installed SDS fasteners

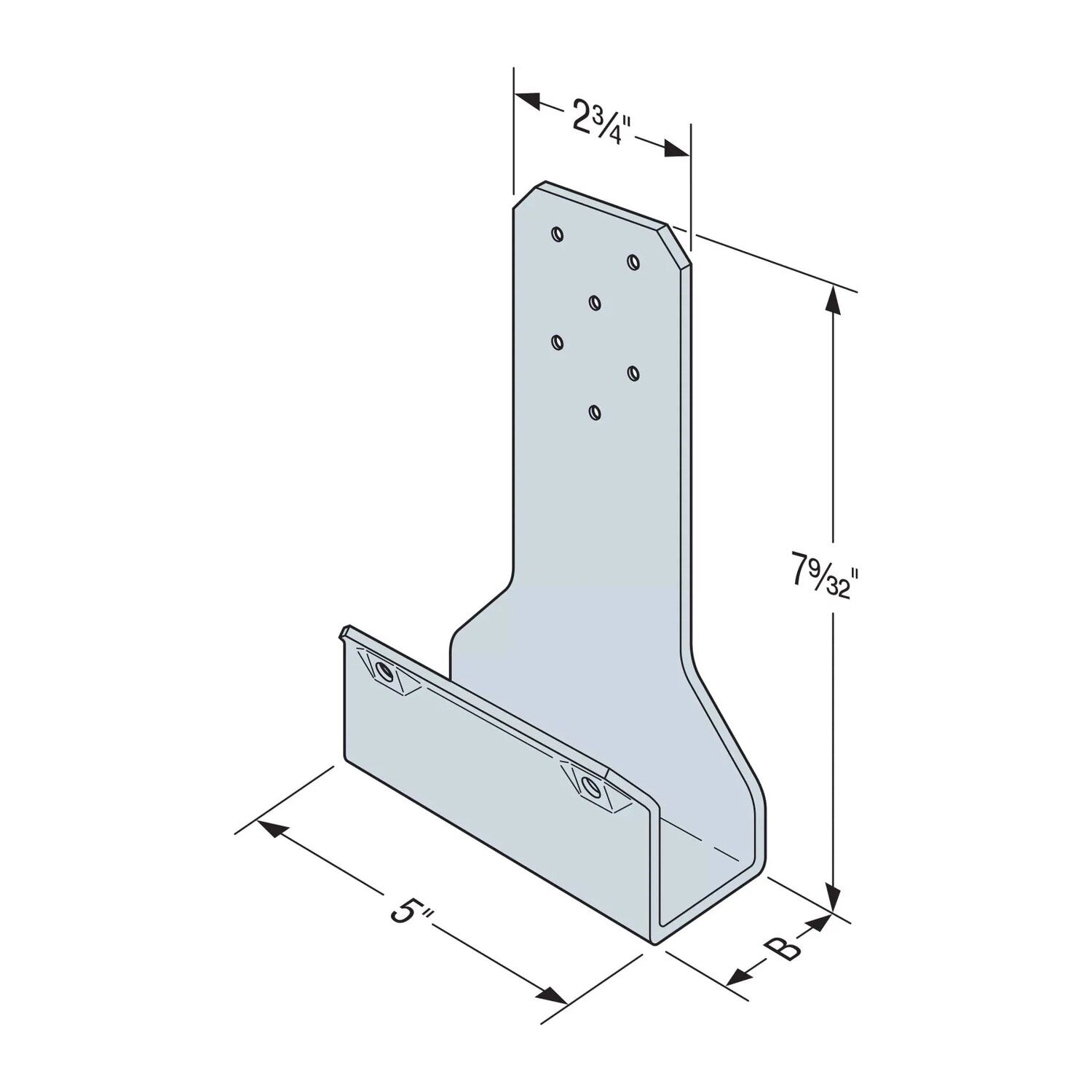

Simpson Strong-Tie SCLC1.75 Specifications
| Material | 14 gauge |
| Finish | G90 Galvanized |
| Length | 5" |
| Base width | 1-7/8" |
| Height | 7-9/32" |
| Weight | 0.9 lb |
