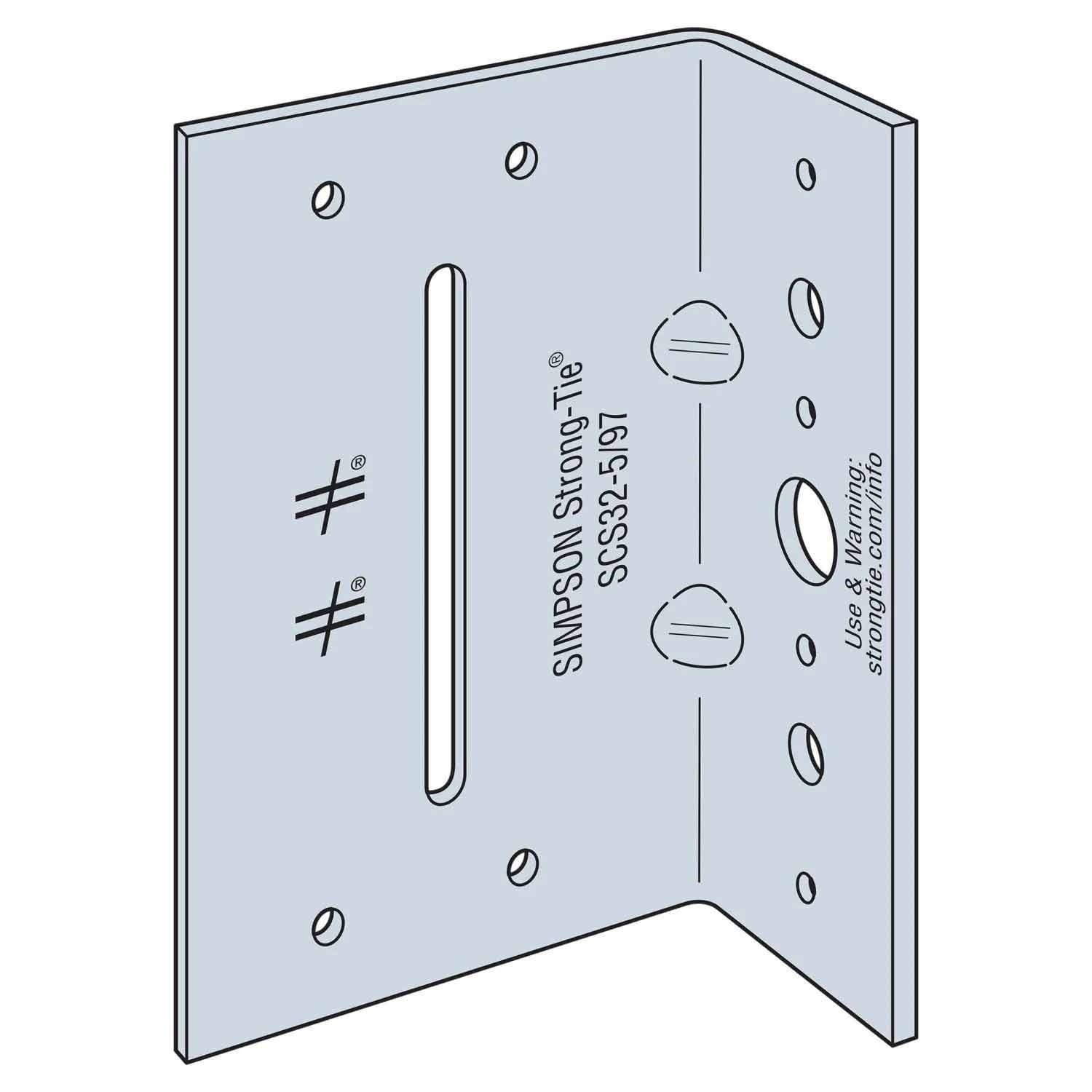

Simpson Strong-Tie SCS32-5/97-KT25 Description
The SCS32-5/97-KT25 is a versatile seismic bypass framing slide clip designed for both slide-clip and fixed-clip applications, providing exceptional resistance to in-plane seismic loads.
Simpson Strong-Tie SCS32-5/97-KT25 Includes
- (25) connectors

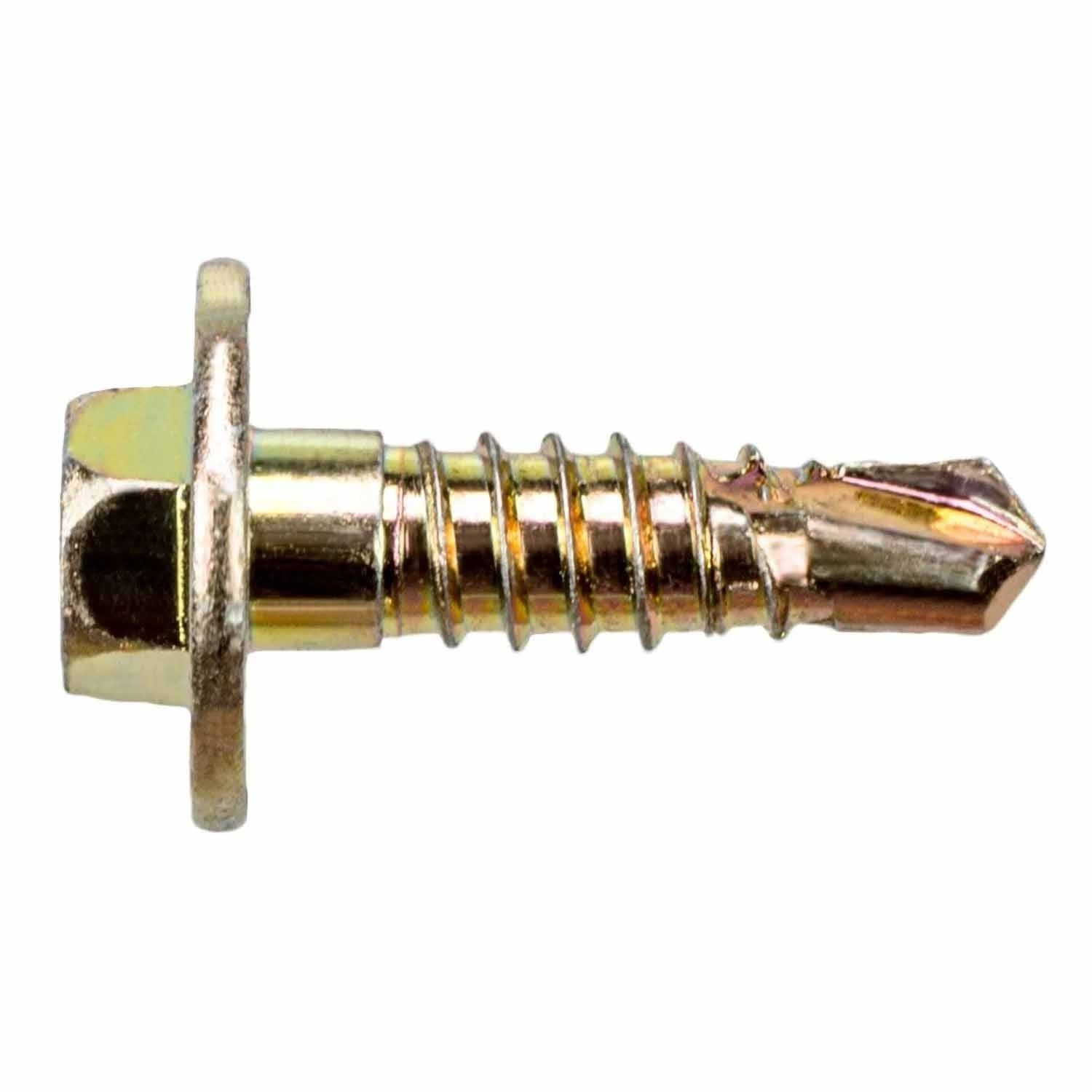

- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SCS32-5/97-KT25 Features
- Allows both slide-clip and fixed-clip applications
- Engineered for high seismic activity areas
- Heavy-duty 10- and 12-gauge steel construction
- Strategically placed darts for enhanced strength
- Pre-punched oblong slots for slide applications
- Round holes for fixed-clip applications
- Anchor holes for concrete and steel supports
Simpson Strong-Tie SCS32-5/97-KT25 Applications
- Seismic and non-seismic framing applications
- Cold-formed steel construction
- Curtain-wall framing

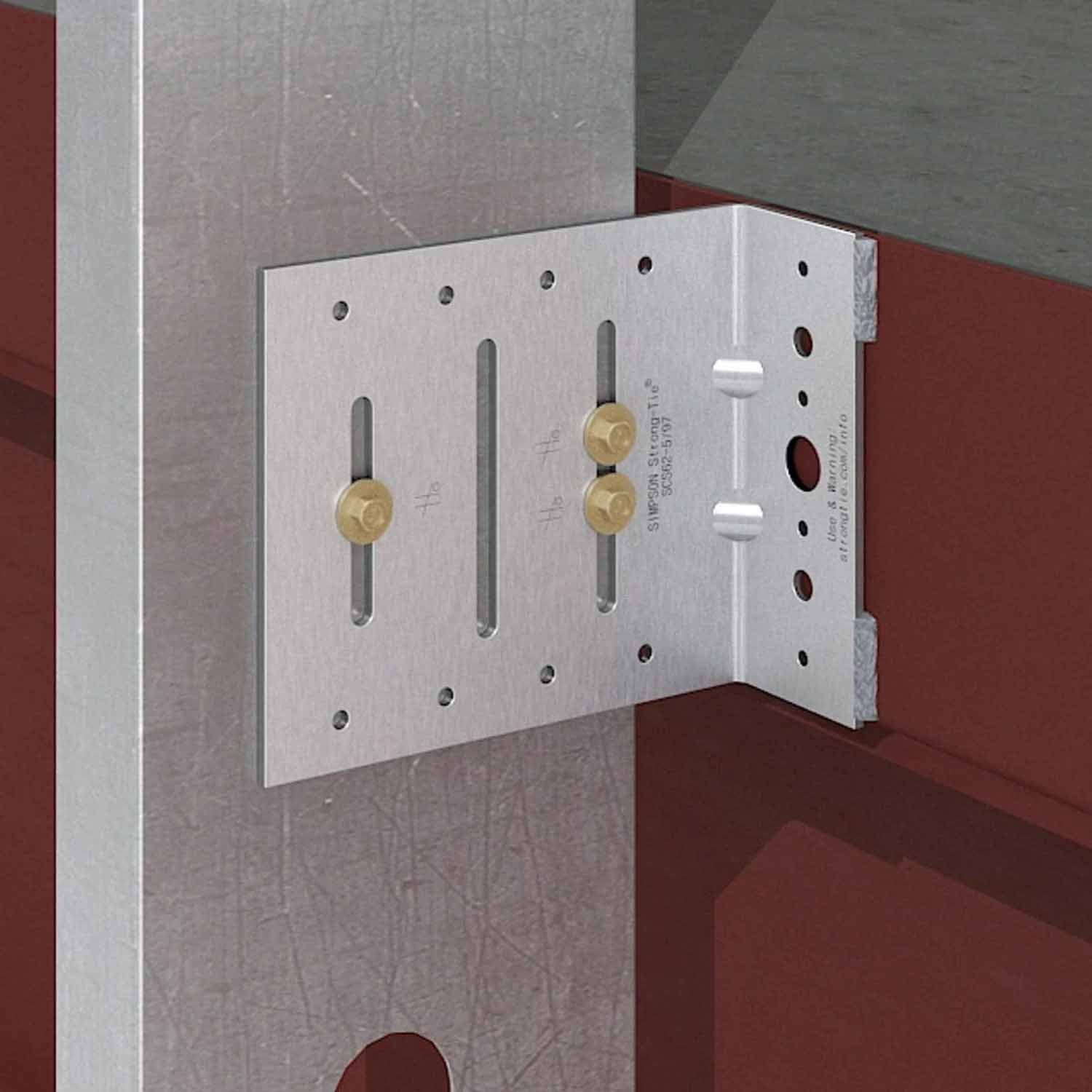

Simpson Strong-Tie SCS32-5/97-KT25 Installation Overview
- Use the specified type and number of anchors.
- For slide applications, use the included XLSH78B1414 #14 shouldered screws.
- Install screws in the slots adjacent to the No-Equal stamps.
- For fixed applications, use the specified number of #10 screws in the designated screw holes.
Simpson Strong-Tie SCS32-5/97-KT25 Specifications
| Material | 12 Gauge and 10 Gauge steel |
| Finish | G90 Galvanized |
| Length | 3-1/2" |
| Fasteners Included | (55) XLSH78B1414 #14 shouldered screws |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
