Simpson Strong-Tie SCS62-5/97-KT25 Description

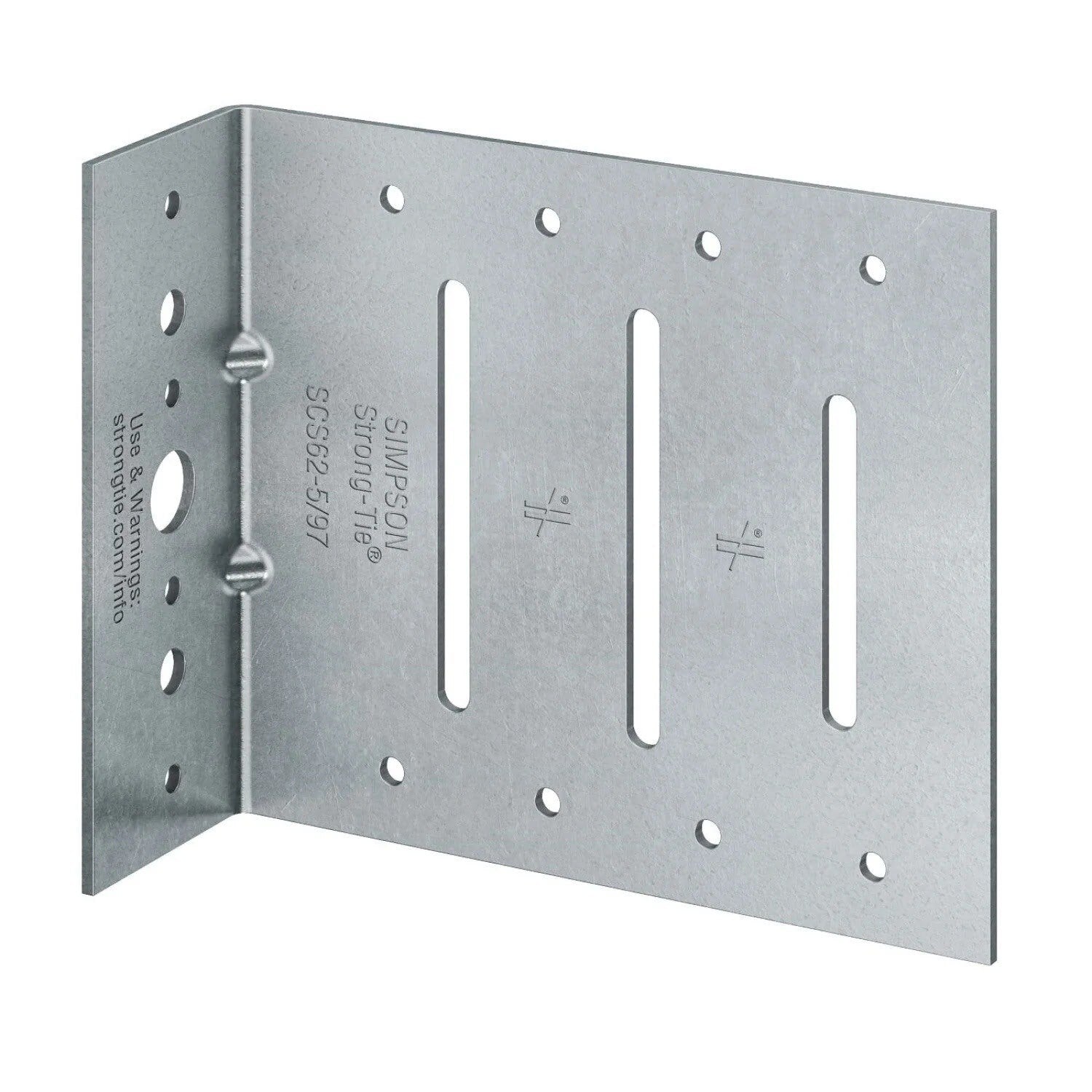

The SCS62-5/97-KT25 is a hybrid clip designed for slide-clip or fixed-clip applications, engineered for exceptional resistance to seismic loads.
Simpson Strong-Tie SCS62-5/97-KT25 Includes
- (25) connectors

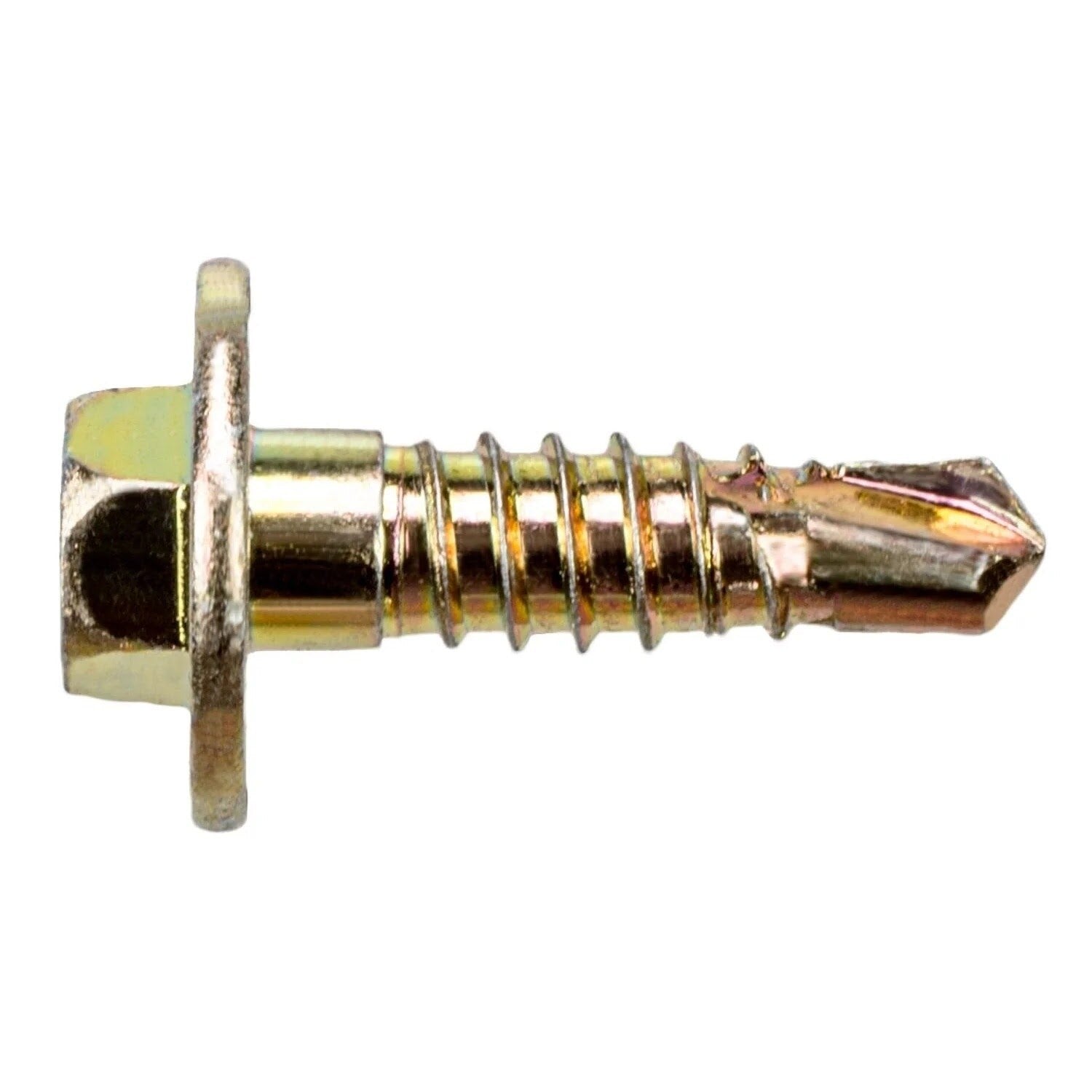

- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SCS62-5/97-KT25 Features
- 3 1/2", 6" and 8" lengths
- Slide slots used with shouldered washer screws allow a full 1" of vertical deflection
- Precision-located stiffeners enhance strength while allowing ductility
- Simpson Strong-Tie No-Equal stamps alongside slide slots indicate proper screw placement
- Dual-function clip with prepunched slots for slide application and small round holes for fixed application
Simpson Strong-Tie SCS62-5/97-KT25 Applications
- Cold-Formed Steel Construction
- Seismic and non-seismic areas
- Slide-clip or fixed-clip applications
Simpson Strong-Tie SCS62-5/97-KT25 Installation Overview
- Use the specified type and number of anchors.

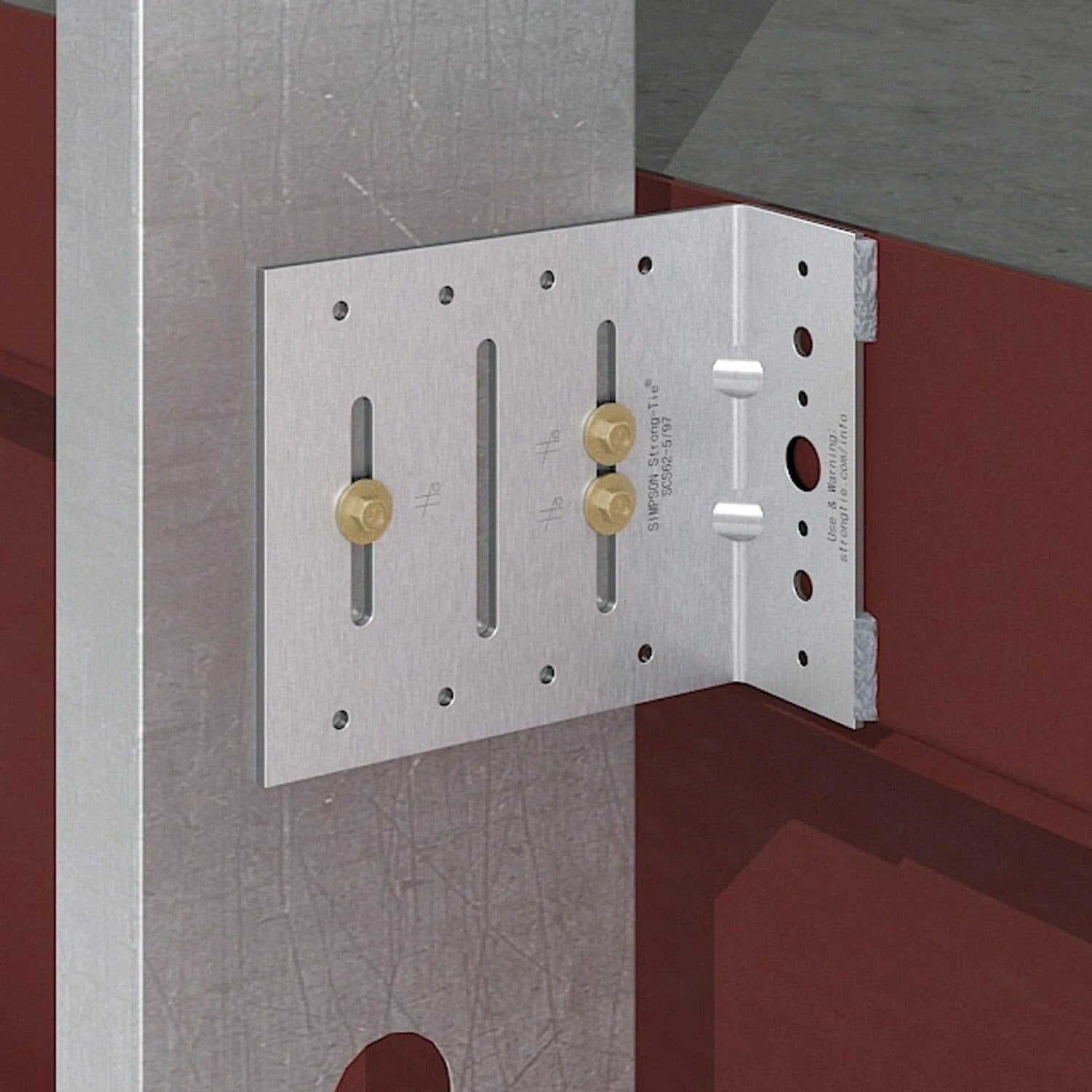

- Slide applications: Use the specified number of XLSH78B1414 #14 shoulder screws (included). Install the screws in the slots adjacent to the No-Equal stamps.
- Fixed applications: Use the specified number of #10 screws (not included) in the designated screw holes.
Simpson Strong-Tie SCS62-5/97-KT25 Specifications
| Material | 12 Gauge and 10 Gauge |
| Finish | G90 Galvanized |
| Length | 6" |
| Fasteners required | Includes (83) XLSH78B1414 #14 shouldered screws for slide-clip applications |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819038
