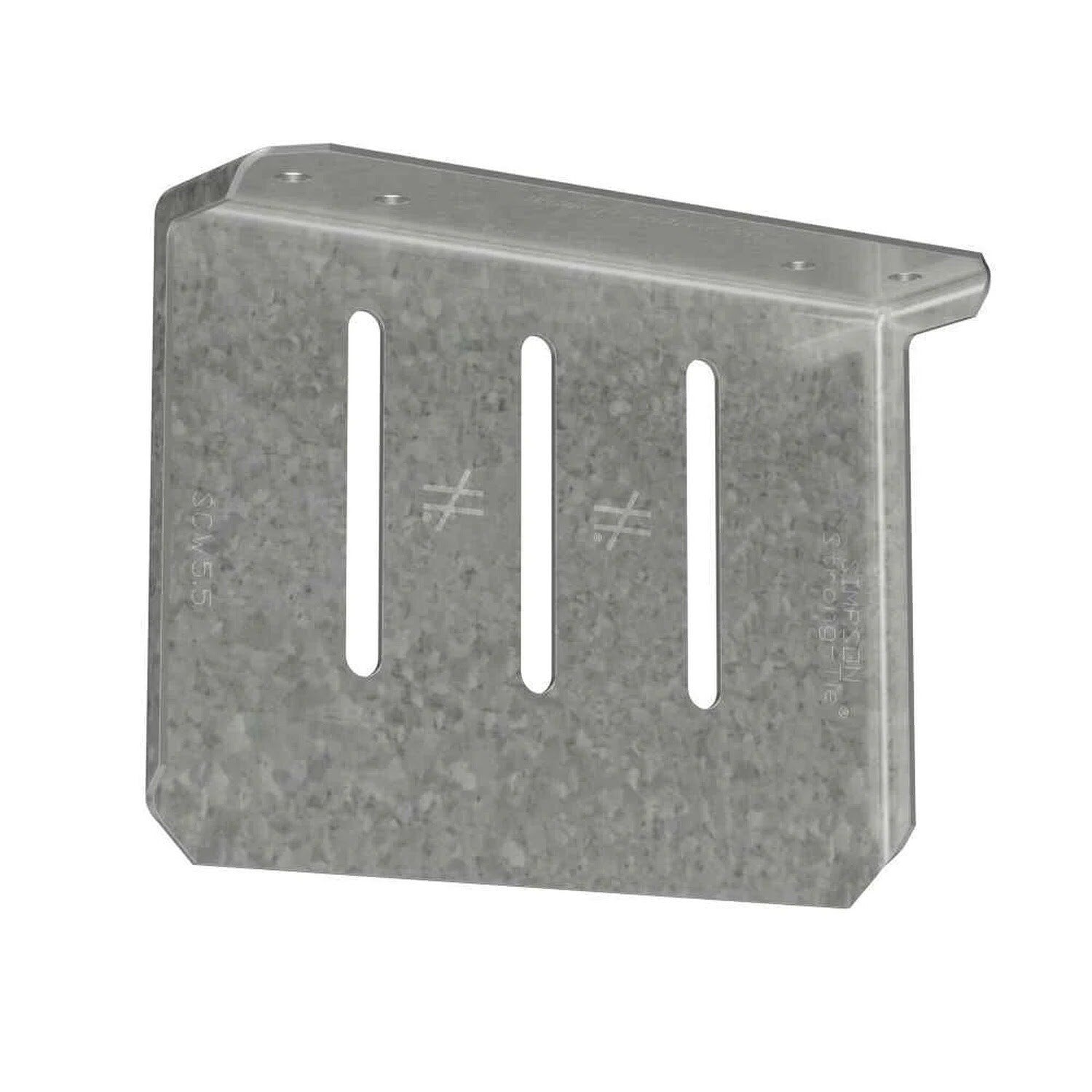

Simpson SCW5.5-KT Description
The SCW5.5-KT Head-of-Wall Slide-Clip Connector is designed for curtain-wall construction, offering vertical movement and enhanced structural support.
Simpson SCW5.5-KT Includes
- (25) Head-of-Wall Slide-Clip Connector
- (83) XLSH34B1414 #14 Shouldered Screws
Simpson SCW5.5-KT Features
- 1" upward and downward movement capability
- Strengthens window and door jambs
- G90 Galvanized finish for corrosion resistance
- Includes #14 shouldered screws for secure installation
Simpson SCW5.5-KT Applications
- Curtain-wall construction
- Strengthening window and door jambs
- Head-of-wall applications requiring vertical movement
Simpson SCW5.5-KT Installation Overview
- Use the specified type and number of anchors.
- Install shouldered screws in the slots adjacent to the No-Equal stamp.
- Use a maximum of one screw per slot.
Simpson SCW5.5-KT Specifications
| Material | 54 mil (16 ga.) |
| Finish | G90 Galvanized |
| Height | 4" |
| Weight | 13.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
