Simpson SD9212R100-R Description
The Strong-Drive SD Connector Screw is designed to replace nails in Simpson Strong-Tie connectors, offering superior load capacity and ease of installation.
Simpson SD9212R100-R Includes

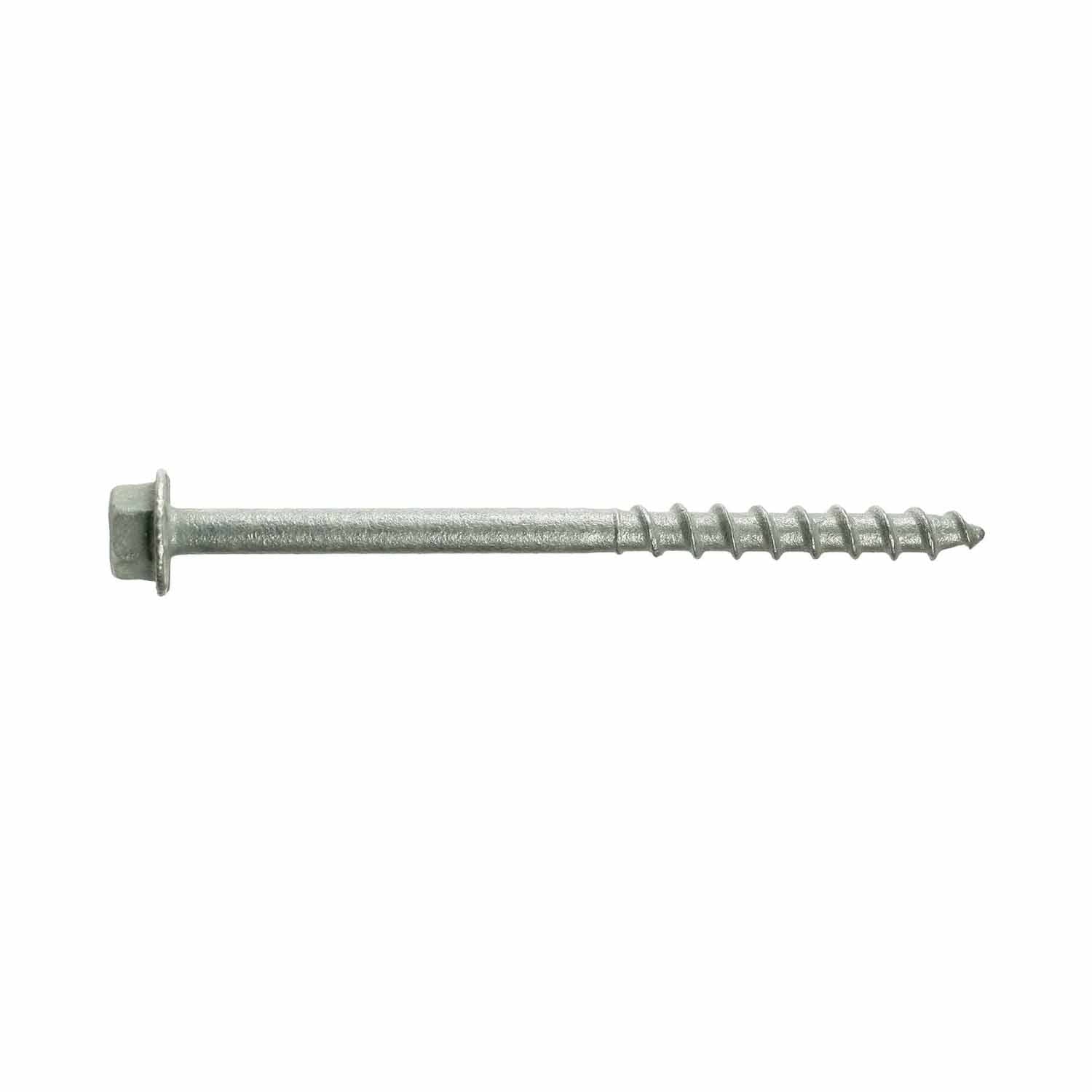

- (100) #9 x 2-1/2 in. Strong-Drive SD Connector Screw
Simpson SD9212R100-R Features
- Designed to replace nails in Simpson Strong-Tie connectors
- Mechanically galvanized coating for corrosion resistance
- 1/4" hex head with integrated washer for easy identification
- Optimized heat treating for ductility and strength
- Includes hex driver
Simpson SD9212R100-R Applications

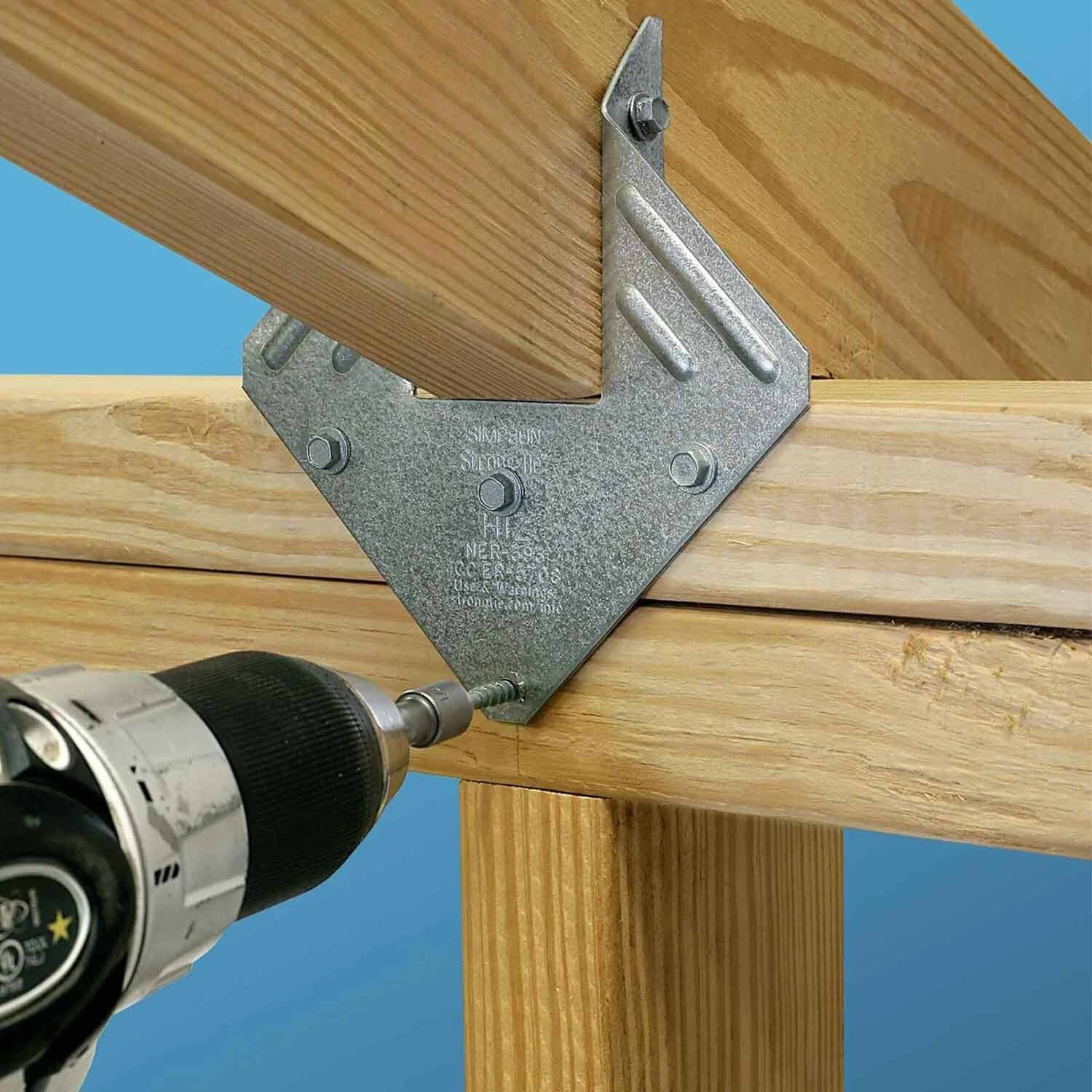

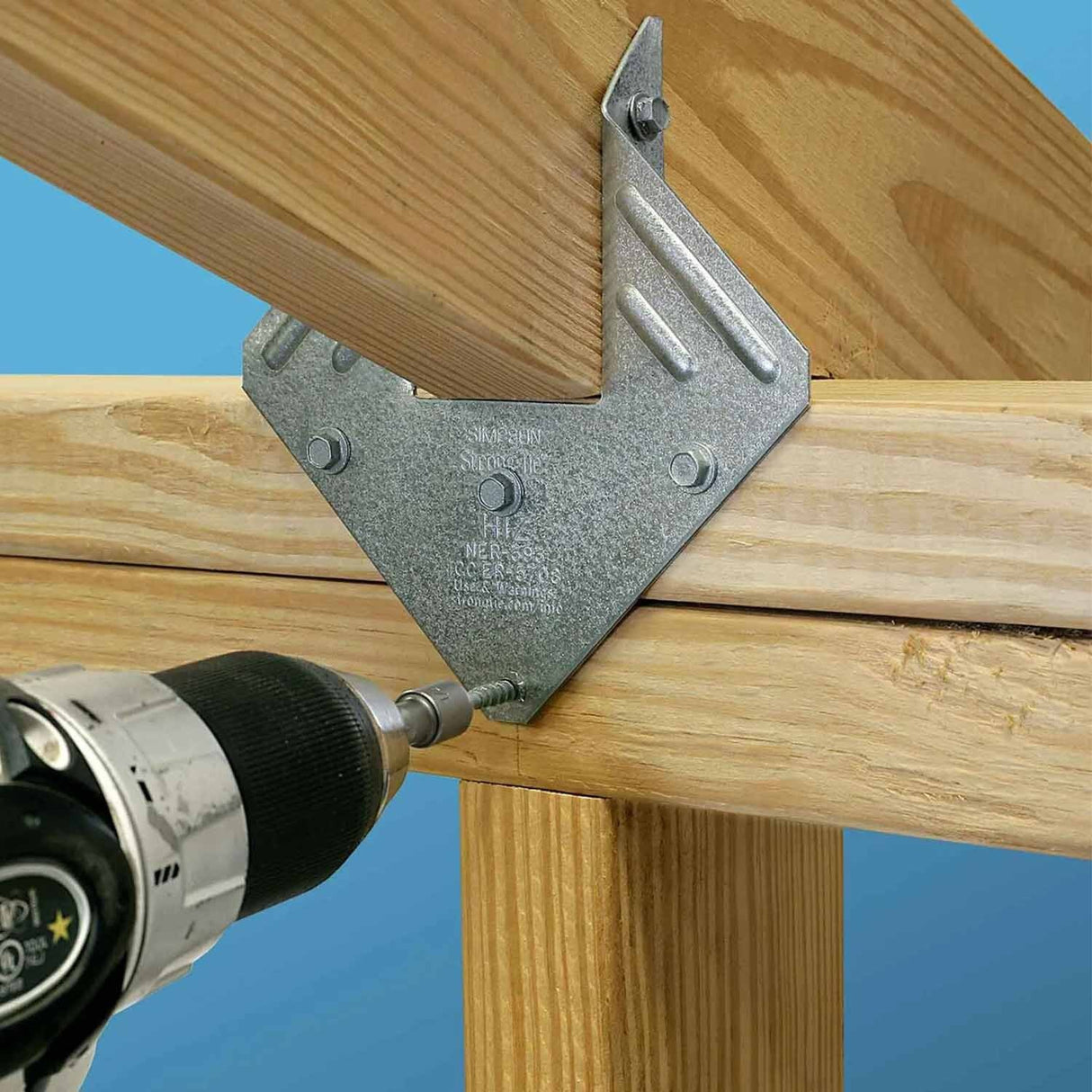

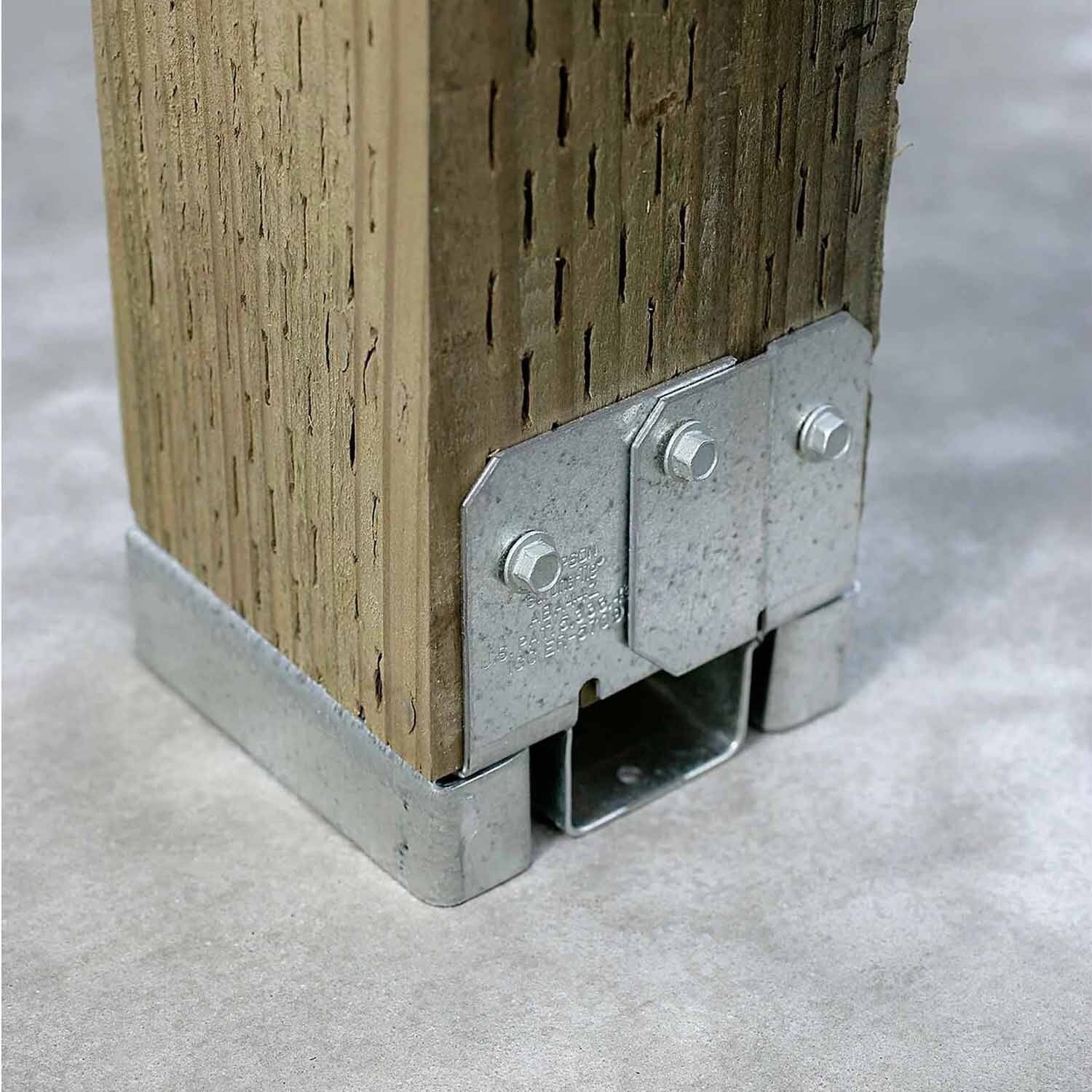

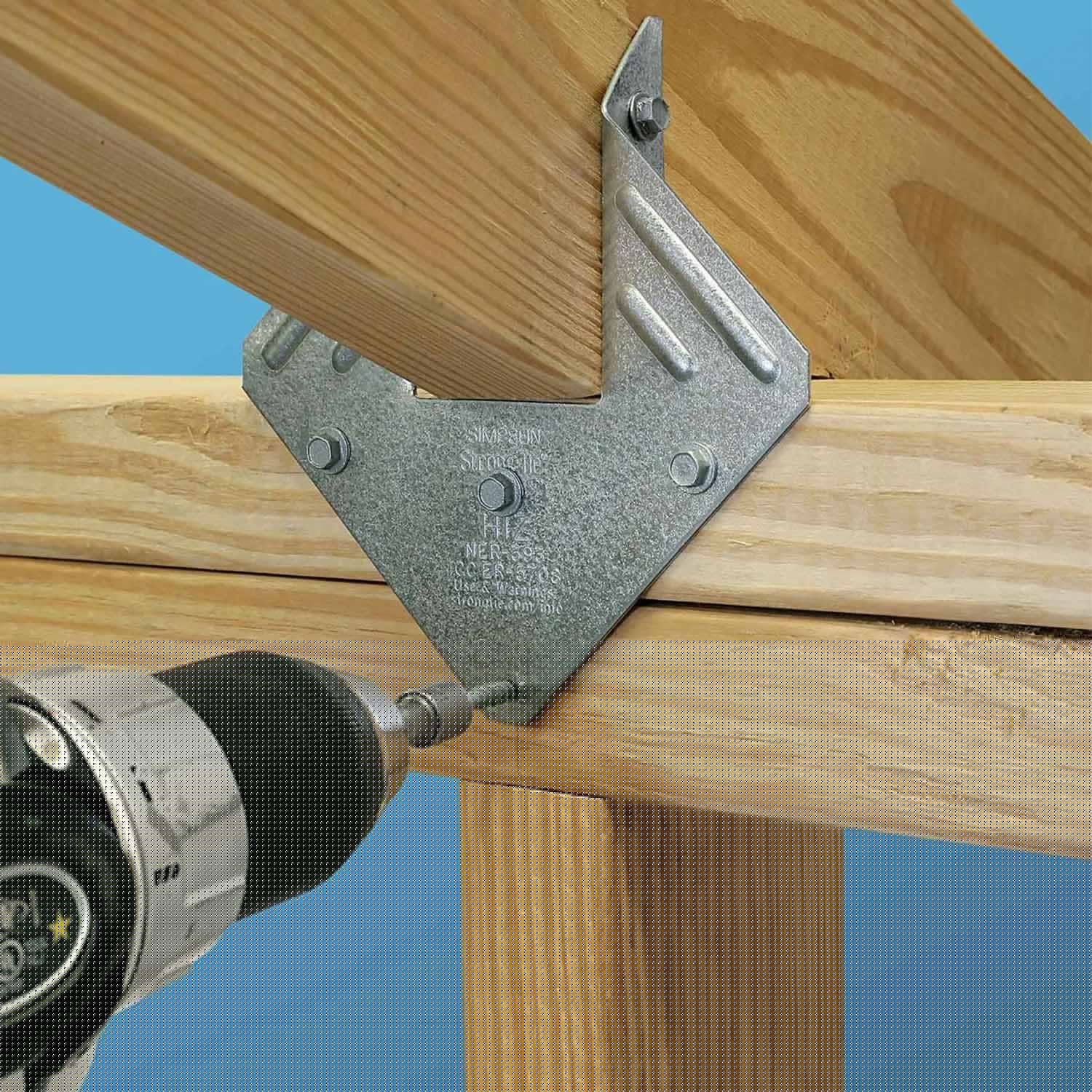

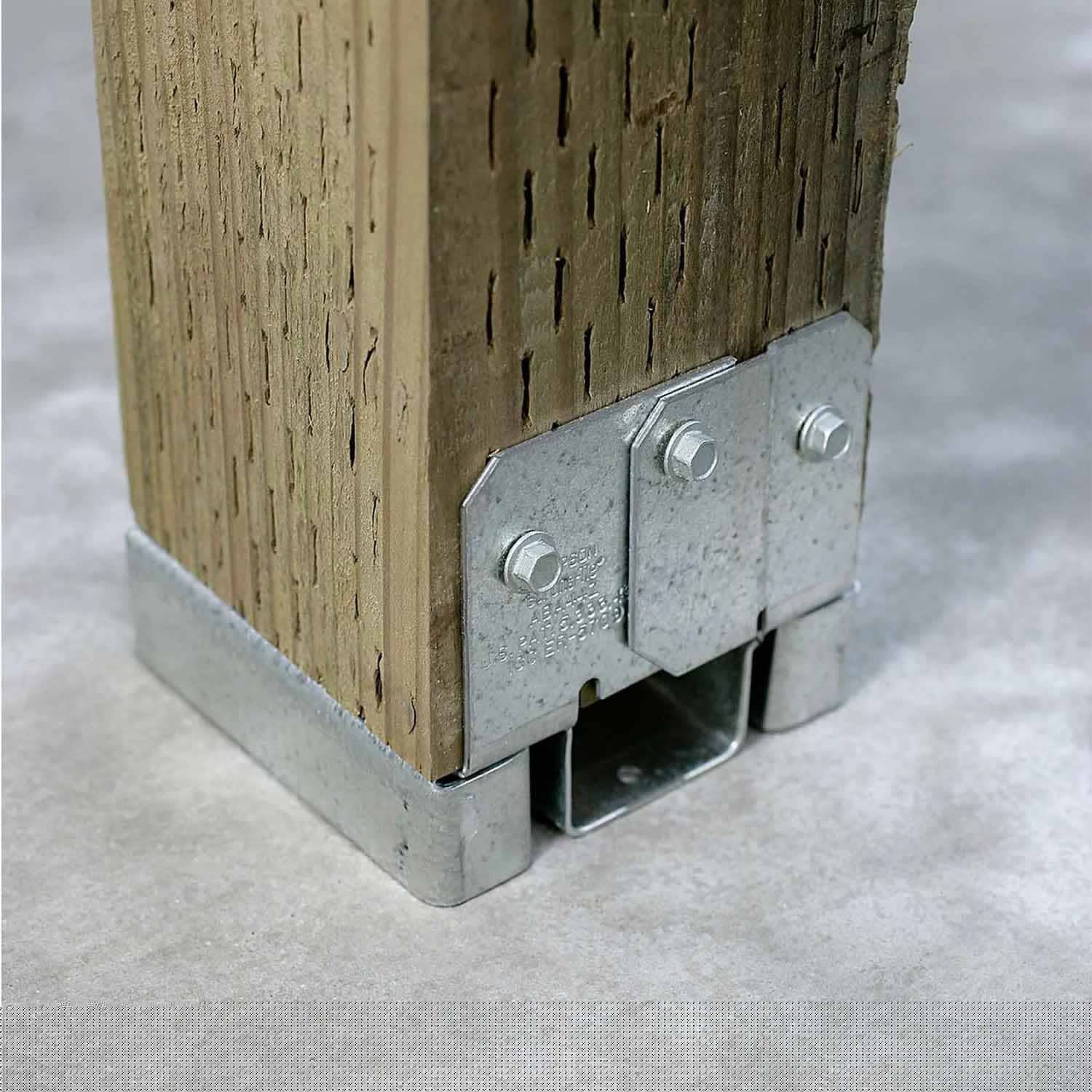

- Used in Simpson Strong-Tie connectors for structural connections
- Ideal for both interior and exterior applications
- Suitable for DIY and home projects
Simpson SD9212R100-R Installation Overview
- Align the screw with the connector hole
- Drive the screw using the included hex driver
- Ensure the screw is fully seated for optimal load capacity
Simpson SD9212R100-R Specifications
| Fastener Type | Hand-Drive Screw |
| Application | DIY/Home Projects |
| Coating/Material | Mechanically Galvanized, Class 55 |
| Screw Size | #9 |
| Length (in.) | 2 1/2 |
| Head Diameter (in.) | 0.370 |
| Shank Diameter (in.) | 0.130 |
| Drive Type | 1/4 in. Hex |
| Head Type | Hex Head |
| Thread Length (in.) | 1 1/8 |
| Point Type | Sharp Point |
| Packaging Qty. | 100 |
NOTE: Ensure the screws are installed according to the manufacturer's guidelines to achieve the specified load values
