Simpson Anchors | SKU:
SDCF271100-R30

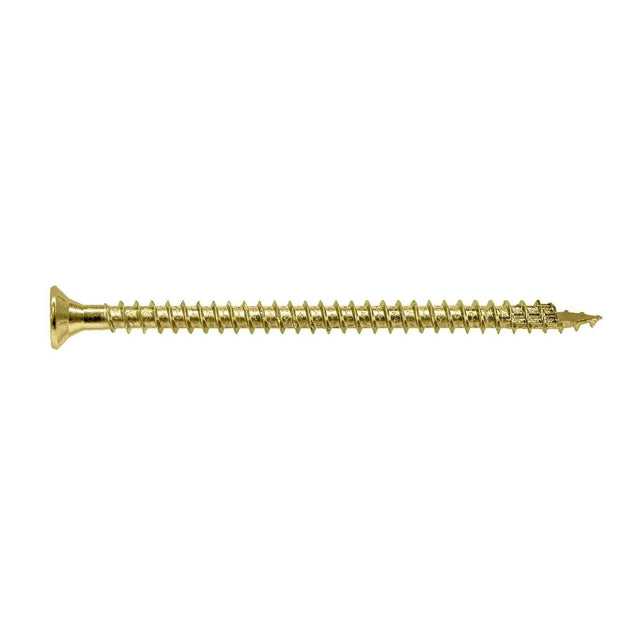

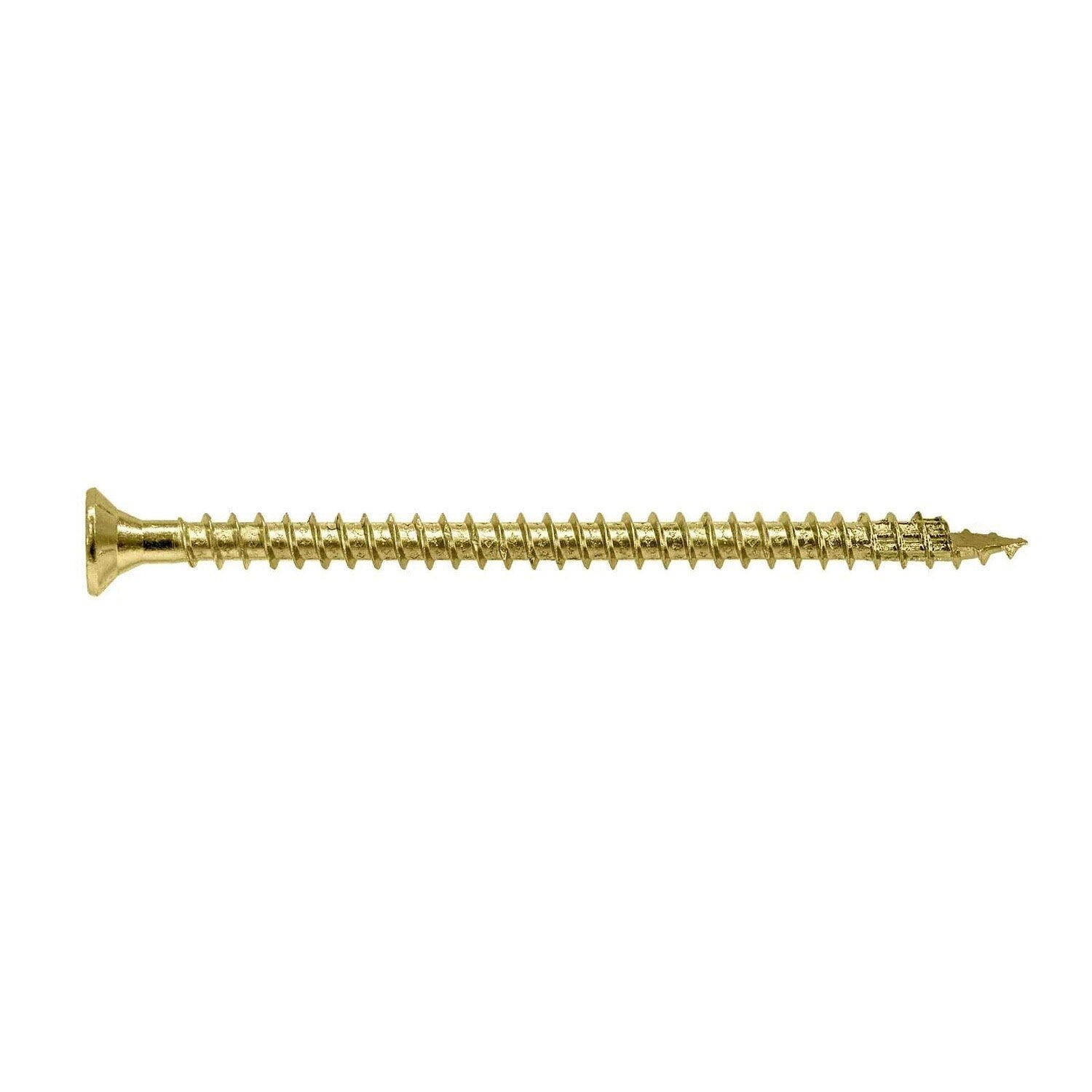

Simpson Strong-Tie SDCF271100-R30 Strong-Drive (0.725" x 11") T50 Yellow Zinc Timber-CF Screw, Flat Head w/ Nibss (30 Pack)
Free Shipping
$208.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCF271100-R30 Description
The Simpson Strong-Drive SDCF Timber-CF screw is a structural fastener designed for cross-laminated timber and mass timber construction, providing uncompromised strength and clean countersinking.
Simpson Strong-Tie SDCF271100-R30 Includes
- (30) Yellow Zinc Timber-CF Screw
Simpson Strong-Tie SDCF271100-R30 Features
- Designed to be countersunk with head flush to wood surface
- Fully threaded to provide high withdrawal resistance
- Flat head with nibs helps countersink the screw for a flush finish
- Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
- Head stamp includes length in mm for inspection
- Interior grade yellow-zinc coating
- Deep 6-lobe recess for a secure drive
Simpson Strong-Tie SDCF271100-R30 Applications
- Beam reinforcement
- Wall-to-wall connections
- Floor-to-floor connections
- Support beams
- Butt joints
Simpson Strong-Tie SDCF271100-R30 Specifications
| Diameter | 0.390" |
| Finish | Yellow Zinc |
| Length | 11" |
| Material | Carbon Steel |
| Drive type | T50 Star Drive |
| Head diameter | 0.725" |
| Head type | Flat Head with Nibs |
| Point type | Half Point |
| Thread length | 10-3/4" |
| Quantity | 30 |
