Simpson Anchors | SKU:
SDCF272358

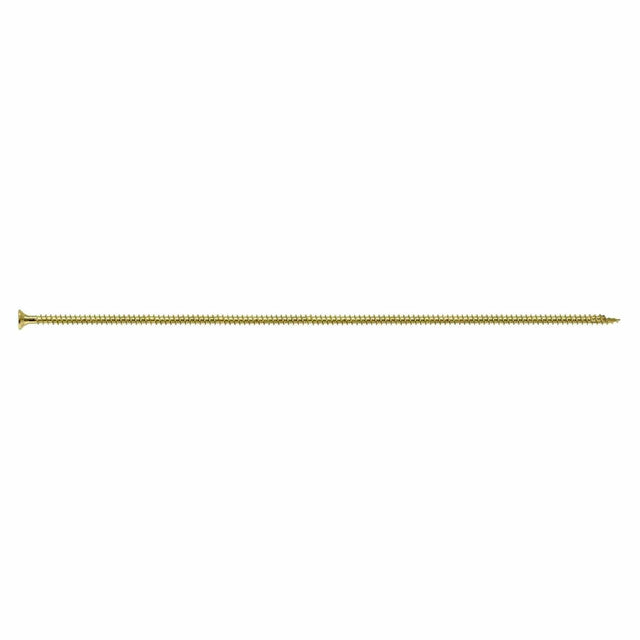

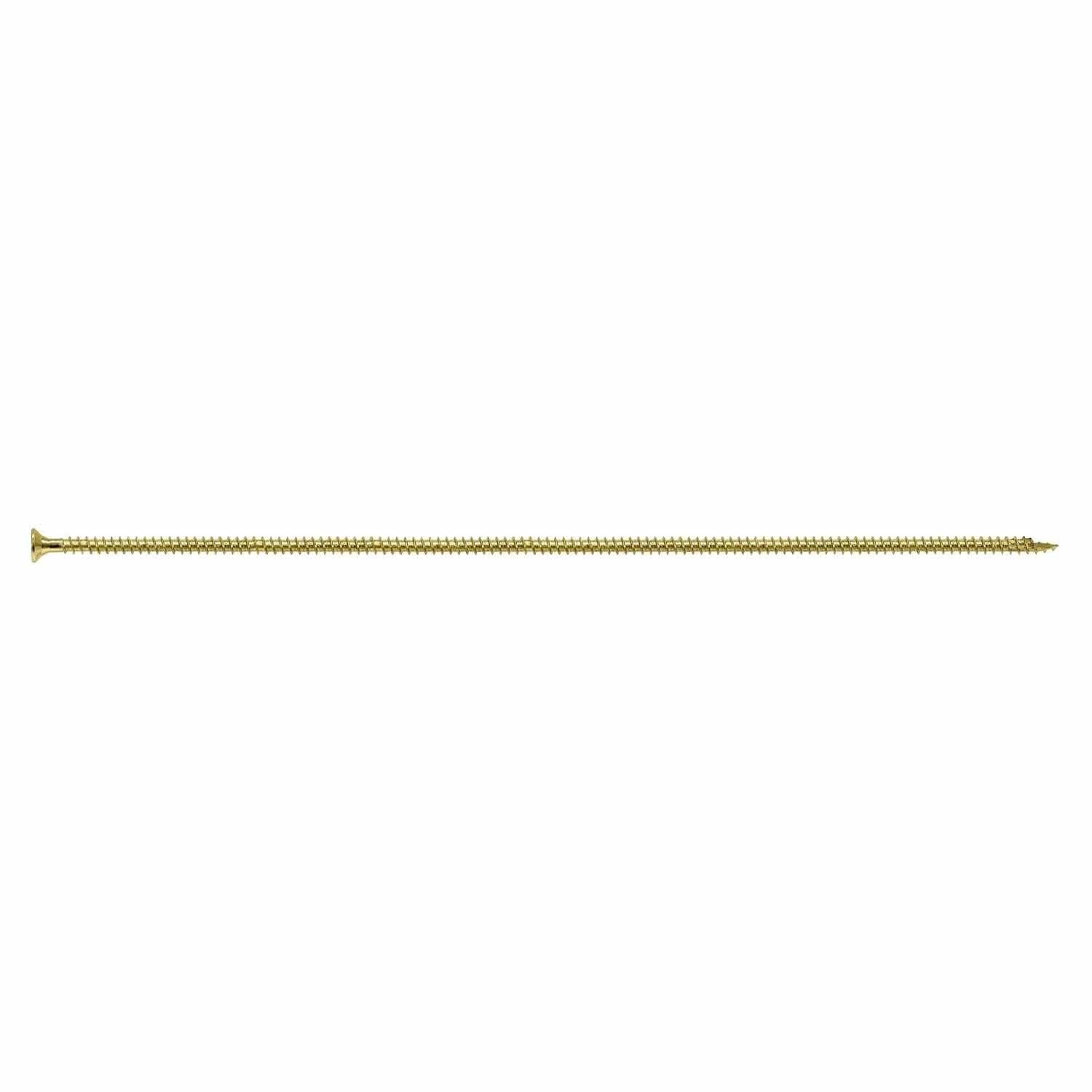

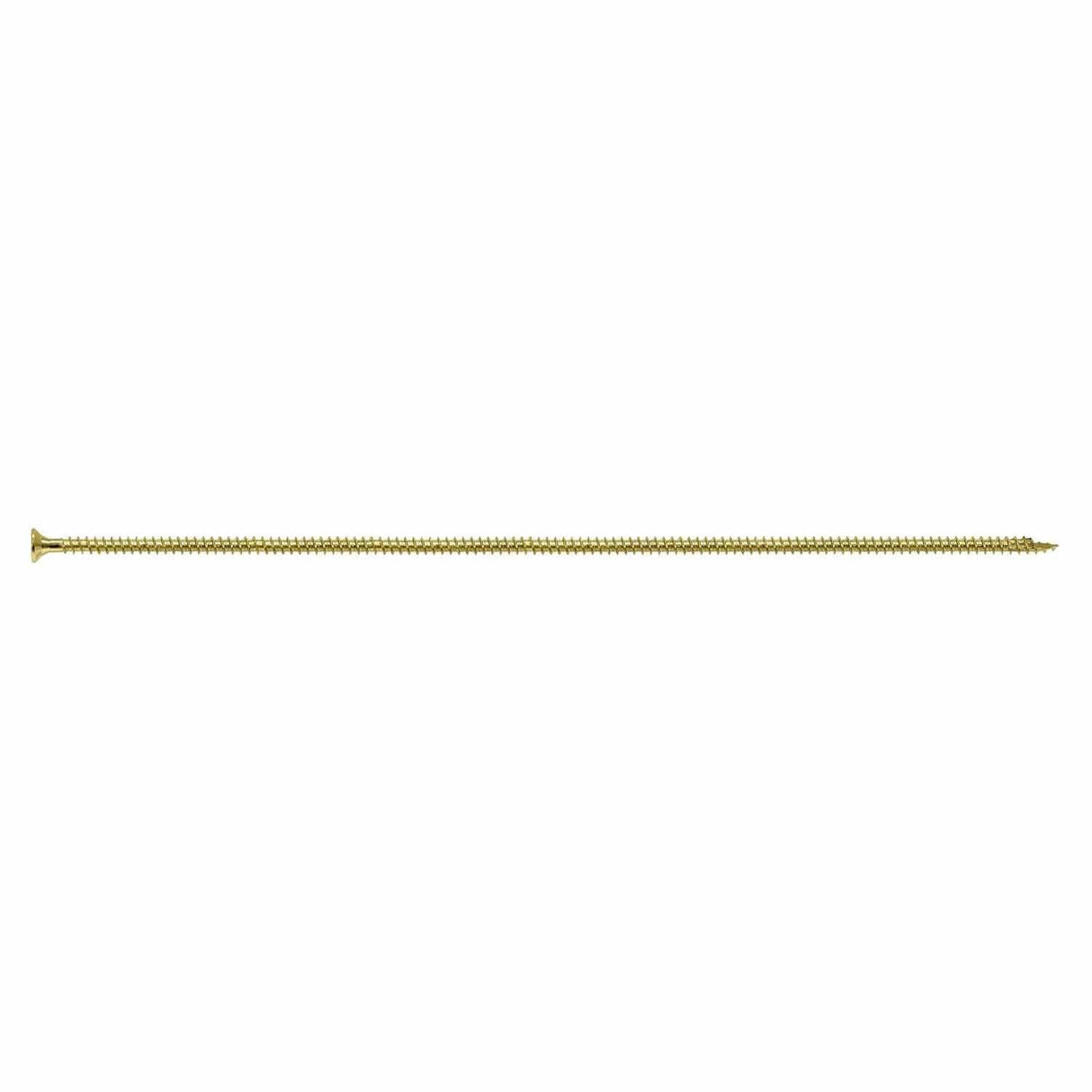

Simpson Strong-Tie SDCF272358 Strong-Drive (0.725" x 23-5/8") T50 Yellow Zinc Timber-CF Screw, Flat Head w/ Nibs (100 Pack)
Free Shipping
$2,121.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCF272358 Description
The Simpson Strong-Drive SDCF Timber-CF screw is a structural fastener designed specifically for cross-laminated timber construction, mass timber construction, and general interior applications.
Simpson Strong-Tie SDCF272358 Includes
- (100) Strong-Drive SDCF Timber-CF Screw
Simpson Strong-Tie SDCF272358 Features
- Designed to be countersunk with head flush to wood surface
- Fully threaded to provide high withdrawal resistance
- Flat head with nibs helps countersink the screw for a flush finish
- Heavy-duty, fully-threaded shank provides strength, with superb withdrawal resistance
- Head stamp includes length in mm for inspection
- Interior grade yellow-zinc coating
- Deep 6-lobe recess for a secure drive (T50 - replacement bit part number BIT50T-2-R1)

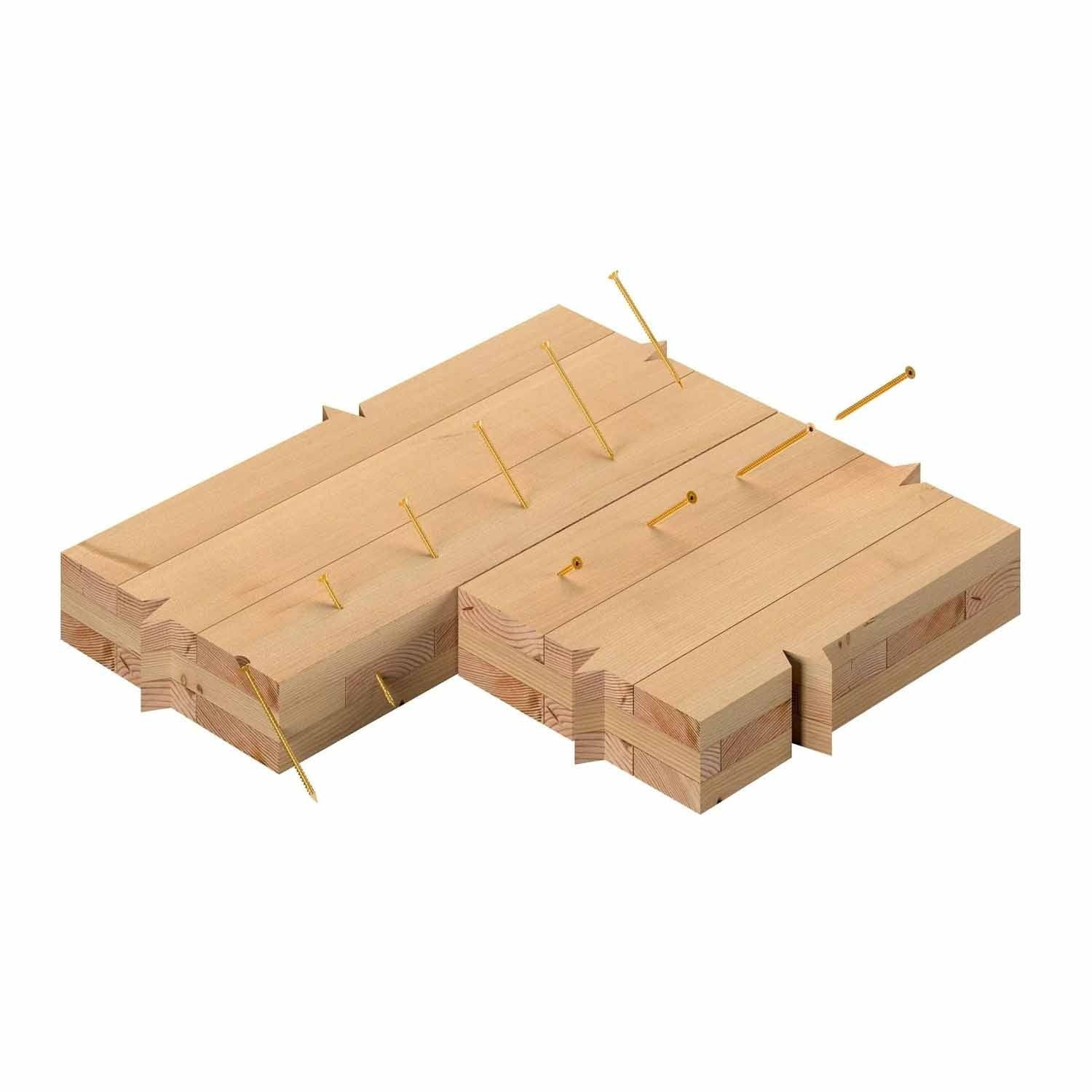

Simpson Strong-Tie SDCF272358 Applications
- Beam reinforcement
- Wall-to-wall connections
- Floor-to-floor connections
- Support beams
- Butt joints
Simpson Strong-Tie SDCF272358 Specifications
| Diameter | 0.390" |
| Finish | Yellow Zinc |
| Length | 23-5/8" |
| Material | Carbon Steel |
| Drive type | T50 Star Drive |
| Head diameter | 0.725" |
| Head type | Flat Head with Nibs |
| Point type | Half Point |
| Quantity | 100 |
| Thread length | 23-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
