Simpson Anchors | SKU:
SDCFC273938
Simpson Strong-Tie SDCFC273938 Strong-Drive (0.390" x 39-3/8") T50 Yellow Zinc SDCFC Timber-CFC Screw, Cylinder Head (50 Pack)
Free Shipping
$2,094.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCFC273938 Description
Simpson Strong-Tie SDCFC Timber-CFC Screws are structural fasteners designed for cross-laminated timber (CLT) construction, mass timber construction, and general interior applications.
Simpson Strong-Tie SDCFC273938 Includes
- (50) Strong-Drive SDCFC Timber-CFC Screw Yellow Zinc
Simpson Strong-Tie SDCFC273938 Features
- Interior grade yellow-zinc coating
- Compact cylinder head helps countersink the screw for an unobstructed finish
- Heavy-duty, fully-threaded 0.390" (10 mm) outer diameter provides strength, with superb withdrawal resistance

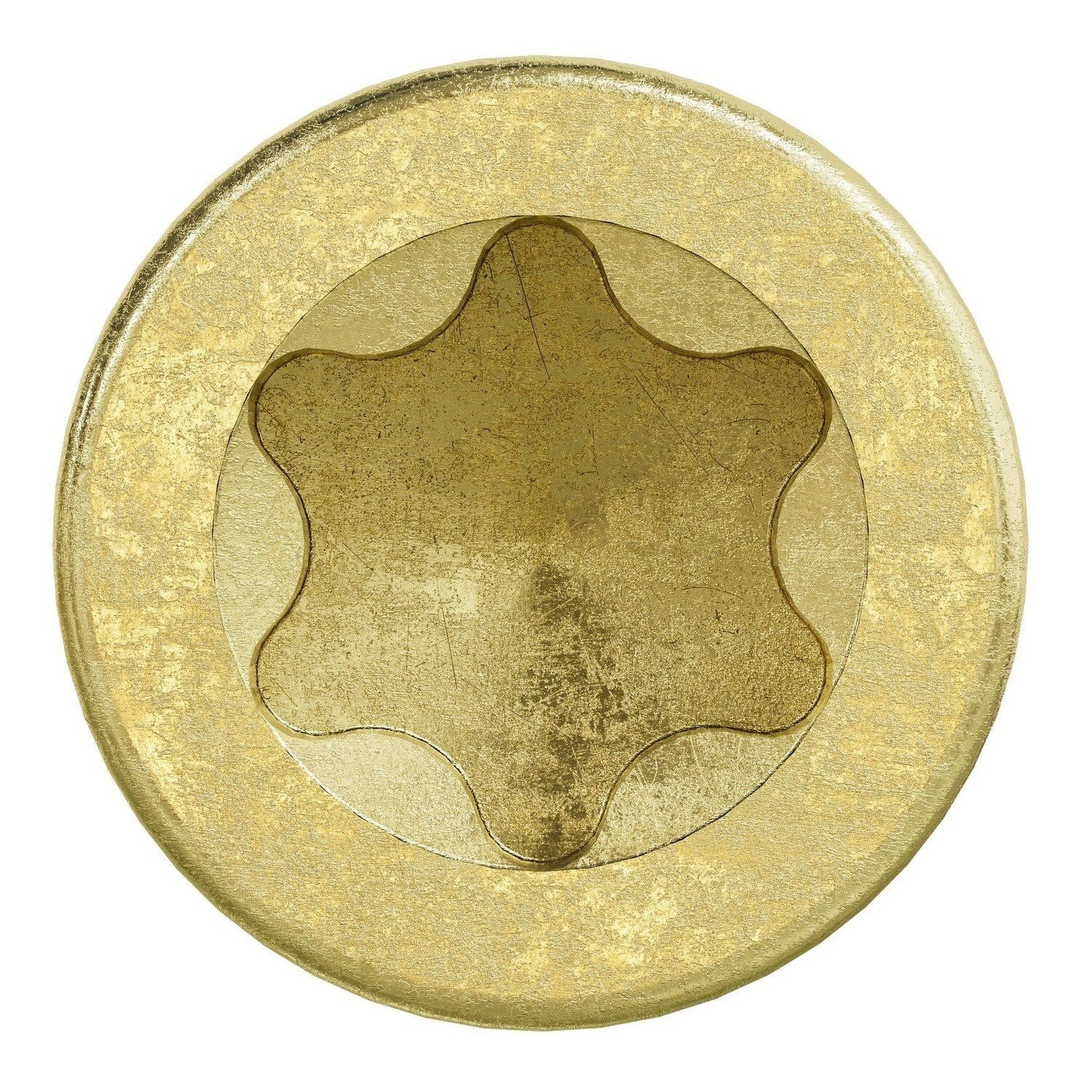

- Deep 6-lobe recess for a secure drive (replacement bit: BIT50T-2-R1)
- Available in 500 mm (19 5/8"), 600 mm (23 5/8"), 800 mm (31 1/2"), and 1,000 mm (39 3/8") lengths
Simpson Strong-Tie SDCFC273938 Applications
- Beam reinforcement
- Wall-to-wall connections
- Floor-to-floor connections
- Support beams
- Butt joints
- Splitting reinforcement
Simpson Strong-Tie SDCFC273938 Specifications
| Diameter | 0.390" |
| Finish | Yellow Zinc |
| Length | 39-3/8" |
| Material | Carbon Steel |
| Drive type | T50 Star Drive |
| Head diameter | 0.525" |
| Head type | Cylinder Head |
| Point type | Half Point |
| Quantity | 50 |
| Thread length | 38" |
NOTE: The yellow zinc coating is intended for interior, dry applications only.
