Simpson Anchors | SKU:
SDCP22318-R50

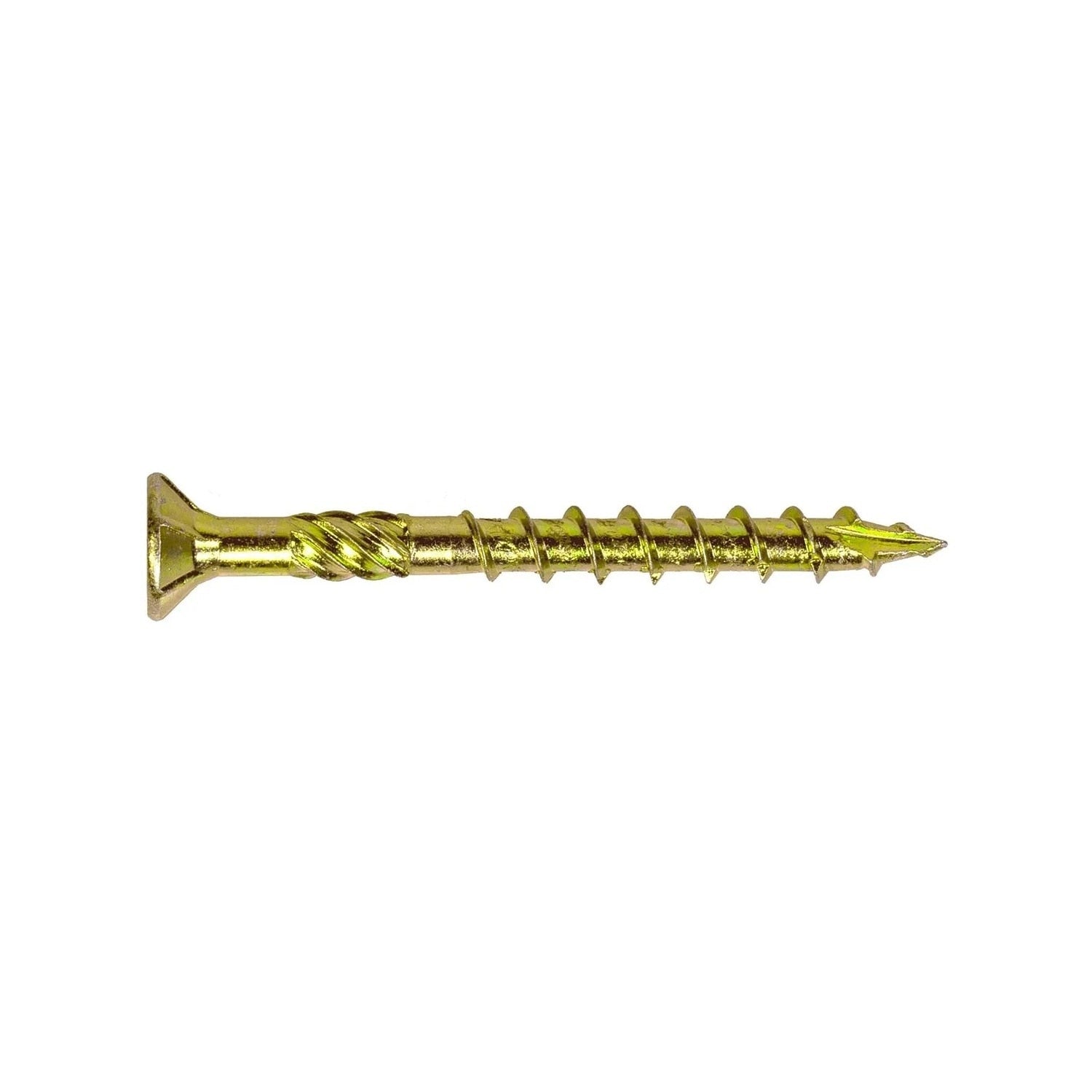

Simpson Strong-Tie SDCP22318-R50 Strong-Drive (0.225" x 3-1/8") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (50 Pack)
$31.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCP22318-R50 Description
The Simpson Strong-Drive SDCP Timber-CP screw is a structural fastener designed for cross-laminated timber (CLT) and mass timber construction, providing excellent holding power and load capacity.
Simpson Strong-Tie SDCP22318-R50 Includes
- (50) 0.315 in. x 3-1/8 in. Timber-CP Screw
Simpson Strong-Tie SDCP22318-R50 Features

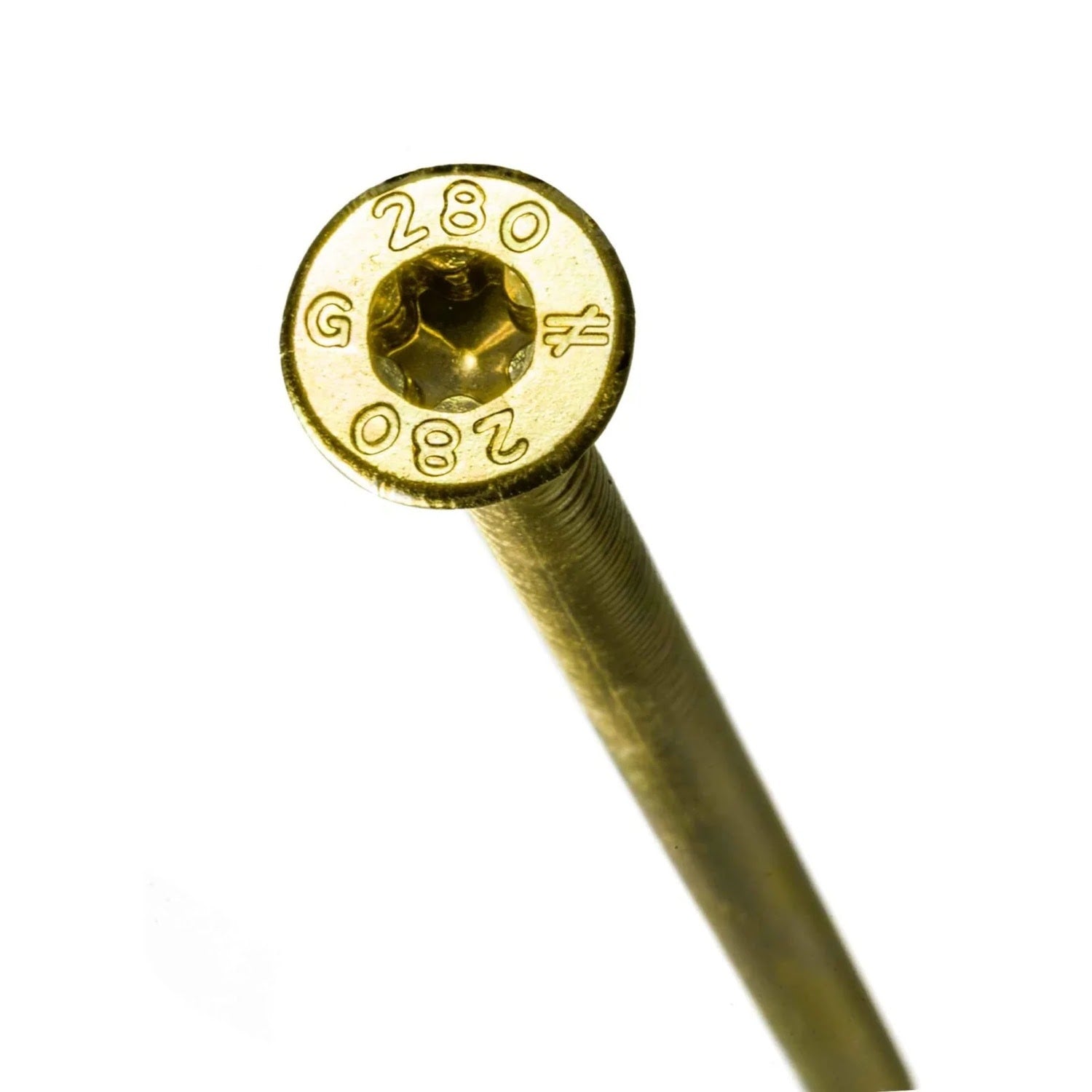

- Flat-head with nibs for flush finish
- Partially threaded for high pullout resistance
- Heavy-duty shank for strength and durability
- Yellow-zinc coating for corrosion resistance
- Deep 6-lobe recess for secure drive
- Type-17 point for fast starts
Simpson Strong-Tie SDCP22318-R50 Applications
- Mass timber and cross-laminated timber construction
- General timber framing

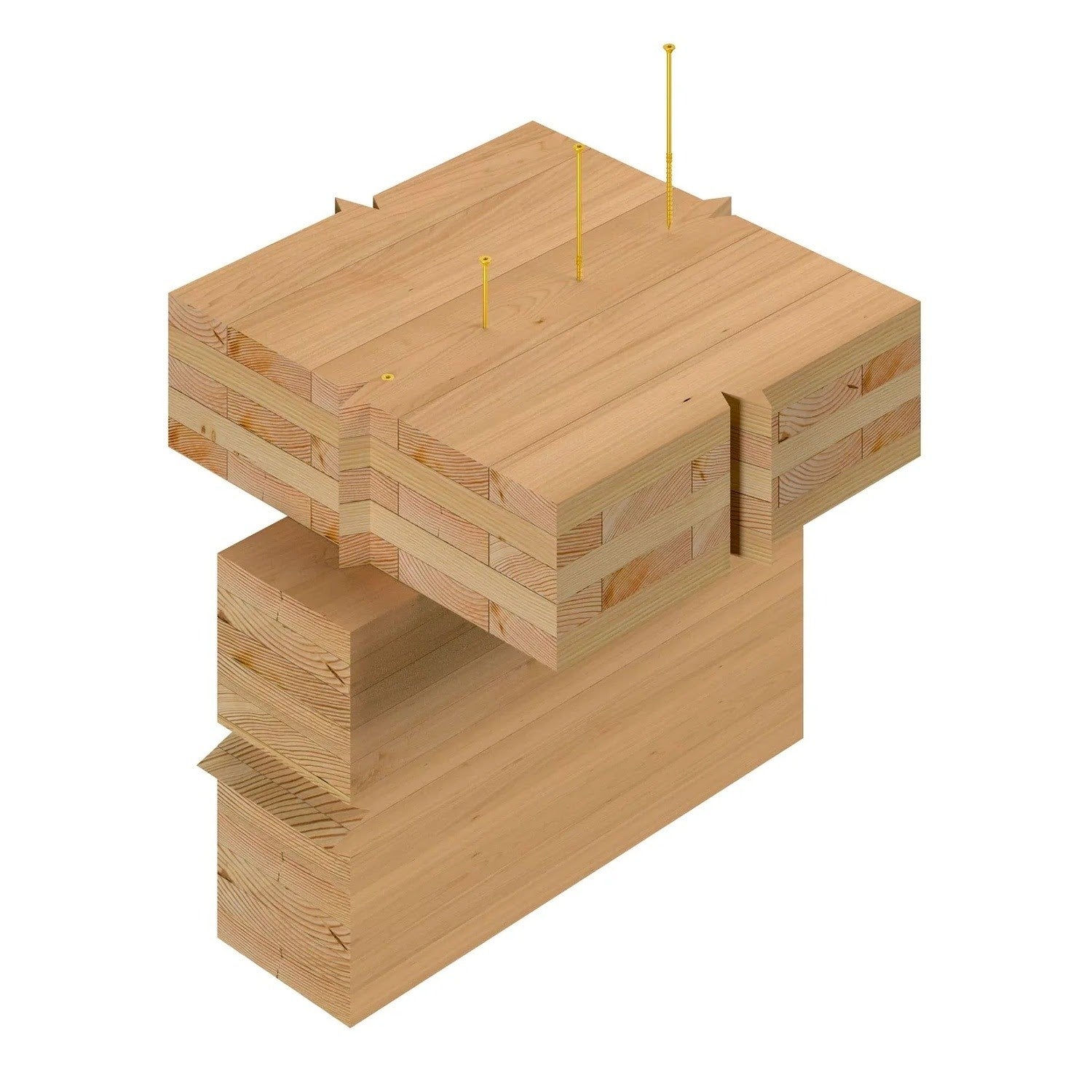

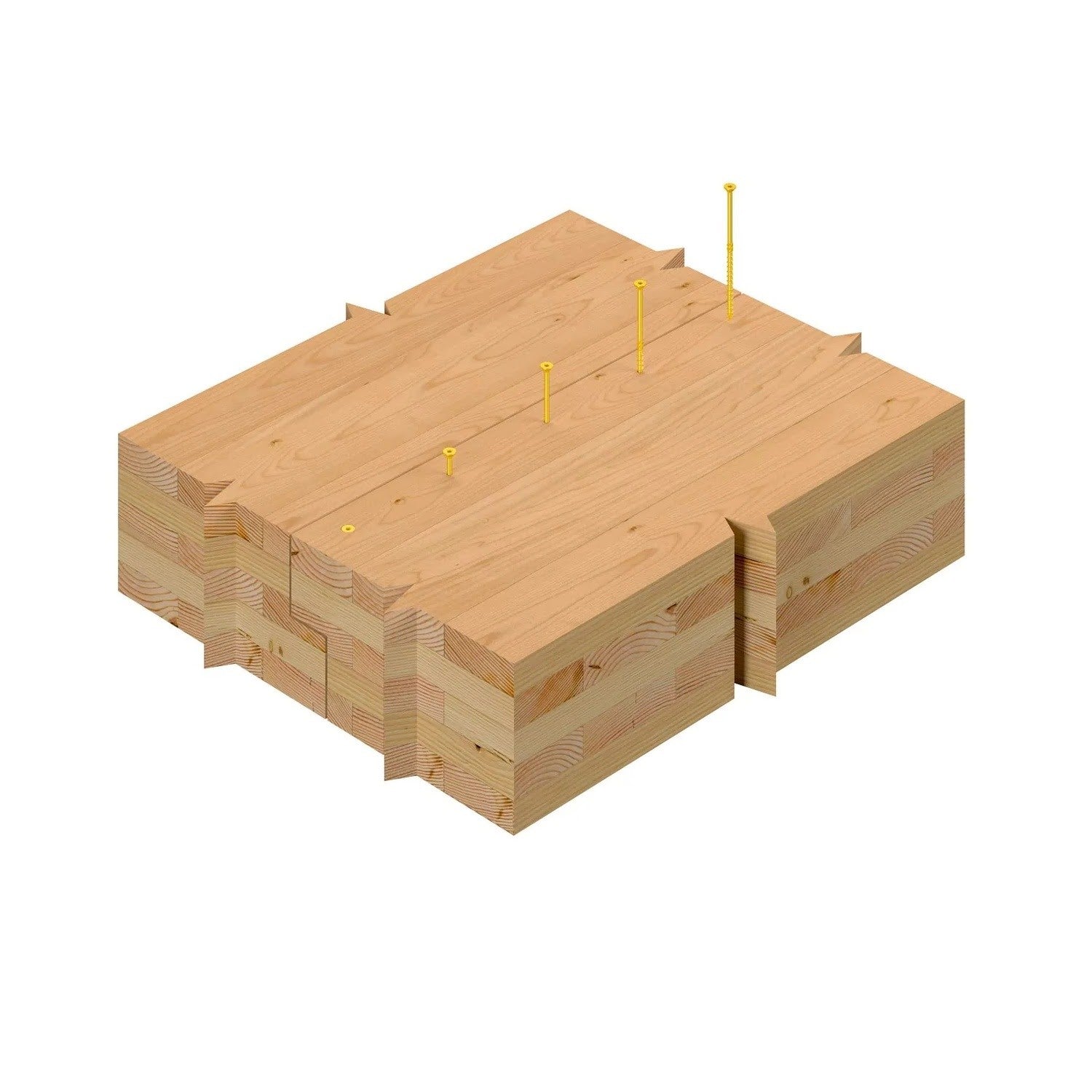

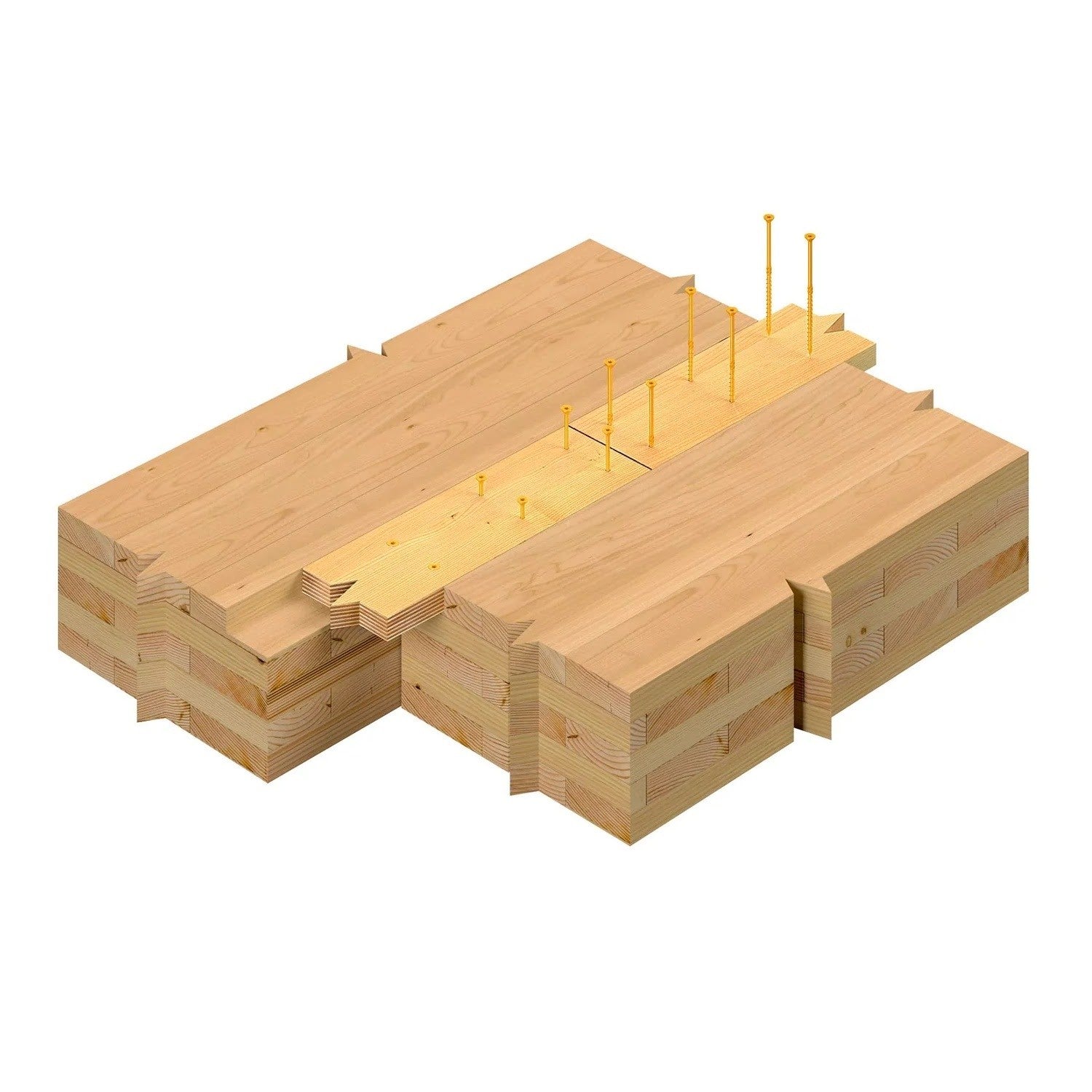

- Wall to wall, floor to floor, panel to beam connections
Simpson Strong-Tie SDCP22318-R50 Installation Overview
- Position screws at a 90-degree angle to the wood surface.
- Ensure proper penetration into the main member.
- Use specified tools for secure installation.
Simpson Strong-Tie SDCP22318-R50 Specifications
| Diameter | 0.315 in. |
| Length | 3-1/8 in. |
| Material | Carbon Steel |
| Finish | Yellow Zinc |
| Drive Type | T40 Star Drive |
| Head Diameter | 0.575 in. |
| Head Type | Flat Head with Nibs |
| Thread Length | 2 in. |
| Point Type | Type 17 |
| Quantity | 50 |
NOTE: Ensure screws are installed at a 90-degree angle to the wood surface for optimal performance.
