Simpson Anchors | SKU:
SDCP22614-R50

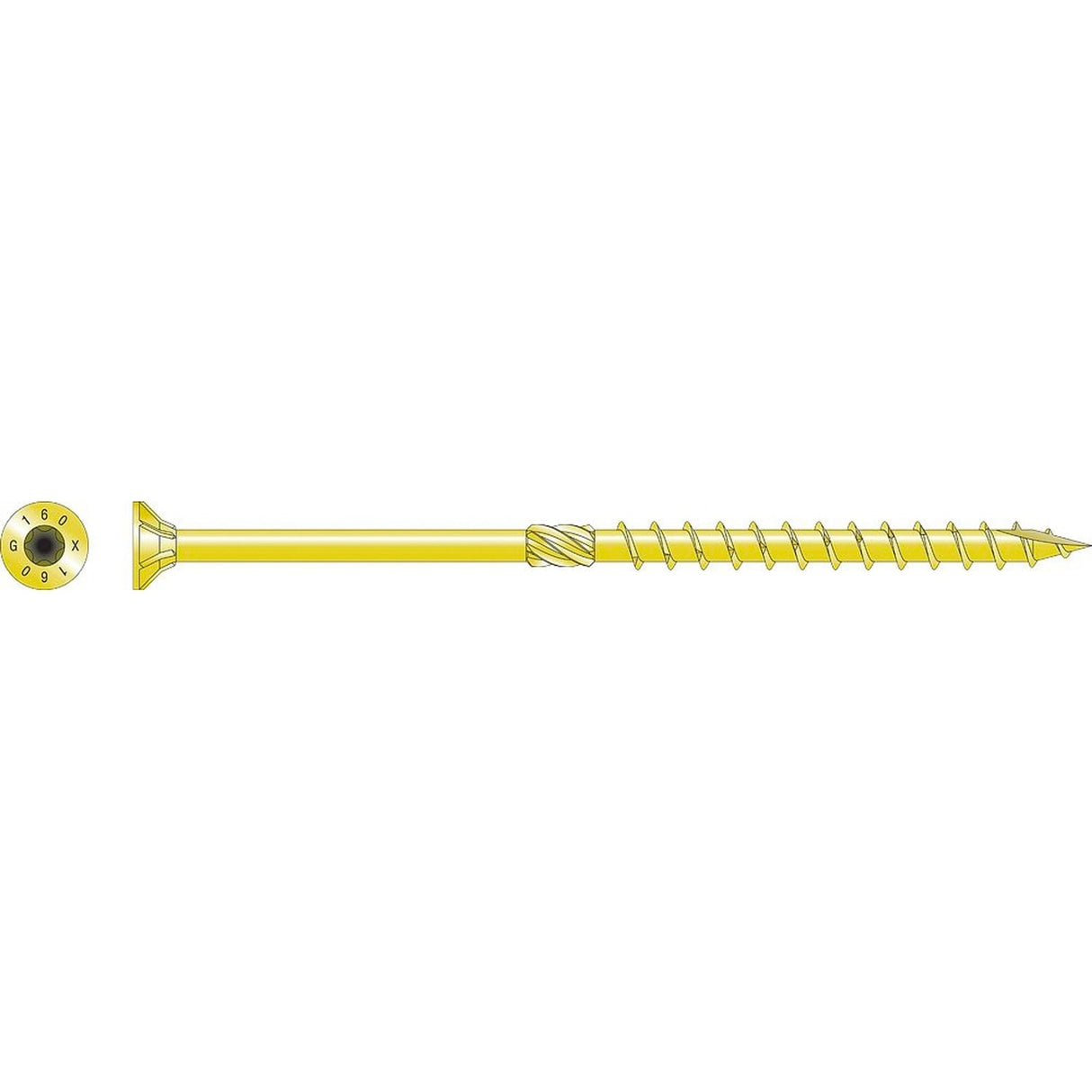

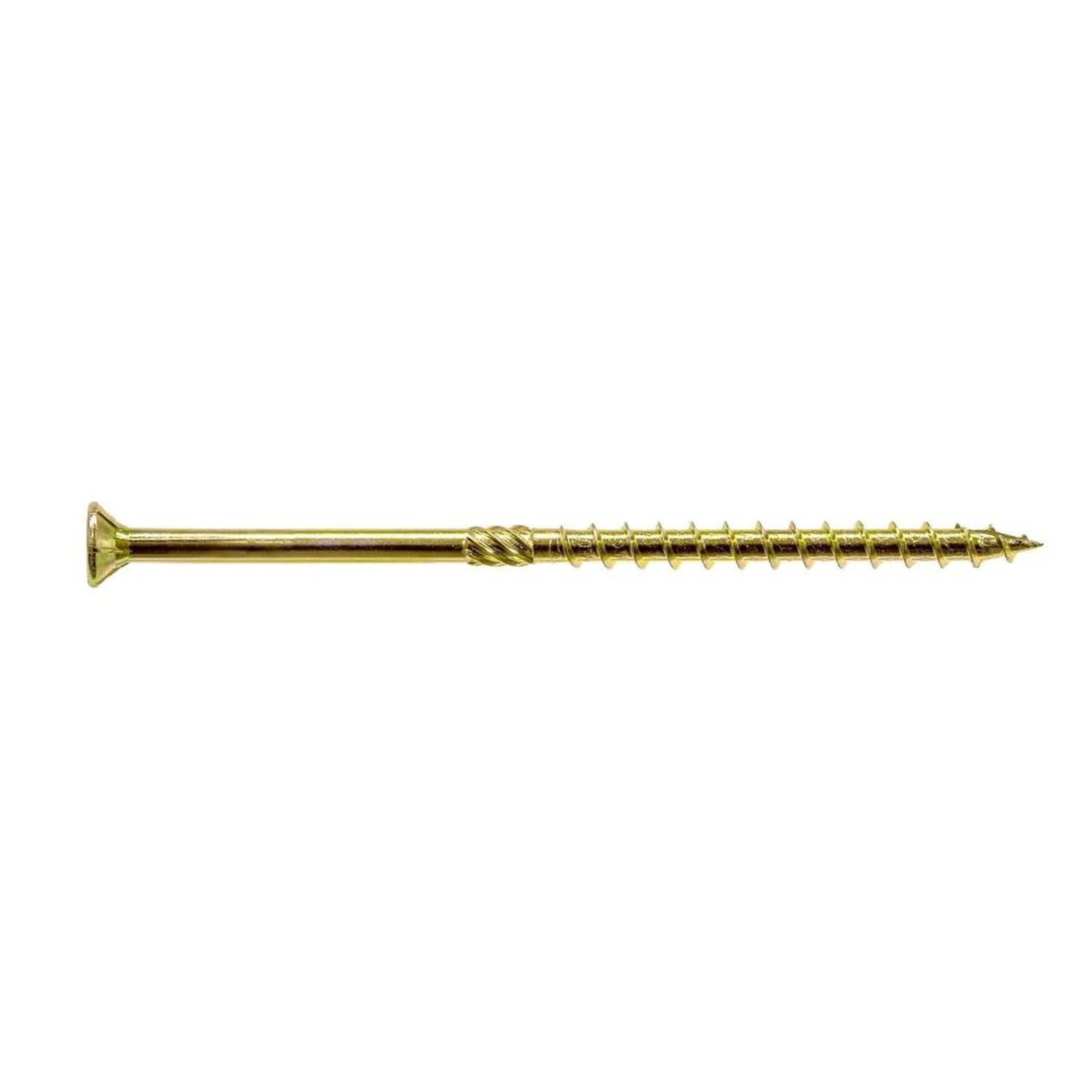

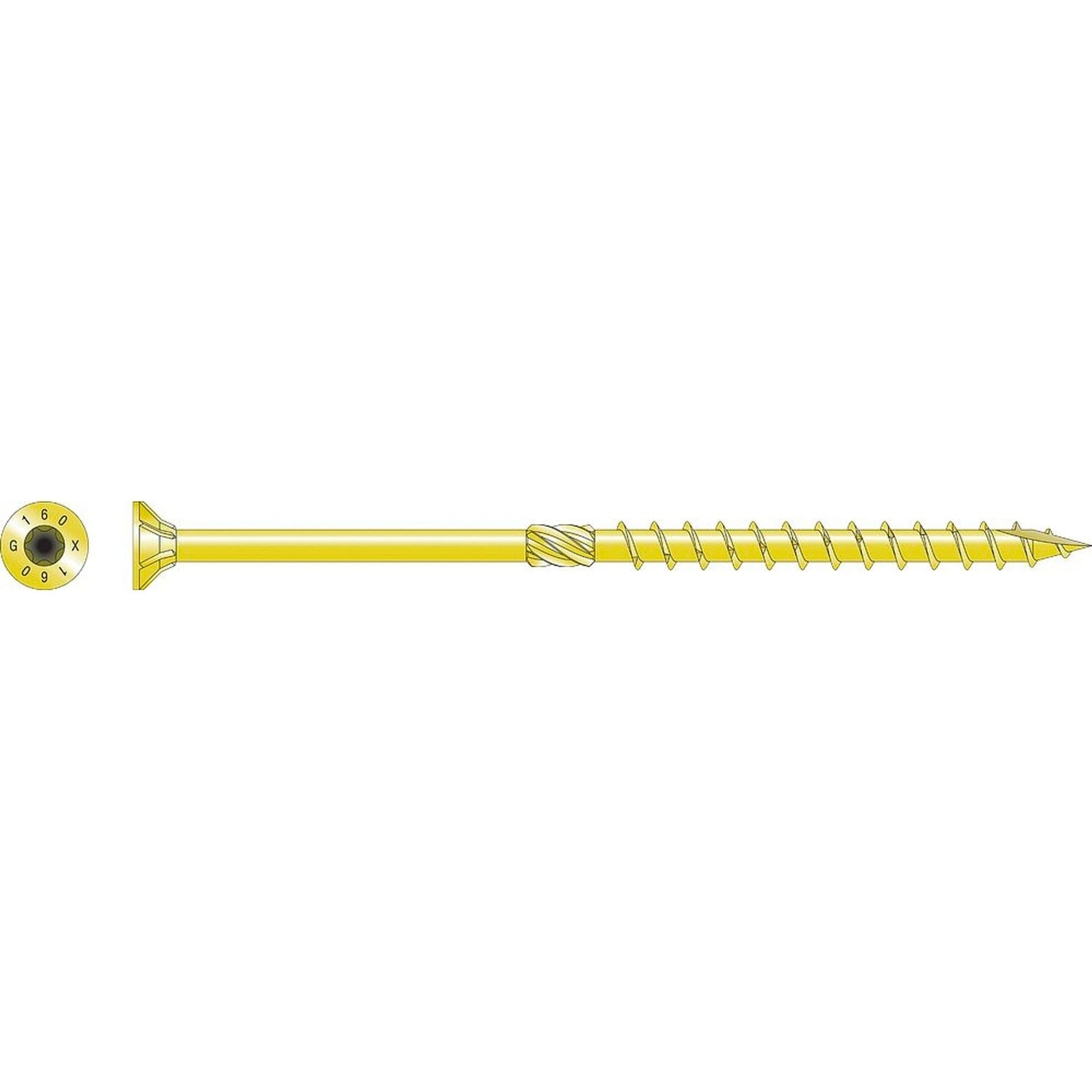

Simpson Strong-Tie SDCP22614-R50 Strong-Drive (0.225" x 6-1/4") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (50 Pack)
$52.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCP22614-R50 Description
The Simpson Strong-Drive SDCP Timber-CP screw is a structural fastener designed for cross-laminated timber (CLT) and mass timber construction, as well as general interior applications. These partially threaded structural fasteners are designed to pull structural members together with superb holding power and excellent load capacity.
Simpson Strong-Tie SDCP22614-R50 Includes
- (50) 0.315 in. x 6-1/4 in. Timber-CP Screw
Simpson Strong-Tie SDCP22614-R50 Features
- Flat-head with nibs for flush finish
- Partially threaded for high pullout resistance
- Heavy-duty shank for strength and durability
- Yellow-zinc coating for corrosion resistance
- Deep 6-lobe recess for secure drive
- Type-17 point for fast starts
Simpson Strong-Tie SDCP22614-R50 Applications
- Mass timber and cross-laminated timber construction
- General timber framing
- Wall to wall, floor to floor, and panel to beam connections
Simpson Strong-Tie SDCP22614-R50 Installation Overview
- Position the screw at the desired location
- Drive the screw using a T40 star drive bit
- Ensure the head is flush with the wood surface
Simpson Strong-Tie SDCP22614-R50 Specifications
| Diameter | 0.315 in. |
| Length | 6-1/4 in. |
| Material | Carbon Steel |
| Finish | Yellow Zinc |
| Drive Type | T40 Star Drive |
| Head Type | Flat Head with Nibs |
| Thread Length | 3-1/8 in. |
| Point Type | Type 17 |
| Quantity | 50 |
