Simpson Anchors | SKU:
SDCP271212-R25

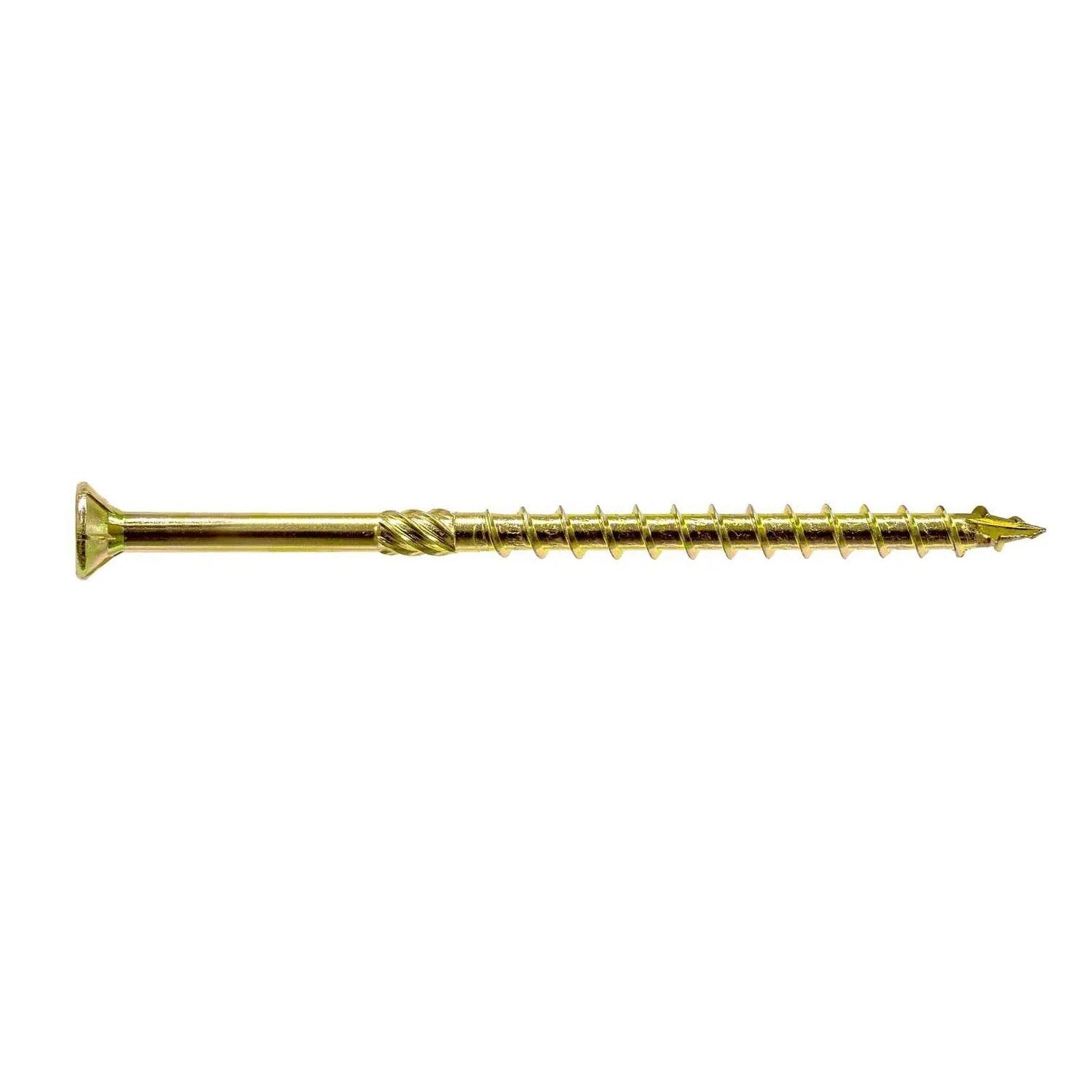

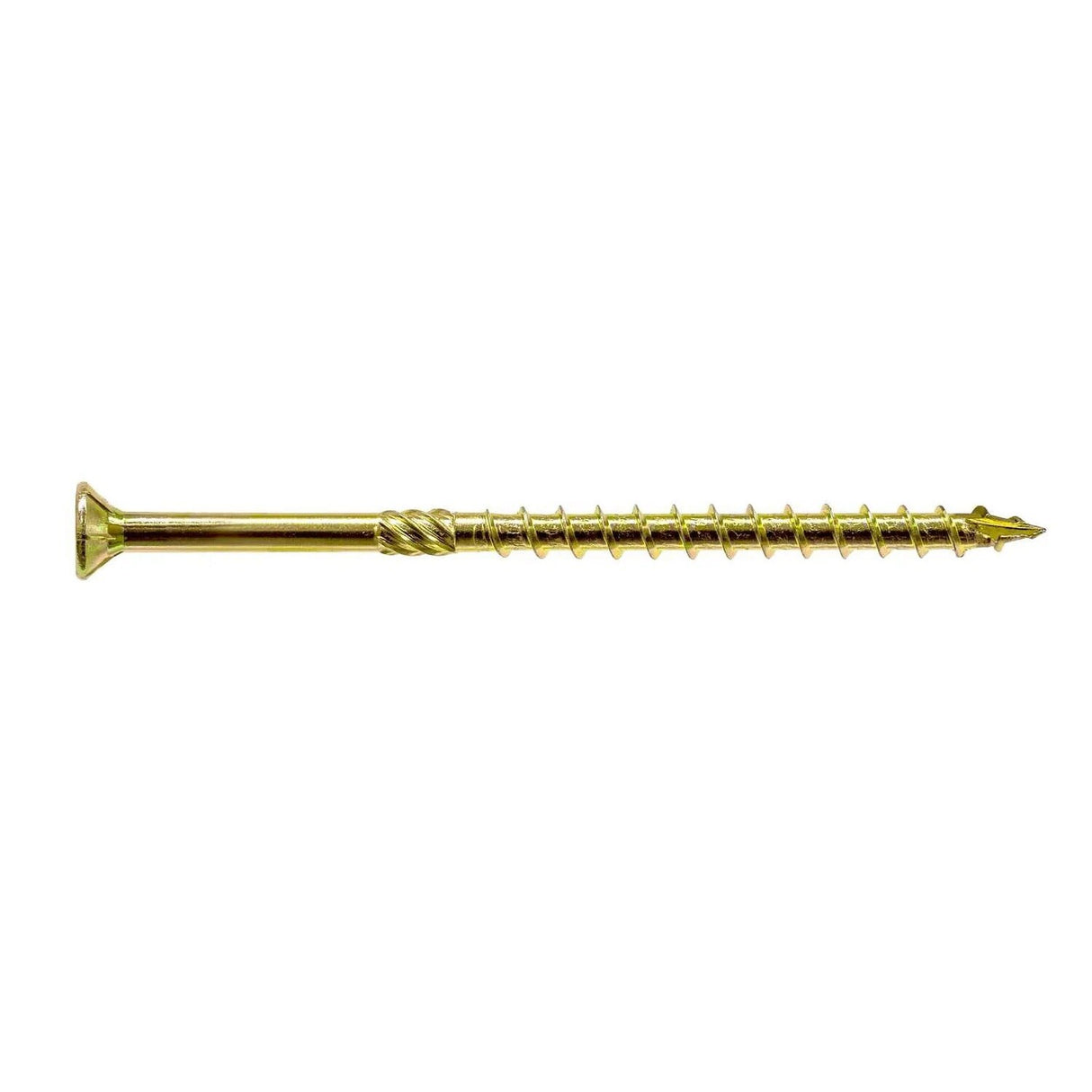

Simpson Strong-Tie SDCP271212-R25 Strong-Drive (0.275" x 12-1/2") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (25 Pack)
$147.83
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCP271212-R25 Description
The Simpson Strong-Drive SDCP Timber-CP screw is a structural fastener designed for cross-laminated timber (CLT) and mass timber construction, offering superb holding power and excellent load capacity.
Simpson Strong-Tie SDCP271212-R25 Includes
- (25) Timber-CP Screw for Cross-Laminated Timber Applications
Simpson Strong-Tie SDCP271212-R25 Features
- Flat-head with nibs for flush finish
- Partially threaded for high pullout resistance
- Heavy-duty shank for strength and durability
- Yellow-zinc coating for corrosion resistance
- Deep 6-lobe recess for secure drive
- Type-17 point for fast starts
Simpson Strong-Tie SDCP271212-R25 Applications
- Wall to wall connections
- Floor to floor connections
- Panel to beam connections
- General timber framing
Simpson Strong-Tie SDCP271212-R25 Installation Overview
- Align the screw with the wood surface at a 90° angle.
- Drive the screw using a T40 star drive bit.
- Ensure the head is flush with the wood surface.
Simpson Strong-Tie SDCP271212-R25 Specifications
| Length | 12-1/2" |
| Diameter | 0.390" |
| Head Diameter | 0.70" |
| Thread Length | 3-1/8" |
| Finish | Yellow Zinc |
| Material | Carbon Steel |
| Drive Type | T40 Star Drive |
| Head Type | Flat Head with Nibs |
| Point Type | Type 17 |
| Quantity | 25 |
