Simpson Anchors | SKU:
SDCP27614-R30

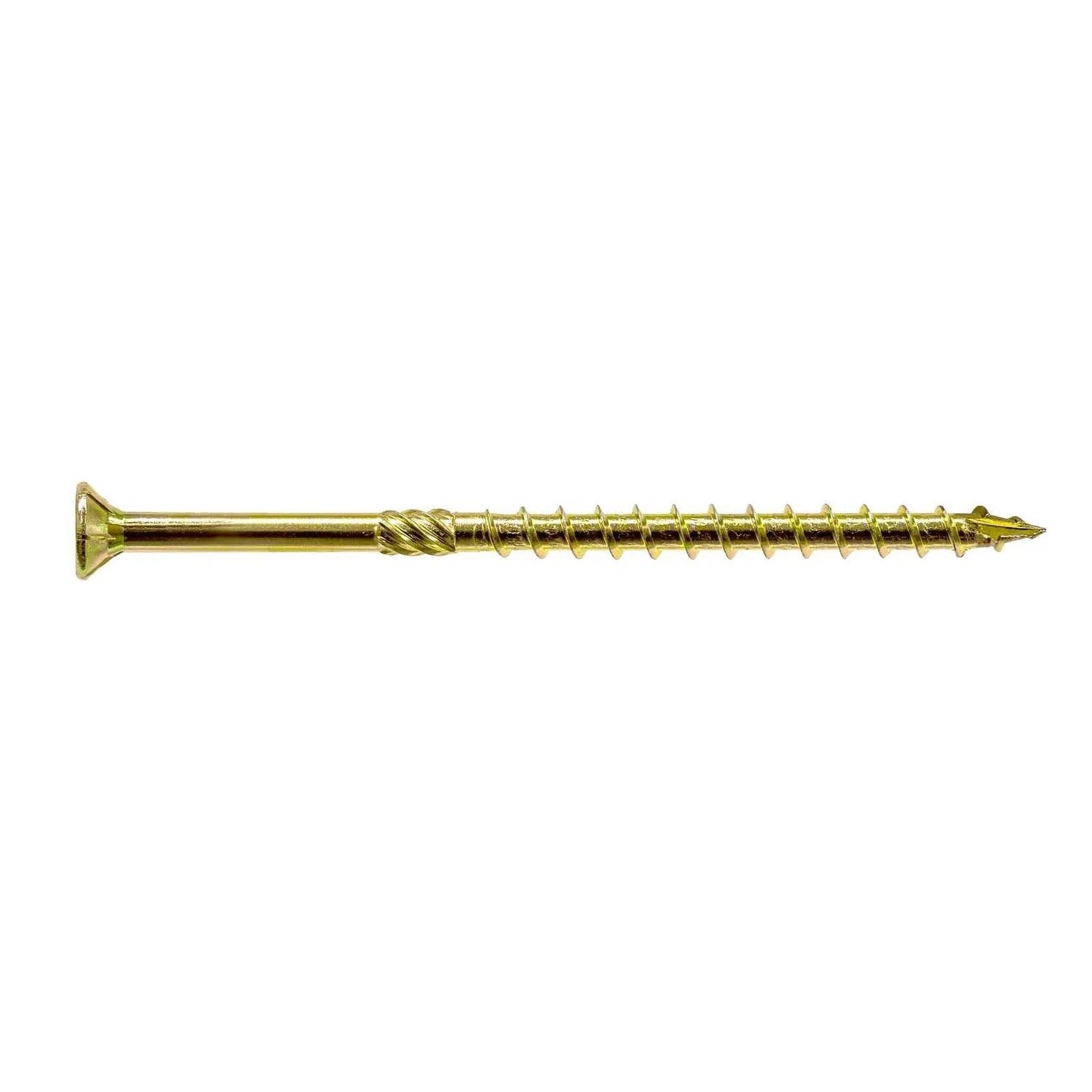

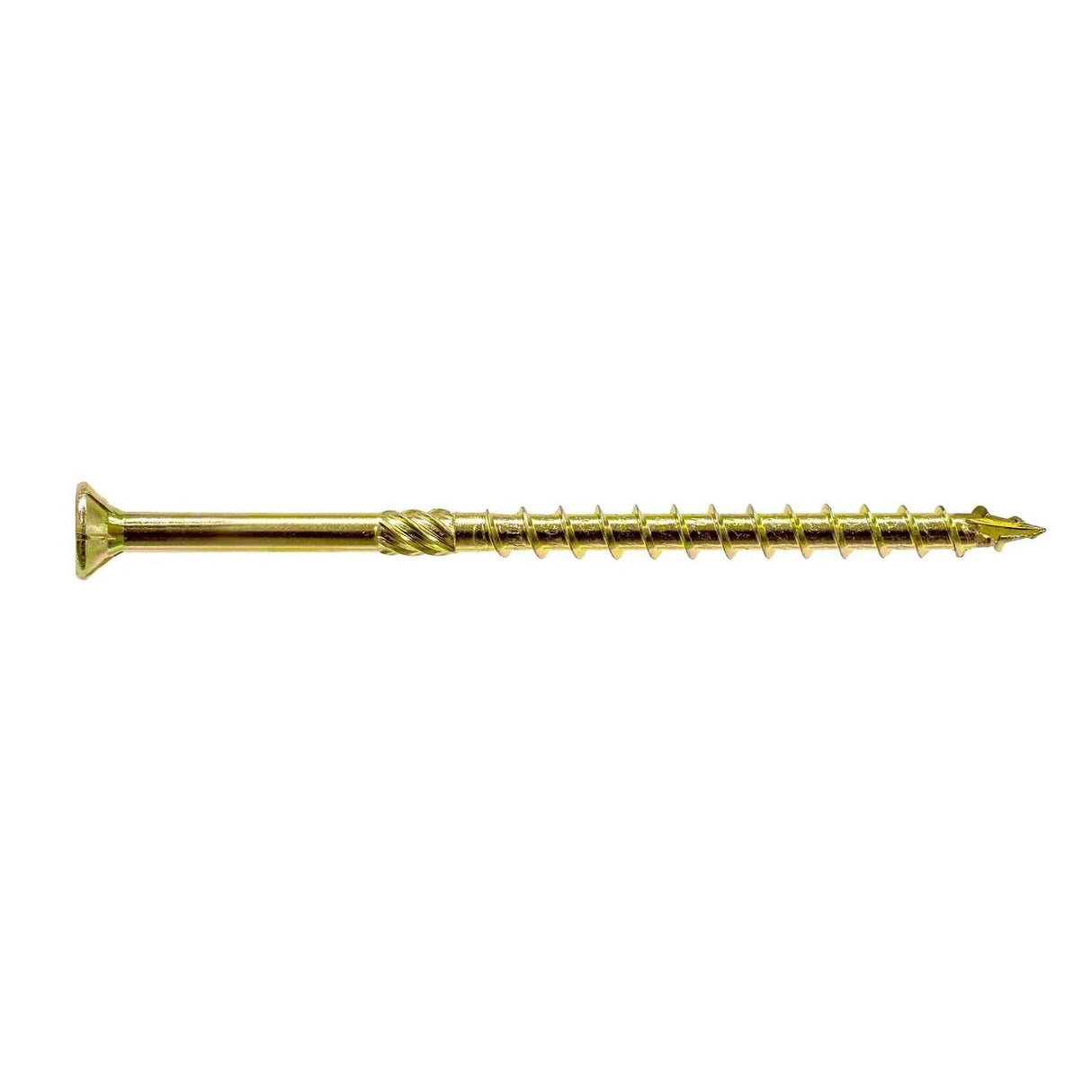

Simpson Strong-Tie SDCP27614-R30 Strong-Drive (0.275" x 6-1/4") T40 Yellow Zinc SDCFC Timber-CFC Screw, Flat Head w/ Nibs (30 Pack)
$55.34
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDCP27614-R30 Description
The Simpson Strong-Drive SDCP Timber-CP screw is a structural fastener designed for cross-laminated timber (CLT) and mass timber construction, offering superb holding power and excellent load capacity.
Simpson Strong-Tie SDCP27614-R30 Includes
- (30) Timber-CP Screw for Cross-Laminated Timber Applications
Simpson Strong-Tie SDCP27614-R30 Features
- Flat-head with nibs for flush finish
- Partially threaded for high pullout resistance
- Heavy-duty shank for strength and durability
- Yellow-zinc coating for corrosion resistance
- Deep 6-lobe recess for secure drive
- Type-17 point for fast starts
Simpson Strong-Tie SDCP27614-R30 Applications
- Wall to wall connections in timber framing
- Floor to floor connections in mass timber construction
- Panel to beam and panel to wall connections
- Surface splines and lap joints
- Ledger connections
Simpson Strong-Tie SDCP27614-R30 Specifications
| Diameter | 0.390" |
| Finish | Yellow Zinc |
| Length | 6-1/4" |
| Material | Carbon Steel |
| Drive type | T40 Star Drive |
| Head diameter | 0.70" |
| Head type | Flat Head with Nibs |
| Point type | Type 17 |
| Thread length | 3-1/8" |
| Quantity | 30 |
