Simpson Anchors  |  SKU: SDHR27400  |  Barcode: 707392012054

Simpson Strong-Tie SDHR27400 Strong-Drive (0.275" x 4") T40 Blue-Zinc SDHR COMBO-HEAD Screw (100 Pack)

$120.17

Description

Simpson Strong-Tie SDHR27400 Description

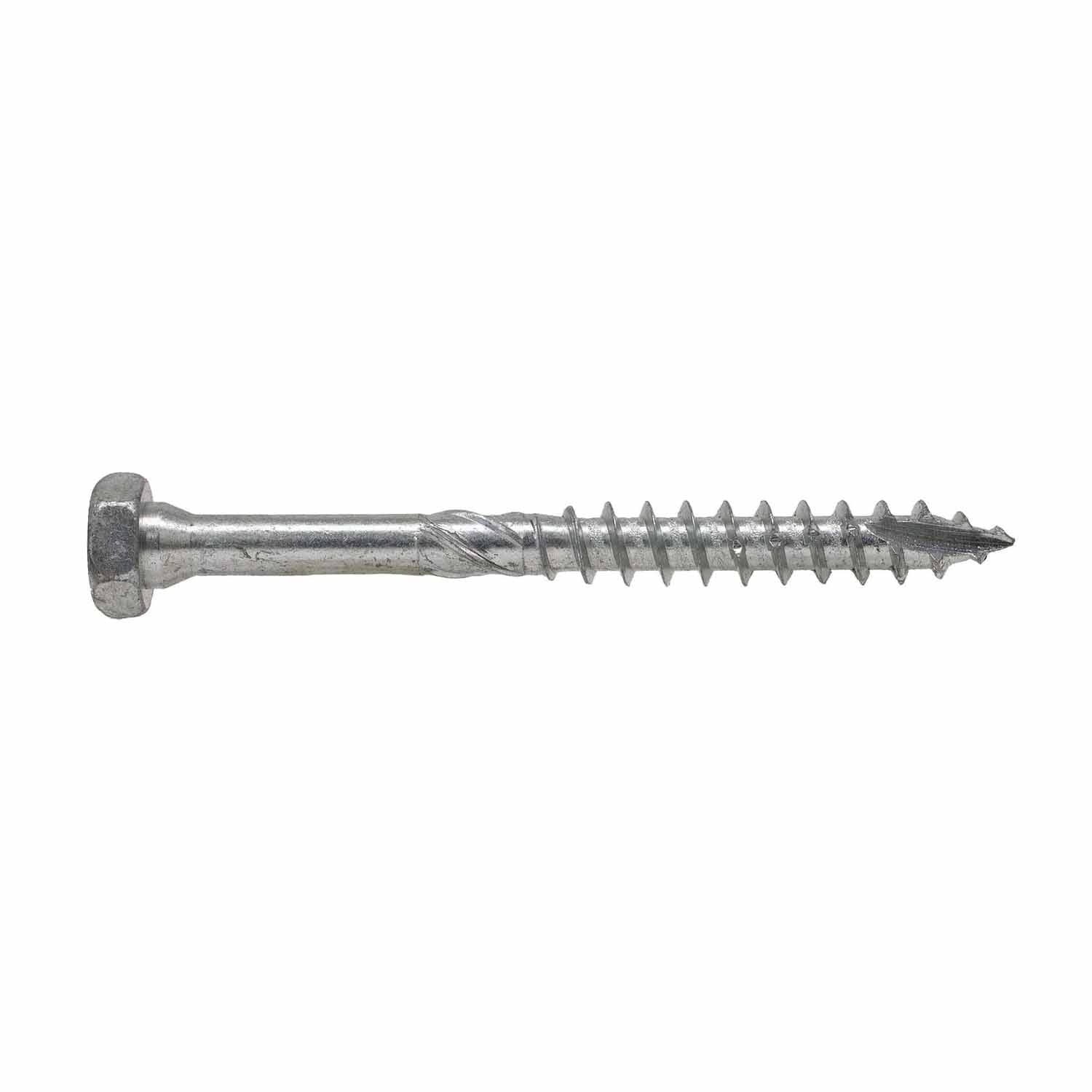

The Simpson Strong-Drive SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber construction, mass timber construction, and general interior applications. It features a robust knurled shaft and Type-17 point for fast starts and low-torque driving.

Simpson Strong-Tie SDHR27400 Includes

  • (100) Strong-Drive SDHR Combo-Head Screw

Simpson Strong-Tie SDHR27400 Features

  • Designed for use with steel side plates
  • Can be driven by either a hex-head or 6-lobe driver bit
  • Heavy-duty, partially threaded shaft with knurl provides strength, with superb pull-out resistance
  • Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications

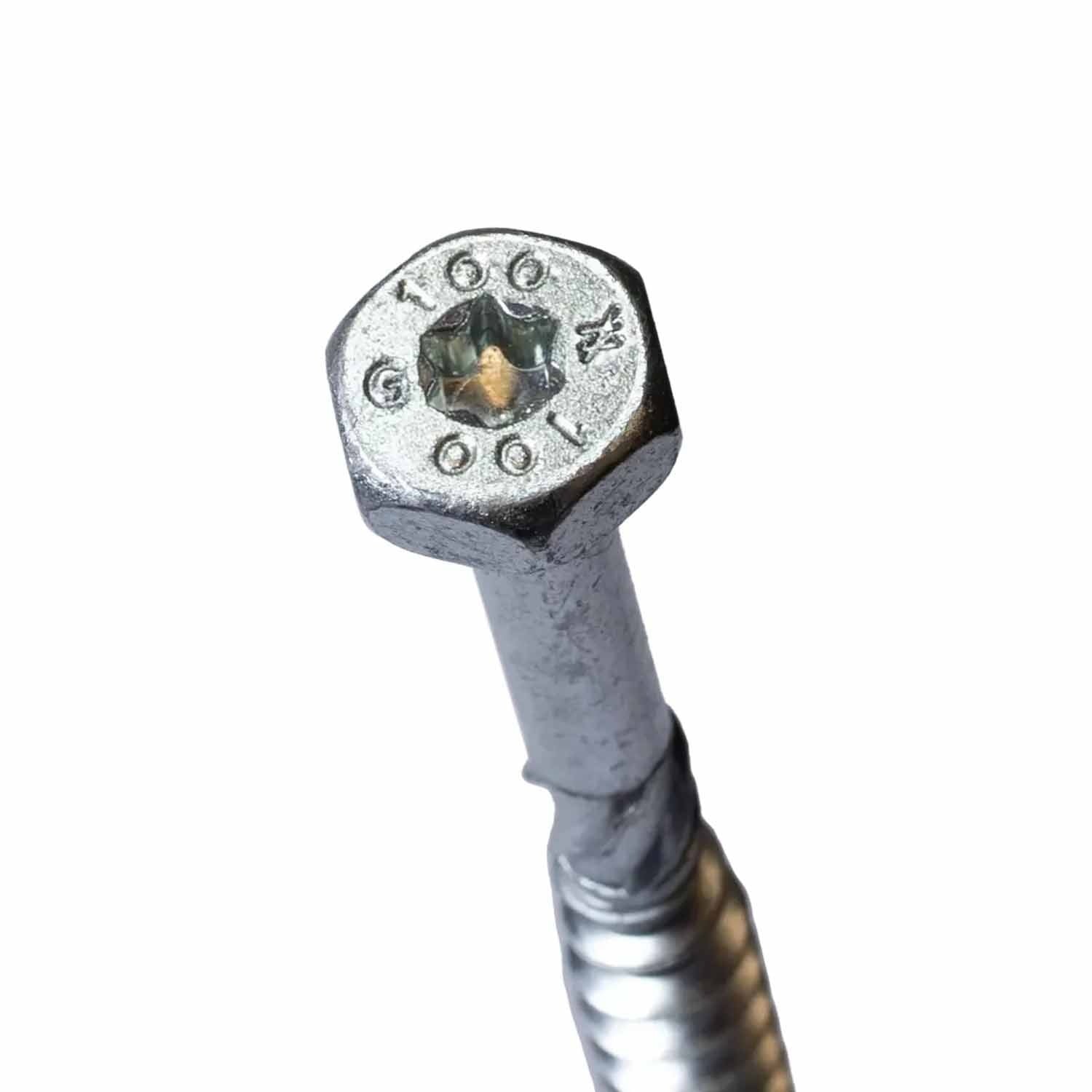

  • Deep T40, 6-lobe recess for a secure drive
  • Interior grade blue-zinc coating

Simpson Strong-Tie SDHR27400 Applications

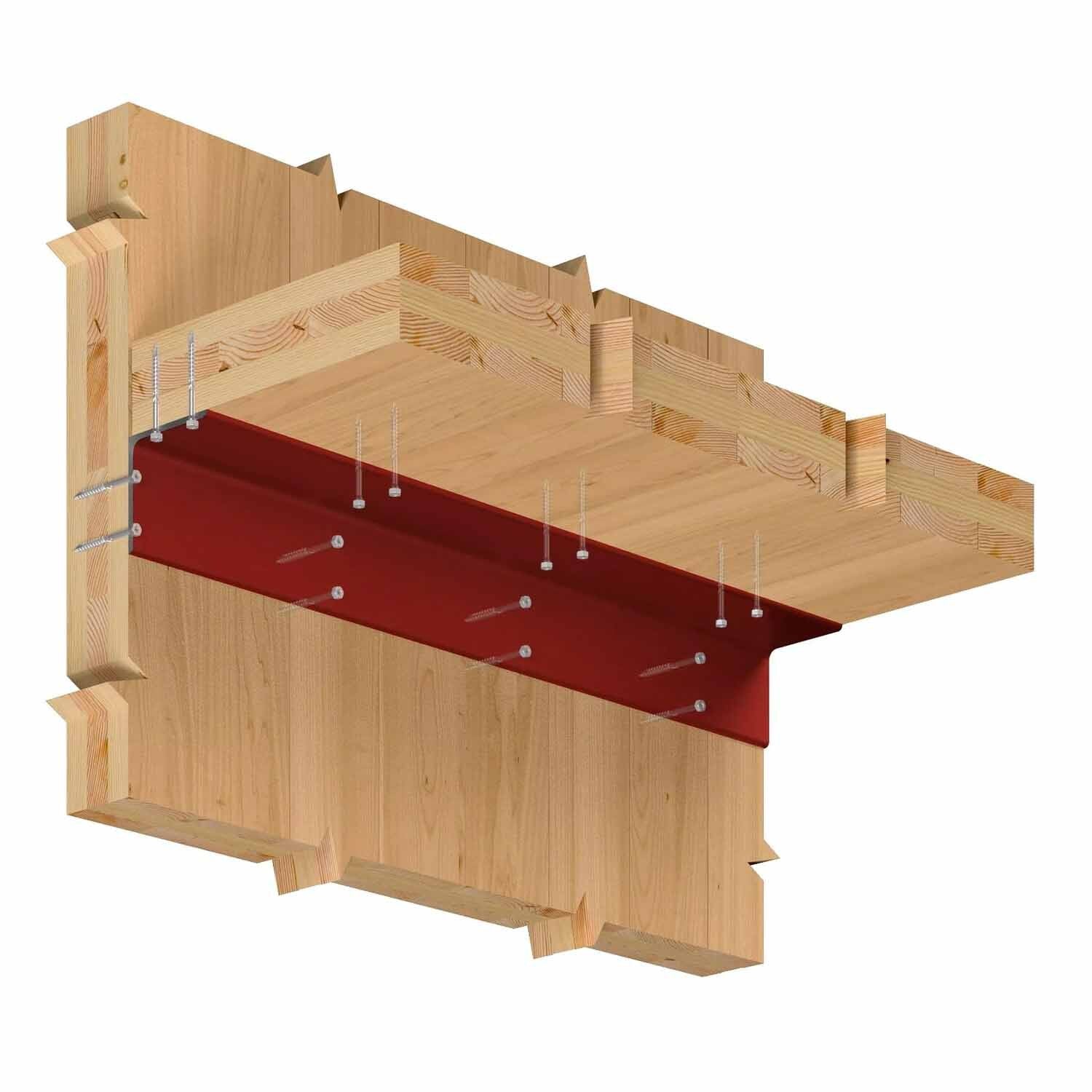

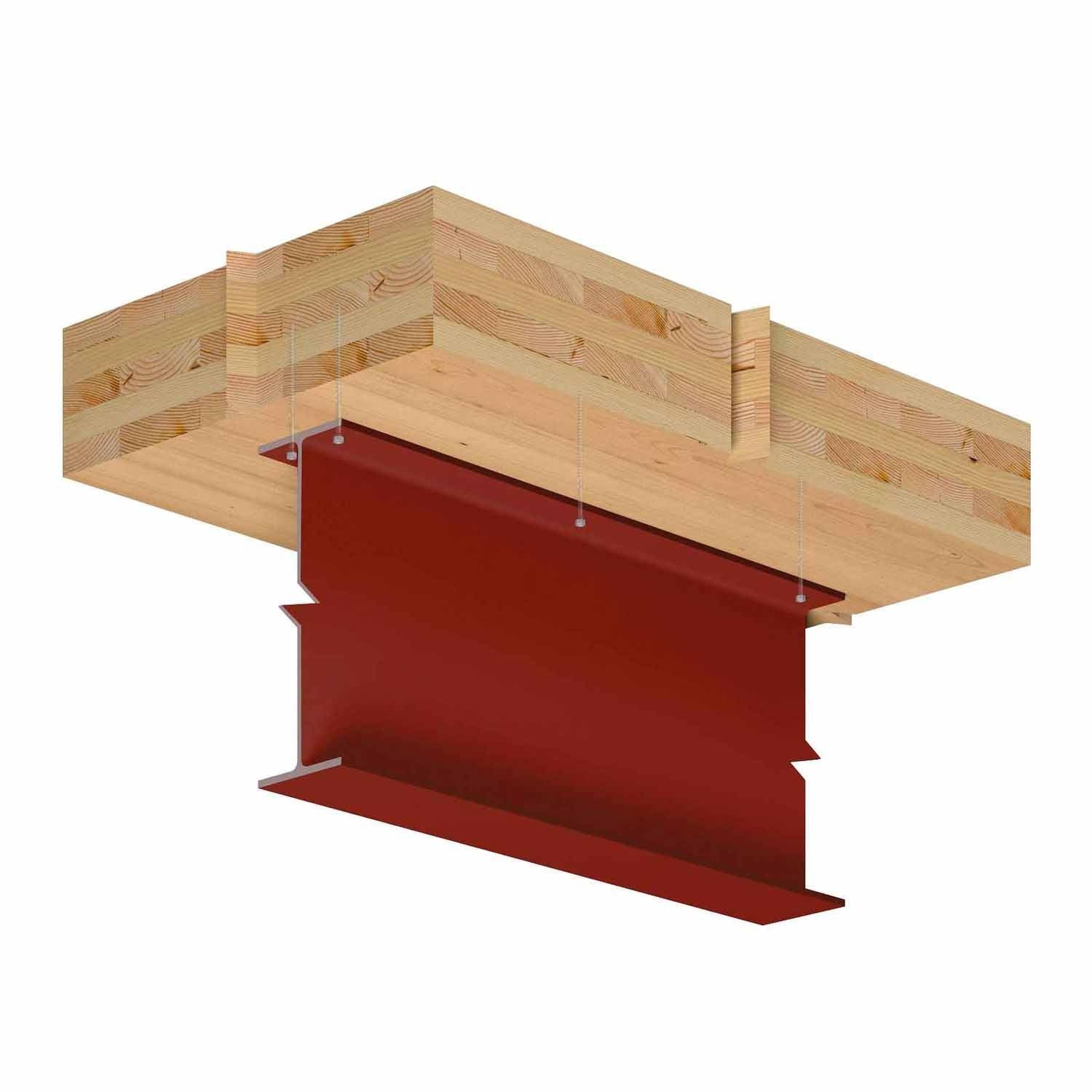

  • Steel-to-wood connections

Simpson Strong-Tie SDHR27400 Specifications

Coating/Material Blue-Zinc Coated
Length (in.) 4
Head Diameter (in.) 0.59
Shank Diameter (in.) 0.275
Drive Type T40 6-Lobe or Hex-Head
Head Type Combination
Thread Length (in.) 2 1/8
Point Type Type-17 Point
Packaging Qty. 100
