Simpson Anchors  |  SKU: SDHR27614-R25  |  Barcode: 707392012153

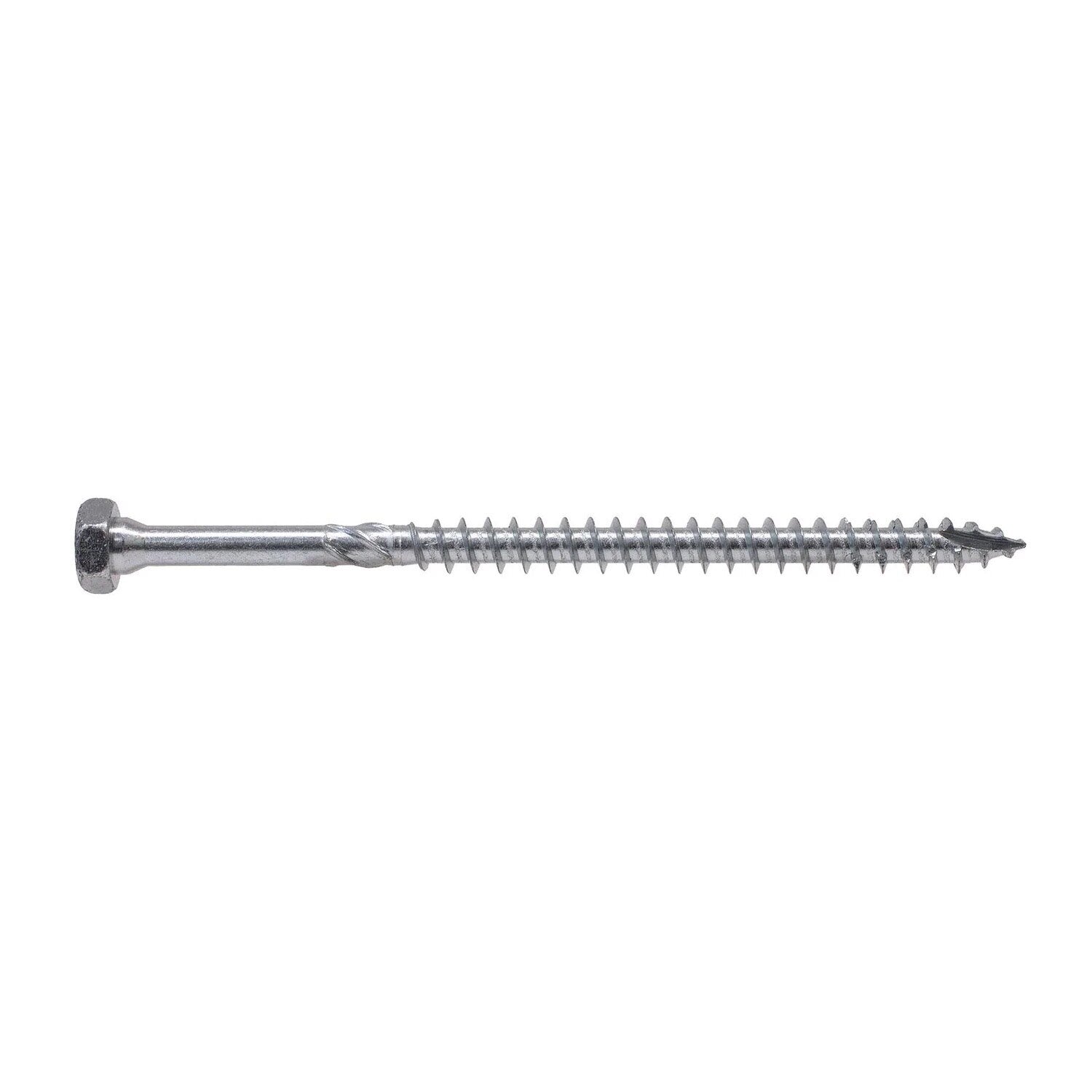

Simpson Strong-Tie SDHR27614-R25 Strong-Drive (0.275" x 6-1/4") T40 Blue-Zinc SDHR COMBO-HEAD Screw (25 Pack)

$70.68

Description

Simpson Strong-Tie SDHR27614-R25 Description

The Simpson Strong-Drive SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber construction, mass timber construction, and general interior applications.

Simpson Strong-Tie SDHR27614-R25 Includes

  • (25) Blue Zinc Coated Combo-Head Screw 0.275 in. x 6-1/4 in.

Simpson Strong-Tie SDHR27614-R25 Features

  • Designed for use with steel side plates
  • Can be driven by either a hex-head or 6-lobe driver bit
  • Heavy-duty, partially threaded shaft with knurl provides strength, with superb pull-out resistance
  • Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications

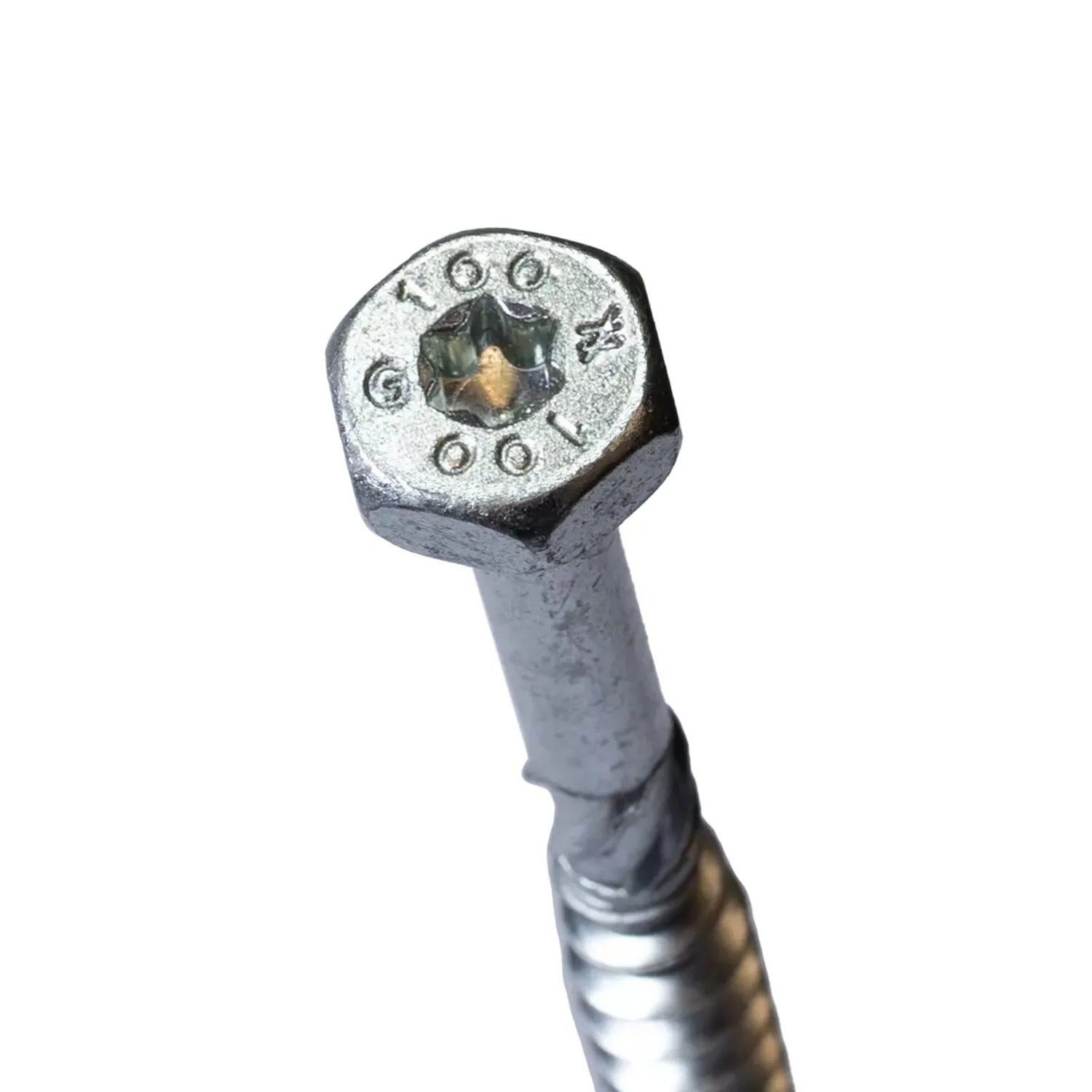

  • Deep T40, 6-lobe recess for a secure drive
  • Interior grade blue-zinc coating

Simpson Strong-Tie SDHR27614-R25 Applications

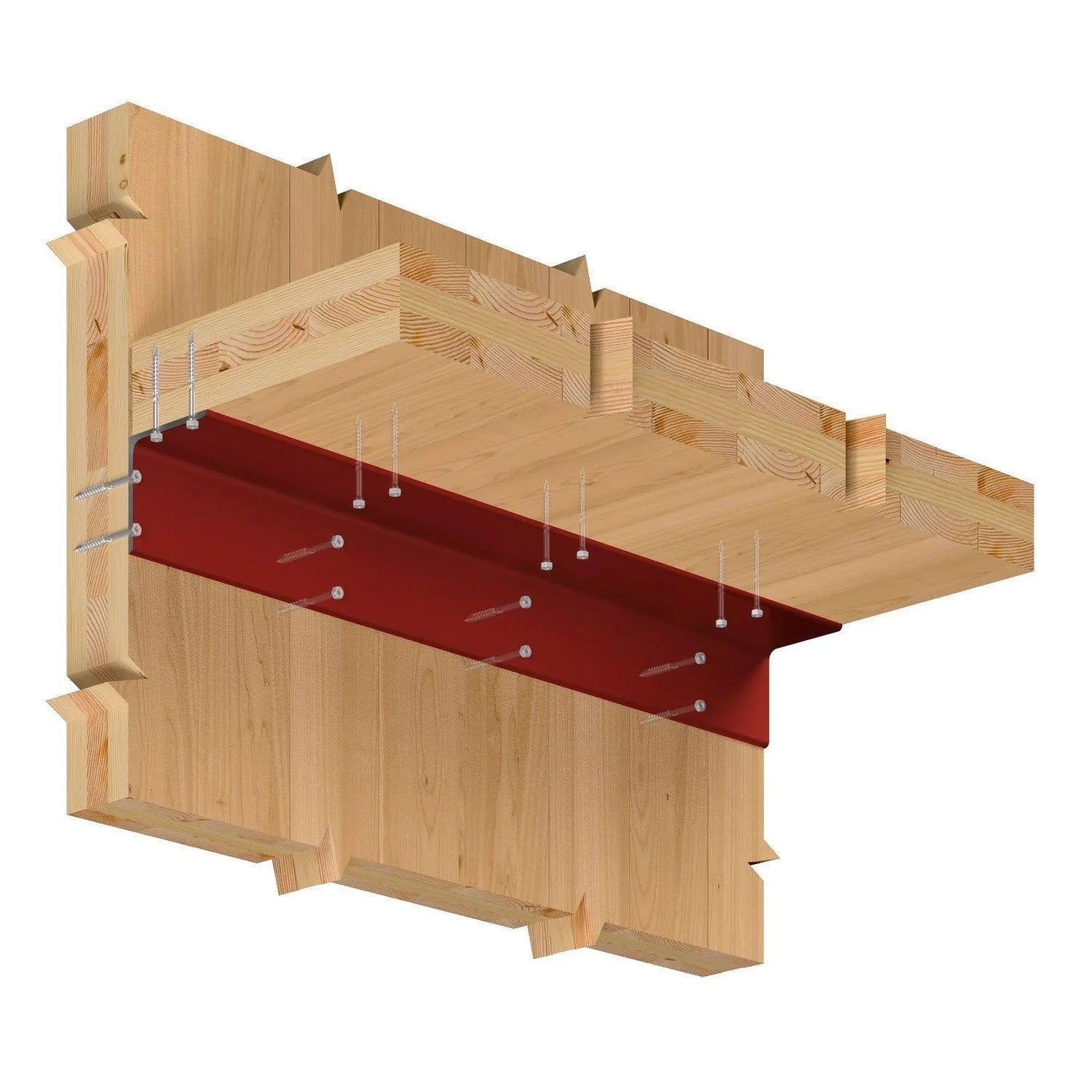

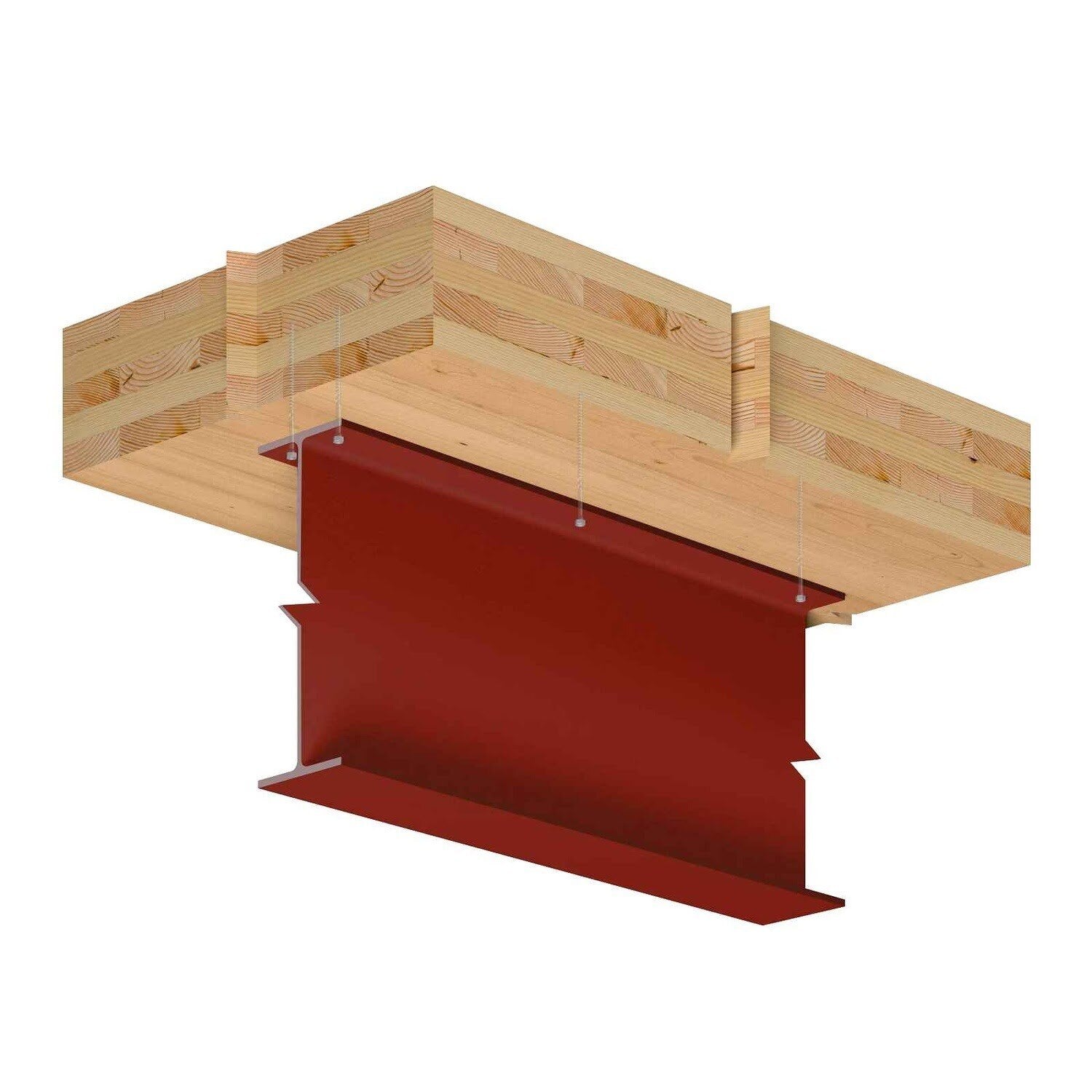

  • Steel-to-wood connections
  • Cross-laminated timber construction
  • Mass timber construction
  • General interior applications

Simpson Strong-Tie SDHR27614-R25 Specifications

Coating/Material Blue-Zinc Coated
Length (in.) 6 1/4
Head Diameter (in.) 0.59
Shank Diameter (in.) 0.275
Drive Type T40 6-Lobe or Hex-Head
Head Type Combination
Thread Length (in.) 4 3/8
Point Type Type-17 Point
Packaging Qty. 25

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
