Simpson Anchors  |  SKU: SDHR27614  |  Barcode: 707392012061

Simpson Strong-Tie SDHR27614 Strong-Drive (0.275" x 6-1/4") T40 Blue-Zinc SDHR COMBO-HEAD Screw (100 Pack)

$195.07

Description

Simpson Strong-Tie SDHR27614 Description

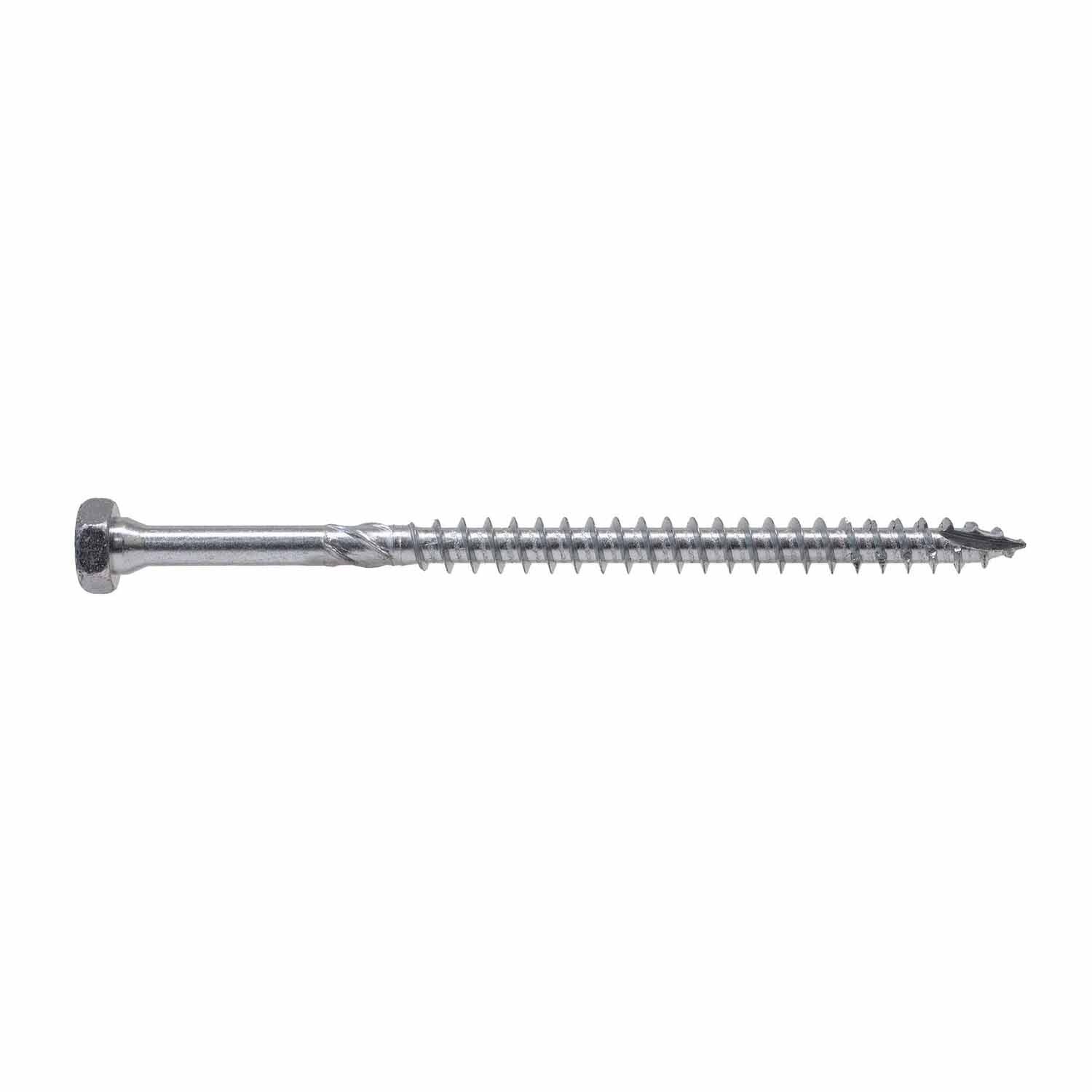

The Simpson Strong-Drive SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber construction, mass timber construction, and general interior applications.

Simpson Strong-Tie SDHR27614 Includes

  • (100) Strong-Drive SDHR Combo-Head Screw

Simpson Strong-Tie SDHR27614 Features

  • Designed for use with steel side plates
  • Can be driven by either a hex-head or 6-lobe driver bit
  • Heavy-duty, partially threaded shaft with knurl provides strength, with superb pull-out resistance
  • Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications

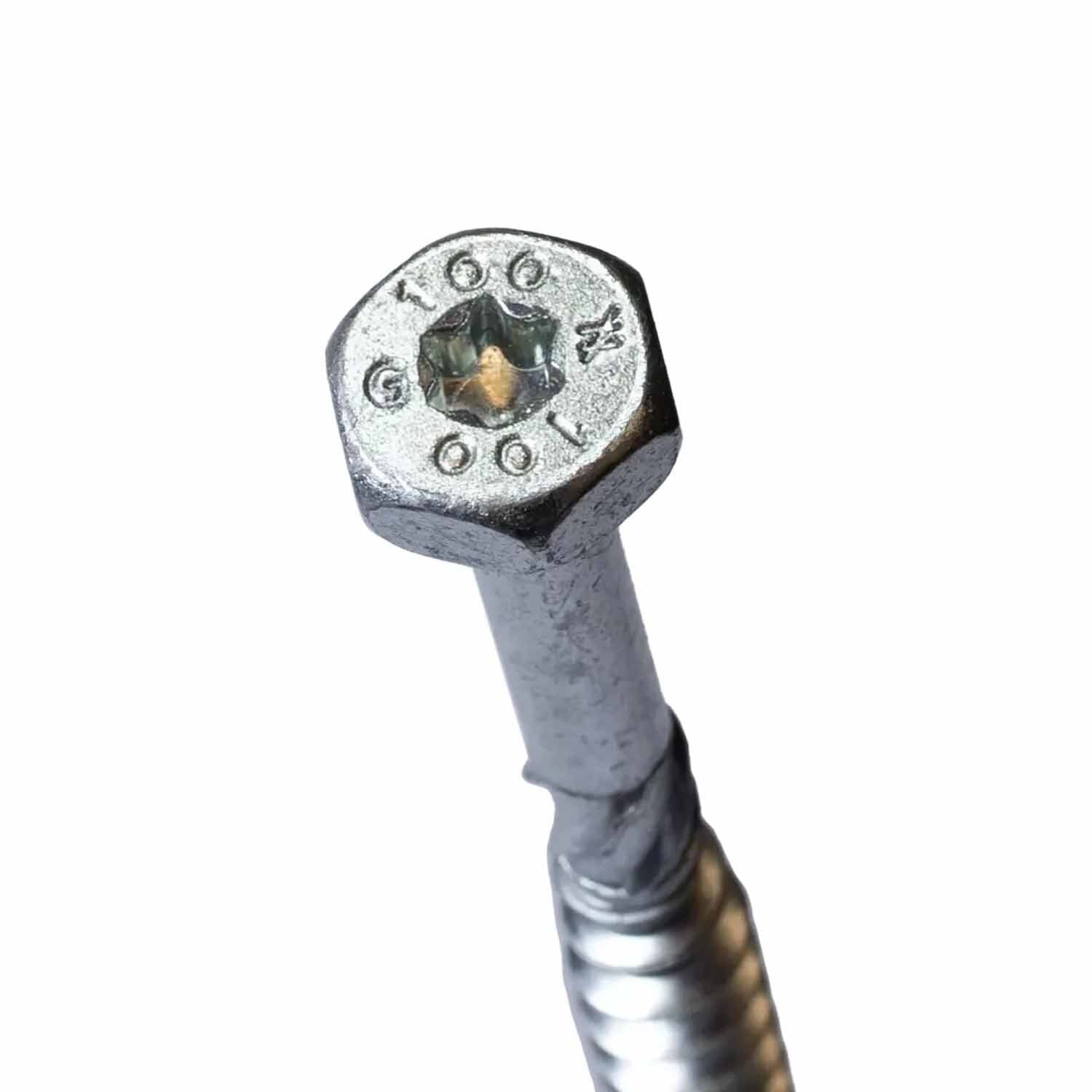

  • Deep T40, 6-lobe recess for a secure drive
  • Interior grade blue-zinc coating

Simpson Strong-Tie SDHR27614 Applications

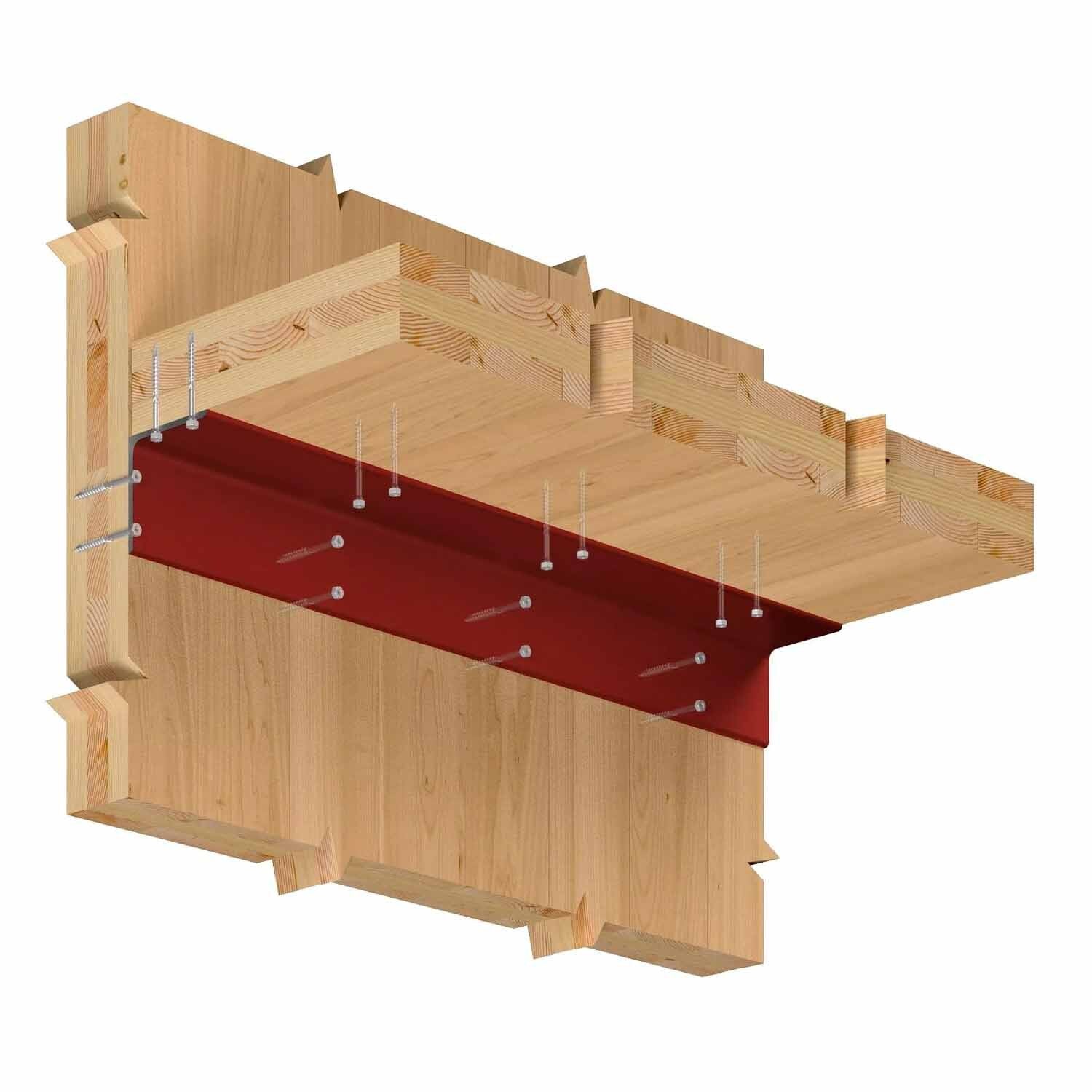

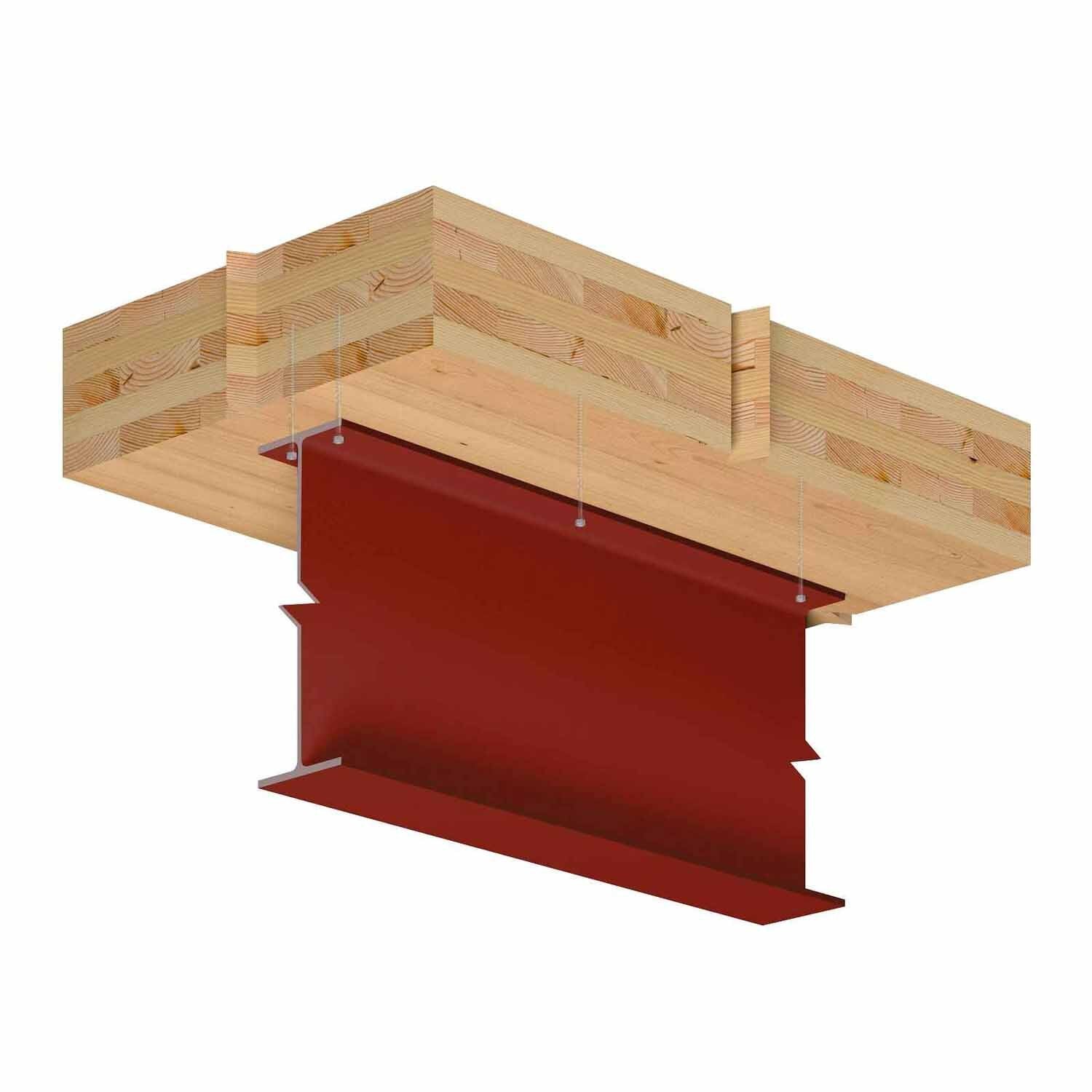

  • Steel-to-wood connections
  • Cross-laminated timber construction
  • Mass timber construction
  • General interior applications

Simpson Strong-Tie SDHR27614 Specifications

Diameter 0.390"
Finish Blue Zinc Coated
Length 6-1/4"
Material Carbon Steel
Drive type T40 Star Drive
Head diameter 0.590"
Head type Hex Head
Point type Type 17
Quantity 100
Thread length 4-3/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
