Simpson Anchors  |  SKU: SDHR31400-R25  |  Barcode: 707392012160

Simpson Strong-Tie SDHR31400-R25 Strong-Drive (0.315" x 4") T40 Blue-Zinc SDHR COMBO-HEAD Screw (25 Pack)

$63.56

Description

Simpson Strong-Tie SDHR31400-R25 Description

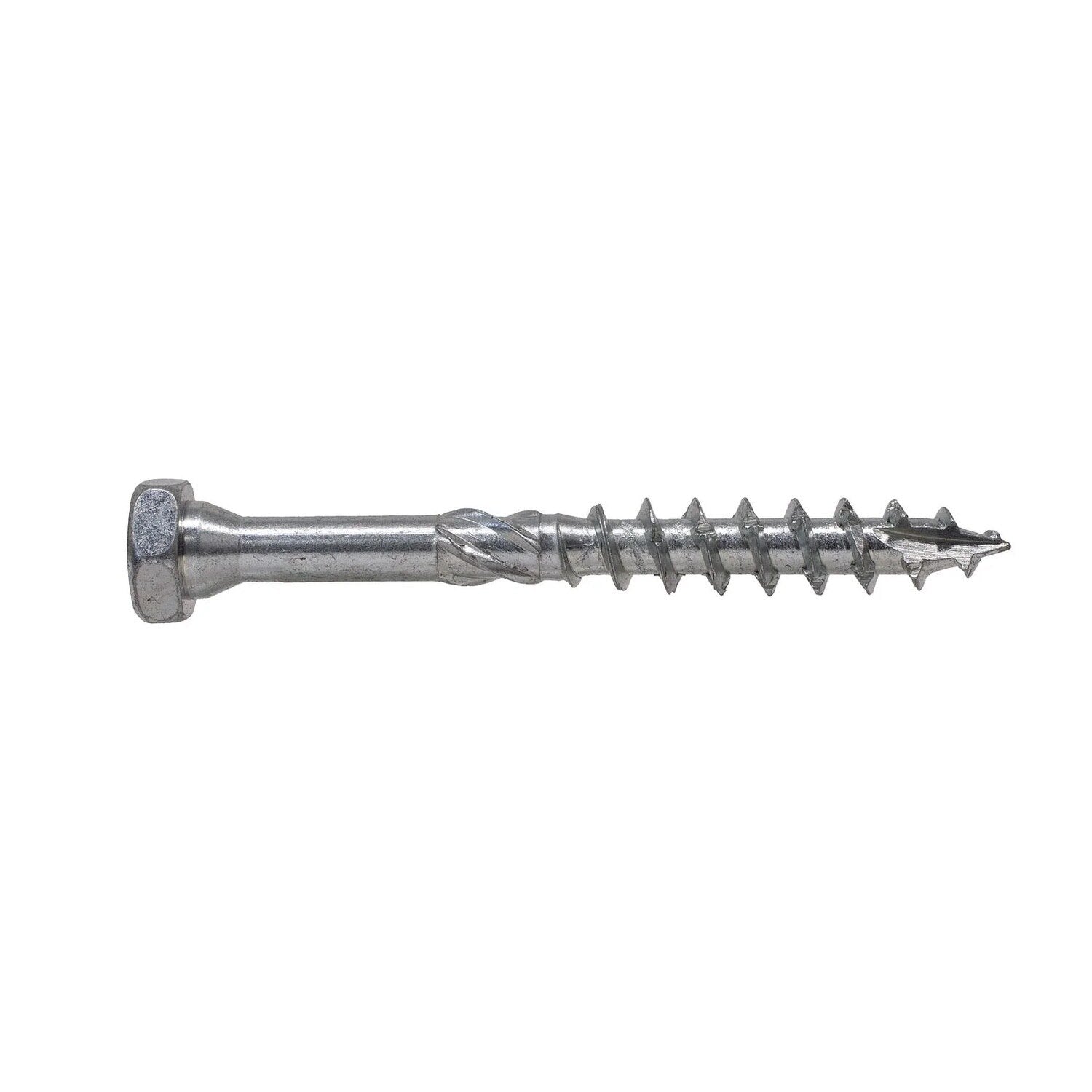

The Simpson Strong-Drive SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber construction, mass timber construction, and general interior applications. It features a robust knurled shaft and Type-17 point for fast starts and low-torque driving.

Simpson Strong-Tie SDHR31400-R25 Includes

  • (25) Strong-Drive SDHR Combo-Head Screw Blue Zinc

Simpson Strong-Tie SDHR31400-R25 Features

  • Designed for use with steel side plates
  • Can be driven by either a hex-head or 6-lobe driver bit
  • Heavy-duty, partially threaded shaft with knurl provides strength, with superb pull-out resistance
  • Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications

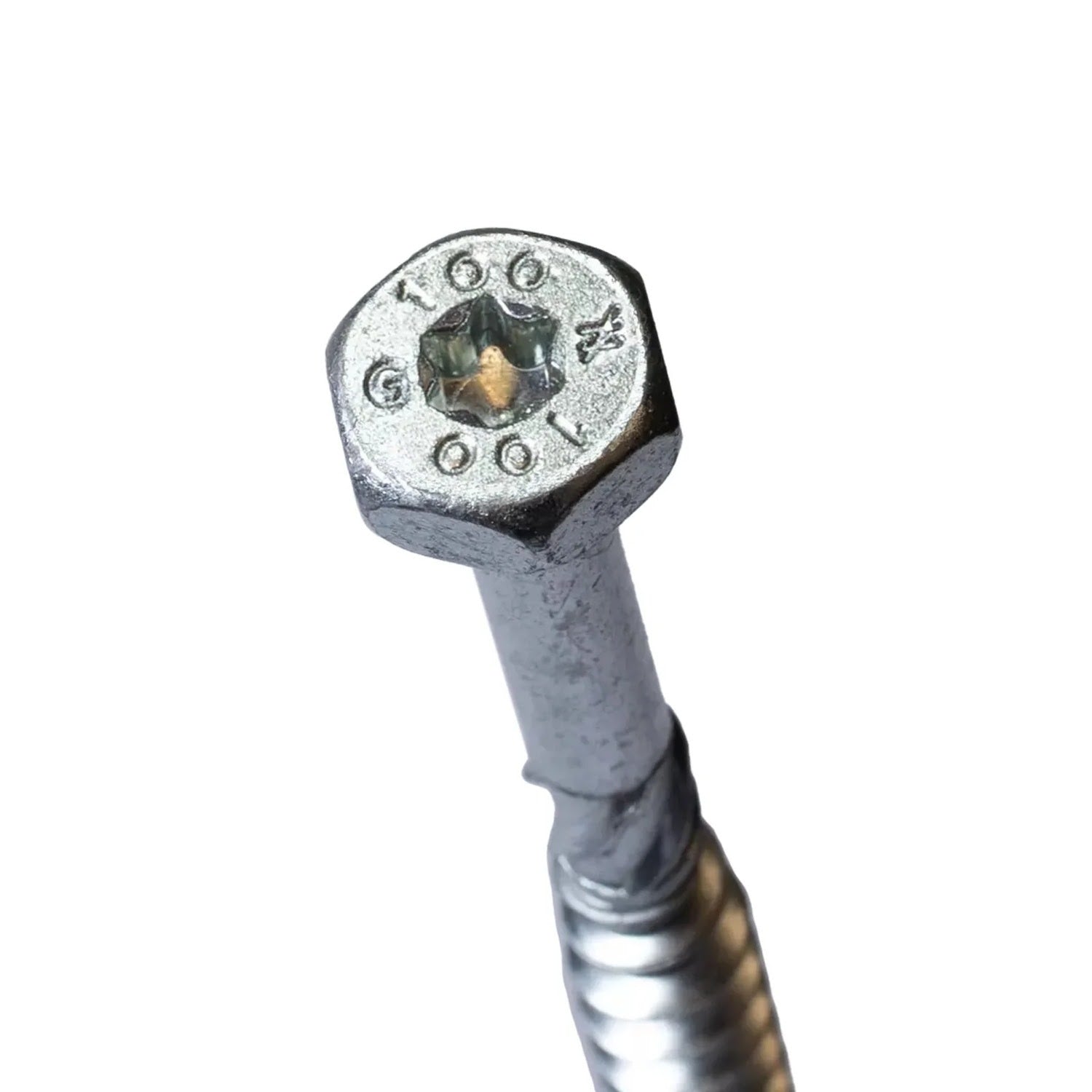

  • Deep T40, 6-lobe recess for a secure drive
  • Interior grade blue-zinc coating

Simpson Strong-Tie SDHR31400-R25 Applications

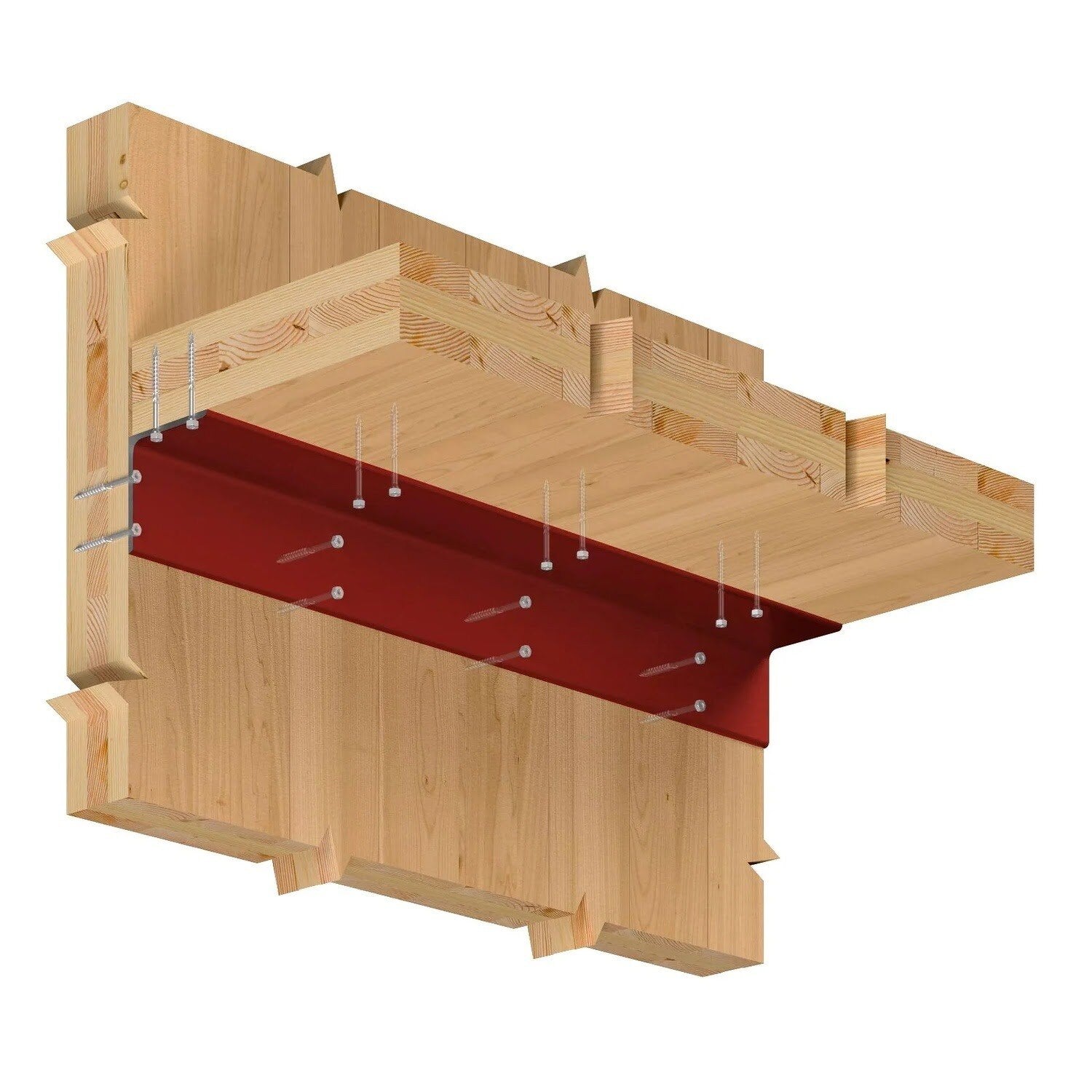

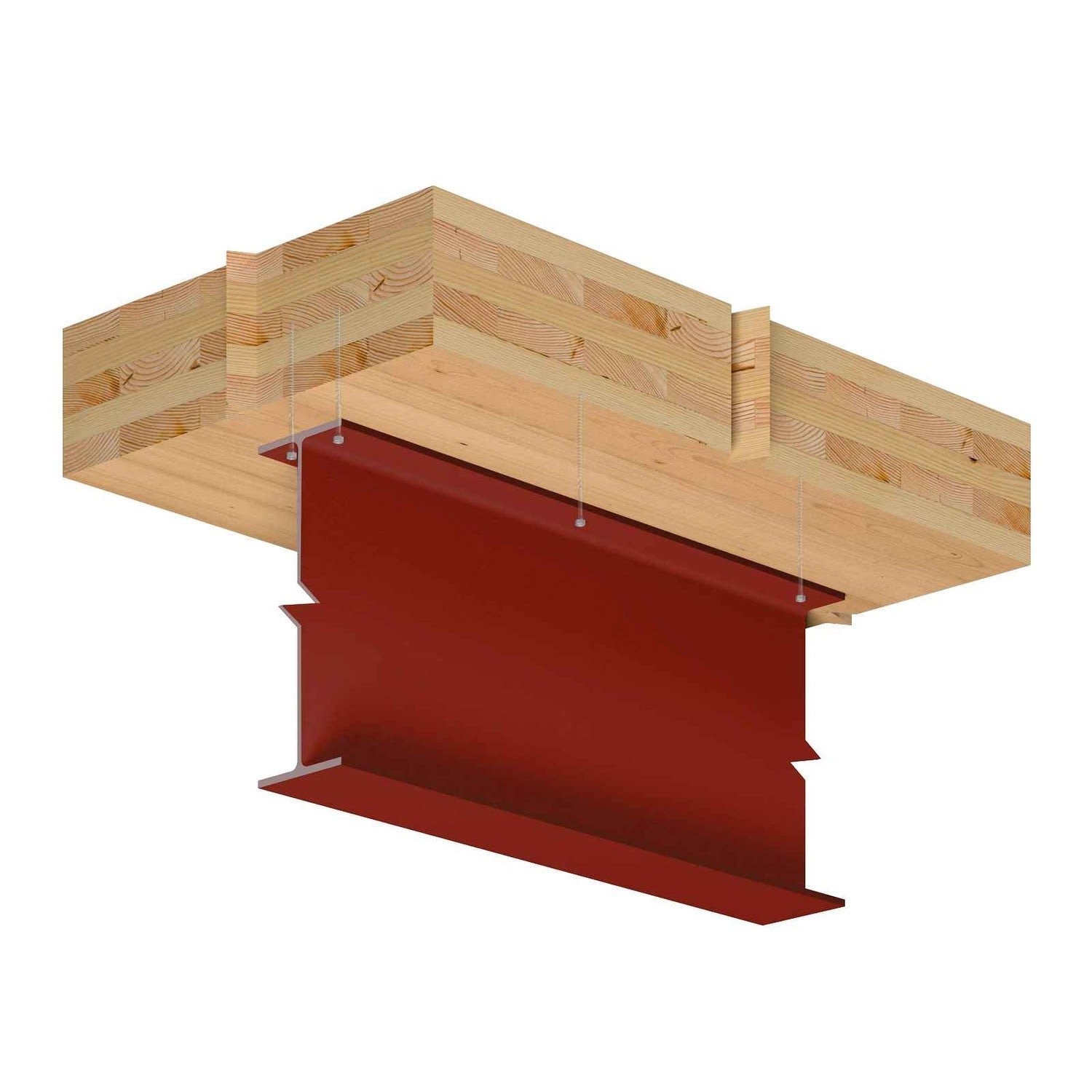

  • Steel-to-wood connections
  • Cross-laminated timber construction
  • Mass timber construction
  • General interior applications

Simpson Strong-Tie SDHR31400-R25 Specifications

Diameter 0.470"
Finish Blue Zinc Coated
Length 4"
Material Carbon Steel
Drive type T40 Star Drive
Head diameter 0.669"
Head type Hex Head
Point type Type 17
Thread length 2.15"
Quantity 25
