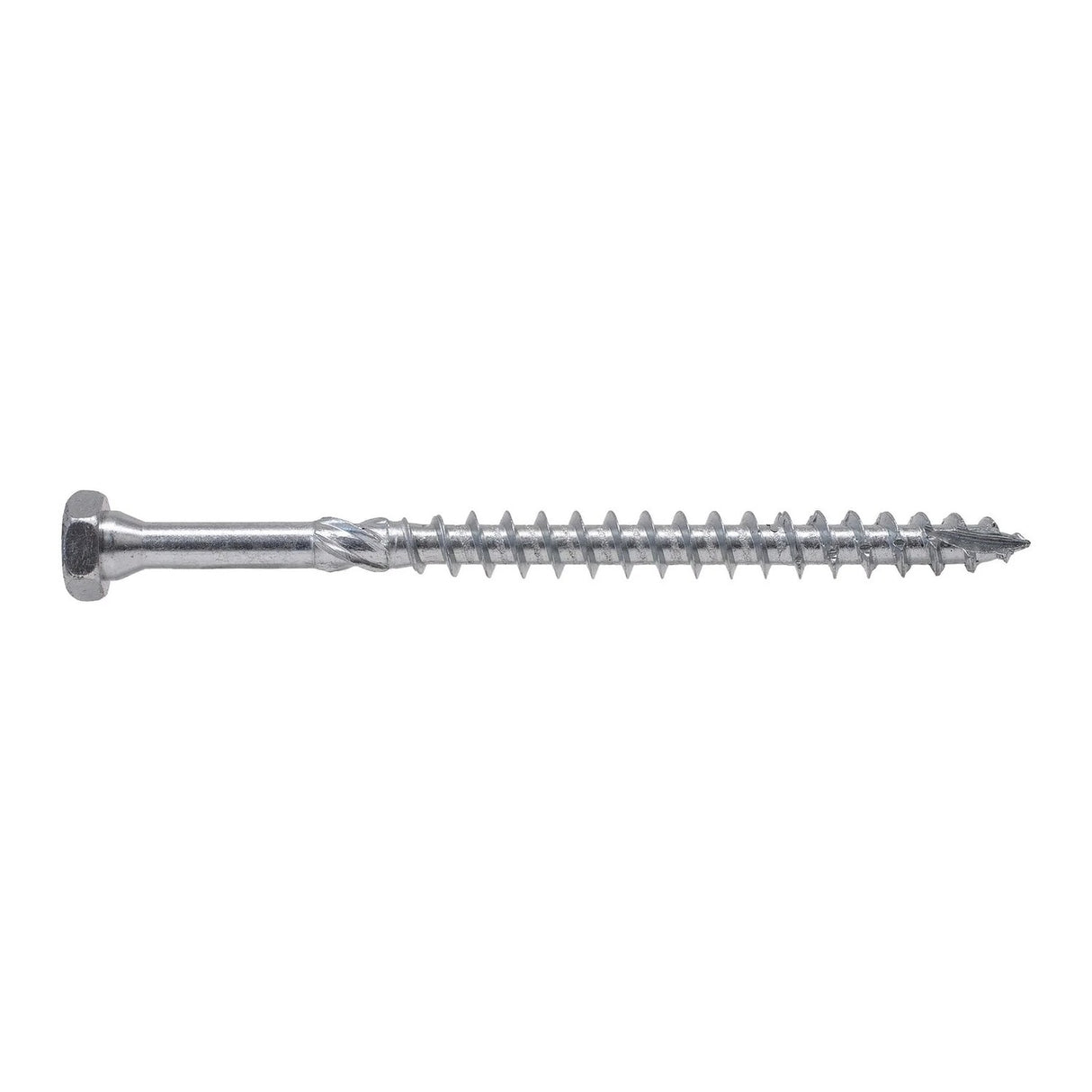

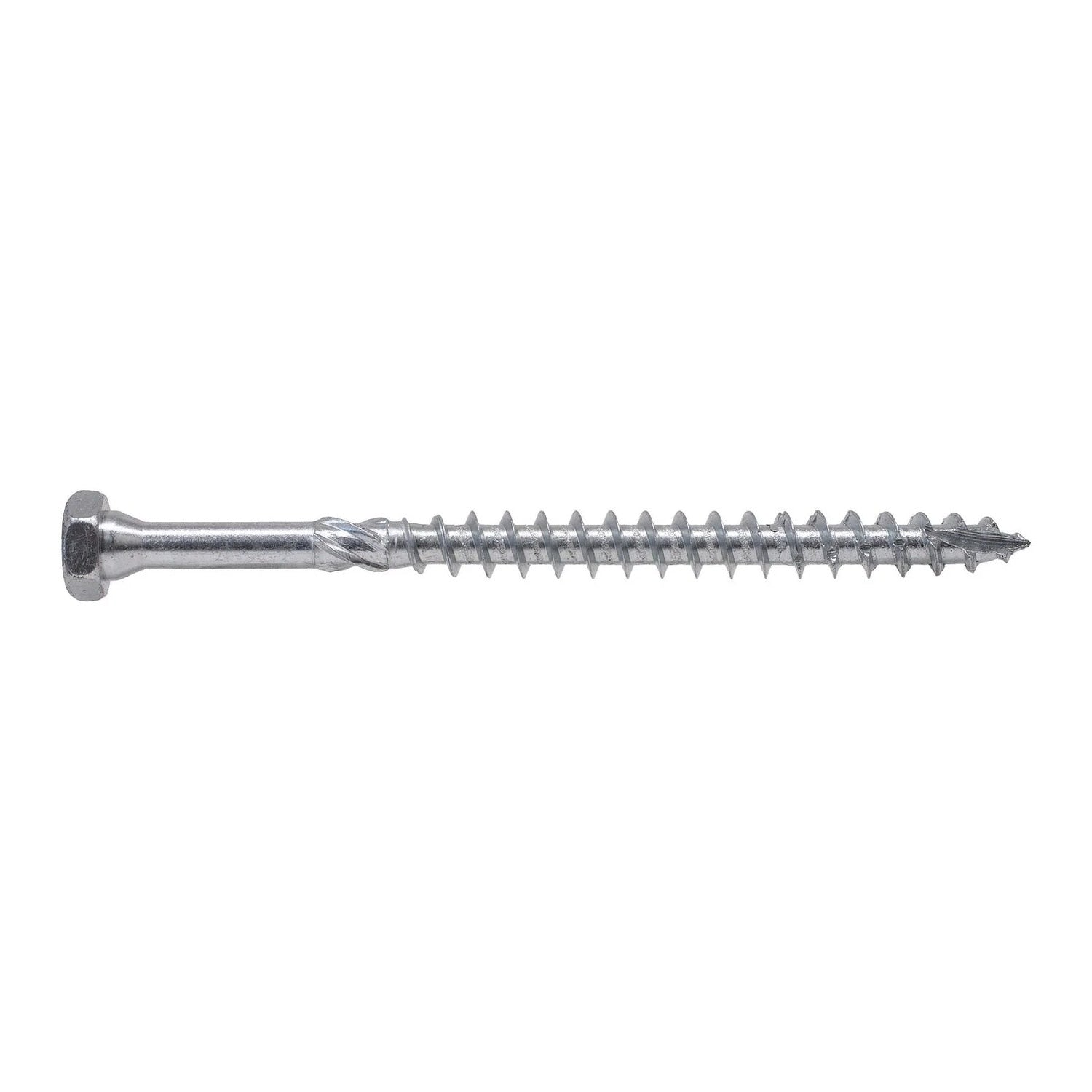

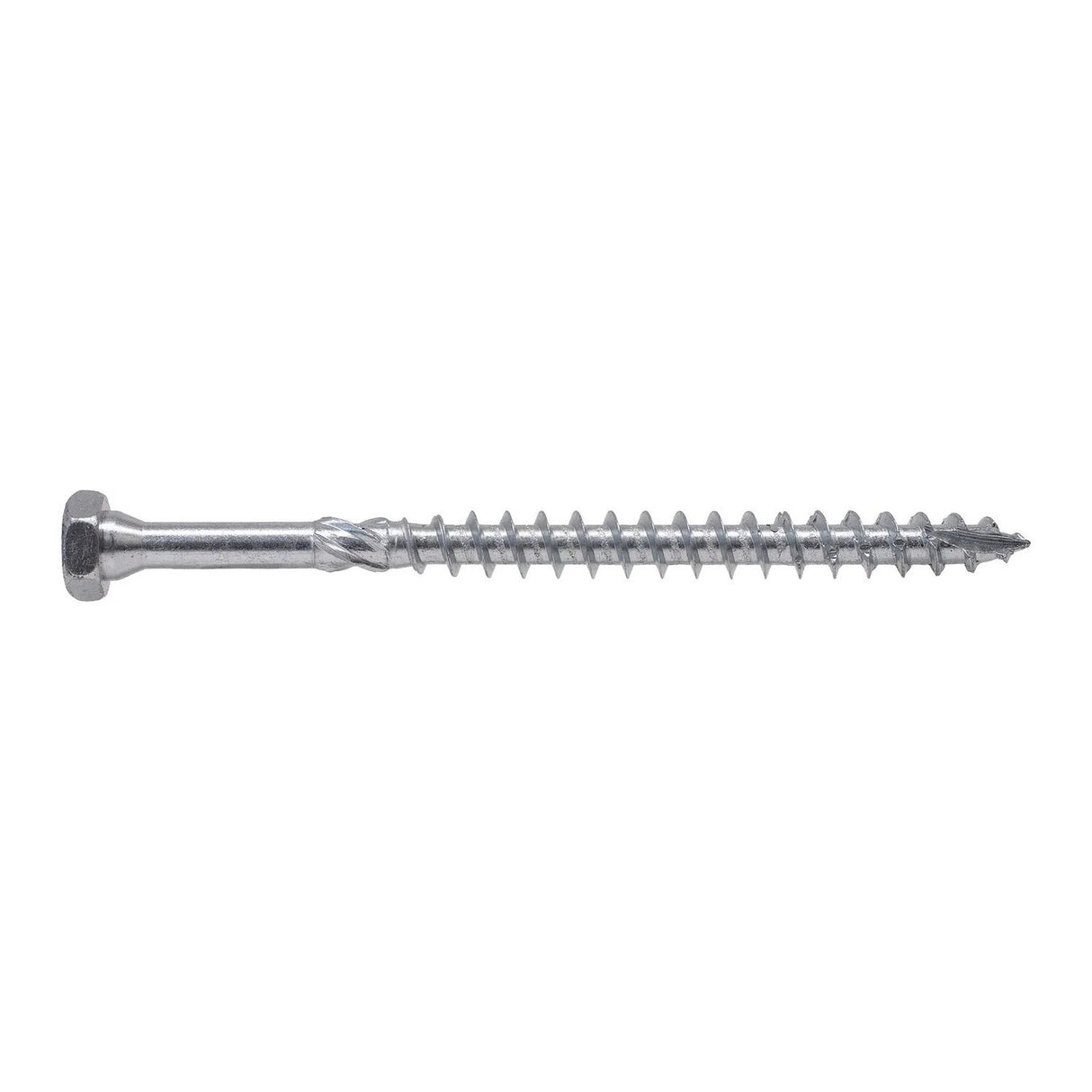

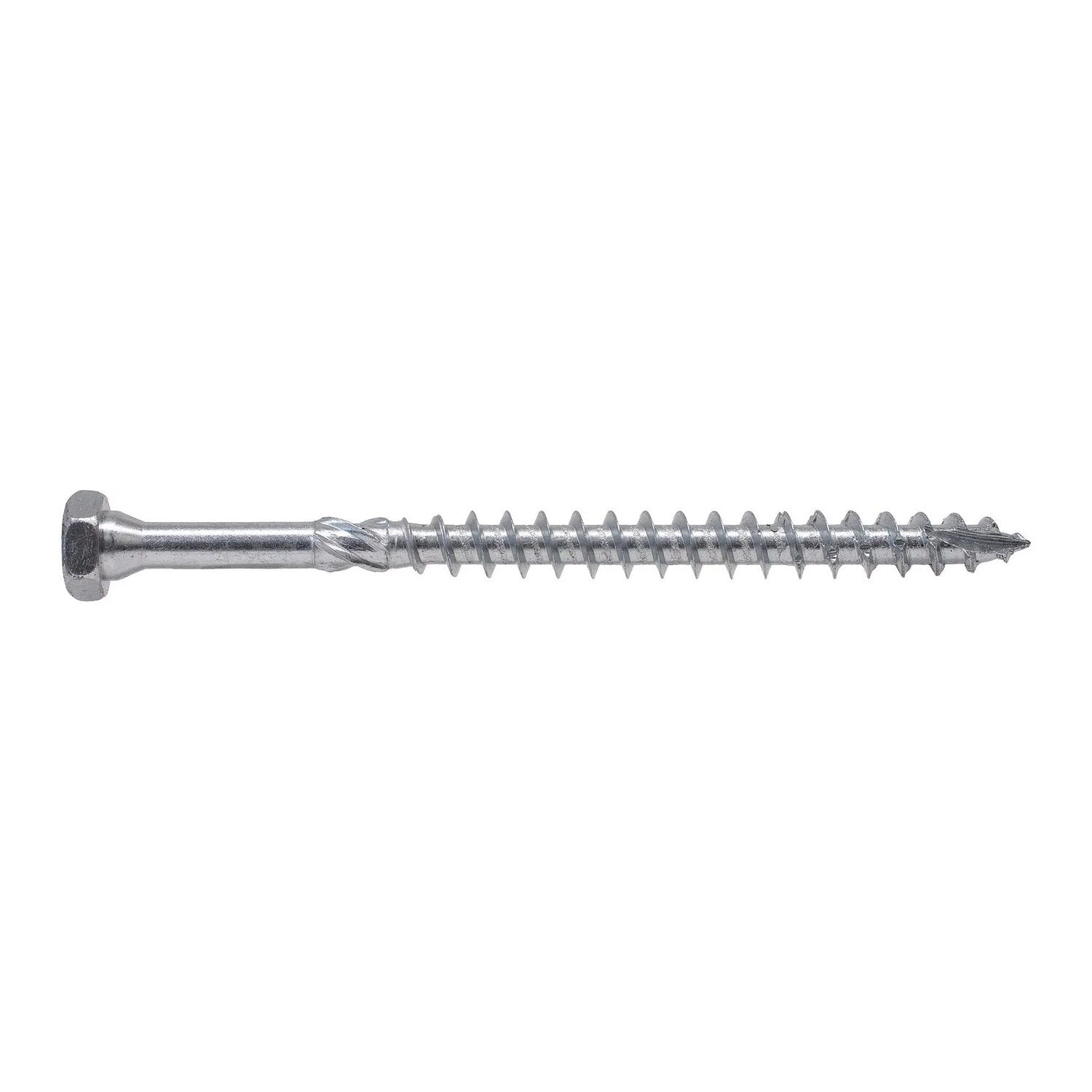

Simpson Strong-Tie SDHR31614-R25 Strong-Drive (0.315" x 6-1/4") T40 Blue-Zinc SDHR COMBO-HEAD Screw (25 Pack)

$101.59

Description

Simpson Strong-Tie SDHR31614-R25 Description

The Simpson Strong-Drive SDHR Combo-Head screw is a structural fastener designed for cross-laminated timber construction, mass timber construction, and general interior applications.

Simpson Strong-Tie SDHR31614-R25 Includes

  • (25) Strong-Drive SDHR Combo-Head Screw

Simpson Strong-Tie SDHR31614-R25 Features

  • Designed for use with steel side plates
  • Can be driven by either a hex-head or 6-lobe driver bit
  • Heavy-duty, partially threaded shaft with knurl provides strength, with superb pull-out resistance
  • Type-17 point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications

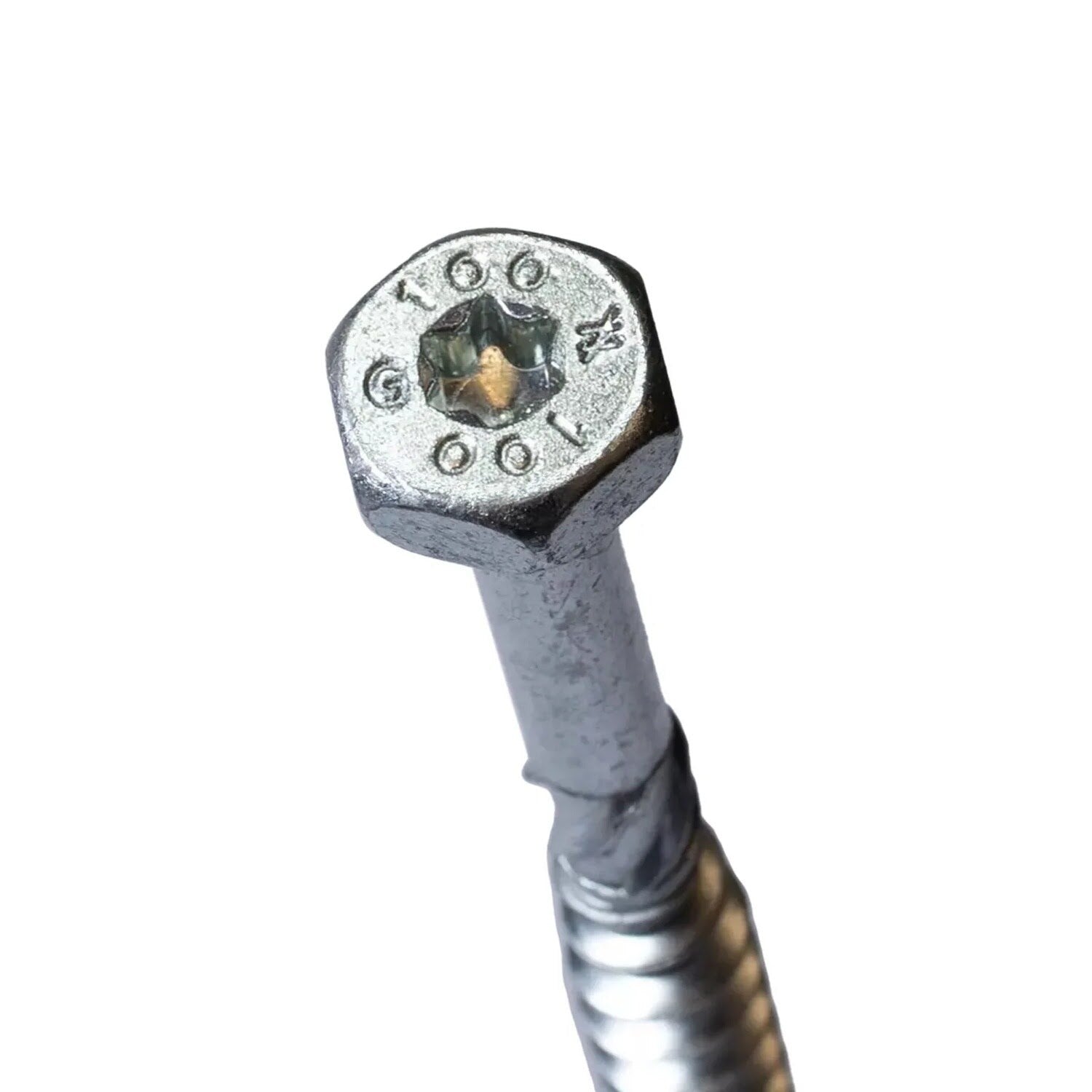

  • Deep T40, 6-lobe recess for a secure drive
  • Interior grade blue-zinc coating

Simpson Strong-Tie SDHR31614-R25 Applications

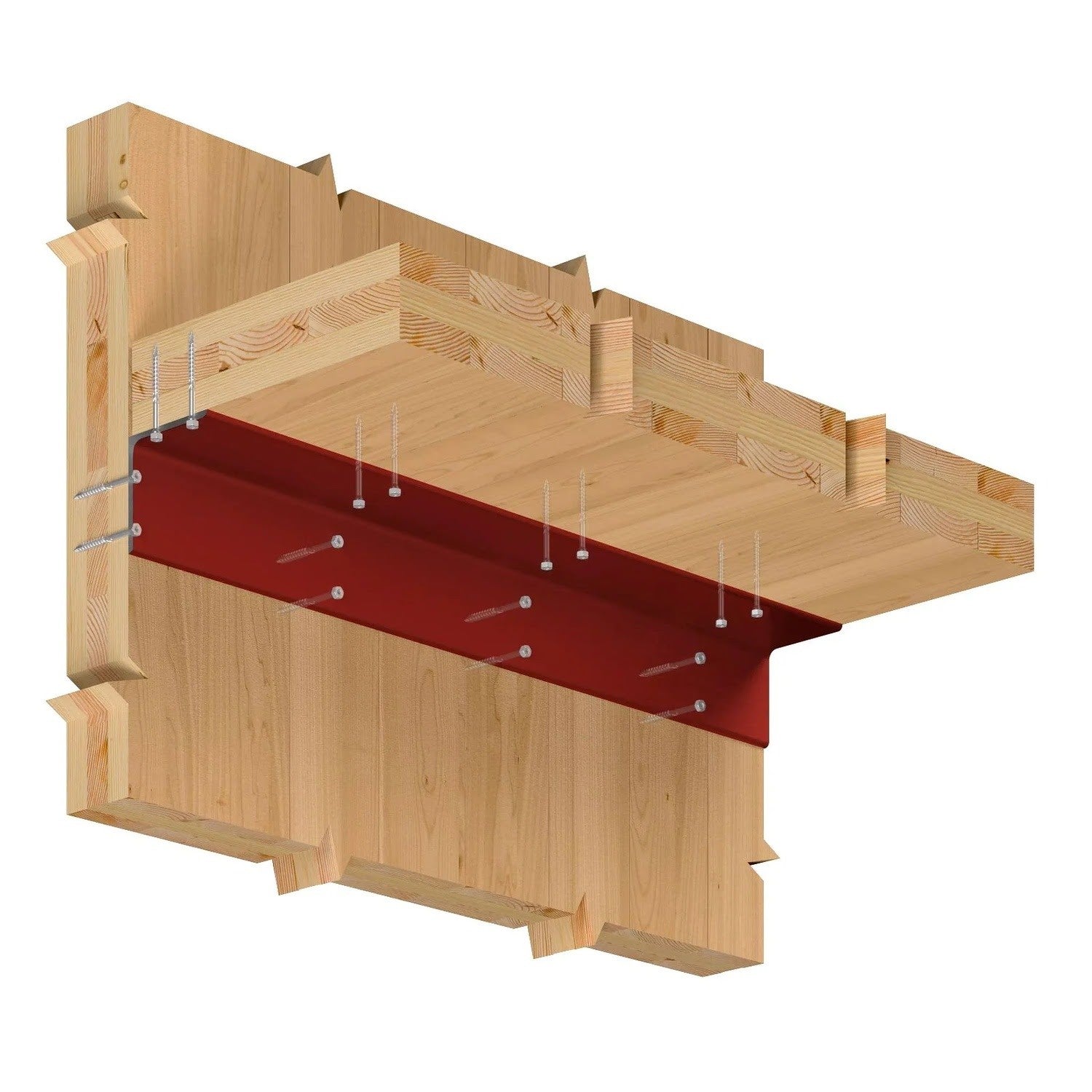

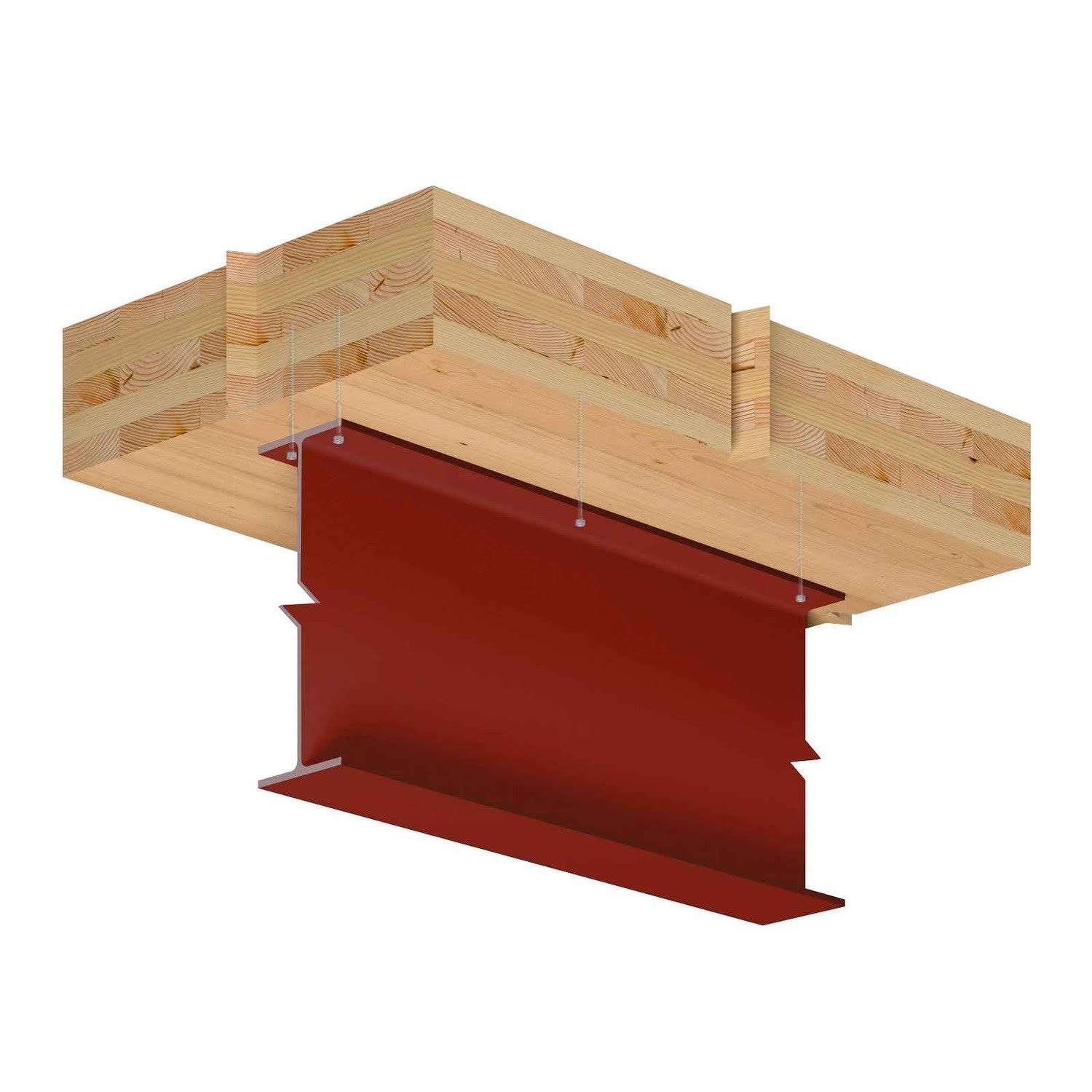

  • Steel-to-wood connections
  • Cross-laminated timber construction
  • Mass timber construction
  • General interior applications

Simpson Strong-Tie SDHR31614-R25 Installation Overview

  1. Verify dimensions and alignment of the wood and steel members.
  2. Position the screw at the desired location.
  3. Drive the screw using either a hex-head or T40 6-lobe driver bit.
  4. Ensure the screw is fully seated and secure.

Simpson Strong-Tie SDHR31614-R25 Specifications

Diameter 0.470"
Finish Blue Zinc Coated
Length 6-1/4"
Material Carbon Steel
Drive type T40 Star Drive
Head diameter 0.669"
Head type Hex Head
Point type Type 17
Quantity 25
Thread length 4-3/8"

NOTE: Ensure screws are installed into the face or side grain of the wood main member with the screw axis at a 90-degree angle to the wood surface.
