Simpson Anchors | SKU:
SDPW14312MB
Simpson Strong-Tie SDPW14312MB Strong-Drive (0.140" x 3-1/2") T25 SDPW E-coat Deflector Screw, Washer Head, Blue (500 Pack)
Free Shipping
$571.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDPW14312MB Description

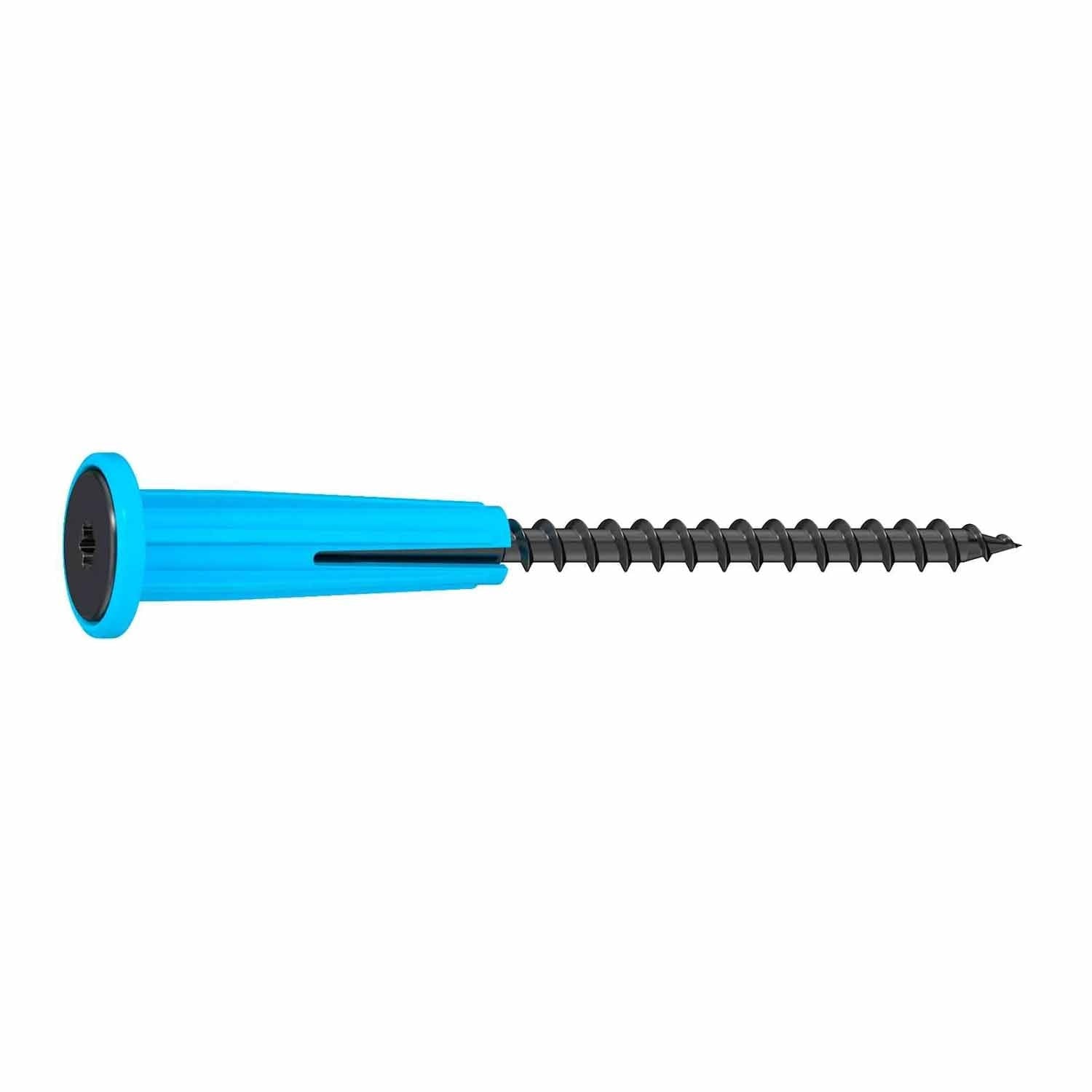

The SDPW Deflector Screw by Simpson Strong-Tie is a premium structural screw designed to provide a strong connection from non-load-bearing walls to trusses and joists.
Simpson Strong-Tie SDPW14312MB Includes
- (500) 0.140 in. x 3-1/2 in. Strong-Drive SDPW Deflector Screws
- (2) Offset Driver Bits
- (2) 3/8 in. Predrill Bits
Simpson Strong-Tie SDPW14312MB Features

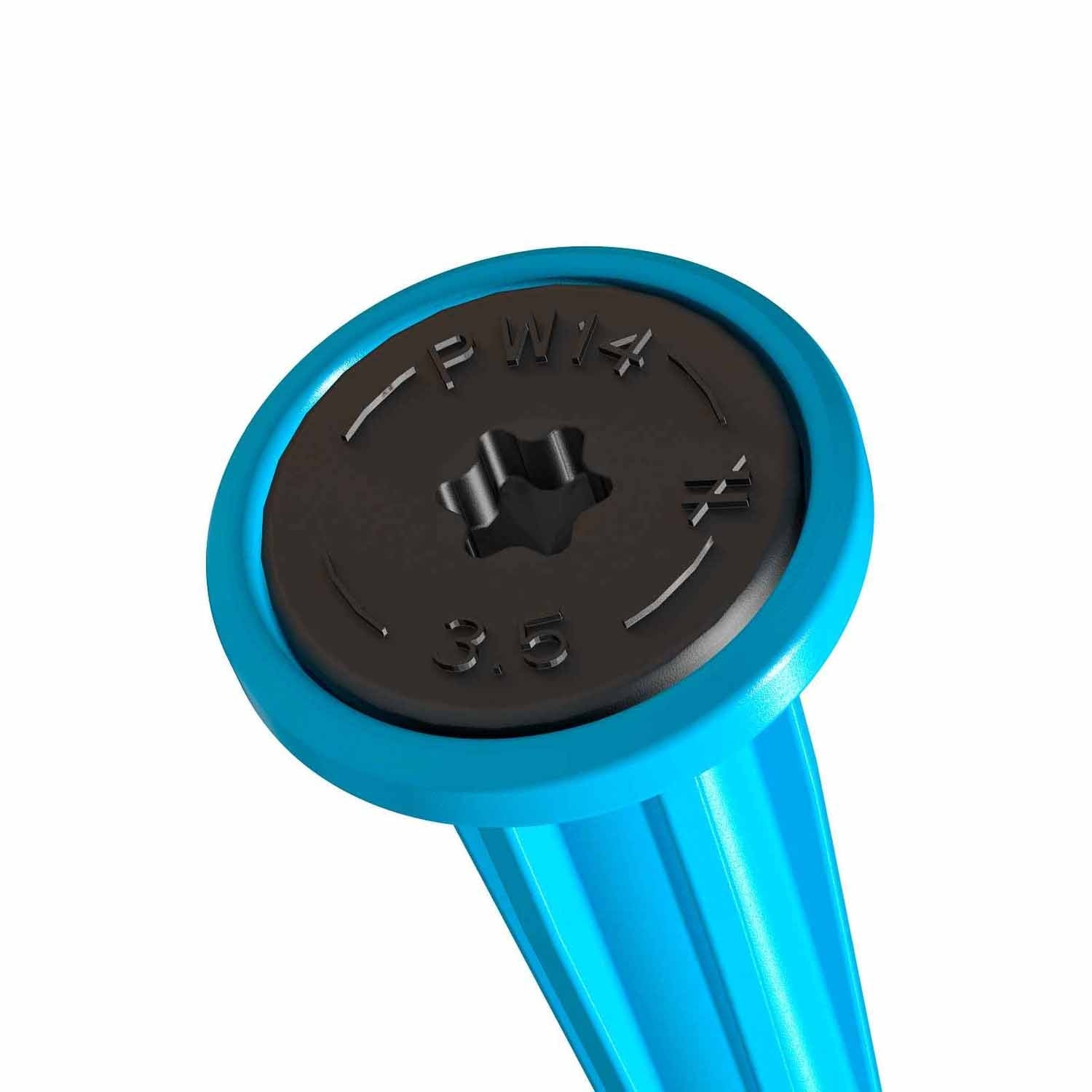

- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications
- Offset driver bit drives SDPW Deflector screw to predetermined screw depth
- Available in multiple lengths
Simpson Strong-Tie SDPW14312MB Applications
- Non-load-bearing partition walls to trusses and joists
- Fastening truss/rafter-to-plate connections

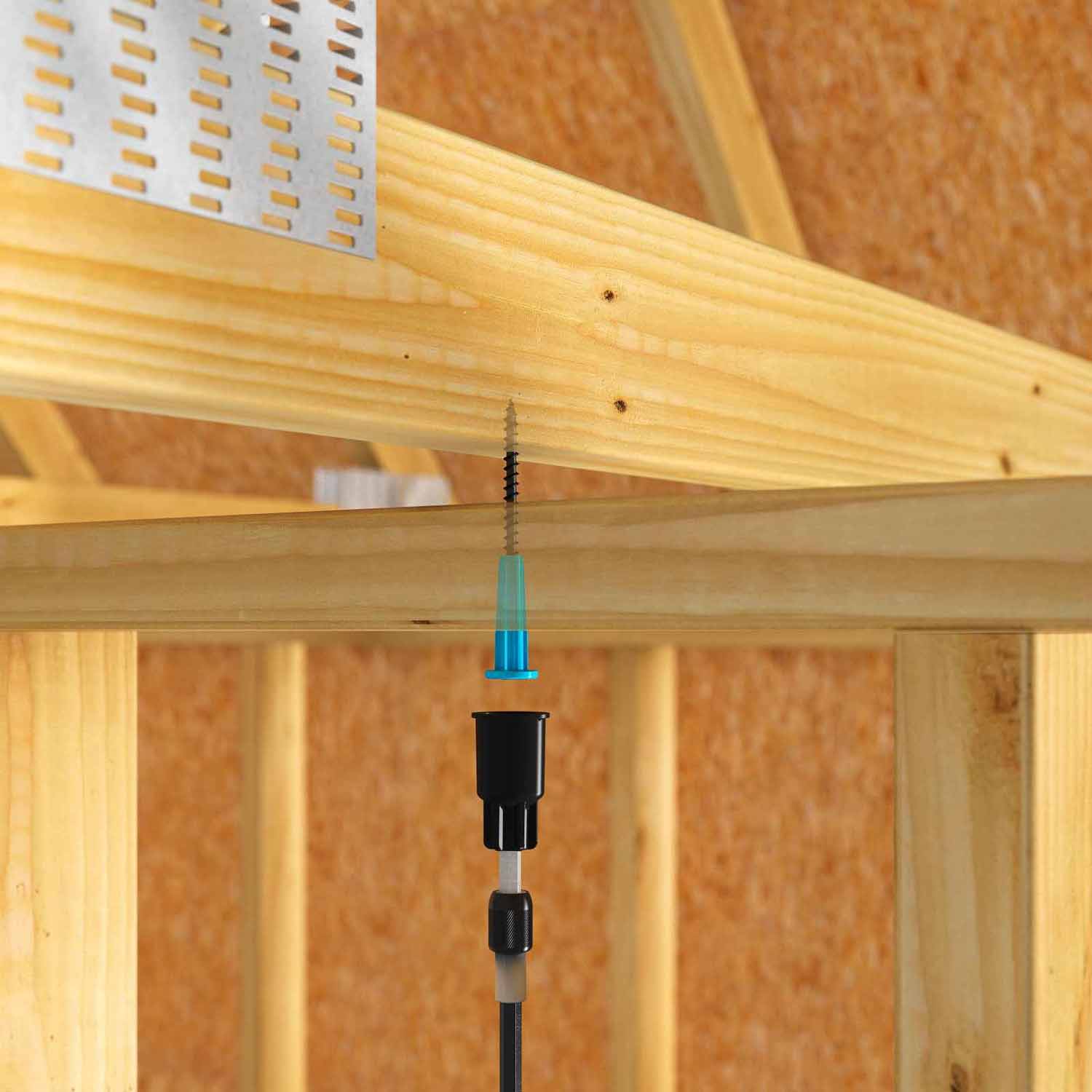

Simpson Strong-Tie SDPW14312MB Installation Overview
- Verify dimensions and alignment of the wall and supporting members.
- Use the offset driver bit to drive the screw to the predetermined depth.
- Ensure screws are spaced according to building code requirements.
- Confirm all screws are securely fastened.
Simpson Strong-Tie SDPW14312MB Specifications
| Diameter | 0.140 in. |
| Length | 3-1/2 in. |
| Color | Blue |
| Drive Type | T25 6-Lobe |
| Finish | E-coat |
| Head Type | Washer Head |
| Point Type | Type 17 |
| Thread Type | Coarse |
| Quantity | 500 |
NOTE: Ensure all fasteners are installed correctly to achieve the published load values.
