Simpson Strong-Tie SDS25112SS-RP5 Description

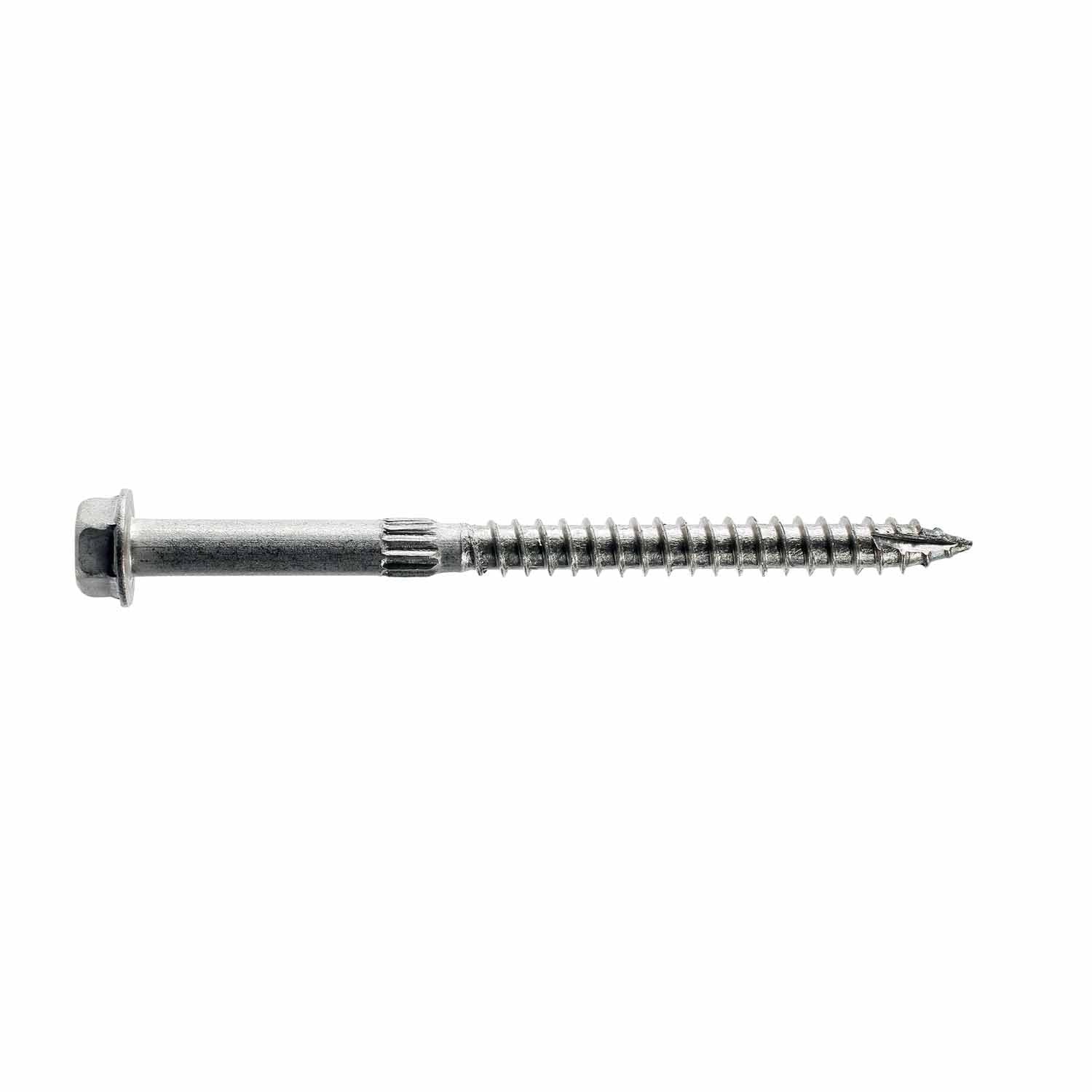

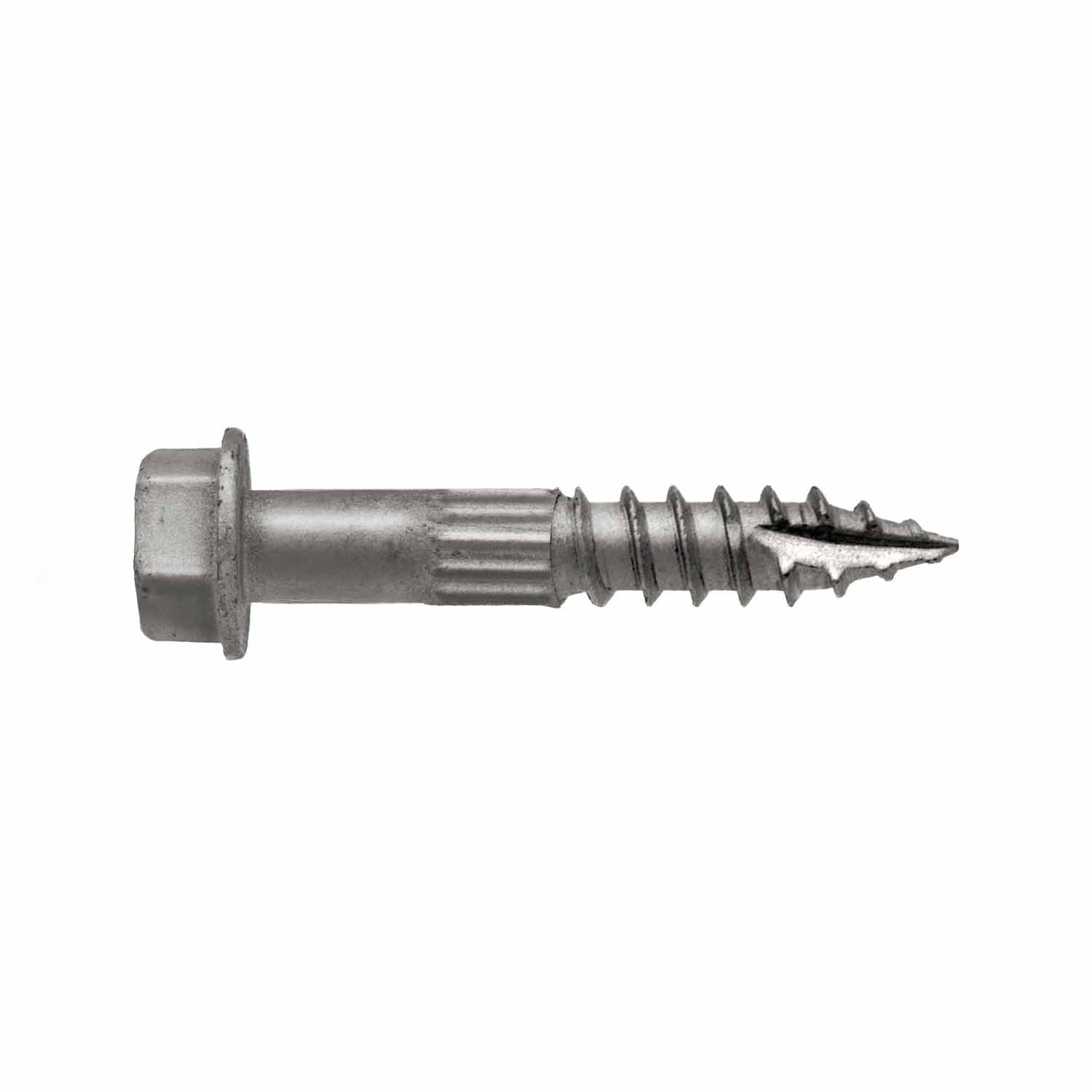

The Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screw is a high-strength, 1/4 in.-diameter structural screw made from Type 316 stainless steel for maximum corrosion resistance. Designed for wood-to-wood and connector installations, it features easy driving, split-reducing performance, and is ideal for demanding exterior applications.
Simpson Strong-Tie SDS25112SS-RP5 Includes
- (5) Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie SDS25112SS-RP5 Features
- Type-17 point for easy driving without predrilling and reduced wood splitting
- 3/8 in. hex head with integrated 0.500 in. washer for secure fastening
- Head stamped for easy identification after installation
- Serrated threads for improved holding power
- Made from Type 316 stainless steel for severe-level corrosion resistance
- Replacement driver bit model BITHEXR38-R1 (not included)
- Length: 1-1/2 in.
- Pack of 5 screws
Simpson Strong-Tie SDS25112SS-RP5 Applications
- Fastening Simpson Strong-Tie connectors
- Wood-to-wood structural connections
- Engineered wood applications
- Exterior projects requiring high corrosion resistance
Simpson Strong-Tie SDS25112SS-RP5 Installation Overview
- Use a low-speed 1/2 in. drill with a 3/8 in. hex driver for installation
- Drive the screw directly into the wood or connector—no predrilling required
- Ensure the screw is fully seated and the head is flush with the surface
Simpson Strong-Tie SDS25112SS-RP5 Specifications
| Material | Type 316 Stainless Steel |
| Finish | Type 316 Stainless Steel |
| Head Type | Hex Head |
| Drive Type | 3/8 in. Hex |
| Point Type | Type-17 Point |
| Thread Type | Serrated Threads |
| Length | 1-1/2 in. |
| Shank Diameter | 0.235 in. |
| Thread Length | 1 in. |
| Packaging Quantity | 5 |
| Packaging Type | Clamshell |
