Simpson Anchors | SKU:
SDS25312SS-RP5

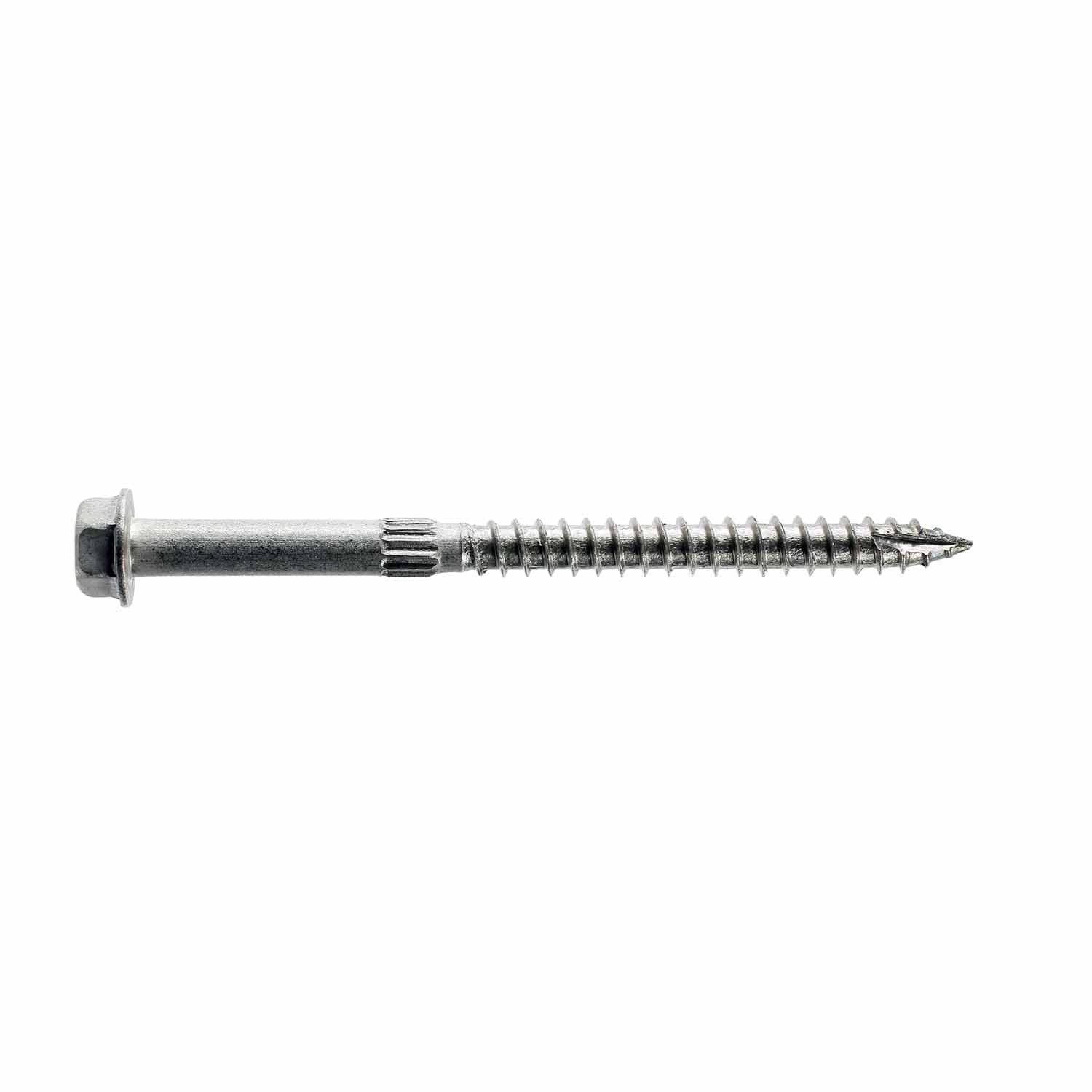

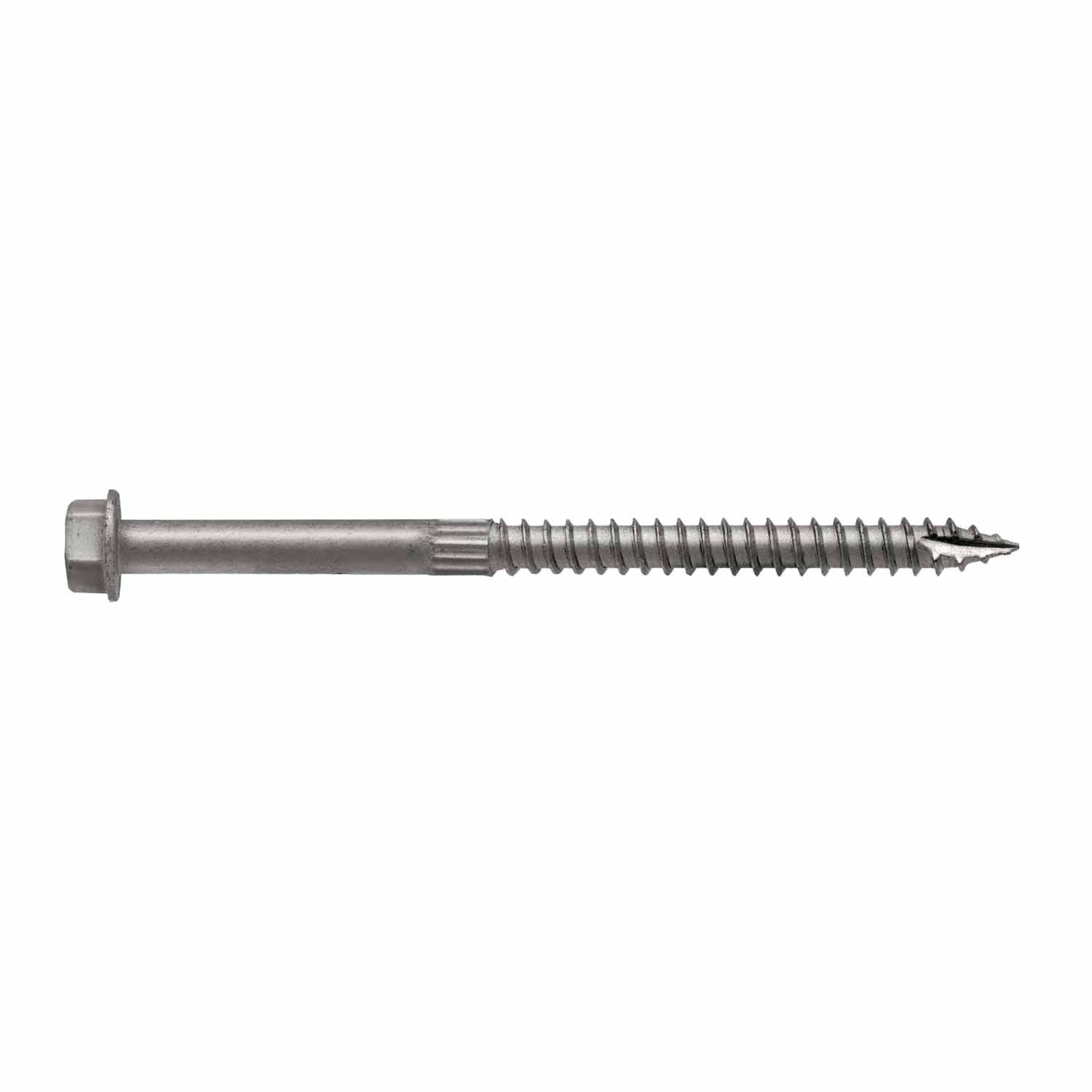

Simpson Strong-Tie SDS25312SS-RP5 Strong-Drive (0.235 x 3-1/2") Heavy-Duty Connector SS Screw, Type 316 (5 Pack)
$15.30
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDS25312SS-RP5 Description
The Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screw is a high-strength, 1/4 in. diameter structural screw designed for connector installations and wood-to-wood applications. Made from Type 316 stainless steel, it offers superior corrosion resistance and easy installation without predrilling, making it ideal for demanding environments.
Simpson Strong-Tie SDS25312SS-RP5 Includes
- (5) Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie SDS25312SS-RP5 Features
- Type-17 point for easy driving and reduced wood splitting
- 3/8 in. hex head with integrated 0.500 in. washer
- Head stamped for easy identification after installation
- Serrated threads for secure fastening
- Made from Type 316 stainless steel for severe corrosion resistance
- No predrilling required
- Replacement driver bit model BITHEXR38-R1 (not included)
- Length: 3-1/2 in.
- Pack of 5 screws
Simpson Strong-Tie SDS25312SS-RP5 Applications
- Fastening Simpson Strong-Tie connectors
- Wood-to-wood structural connections
- Engineered wood applications
- Outdoor and high-exposure environments requiring corrosion resistance
Simpson Strong-Tie SDS25312SS-RP5 Installation Overview
- Use a low-speed 1/2 in. drill with a 3/8 in. hex driver for installation
- Drive the screw directly into the material; predrilling is not required
- Ensure the screw is fully seated for optimal performance
Simpson Strong-Tie SDS25312SS-RP5 Specifications
| Diameter | 1/4 in. |
| Length | 3-1/2 in. |
| Material | Type 316 Stainless Steel |
| Finish | Type 316 Stainless Steel |
| Head Type | Hex Head |
| Drive Type | 3/8 in. Hex |
| Thread Type | Serrated Threads |
| Point Type | Type-17 Point |
| Thread Length | 2-1/4 in. |
| Shank Diameter | 0.235 in. |
| Packaging Quantity | 5 |
| Packaging Type | Clamshell |
