Simpson Anchors | SKU:
SDW22300-R50

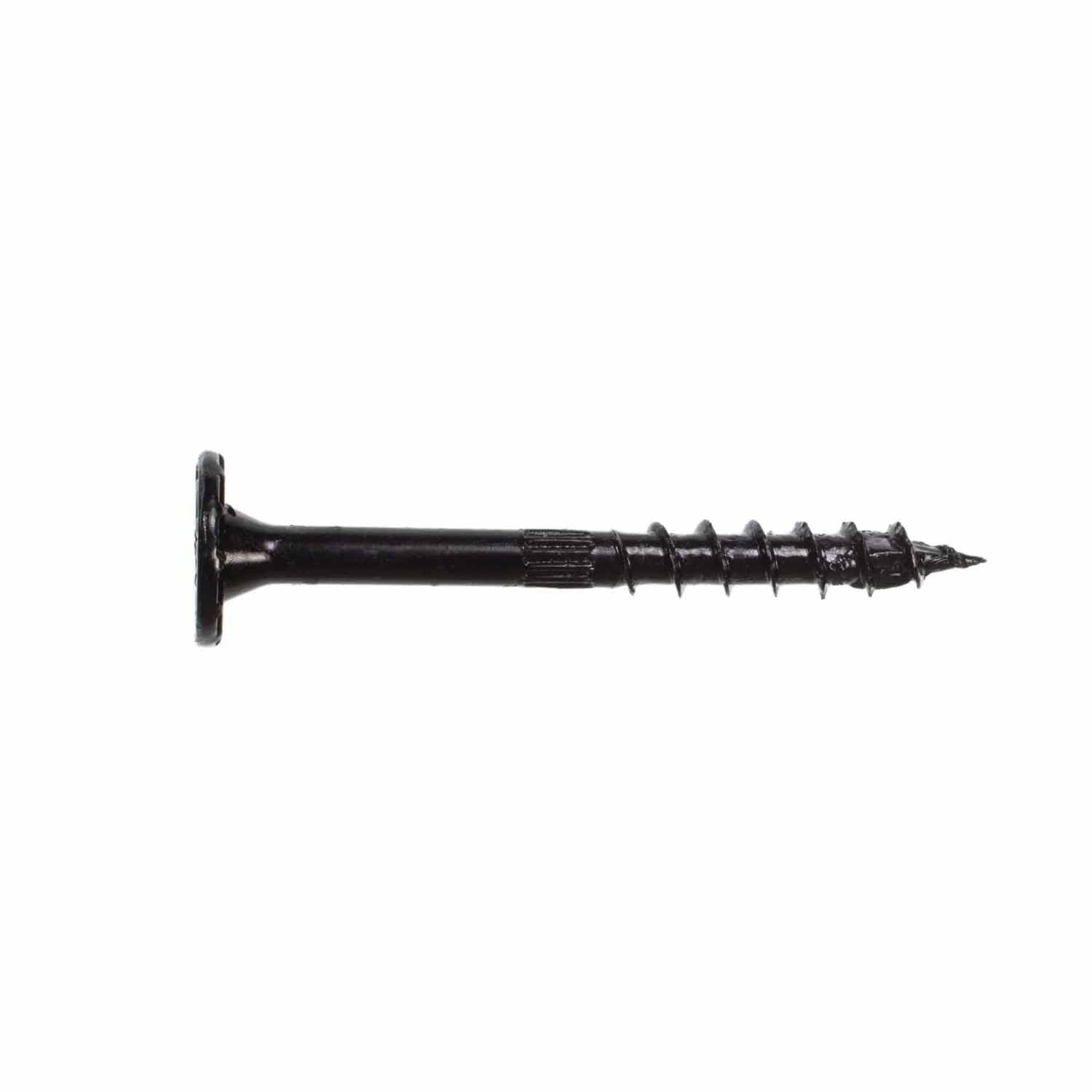

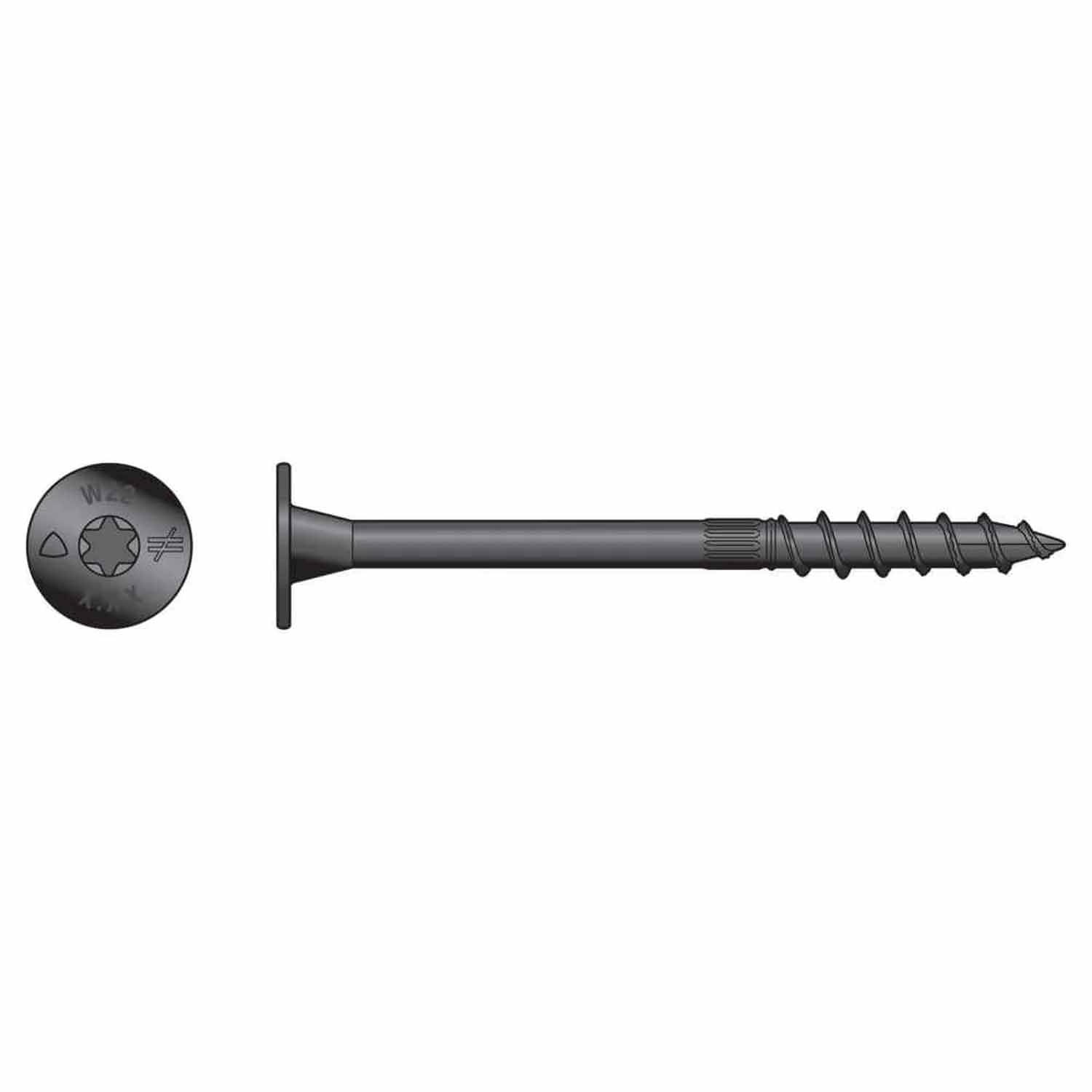

Simpson Strong-Tie SDW22300-R50 Strong-Drive (.220" x 3") Strong-Drive SDW Truss-Ply Screw, 6-Lobe E-coat (50 Pack)
$29.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDW22300-R50 Description
Strong-Tie SDW Truss-Ply screws are specifically designed for joining plated trusses and solid sawn lumber. The screws install easily with no pre-drilling and are available in optimized lengths for fastening 2-, 3- and 4-ply trusses.
Simpson Strong-Tie SDW22300-R50 Includes
- (50) 2-15/16 in. Strong-Tie SDW Truss-Ply Screws
Simpson Strong-Tie SDW22300-R50 Features
- Large washer head with nibs provides maximum bearing area
- 6-lobe, T40 drive provides positive engagement
- Low-profile head results in less interference after installation
- Higher shear values than competitive products
- Bold thread design provides superior holding power
- SawTooth point ensures fast starts and reduces installation torque
- Retail packs include one 6-lobe, T40 driver bit
Simpson Strong-Tie SDW22300-R50 Applications
- Truss-ply fastening
- Joining plated trusses and solid sawn lumber
- Fastening multi-ply trusses and beams from one side
Simpson Strong-Tie SDW22300-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Length | 2-15/16" |
| Diameter | 0.220" |
| Drive Type | T40 Star Drive |
| Material | Carbon Steel |
| Point Type | SawTooth Point |
| Thread Length | 1-7/16" |
| Coating/Material | E-coat Electrocoating |
| Packaging Quantity | 50 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
