Simpson Anchors  |  SKU: SDW22300MB  |  Barcode: 707392125501

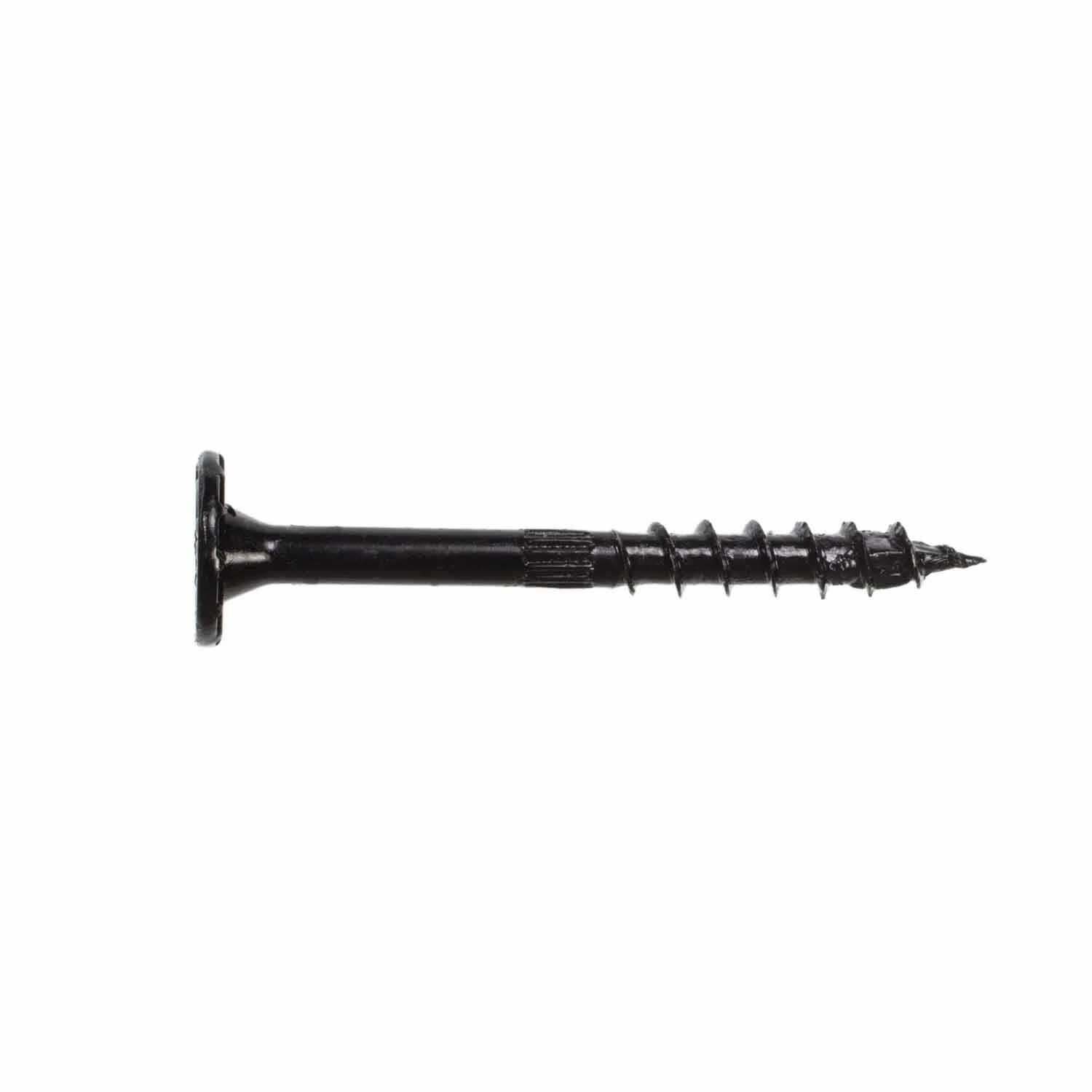

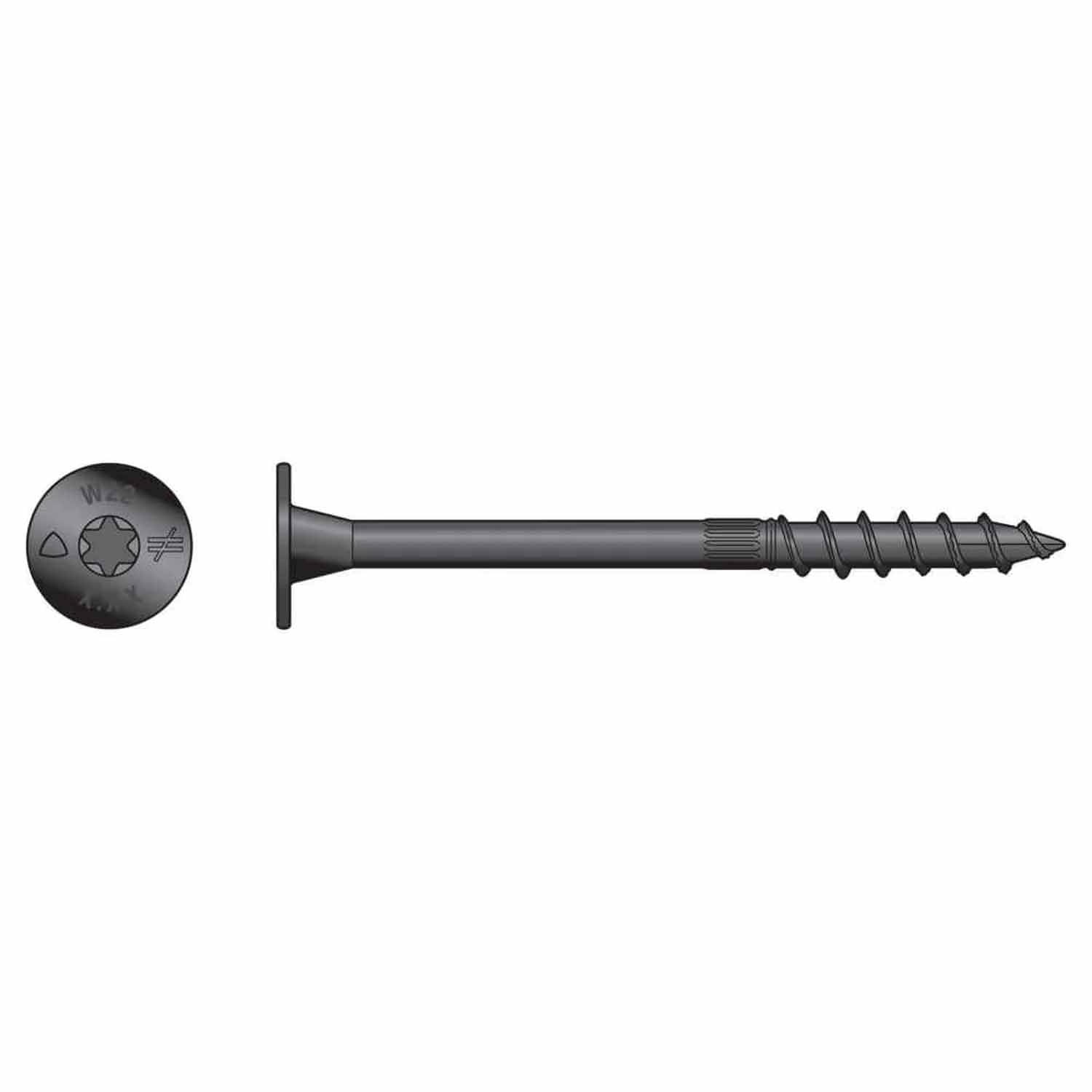

Simpson Strong-Tie SDW22300MB Strong-Drive (.220 in. x 3") T40 E-coat Truss-Ply Screw, Low Profile Head (250 Pack)

$106.73

Description

Simpson Strong-Tie SDW22300MB Description

The Strong-Drive SDW Truss-Ply Screw is designed for joining plated trusses and solid sawn lumber, offering optimized lengths for fastening multi-ply trusses and beams.

Simpson Strong-Tie SDW22300MB Includes

  • (250) 2-15/16 in. Strong-Tie SDW22300MB Truss-Ply Screws

Simpson Strong-Tie SDW22300MB Features

  • Large washer head with nibs for maximum bearing area
  • 6-lobe, T40 drive for positive engagement
  • Low-profile head for reduced interference
  • Higher shear values for wider spacing
  • Bold thread design for superior holding power
  • SawTooth point for fast starts and reduced torque

Simpson Strong-Tie SDW22300MB Applications

  • Truss-ply fastening
  • Joining plated trusses and solid sawn lumber

Simpson Strong-Tie SDW22300MB Specifications

Fastener Type Hand-Drive Screw
Application Fastening Wood-to-Wood
Coating/Material E-Coat Electrocoating
Length 2-15/16 inches
Head Diameter 0.760 inches
Shank Diameter 0.220 inches
Drive Type T40 6-Lobe
Head Type Low Profile Head
Thread Length 1-7/16 inches
Point Type SawTooth Point
Packaging Quantity 250

NOTE: If assembly is less than or equal to 4 9/16 inches thick, use the SDW22438. If assembly is less than or equal to 6 3/16 inches thick, use the SDW22600.
