Simpson Anchors  |  SKU: SDW22438-R50  |  Barcode: 707392912804

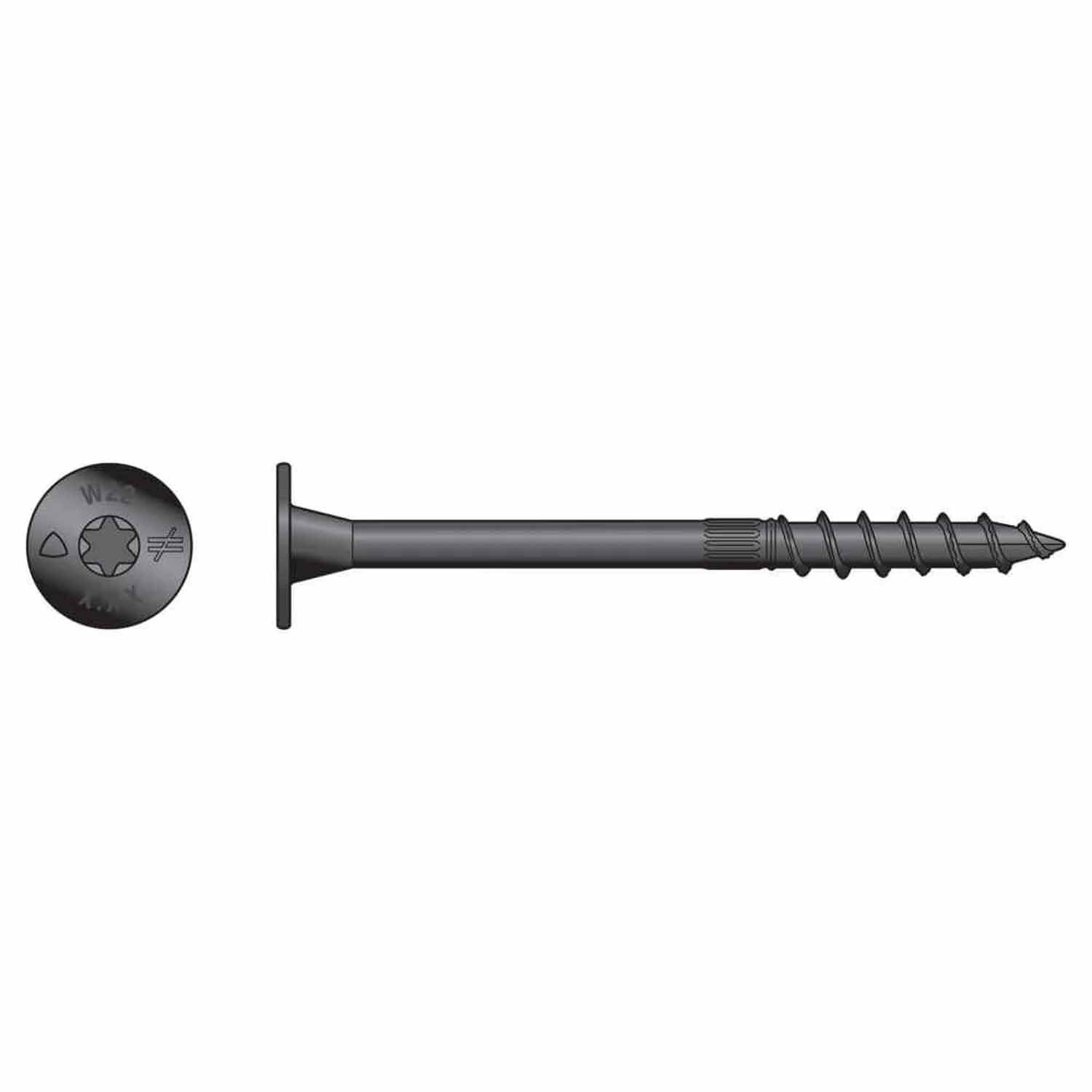

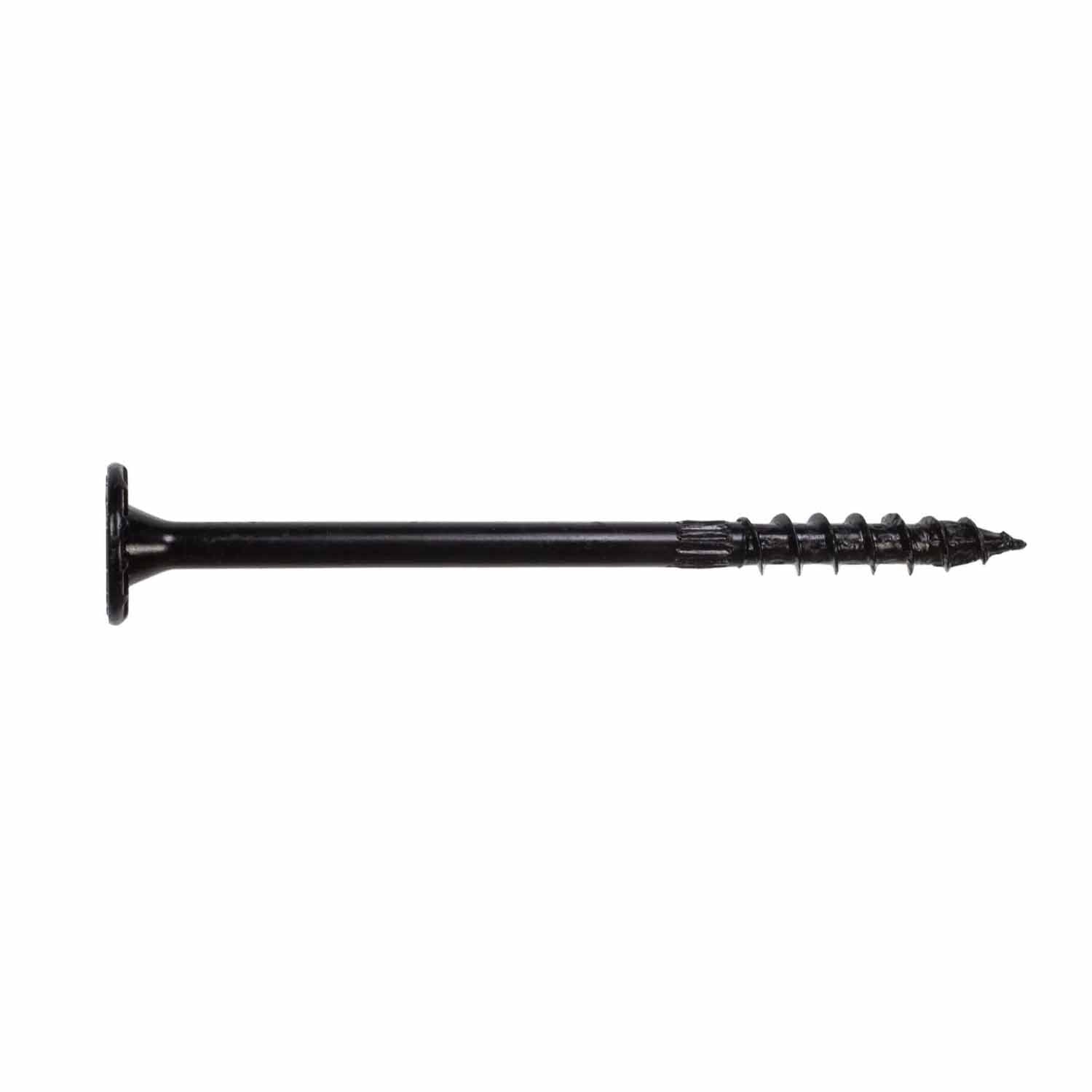

Simpson Strong-Tie SDW22438-R50 Strong-Drive (.220 in. x 4-3/8") T40 E-coat Truss-Ply Screw, Low Profile Head (50 Pack)

$51.01

Description

Simpson Strong-Tie SDW22438-R50 Description

The Strong-Tie SDW Truss-Ply screws are designed for joining plated trusses and solid sawn lumber, offering easy installation without pre-drilling.

Simpson Strong-Tie SDW22438-R50 Includes

  • (50) 4-3/8 in. Strong-Drive SDW Truss-Ply Screws

Simpson Strong-Tie SDW22438-R50 Features

  • Large washer head with nibs for maximum bearing area
  • 6-lobe, T40 drive for positive engagement
  • Low-profile head for reduced interference
  • Higher shear values for wider spacing
  • Bold thread design for superior holding power
  • SawTooth point for fast starts and reduced torque

Simpson Strong-Tie SDW22438-R50 Applications

  • Truss-ply fastening for multi-ply trusses and beams

Simpson Strong-Tie SDW22438-R50 Specifications

Fastener Type Hand-Drive Screw
Application Fastening Wood-to-Wood
Coating/Material E-coat Electrocoating
Length (in.) 4 3/8
Head Diameter (in.) 0.76
Shank Diameter (in.) 0.22
Drive Type T40 6-Lobe
Head Type Low Profile Head
Thread Length (in.) 1 3/8
Point Type SawTooth Point
Packaging Qty. 50

NOTE: If assembly is less than or equal to 4 9/16 inches thick, use the SDW22438.
