Simpson Anchors  |  SKU: SDW22458MB  |  Barcode: 707392706502

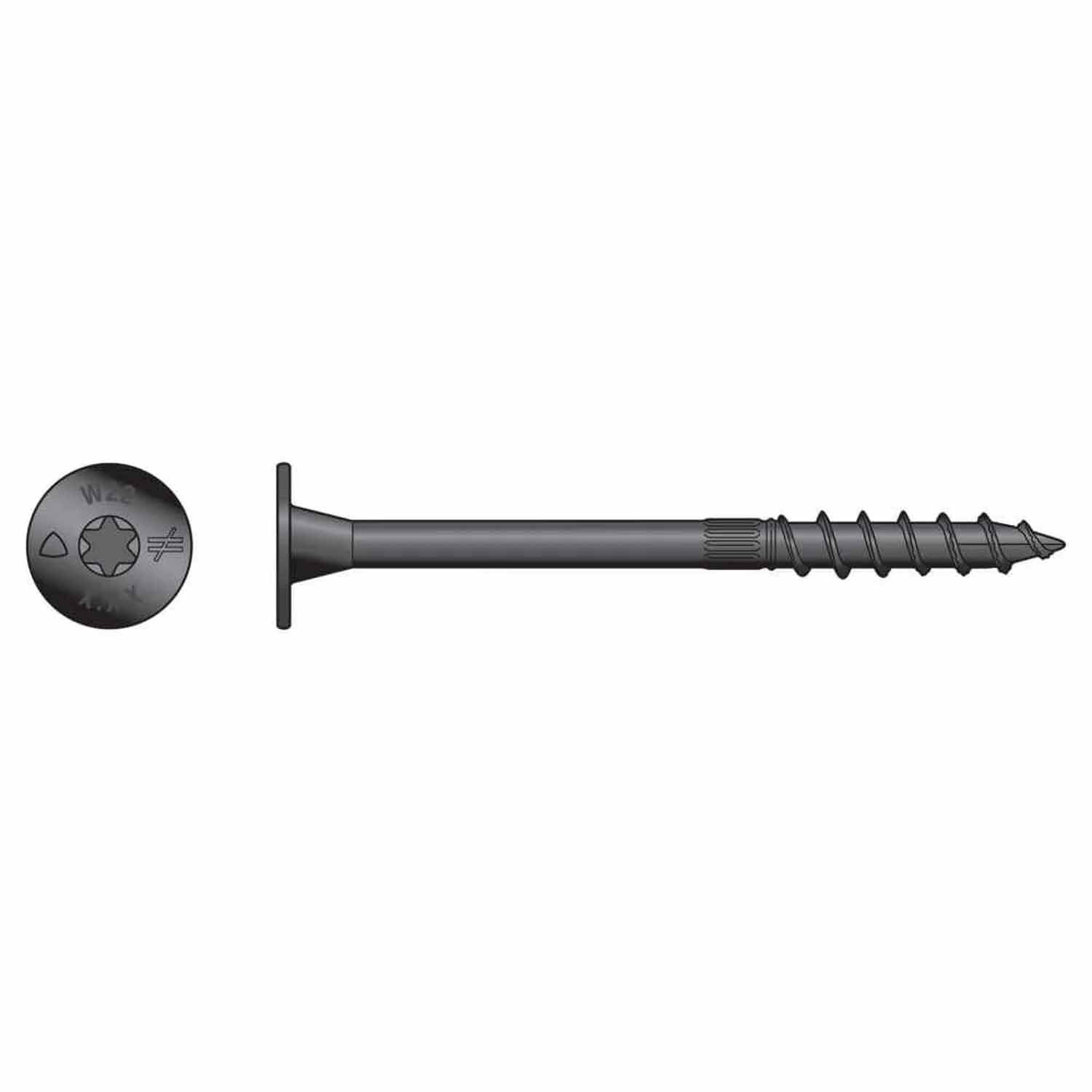

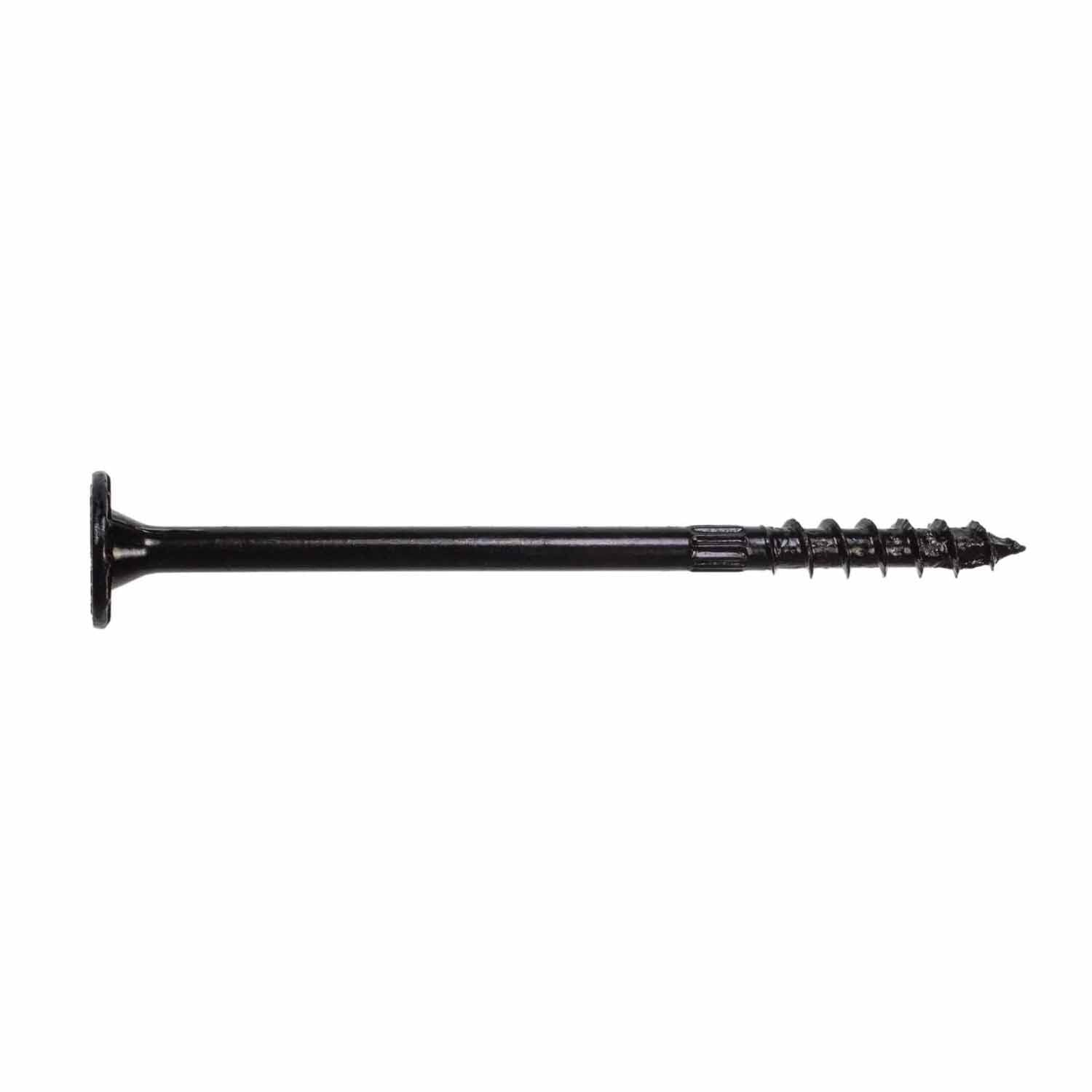

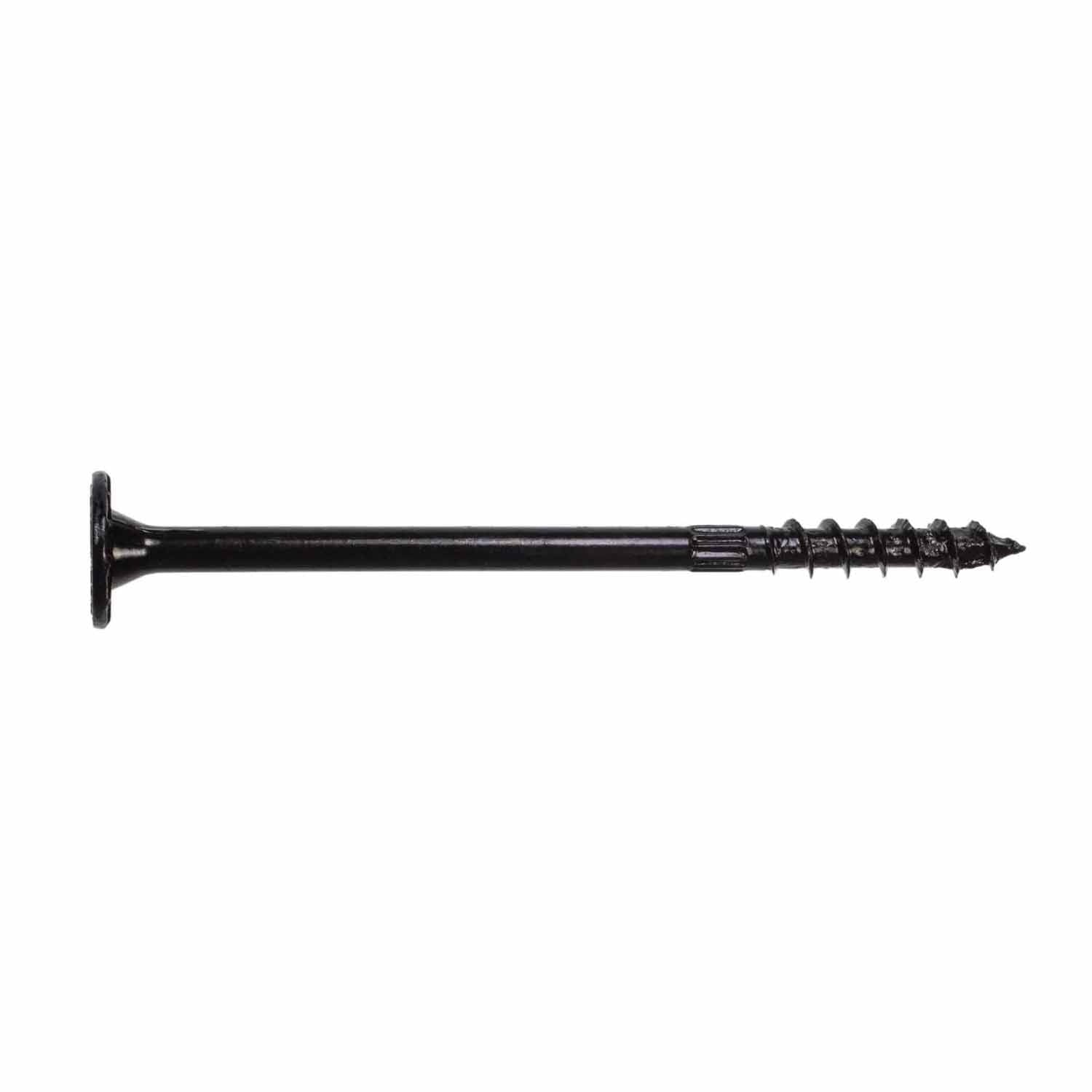

Simpson Strong-Tie SDW22458MB Strong-Drive (.220 in. x 4-3/8") T40 E-coat Truss-Ply Screw, Low Profile Head (200 Pack)

$140.55

Description

Simpson Strong-Tie SDW22458MB Description

The Strong-Drive SDW Truss-Ply Screw is designed for joining plated trusses and solid sawn lumber, offering easy installation without pre-drilling.

Simpson Strong-Tie SDW22458MB Includes

  • (200) 4-5/8 in. Strong-Drive SDW Truss-Ply Screws

Simpson Strong-Tie SDW22458MB Features

  • Large washer head with nibs for maximum bearing area
  • 6-lobe, T40 drive for positive engagement
  • Low-profile head for reduced interference
  • Higher shear values for wider spacing
  • Bold thread design for superior holding power
  • SawTooth point for fast starts and reduced torque

Simpson Strong-Tie SDW22458MB Applications

  • Truss-ply fastening for plated trusses and solid sawn lumber

Simpson Strong-Tie SDW22458MB Specifications

Fastener Type Hand-Drive Screw
Application Fastening Wood-to-Wood
Coating/Material E-Coat Electrocoating
Length 4-5/8 in.
Head Diameter 0.760 in.
Shank Diameter 0.220 in.
Drive Type T40 6-Lobe
Head Type Low Profile Head
Thread Length 1-3/8 in.
Point Type SawTooth Point
Packaging Quantity 200

NOTE: If assembly is less than or equal to 4 9/16" thick, use the SDW22438. If assembly is less than or equal to 6 3/16" thick, use the SDW22600.
