Simpson Anchors | SKU:
SDW22600-R50

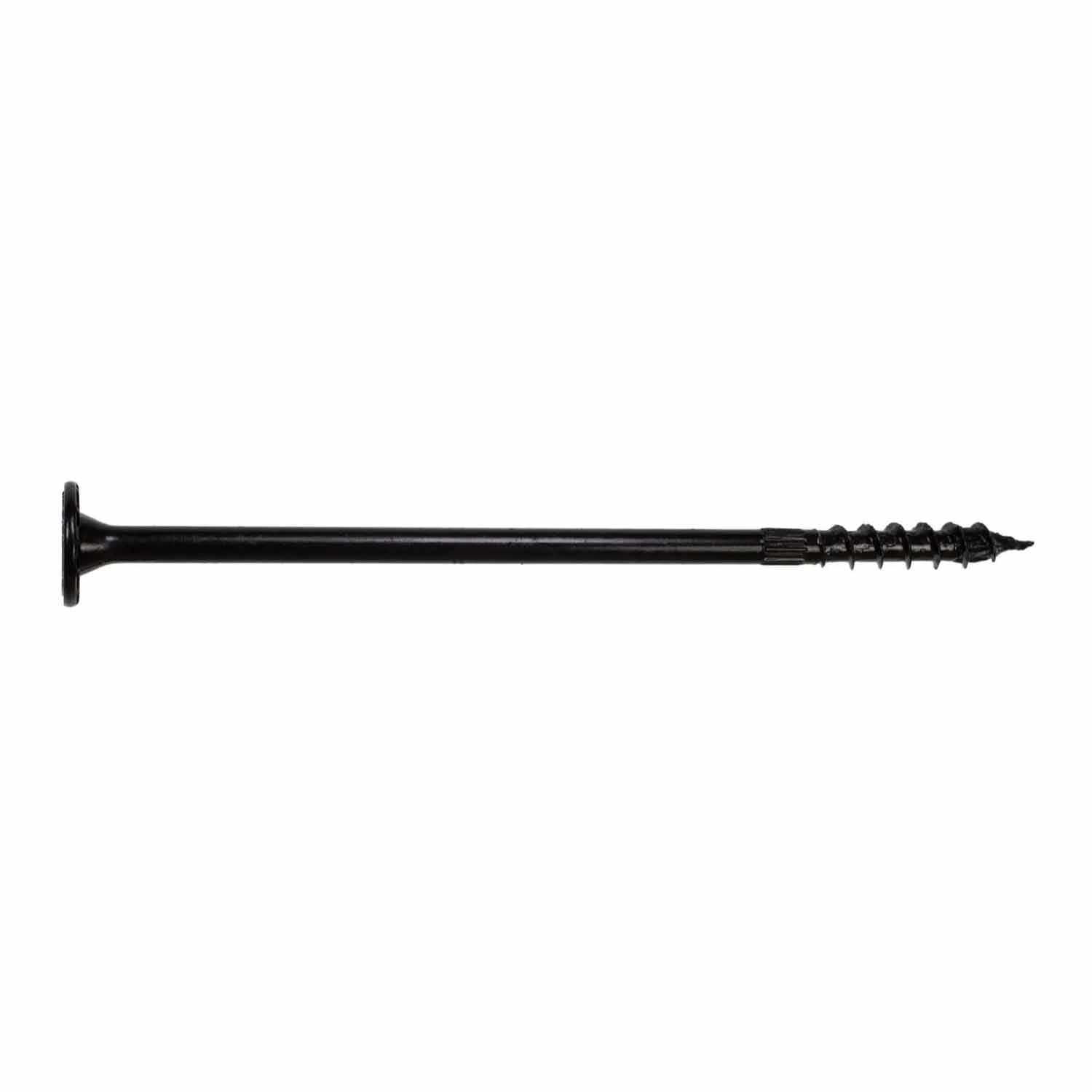

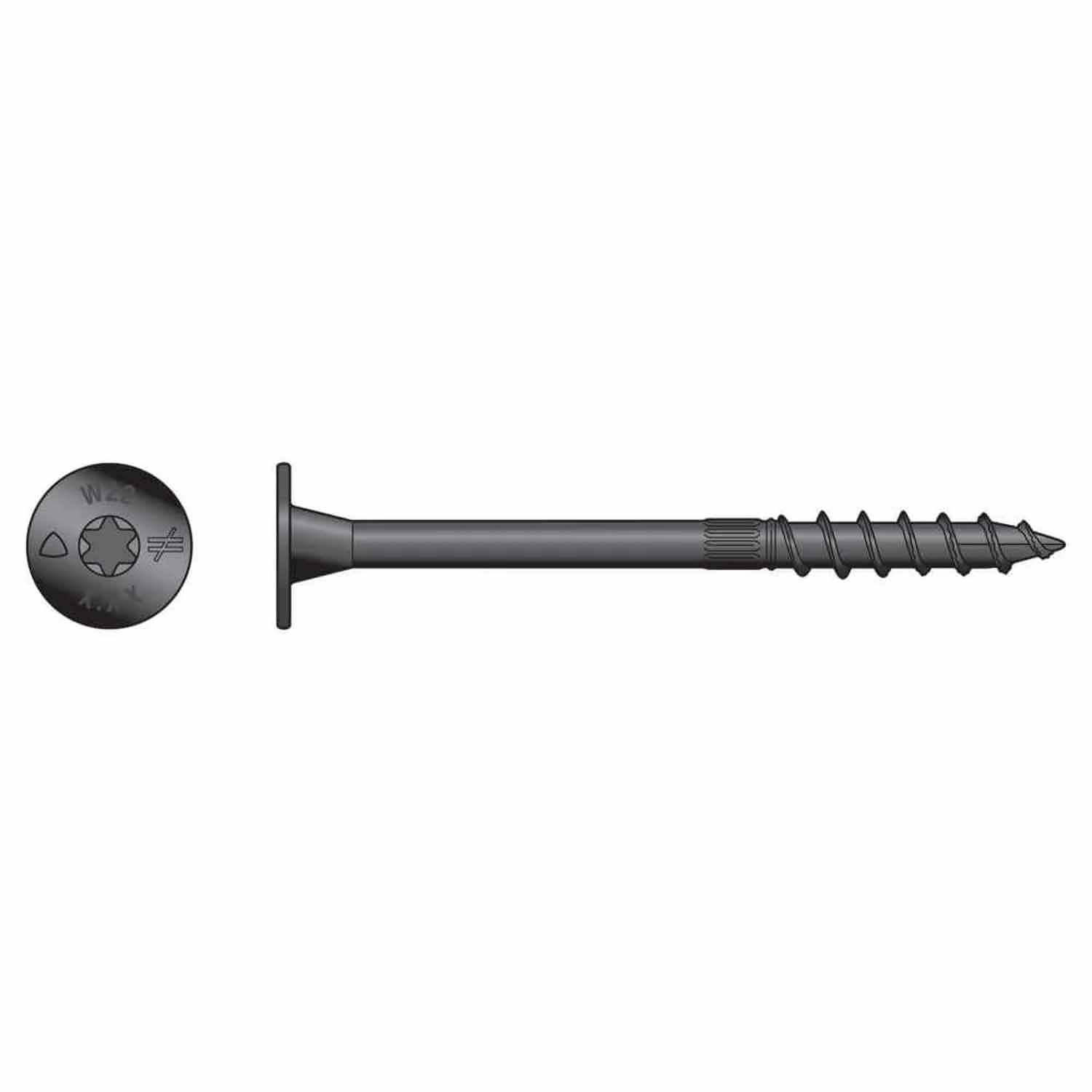

Simpson Strong-Tie SDW22600-R50 Strong-Drive (.220 in. x 6") T40 E-coat Truss-Ply Screw, Low Profile Head (50 Pack)
$55.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDW22600-R50 Description
The Strong-Drive SDW Truss-Ply Structural Wood Screw is designed for joining plated trusses and solid sawn lumber, featuring a low-profile head and E-Coat finish for durability.
Simpson Strong-Tie SDW22600-R50 Includes
- (50) 6 in. Strong-Drive SDW Truss-Ply Structural Wood Screws
Simpson Strong-Tie SDW22600-R50 Features
- Large washer head with nibs for maximum bearing area
- 6-lobe, T40 drive for positive engagement
- Low-profile head for reduced interference
- Higher shear values for wider spacing
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced torque
Simpson Strong-Tie SDW22600-R50 Applications
- Truss-ply fastening
- Joining plated trusses and solid sawn lumber
Simpson Strong-Tie SDW22600-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Coating/Material | E-Coat Electrocoating |
| Length | 6 in. |
| Head Diameter | 0.760 in. |
| Shank Diameter | 0.220 in. |
| Drive Type | T40 6-Lobe |
| Head Type | Low Profile Head |
| Thread Length | 1 3/8 in. |
| Point Type | SawTooth Point |
| Packaging Quantity | 50 |
NOTE: If assembly is less than or equal to 6 3/16 inches thick, use the SDW22600.
