Simpson Anchors | SKU:
SDW22634-R50

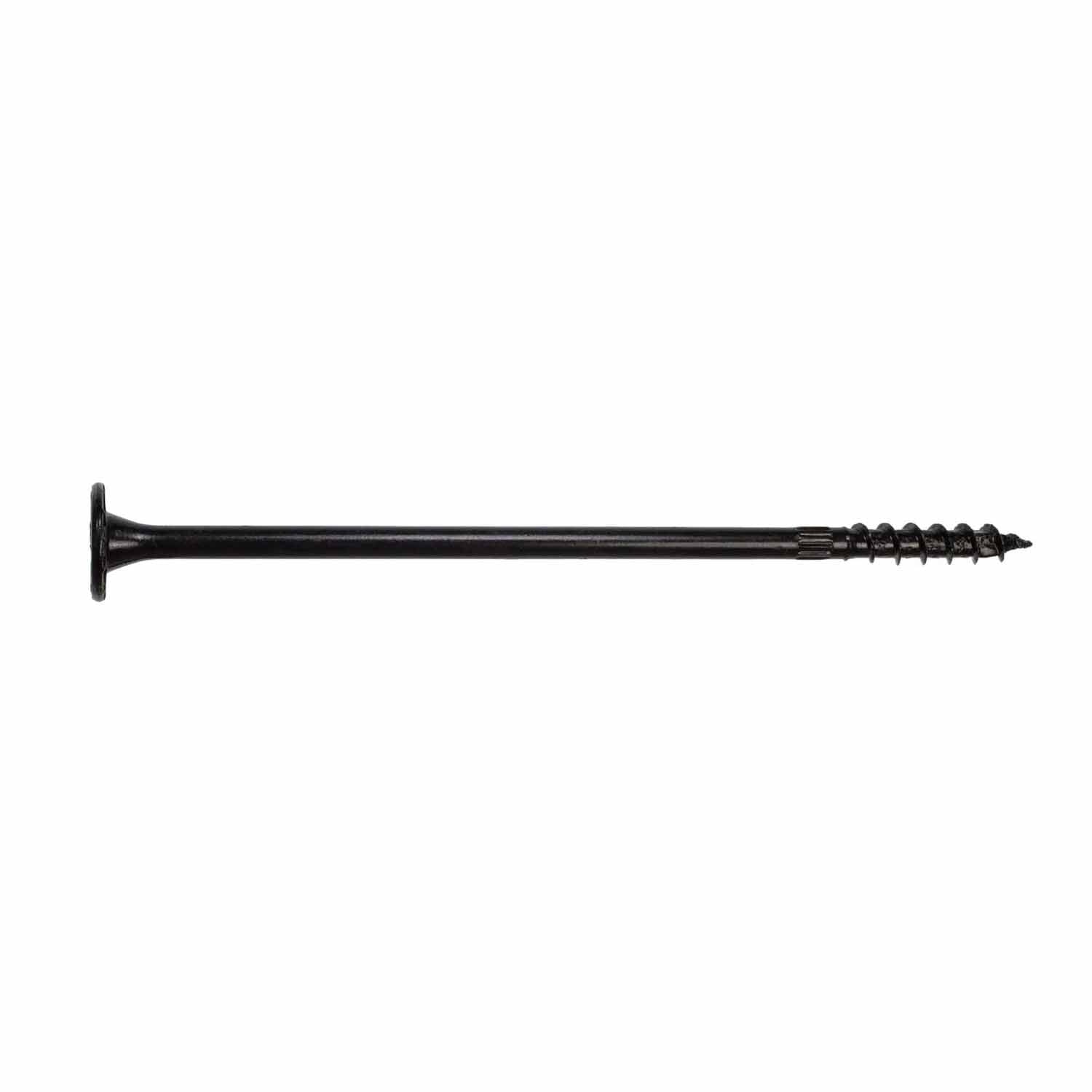

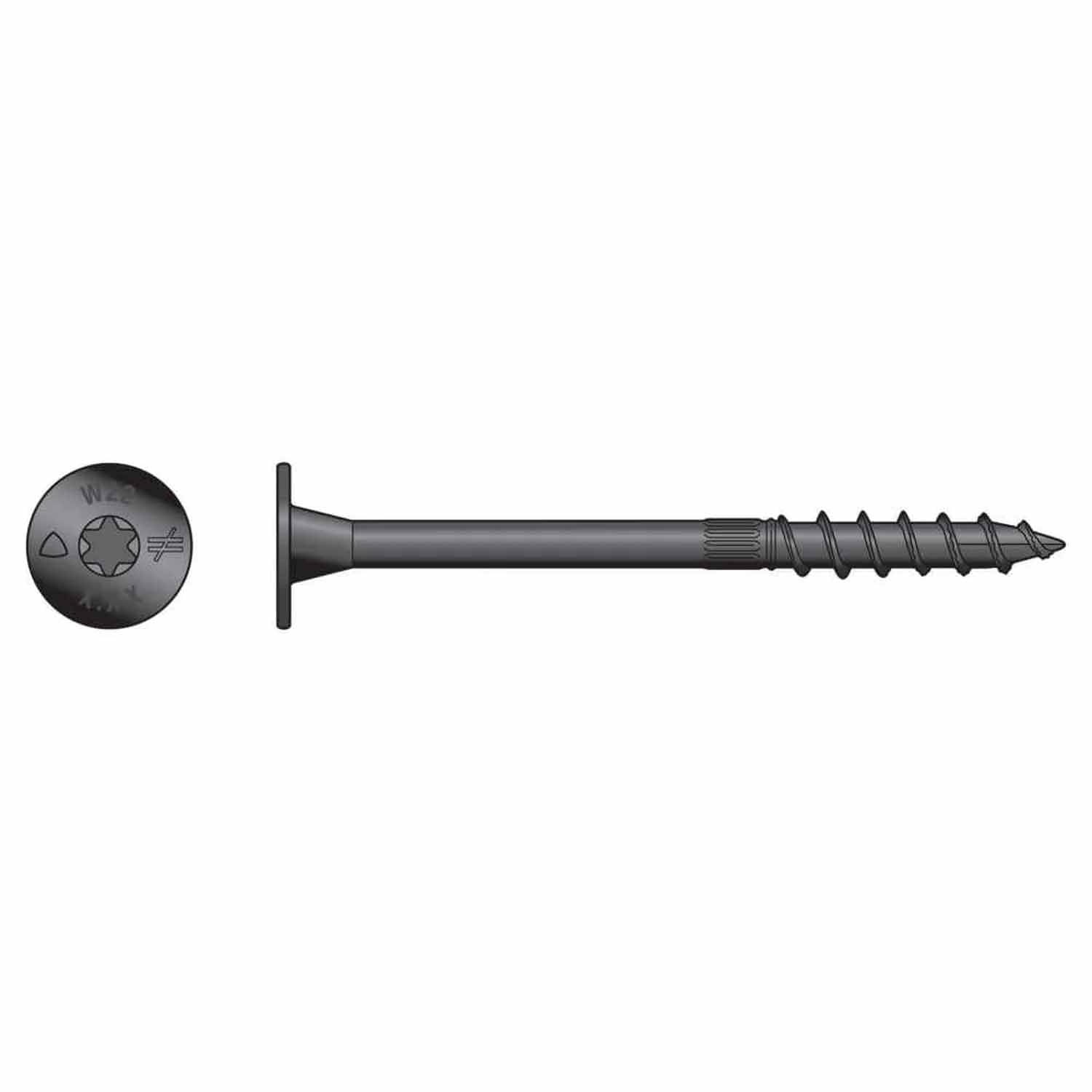

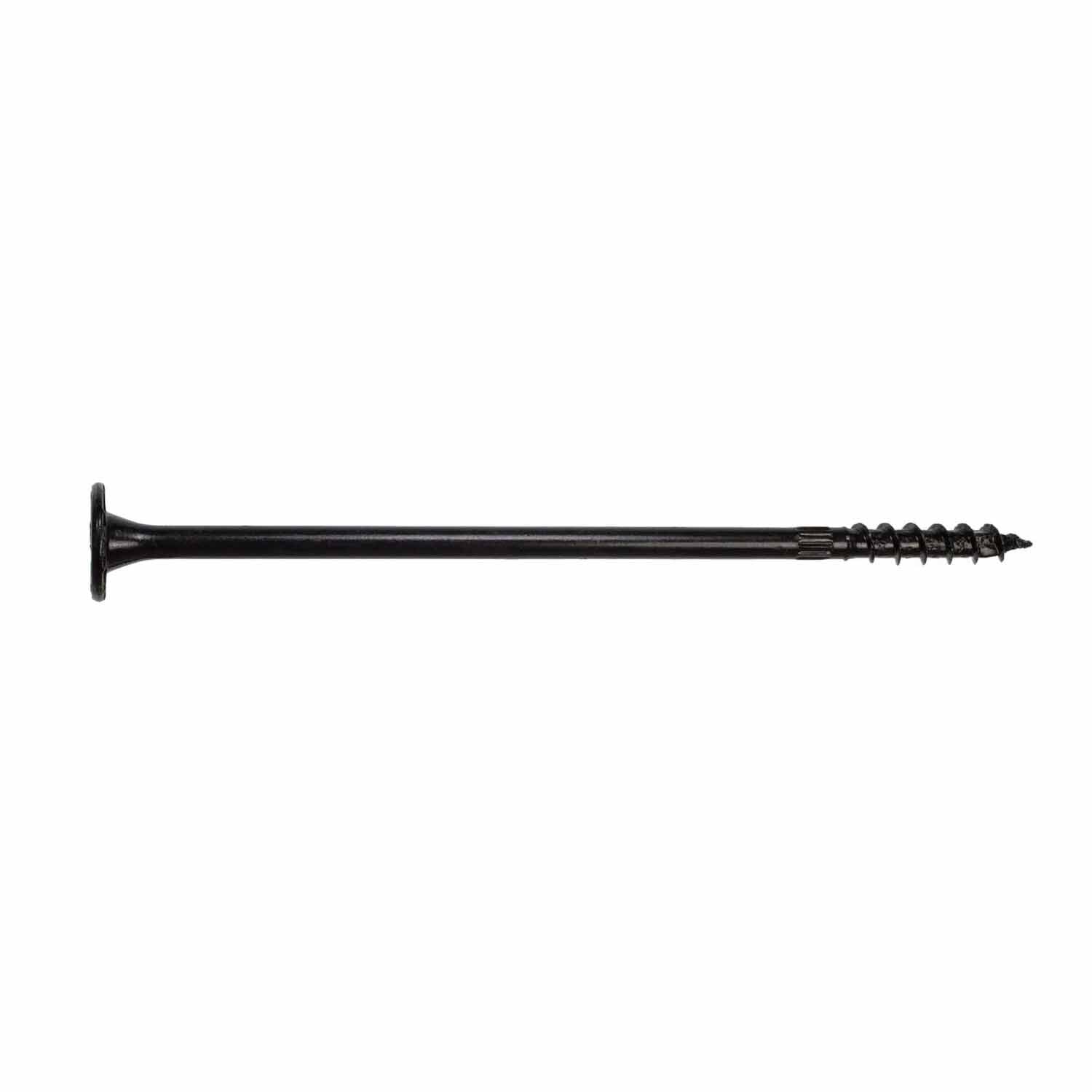

Simpson Strong-Tie SDW22634-R50 Strong-Drive (.220 in. x 6-3/4") T40 E-coat SDW EWP-PLY Screw, Low Profile Head (50 Pack)
$64.61
Unit price
/
Unavailable
Description
Description
Simpson SDW22634-R50 Description
The Simpson SDW22634-R50 Structural Wood Screw is designed for fastening multi-ply wood members, engineered lumber products, and solid sawn lumber. It features a low-profile head for minimal interference and optimized lengths for effective penetration.
Simpson SDW22634-R50 Includes
- (50) .220 in. x 6-3/4 in. Structural Wood Screw
Simpson SDW22634-R50 Features
- Large washer head with nibs for maximum bearing area
- 6-lobe T40 drive for positive engagement
- Low-profile head for reduced interference
- Optimal screw lengths for maximum penetration
- Specific thread lengths to avoid jacking
- High shear values for wide spacing
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced torque
- Includes driver bits in retail and bulk packs
Simpson SDW22634-R50 Applications
- Fastening multi-ply wood members
- Engineered lumber products
- Solid sawn lumber
Simpson SDW22634-R50 Installation Overview
- Verify dimensions and alignment of wood members.
- Position the screw at the desired location.
- Drive the screw using a T40 6-lobe driver bit.
- Ensure the screw is fully seated and secure.
Simpson SDW22634-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Coating/Material | E-coat Electrocoating |
| Length | 6-3/4 in. |
| Head Diameter | 0.760 in. |
| Shank Diameter | 0.220 in. |
| Drive Type | T40 6-Lobe |
| Head Type | Low Profile Head |
| Thread Length | 1-1/2 in. |
| Point Type | SawTooth Point |
| Packaging Quantity | 50 |
NOTE: Ensure screws are installed with the correct specifications to achieve optimal load values
