Simpson Anchors | SKU:
SDW22638-R50

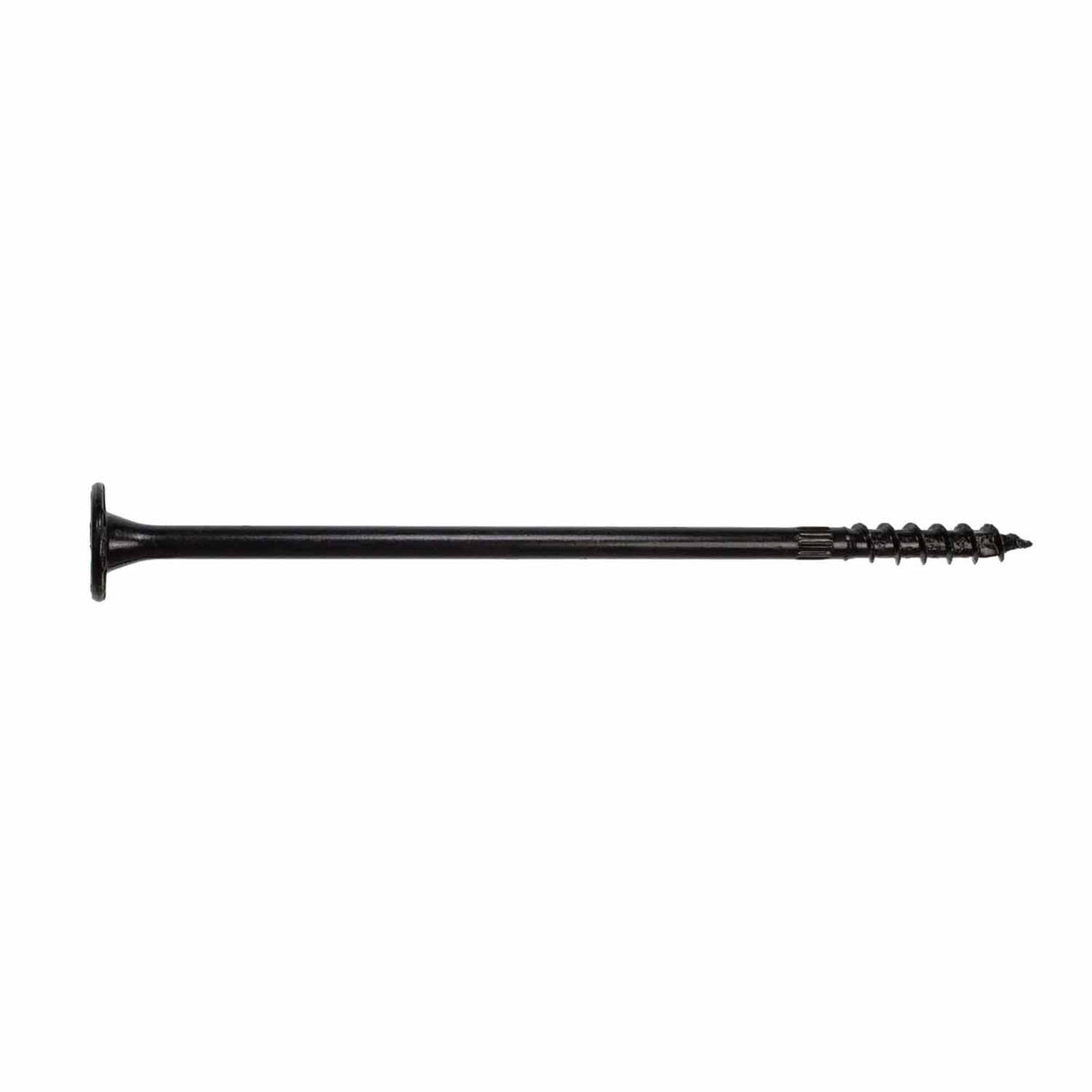

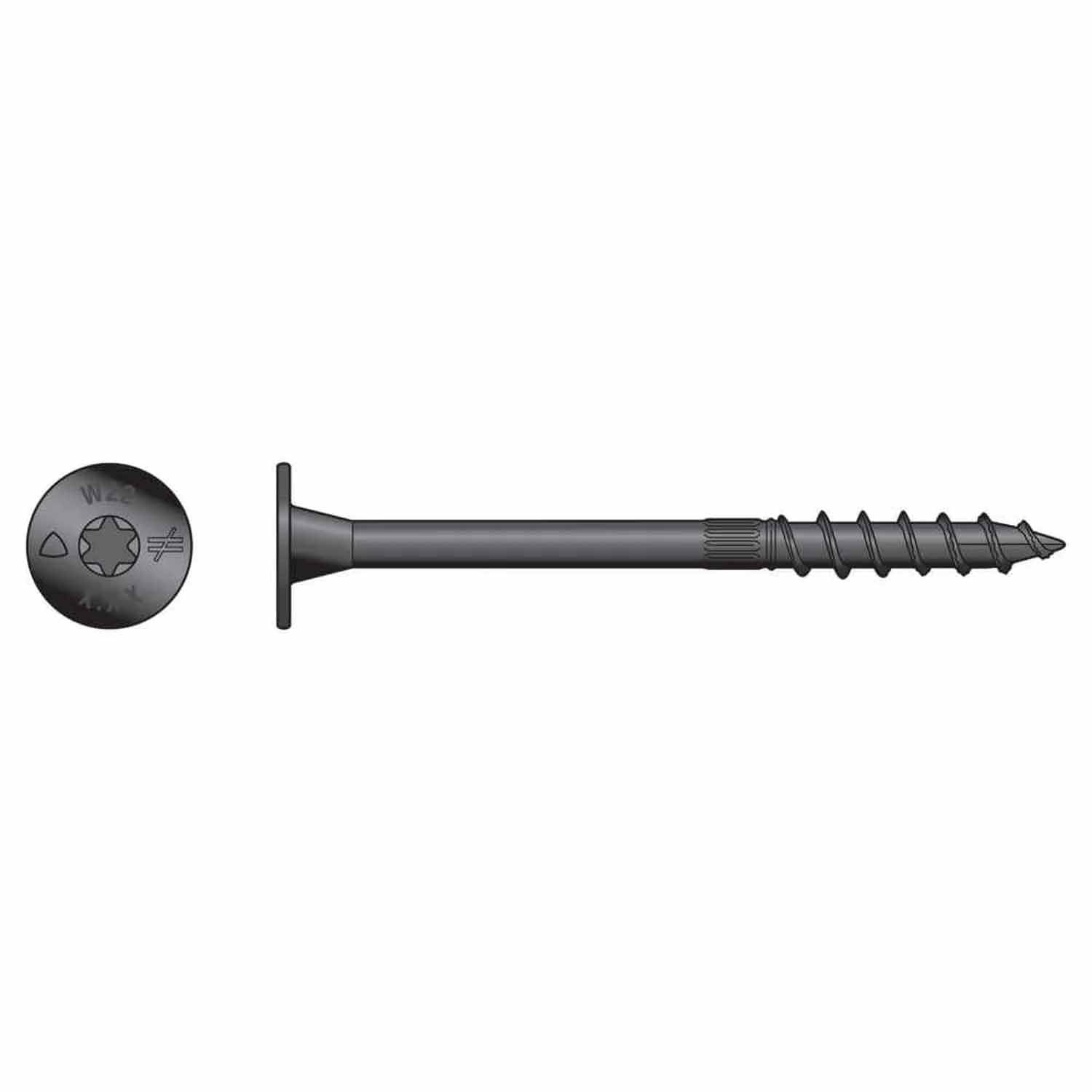

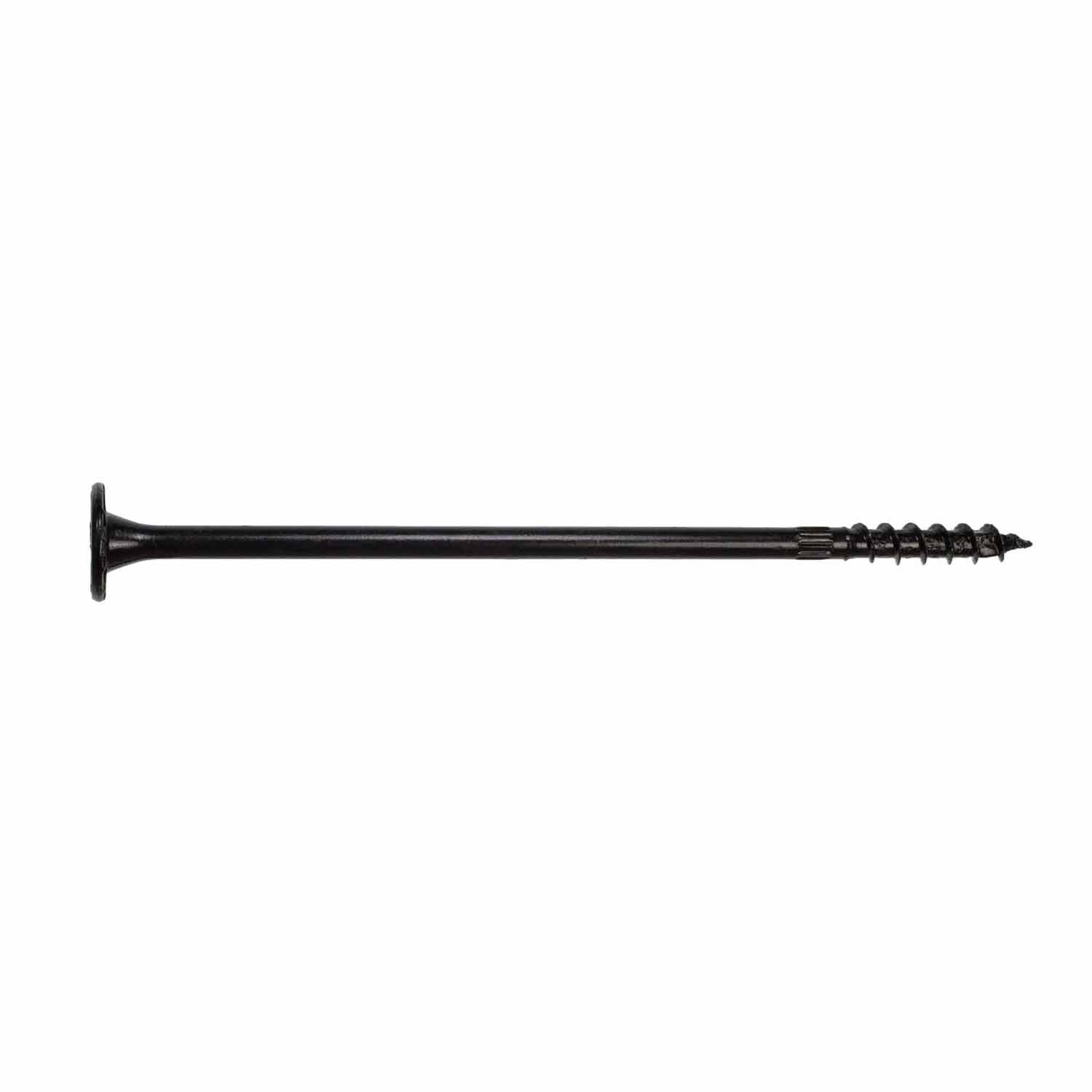

Simpson Strong-Tie SDW22638-R50 Strong-Drive (.220 in. x 6-3/8") T40 E-coat Truss-Ply Screw, Low Profile Head (50 Pack)
$64.05
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDW22638-R50 Description
The Strong-Drive SDW Truss-Ply Screw is designed for joining plated trusses and solid sawn lumber, featuring a low-profile head and optimized lengths for multi-ply trusses.
Simpson Strong-Tie SDW22638-R50 Includes
- (50) Strong-Drive SDW Truss-Ply Screw
Simpson Strong-Tie SDW22638-R50 Features
- Large washer head with nibs for maximum bearing area
- 6-lobe, T40 drive for positive engagement
- Low-profile head for reduced interference
- Higher shear values for wider spacing
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced torque
Simpson Strong-Tie SDW22638-R50 Applications
- Truss-ply fastening for multi-ply trusses and beams
Simpson Strong-Tie SDW22638-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Coating/Material | E-coat Electrocoating |
| Length (in.) | 6 3/8 |
| Head Diameter (in.) | 0.76 |
| Shank Diameter (in.) | 0.22 |
| Drive Type | T40 6-Lobe |
| Head Type | Low Profile Head |
| Thread Length (in.) | 1 3/8 |
| Point Type | SawTooth Point |
| Packaging Qty. | 50 |
NOTE: If assembly is less than or equal to 6 3/16" thick, use the SDW22600.
