Simpson Anchors  |  SKU: SDW22638  |  Barcode: 707392232506

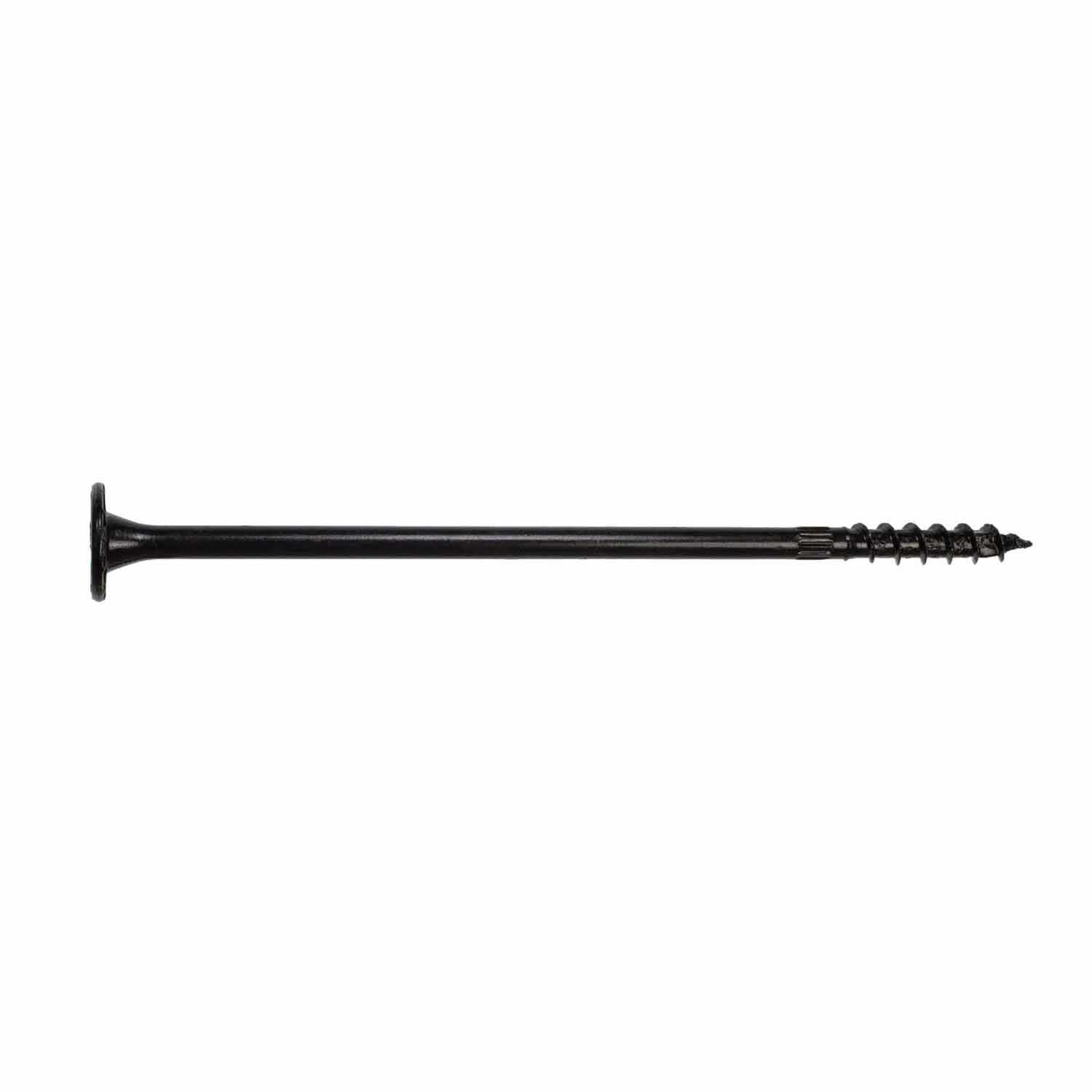

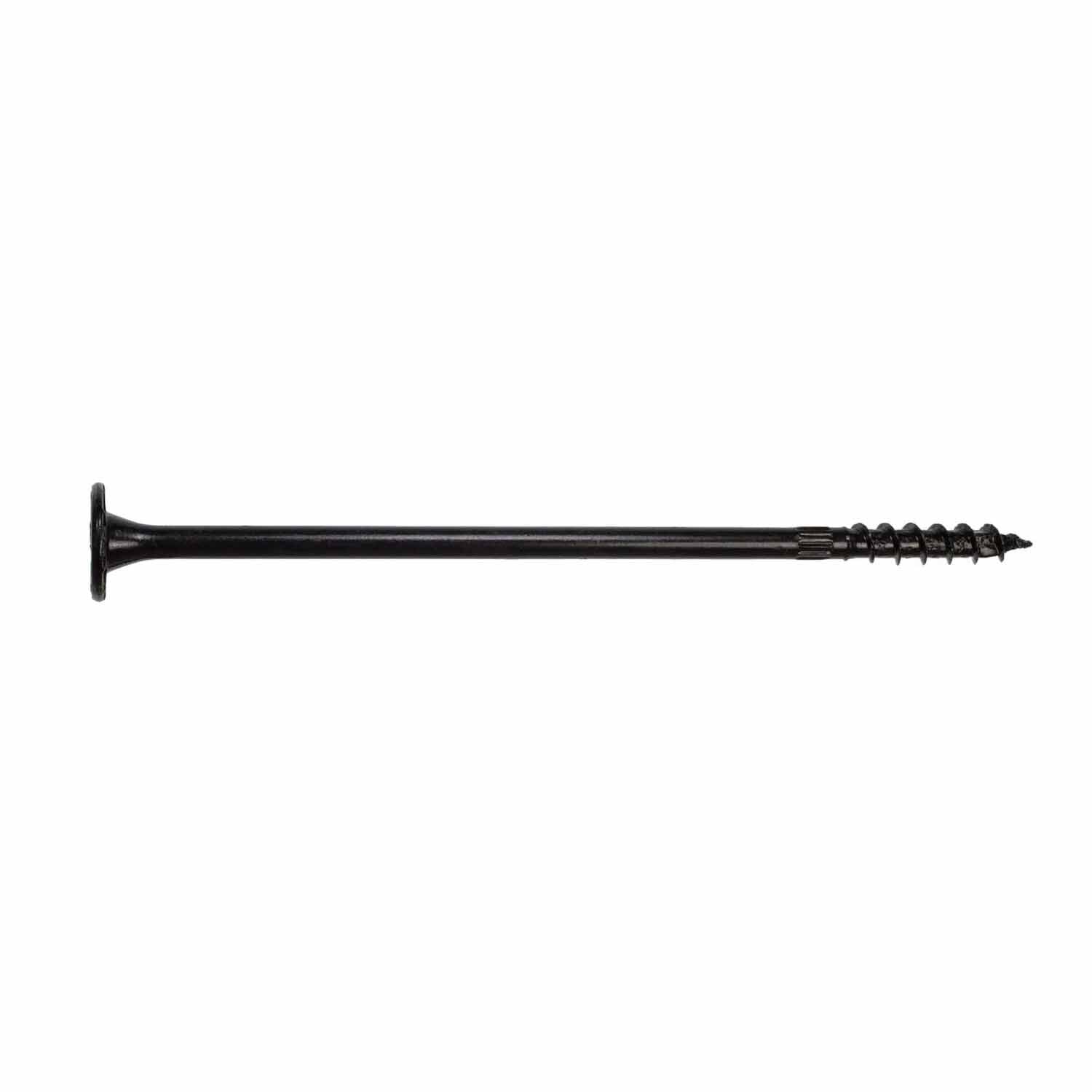

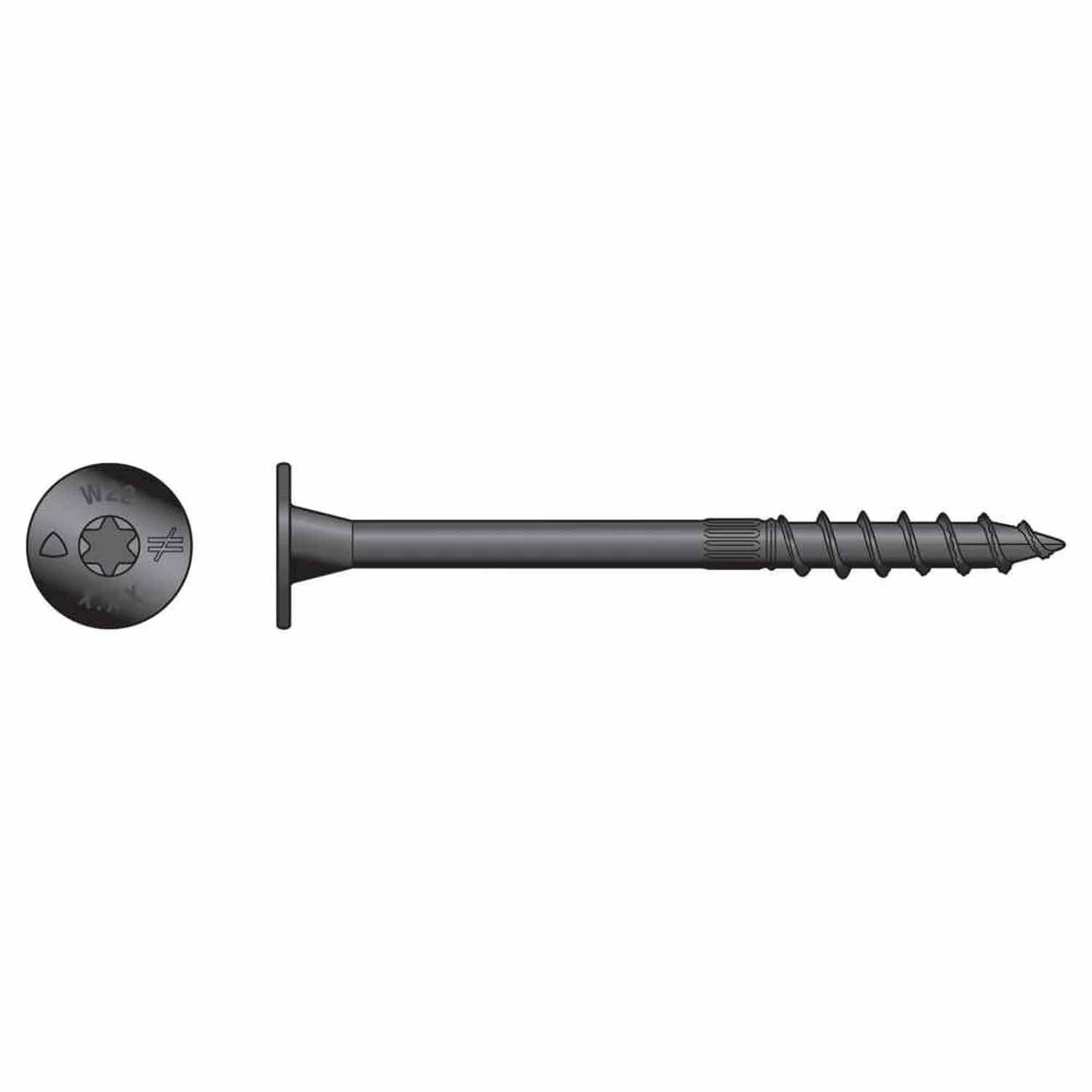

Simpson Strong-Tie SDW22638 Strong-Drive (.220 in. x 6-3/8") T40 E-coat Truss-Ply Screw, Low Profile Head (500 Pack)

Free Shipping
$431.24

Description

Simpson Strong-Tie SDW22638 Description

Strong-Tie SDW Truss-Ply screws are specifically designed for joining plated trusses and solid sawn lumber. The screws install easily with no pre-drilling and are available in optimized lengths for fastening 2-, 3- and 4-ply trusses.

Simpson Strong-Tie SDW22638 Includes

  • (500) 6-3/8" Strong-Tie SDW Truss-Ply Screw

Simpson Strong-Tie SDW22638 Features

  • Large washer head with nibs provides maximum bearing area
  • 6-lobe, T40 drive provides positive engagement
  • Low-profile head results in less interference after installation
  • Higher shear values than competitive products
  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts and reduces installation torque
  • Retail and mini-bulk packs include driver bits

Simpson Strong-Tie SDW22638 Applications

  • Truss-ply fastening
  • Joining plated trusses and solid sawn lumber
  • Fastening multi-ply trusses and beams from one side

Simpson Strong-Tie SDW22638 Specifications

Fastener Type Hand-Drive Screw
Application Fastening Wood-to-Wood
Coating/Material E-coat Electrocoating
Length 6-3/8"
Head Diameter 0.760"
Shank Diameter 0.220"
Drive Type T40 6-Lobe
Head Type Low Profile Head
Thread Length 1-3/8"
Point Type SawTooth Point
Packaging Quantity 500

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
