Simpson Anchors | SKU:
SDWC15450-KT
Simpson Strong-Tie SDWC15450-KT Strong-Drive(.155" x 4-1/2") T30 E-coat SDWC Truss Screw, Cap Head, Black (50 Pack)
$42.16
Unit price
/
Unavailable
Description
Description
Simpson SDWC15450-KT Description

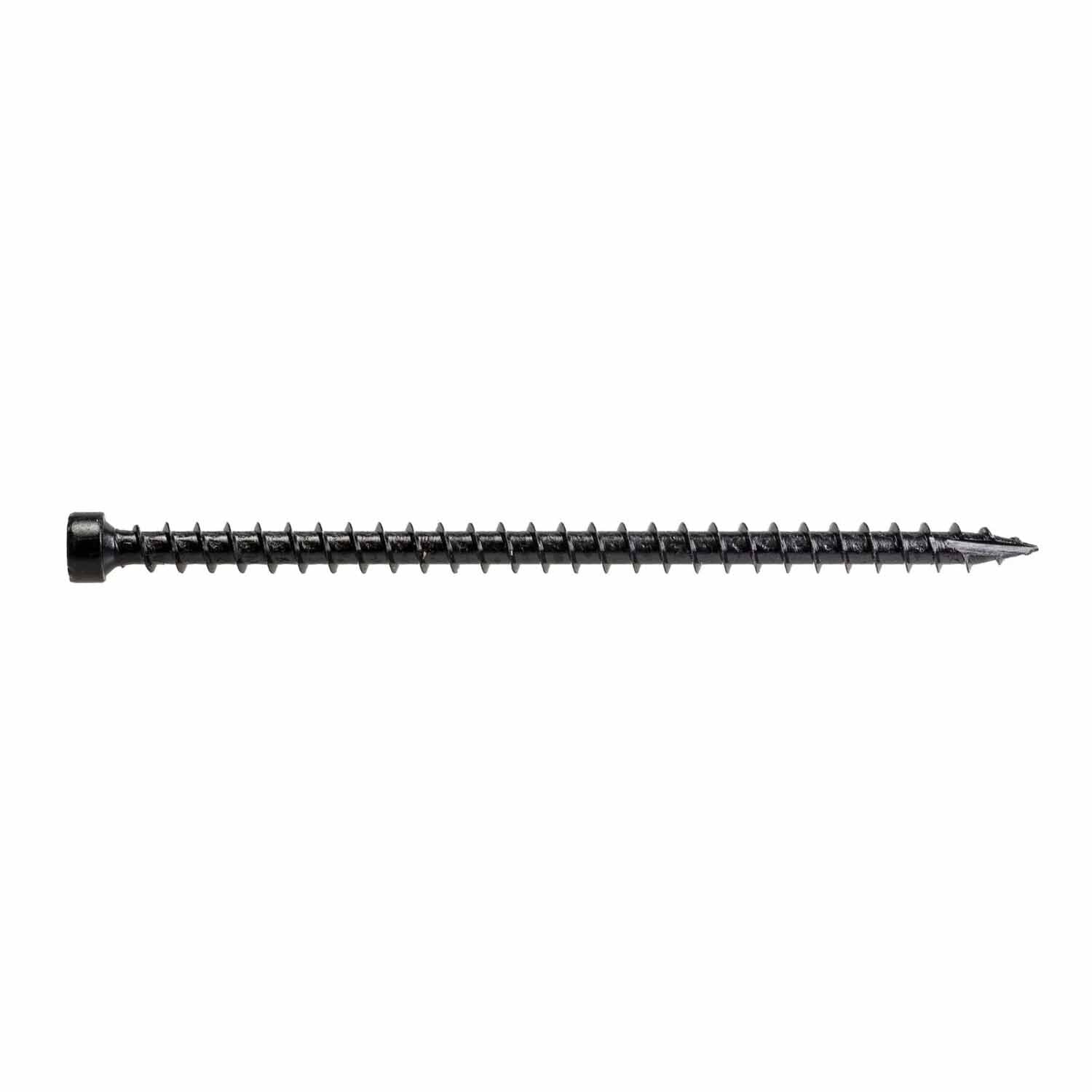

The Simpson Strong-Tie SDWC15450-KT Truss Plate Structural Screw features a fully-threaded shank for secure connections and an E-Coat finish for durability.

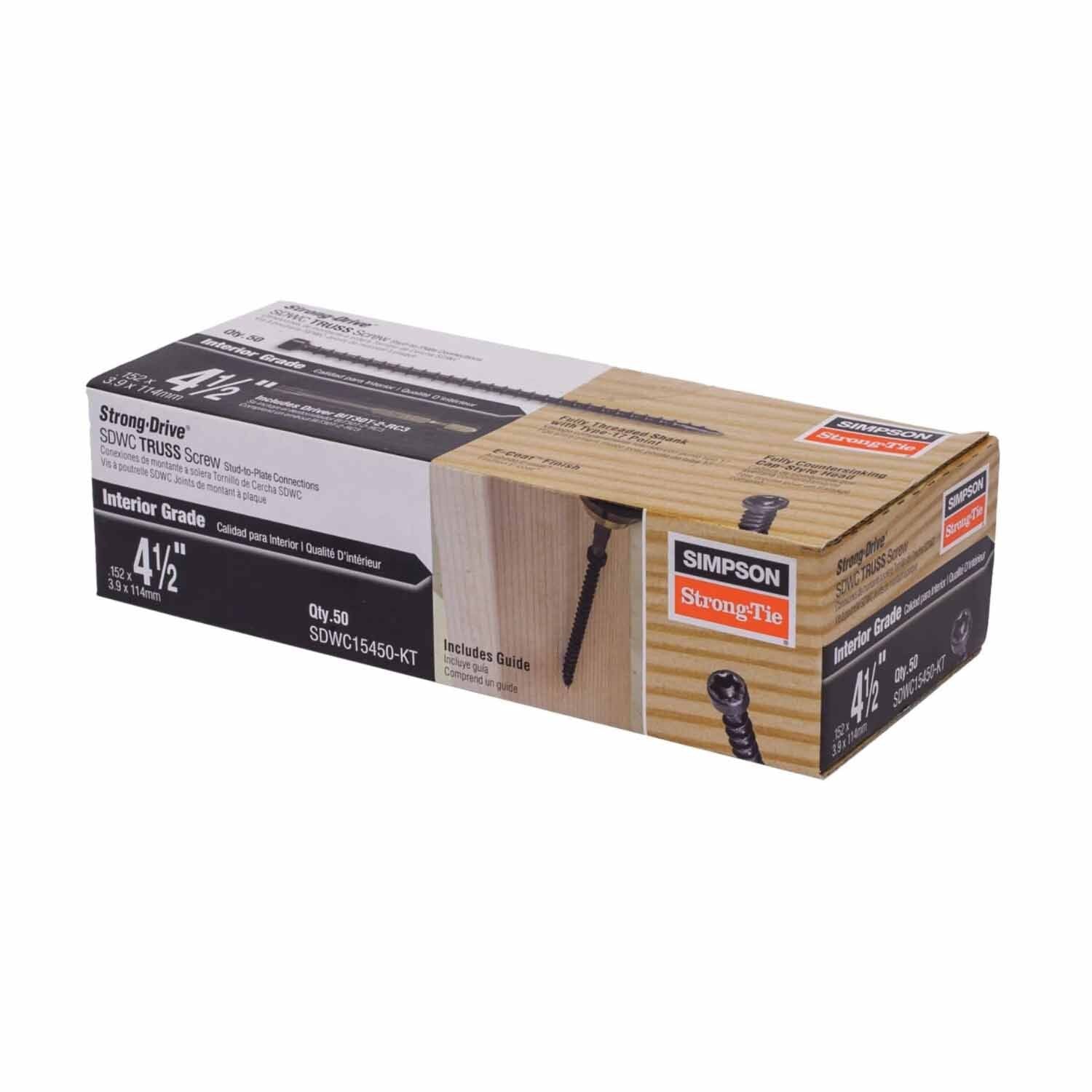

Simpson SDWC15450-KT Includes
- (50) Truss Plate Structural Screw
- (1) Metal Installation Guide Tool
- (1) T30 Driver Bit
Simpson SDWC15450-KT Features
- Fully-threaded shank for secure connections
- Cap-style head countersinks fully
- Wide tolerance on installation angle
- Can be installed from inside the structure
- 6-lobe, T30 driver bit for positive engagement
- Metal installation guide tool included
- Type-17 point for faster starts
- Recognized for use in chemically treated wood
Simpson SDWC15450-KT Applications

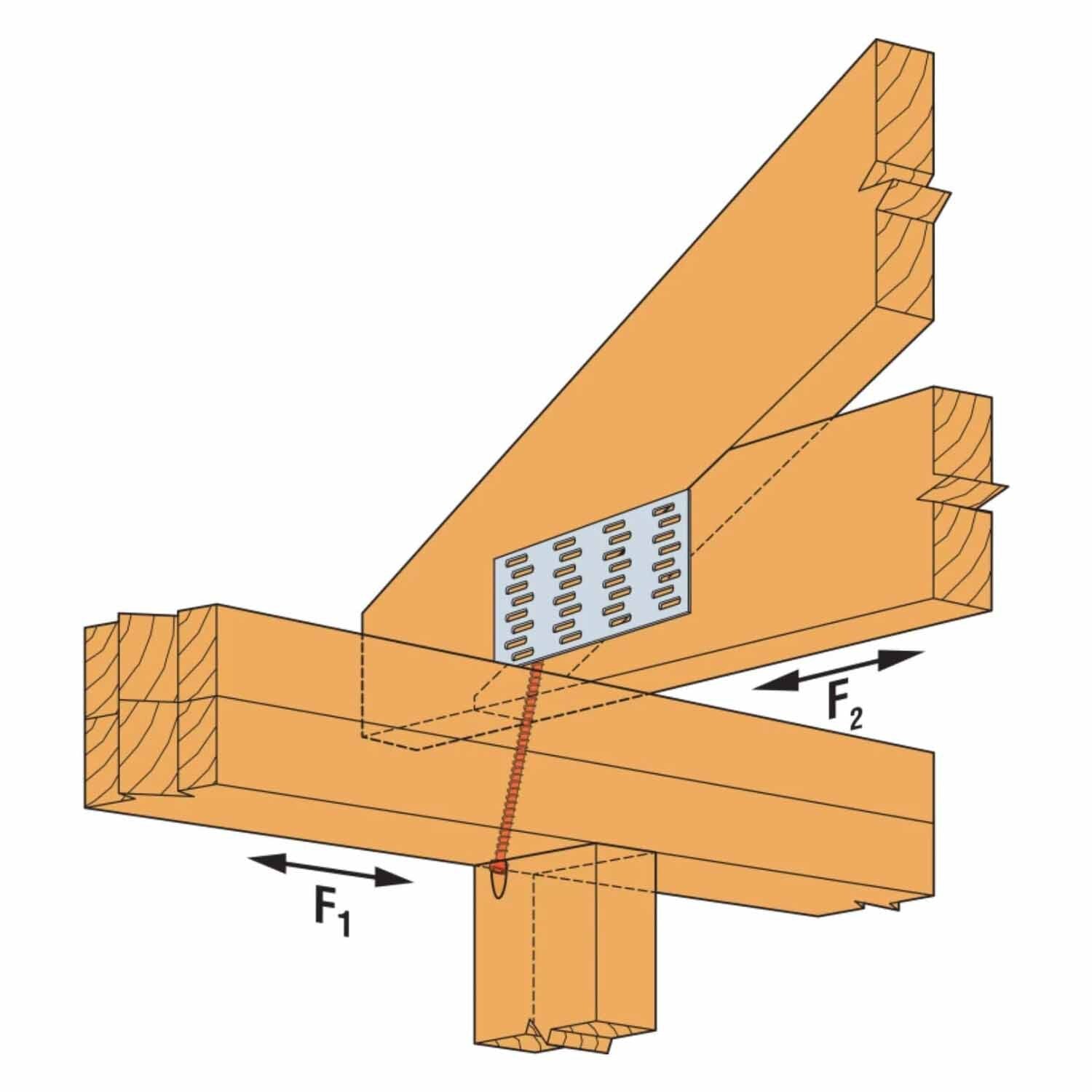

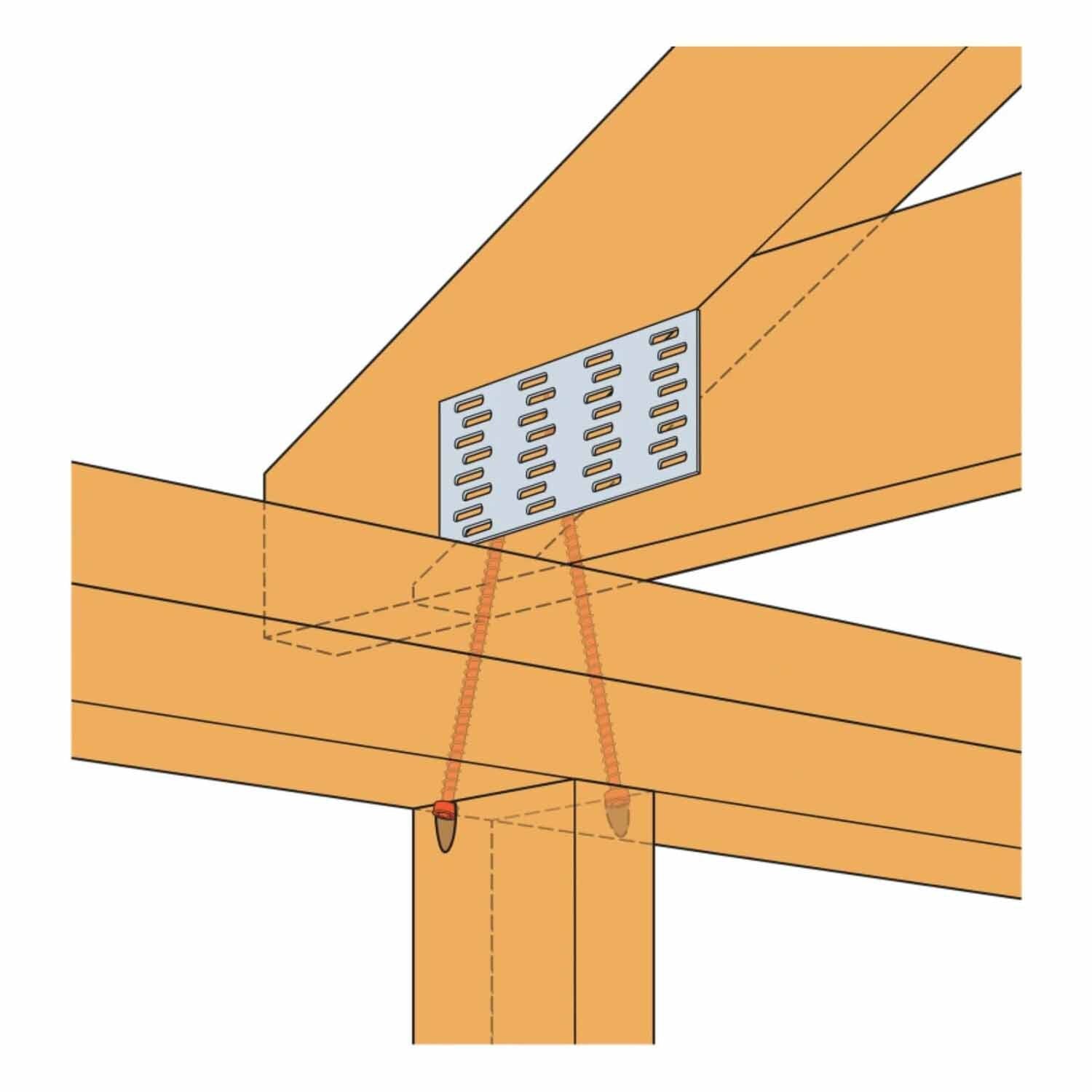

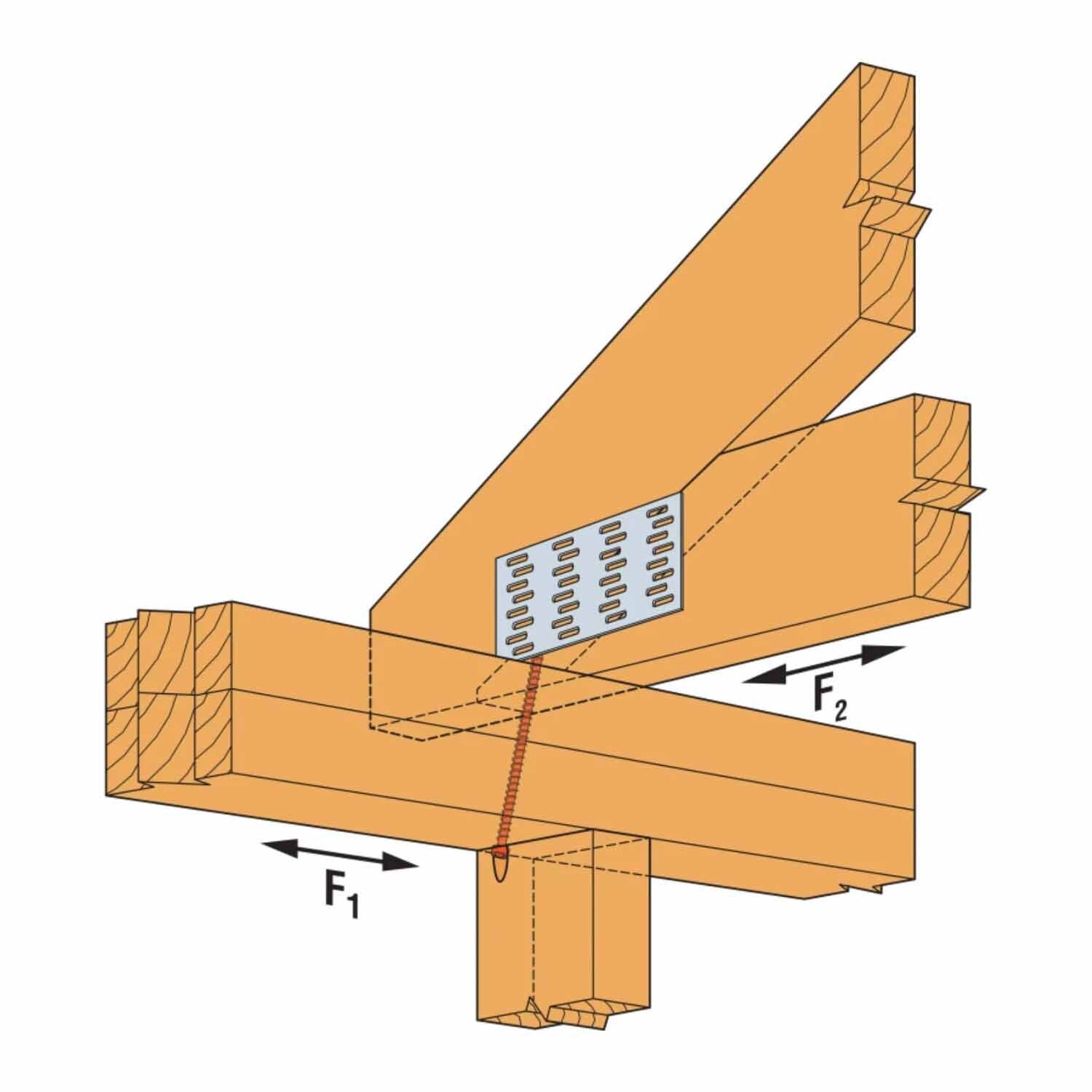

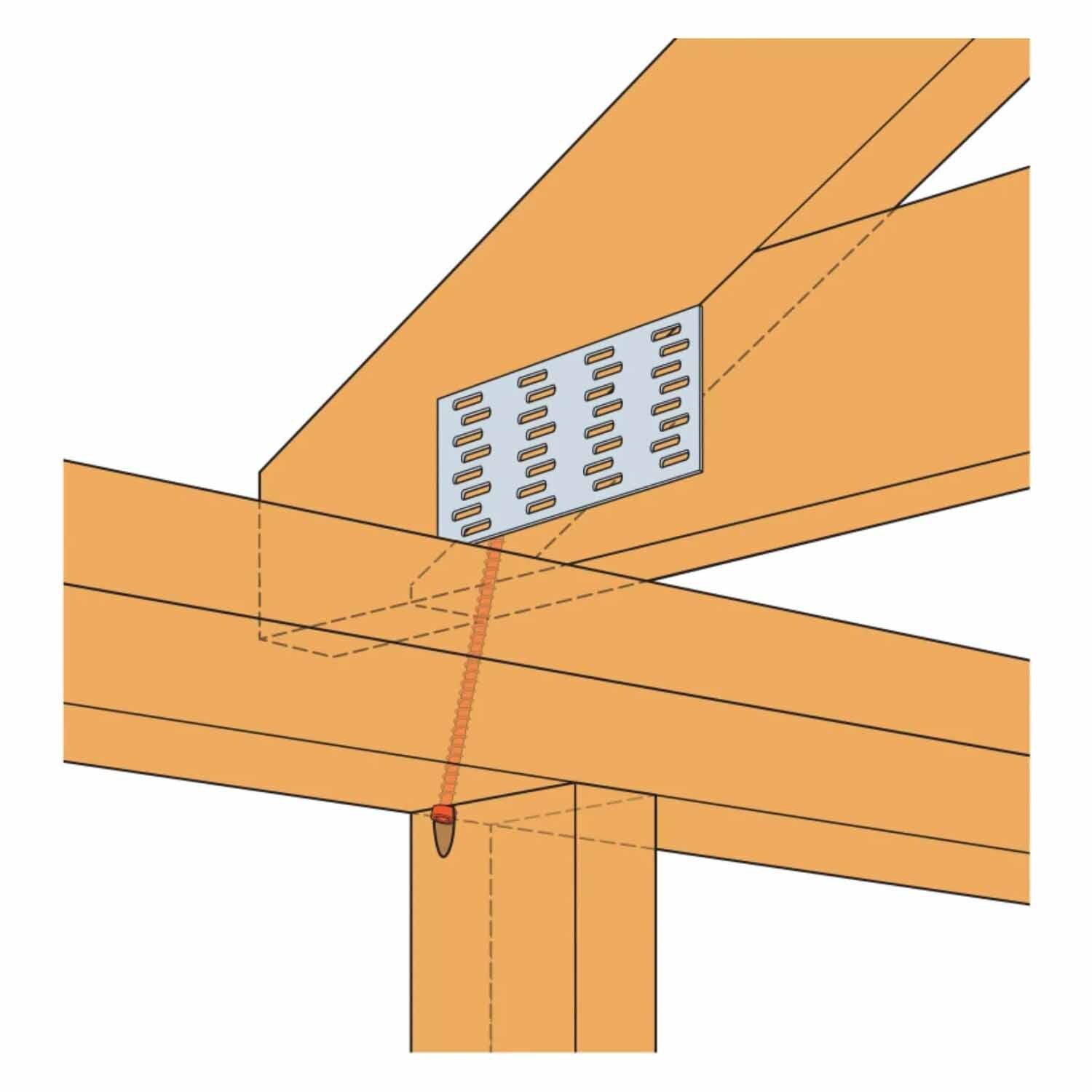

- Roof framing: Secure connections between roof and wall members
- Wall framing: Enhance structural integrity
- High-wind construction: Reliable fastening in demanding conditions
Simpson SDWC15450-KT Installation Overview
- Verify dimensions and alignment of framing members
- Position the screw using the metal installation guide
- Drive the screw using the T30 driver bit
- Ensure the screw is fully embedded and countersunk

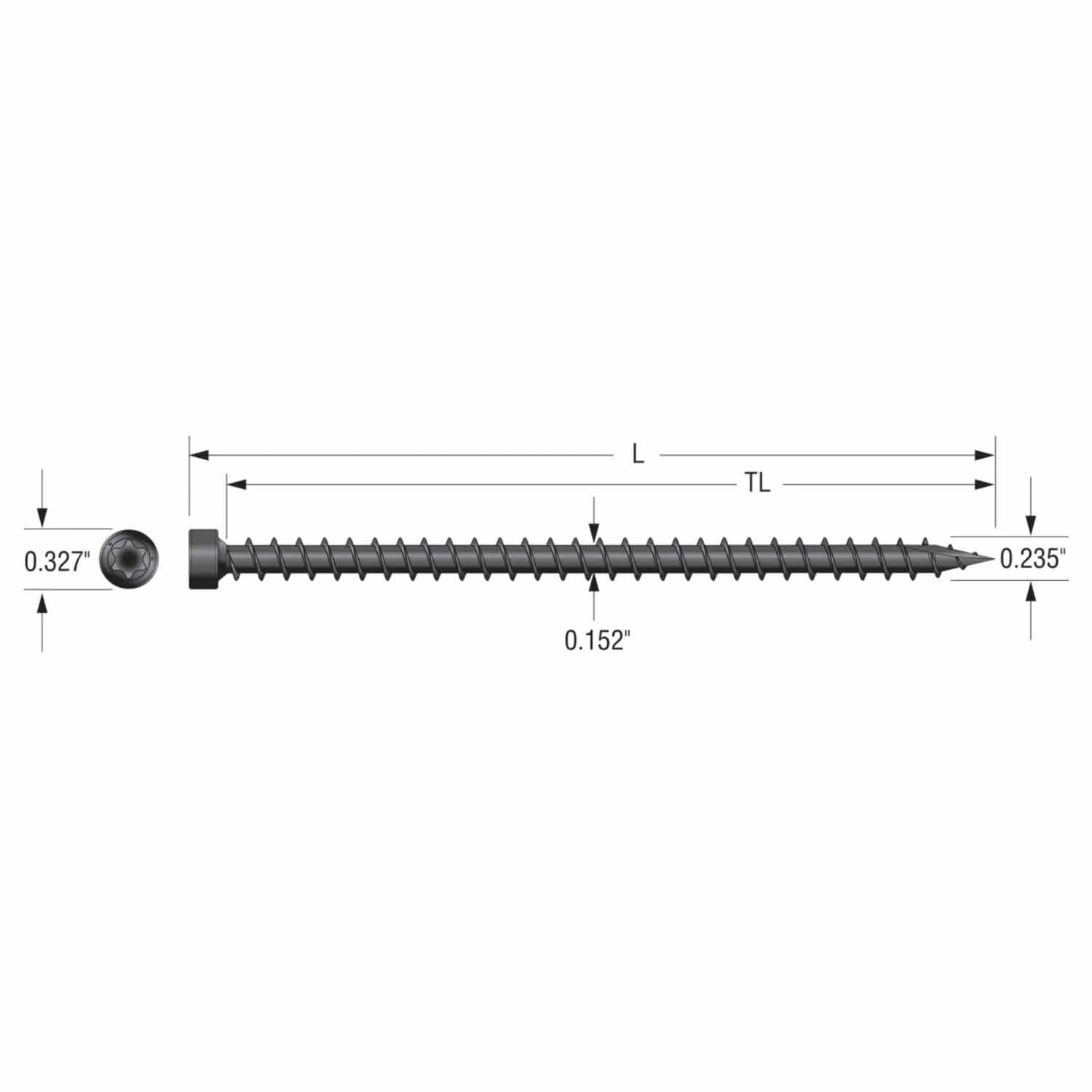

Simpson SDWC15450-KT Specifications
| Diameter | 0.152" |
| Length | 4-1/2" |
| Material | Carbon Steel |
| Drive Type | T30 Star Drive |
| Point Type | Type 17 |
| Thread Length | 4-1/4" |
| Finish | E-Coat |
| Color | Black |
| Packaging Quantity | 50 |
NOTE: Ensure proper installation using the included metal guide tool for optimal performance.
