Simpson Anchors | SKU:
SDWF2720-TUW

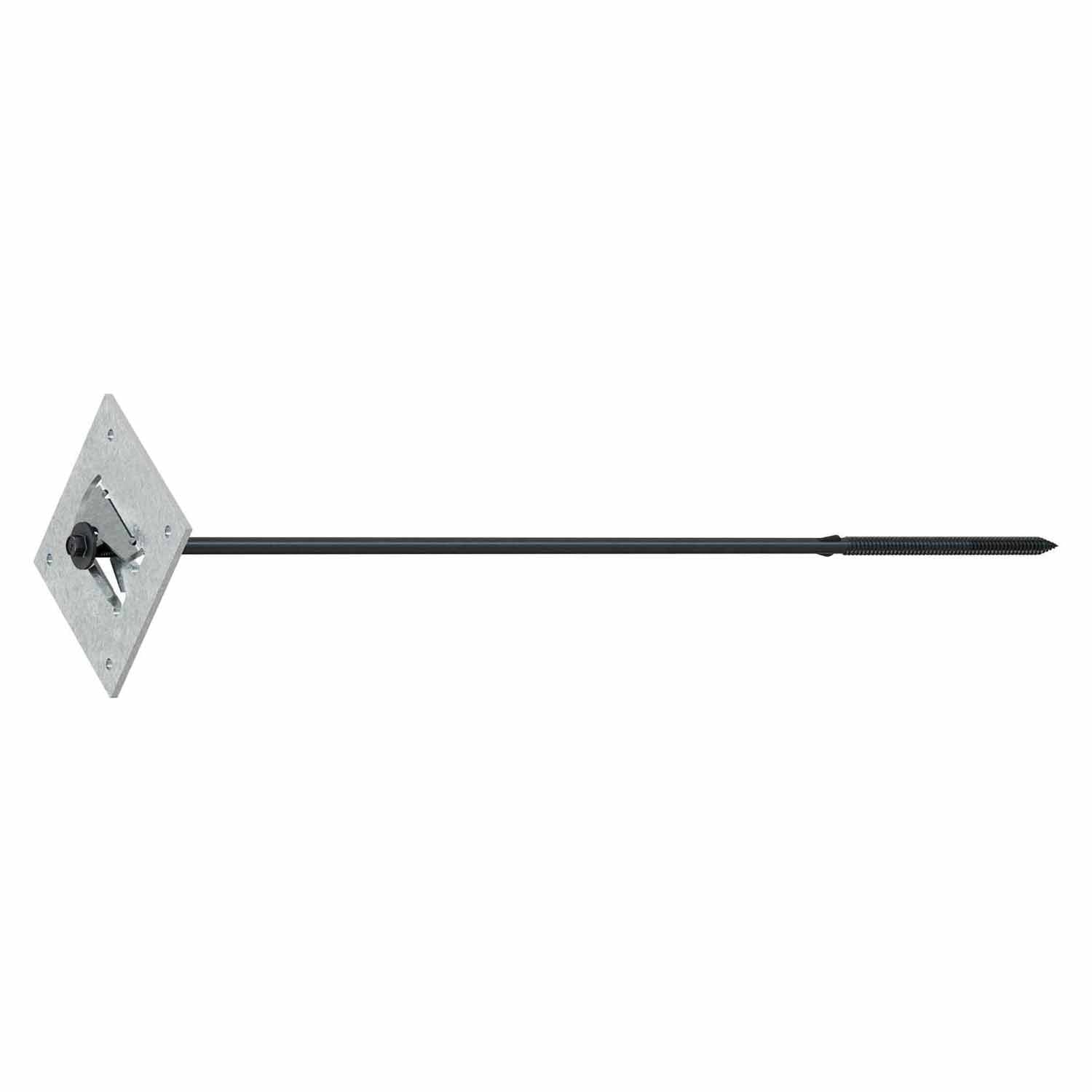

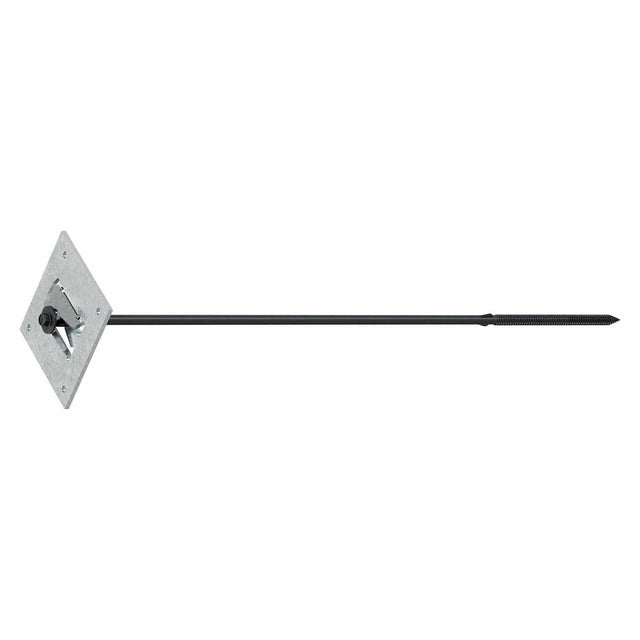

Simpson Strong-Tie SDWF2720-TUW Strong-Drive (0.270" x 20") Floor-to-Floor Screw with E-Coat Finish, Hex Washer Head (25 Pack)
Free Shipping
$278.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWF2720-TUW Description
The Simpson Strong-Tie SDWF Floor-to-Floor Screw Kit simplifies wind-uplift restraint connections, providing a reliable and easy-to-install solution for structural integrity.
Simpson Strong-Tie SDWF2720-TUW Includes
- (25) Strong-Drive SDWF Floor-to-Floor screws
- (25) TUW take-up washers
- (100) Strong-Drive SD Connector screws
- (1) 5/16" hex driver bit
- (1) Screw depth guide
Simpson Strong-Tie SDWF2720-TUW Features
- Faster to install than other floor-to-floor connection methods
- Shrinkage compensation ensures a tight connection even after initial shrinkage and settlement occur
- Installs from inside the structure, eliminating exterior work on upper stories and enhancing job safety
- Fastening can be done before or after exterior sheathing is applied for added flexibility
- One screw length can be used for multiple floor depths
- Qualified for use in engineered wood products
Simpson Strong-Tie SDWF2720-TUW Applications
- Wind-uplift restraint connections
- Floor-to-floor fastening in wood structures

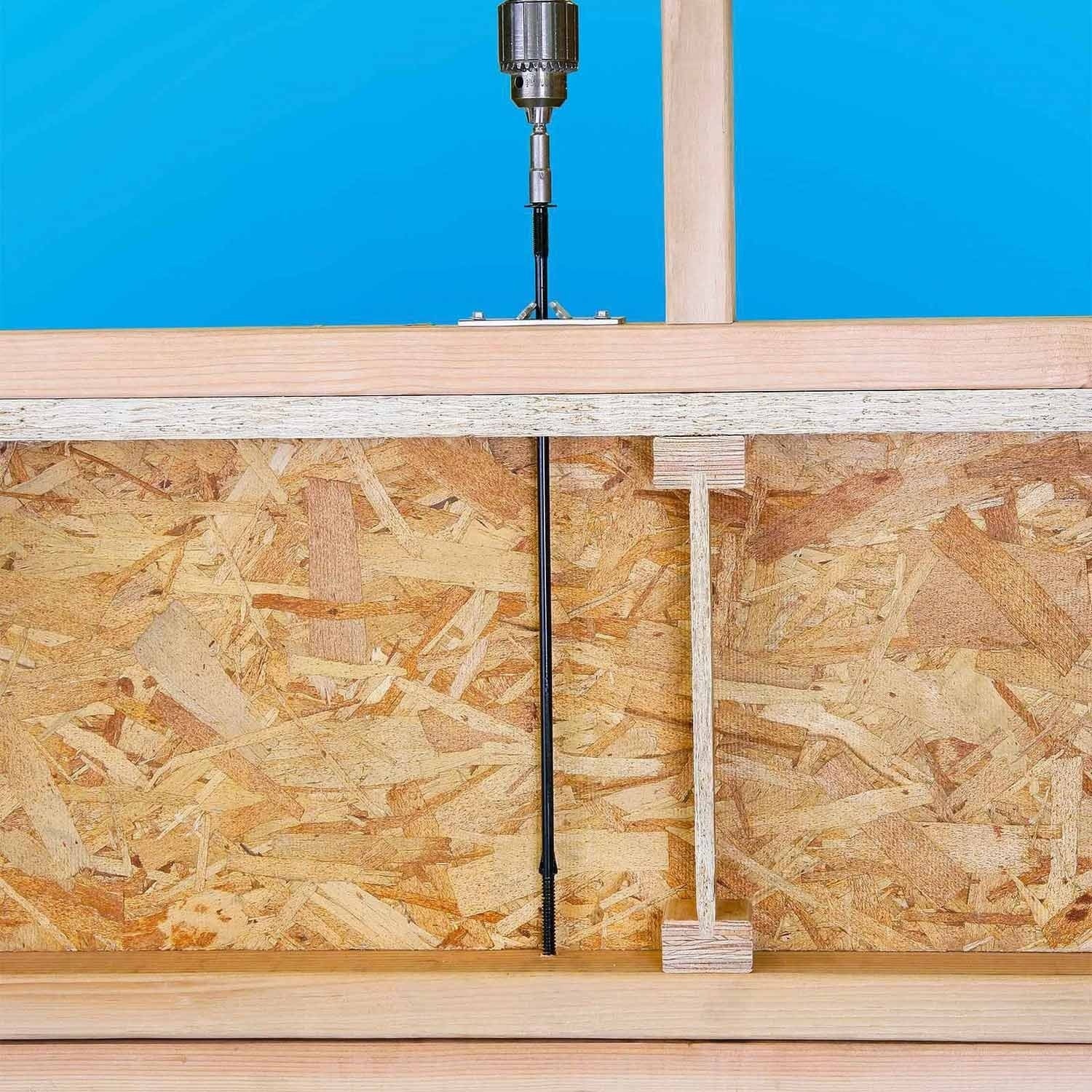

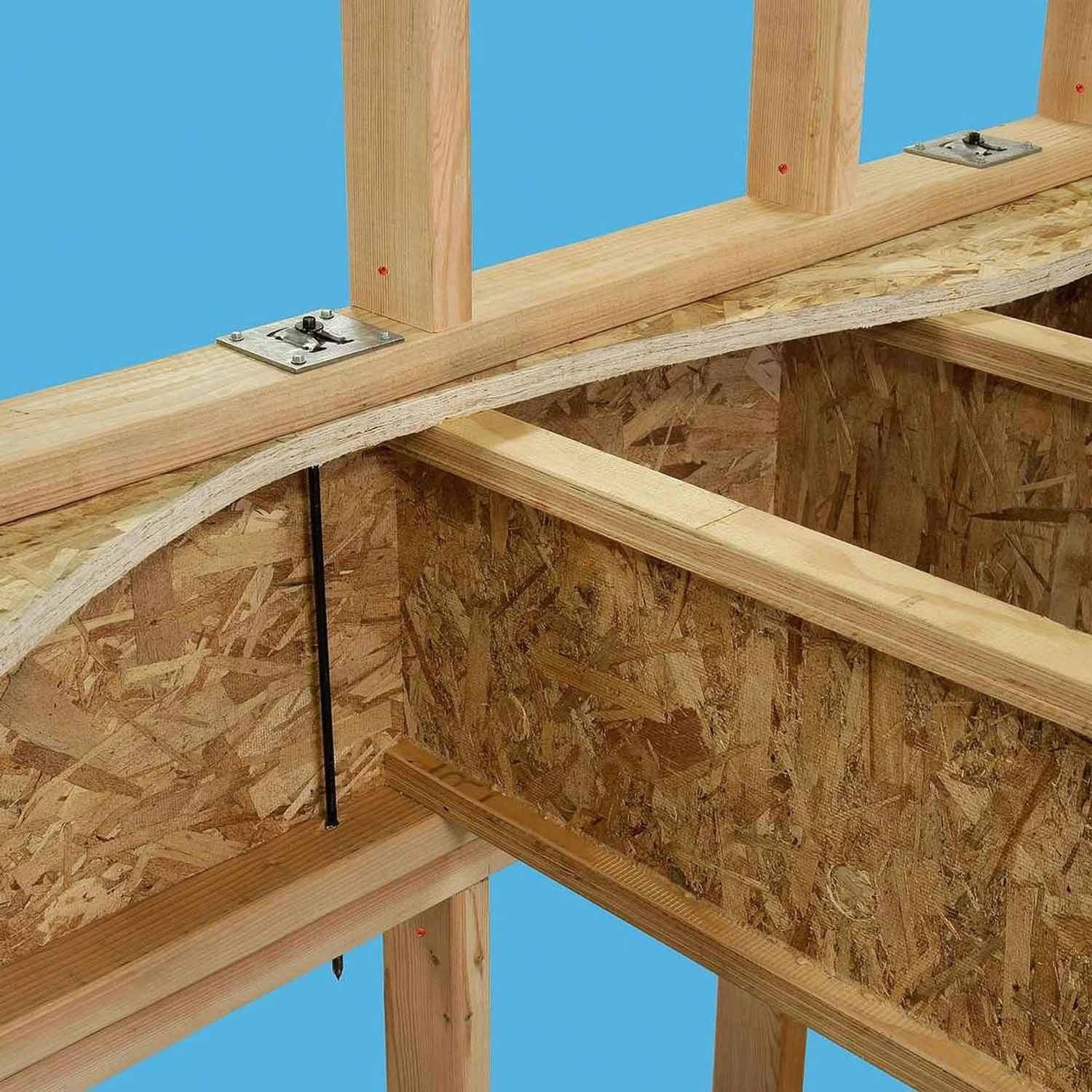

Simpson Strong-Tie SDWF2720-TUW Installation Overview
- Drive the screw into the designated position
- Install the take-up washer securely
- Ensure the connection is made from plate-to-plate
Simpson Strong-Tie SDWF2720-TUW Specifications
| Diameter | 0.270" |
| Finish | E-Coat Electrocoating |
| Length | 20" |
| Material | Carbon Steel |
| Drive type | 5/16" Hex |
| Head type | Hex Washer Head |
| Point type | Type 17 |
| Quantity | 25 |
| Thread type | Variable Threads |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
