Simpson Anchors | SKU:
SDWH19400DB-R12

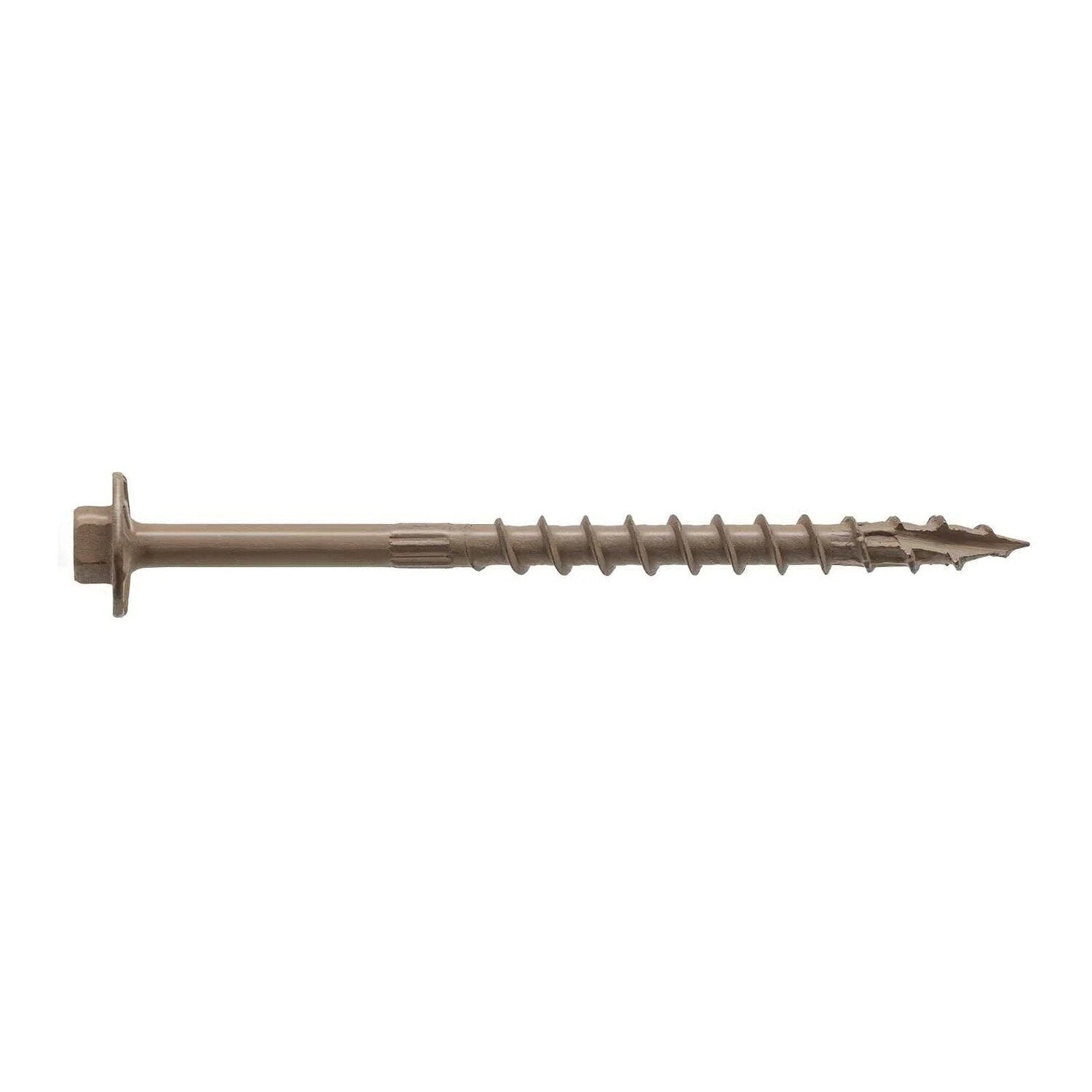

Simpson Strong-Tie SDWH19400DB-R12 Strong-Drive (0.195" x 4" x 5/16" Hex) SDWH Timber-Hex Screw, Double-Barrier Coating (12 Pack)
$11.75
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWH19400DB-R12 Description
Strong-Tie SDWH Timber Screws feature a 4CUT tip which eliminates the need for pre-drilling, saving valuable time compared to using traditional lag bolts.
Simpson Strong-Tie SDWH19400DB-R12 Includes
- (12) Timber Hex Screw
Simpson Strong-Tie SDWH19400DB-R12 Features
- Bold thread design provides superior holding power
- SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- Underhead nibs allow for head to countersink into wood with reduced splintering
- Large washer head provides maximum bearing area (0.650" washer head diameter)
- Size identification on all SDWH screw heads
- 5/16" hex drive (replacement driver bit — BITHEXR516-R1)
- Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization
Simpson Strong-Tie SDWH19400DB-R12 Applications
- Structural wood-to-wood and engineered wood connections including ledgers
Simpson Strong-Tie SDWH19400DB-R12 Specifications
| Diameter | 0.195" |
| Finish | Double Barrier Coating |
| Length | 4" |
| Material | Carbon Steel |
| Drive type | 5/16" Hex |
| Head type | Large Hex Washer Head |
| Point type | Sawtooth Point |
| Quantity | 12 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
