Simpson Anchors  |  SKU: SDWH19400DB-R50  |  Barcode: 746056004608

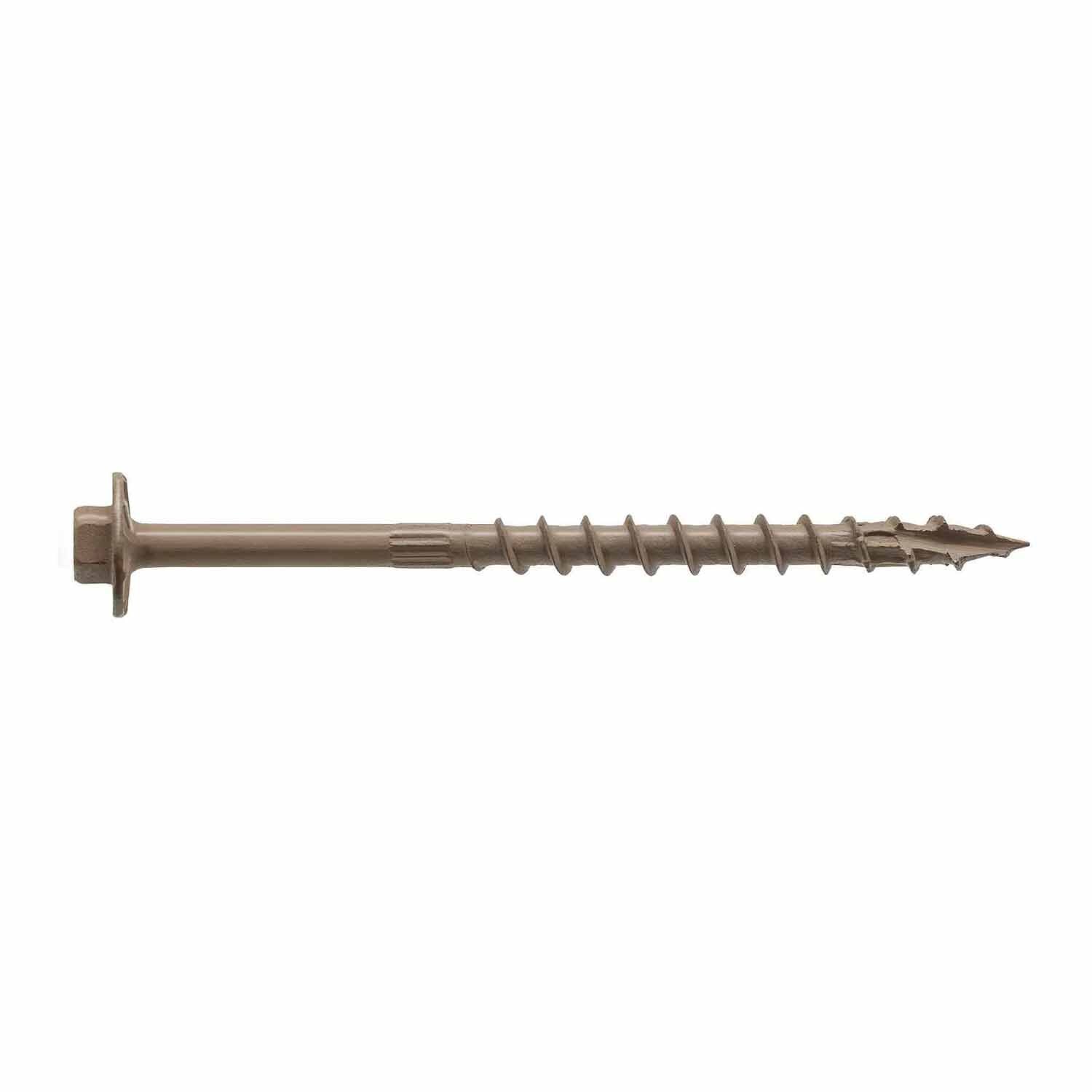

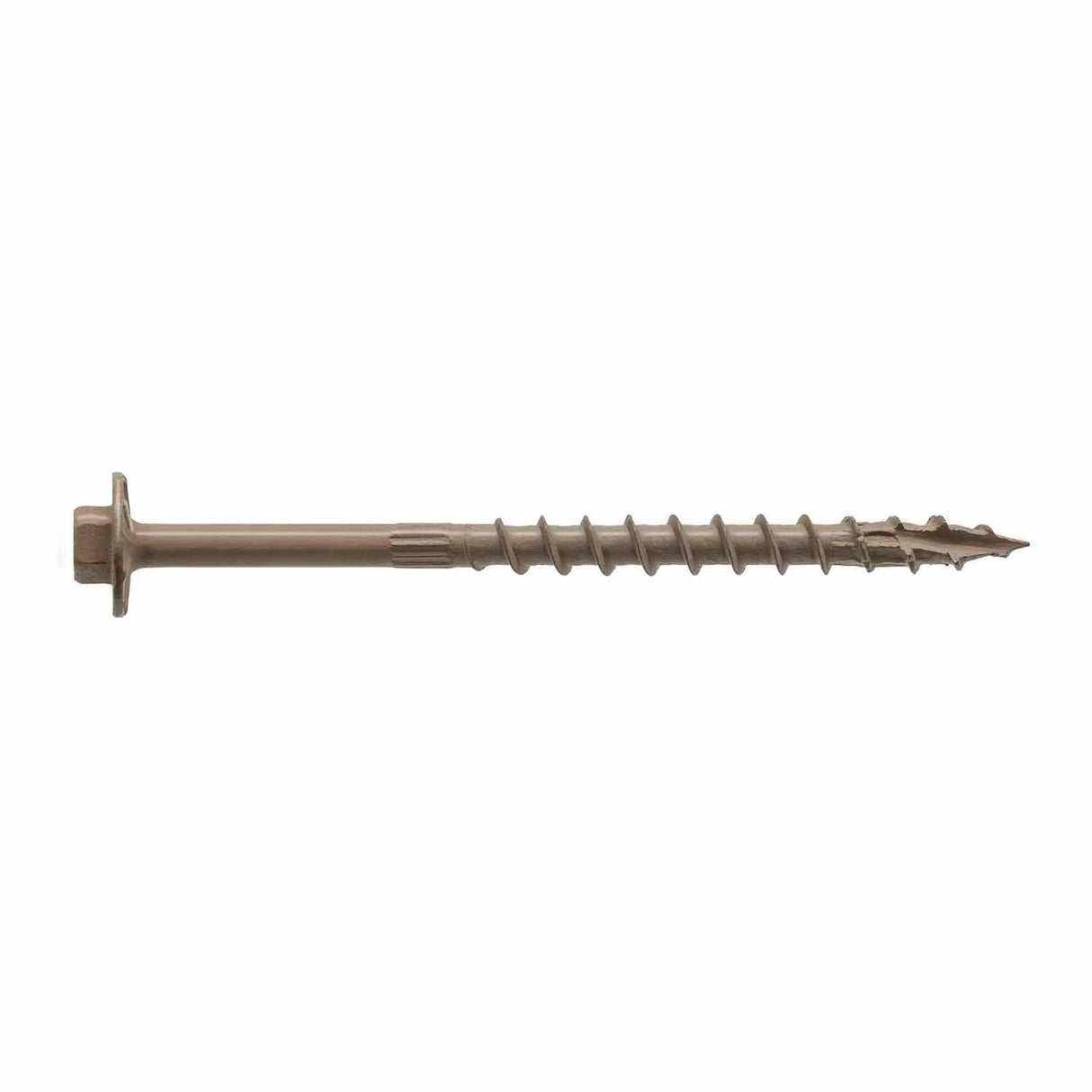

Simpson Strong-Tie SDWH19400DB-R50 Strong-Drive (0.195" x 4" x 5/16" Hex) SDWH Timber-Hex Screw, Double-Barrier Coating (50 Pack)

$25.70

Description

Simpson SDWH19400DB-R50 Description

The Simpson SDWH Timber-Hex Screw features a bold thread design for superior holding power and a double-barrier coating for enhanced corrosion resistance.

Simpson SDWH19400DB-R50 Includes

  • (50) Timber-Hex Screw with Double-Barrier Coating, 4 in. Length

Simpson SDWH19400DB-R50 Features

  • Bold thread design provides superior holding power
  • SawTooth point ensures fast starts and reduces installation torque
  • Underhead nibs allow for head to countersink into wood with reduced splintering
  • Large washer head provides maximum bearing area
  • Size identification on all SDWH screw heads
  • 5/16" hex drive

Simpson SDWH19400DB-R50 Applications

  • Structural wood-to-wood and engineered wood connections including ledgers
  • Exterior wood applications requiring corrosion resistance

Simpson SDWH19400DB-R50 Installation Overview

  1. Verify dimensions and alignment of wood members
  2. Position the screw at the desired location
  3. Drive the screw using a 5/16" hex driver
  4. Ensure full penetration into the main member

Simpson SDWH19400DB-R50 Specifications

Diameter 0.195 in.
Length 4 in.
Material Carbon Steel
Drive Type 5/16 in. Hex
Point Type SawTooth Point
Thread Length 2 3/8 in.
Coating Double-Barrier Coating
Packaging Quantity 50

NOTE: Ensure the screws are installed fully into the main member for optimal performance
