Simpson Anchors | SKU:
SDWH19500SS-R100
Simpson Strong-Tie SDWH19500SS-R100 Strong-Drive (0.185" x 5") SDWH Timber-Hex SS Screw,Type 316 (100 Pack)
Free Shipping
$251.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie SDWH19500SS-R100 Description

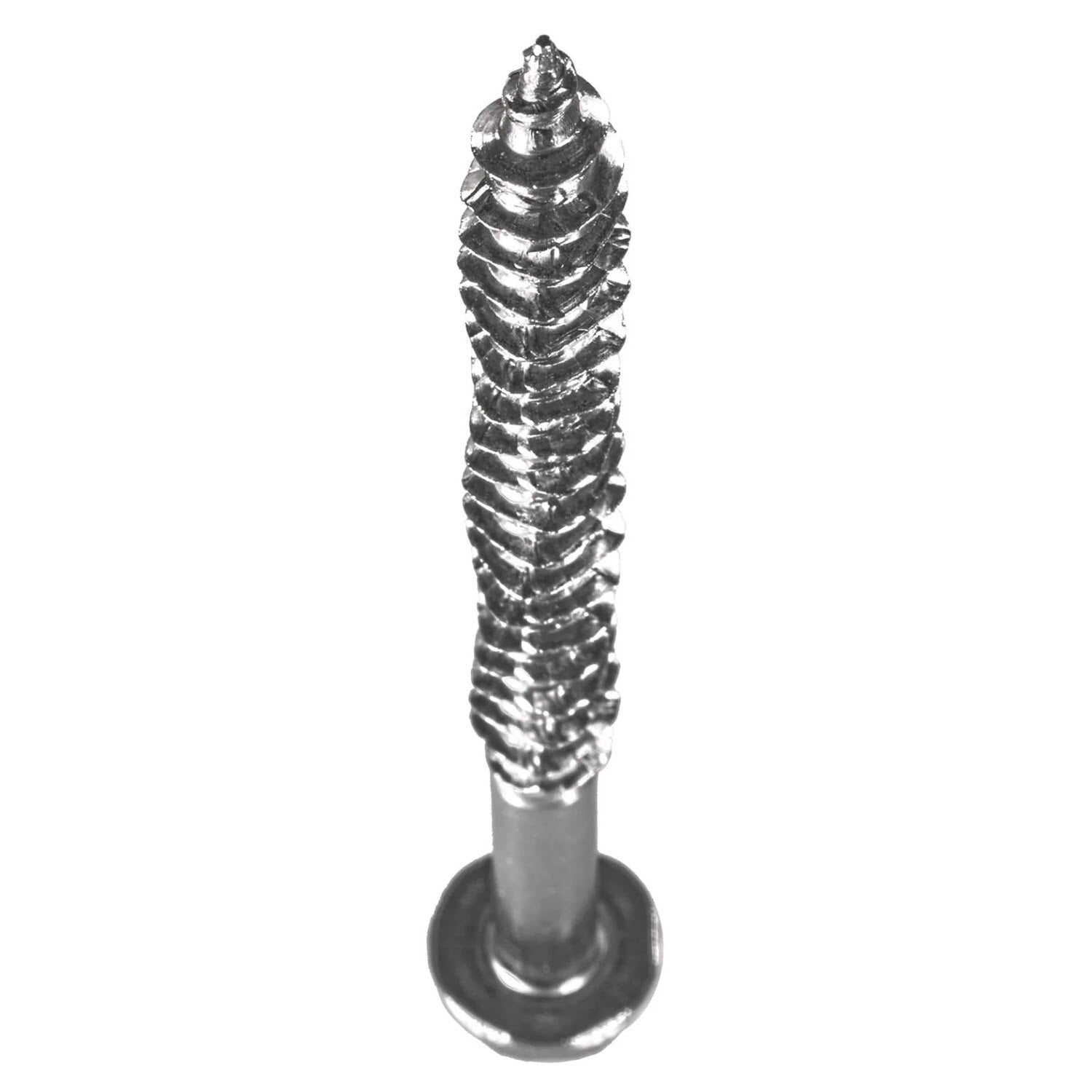

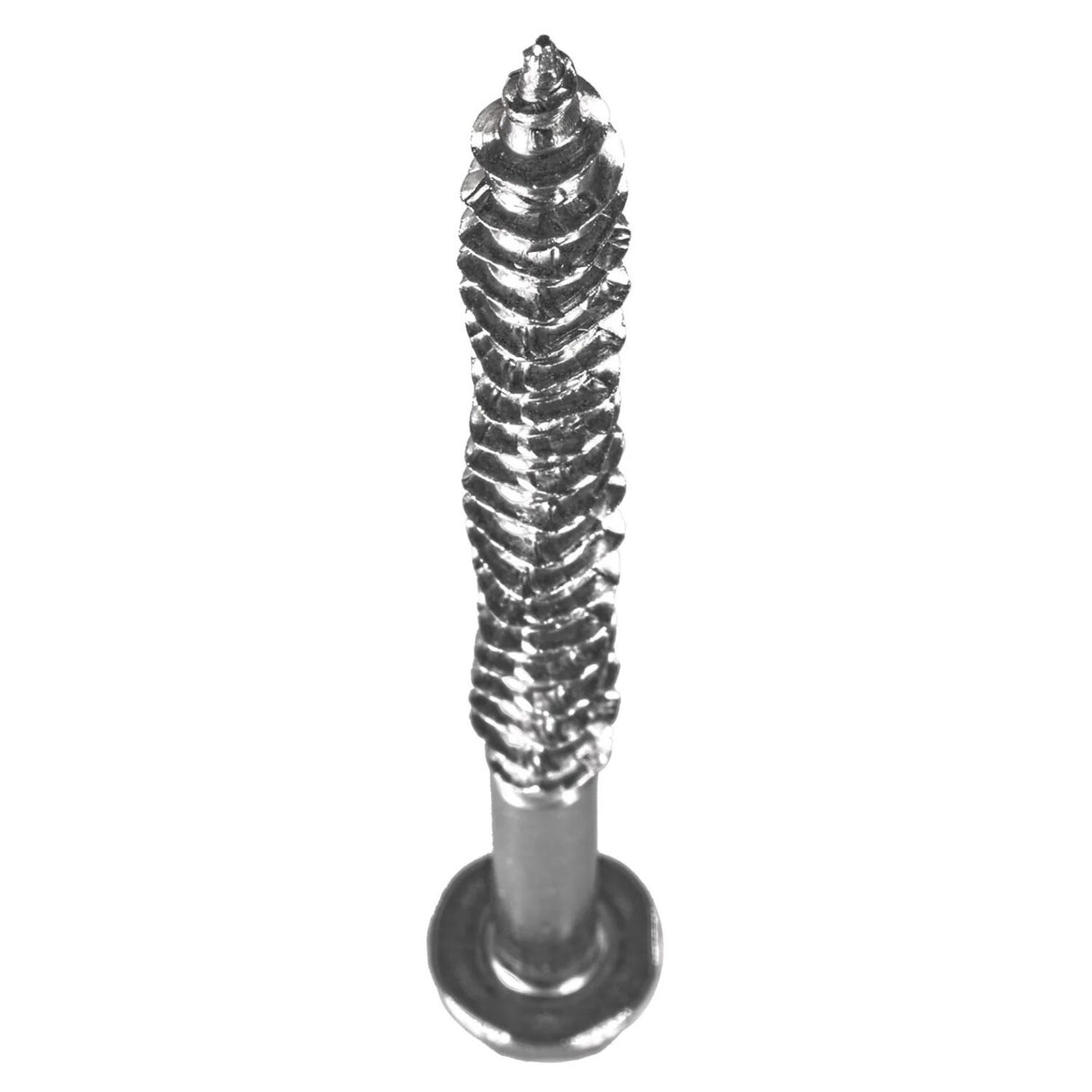

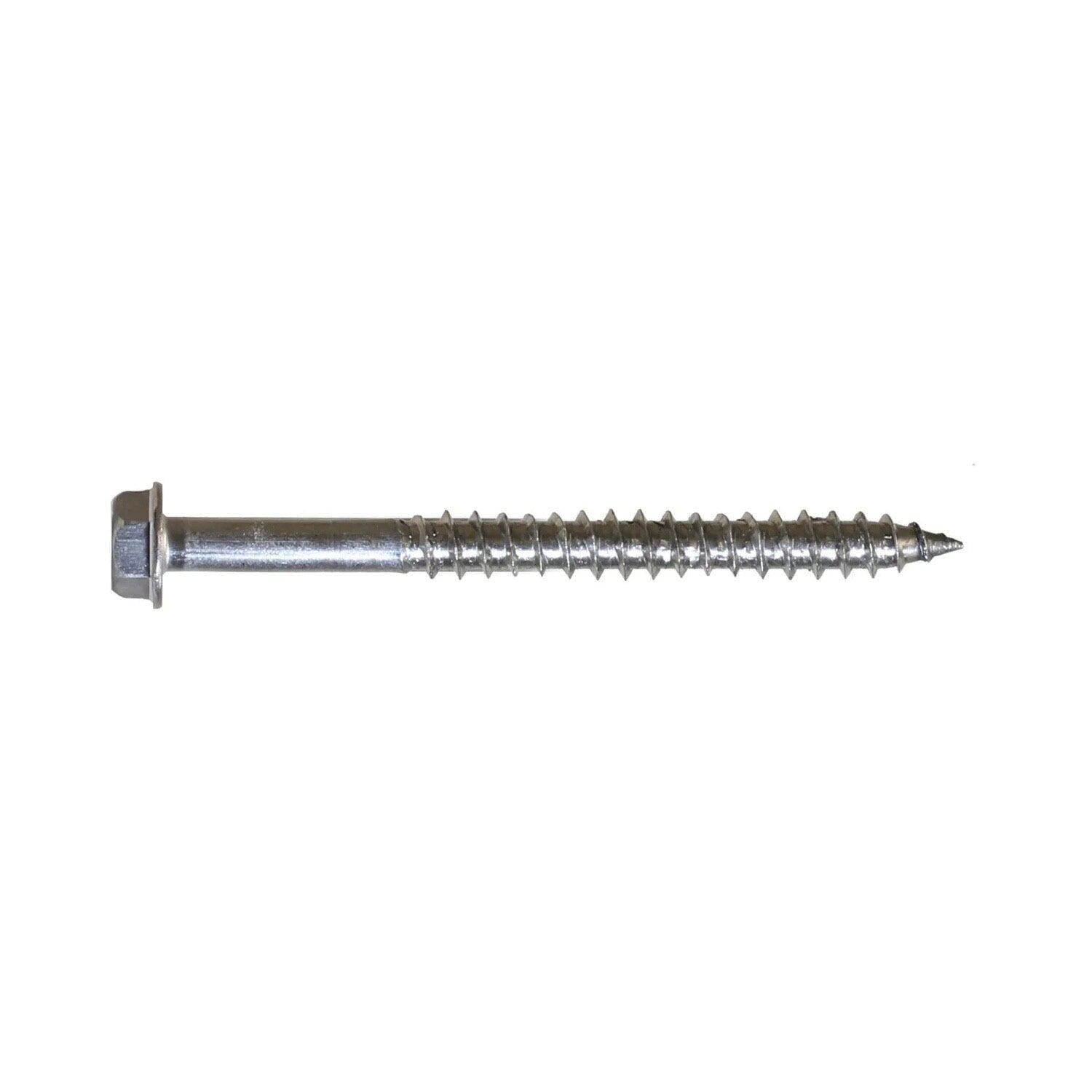

The Simpson Strong-Tie SDWH19500SS-R100 Timber-Hex Screw is a 5-inch, Type 316 stainless steel fastener designed for wood-to-wood connections, offering superior corrosion resistance and ease of installation.
Simpson Strong-Tie SDWH19500SS-R100 Includes
- (100) 5 in. Timber-Hex Screw
- (1) Driver Bit
Simpson Strong-Tie SDWH19500SS-R100 Features
- Type 316 stainless steel for maximum corrosion protection
- No predrilling necessary in most applications
- Driver bit included
- Unique box thread design reduces driving torque
- Hex-washer head provides large bearing area
Simpson Strong-Tie SDWH19500SS-R100 Applications
- Structural wood-to-wood and engineered-wood connections, including ledger
- Ideal for marine or wet environments requiring severe corrosion resistance
Simpson Strong-Tie SDWH19500SS-R100 Installation Overview
- Verify dimensions and alignment of wood members.
- Position the screw and drive using a 5/16 in. hex driver.
- Ensure full penetration into the main member for optimal performance.
Simpson Strong-Tie SDWH19500SS-R100 Specifications
| Length | 5 in. |
| Material | 316 Stainless Steel |
| Drive Type | 5/16 in. Hex |
| Point Type | Sharp |
| Thread Length | 2.40 in. |
| Diameter | 0.185 in. |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
